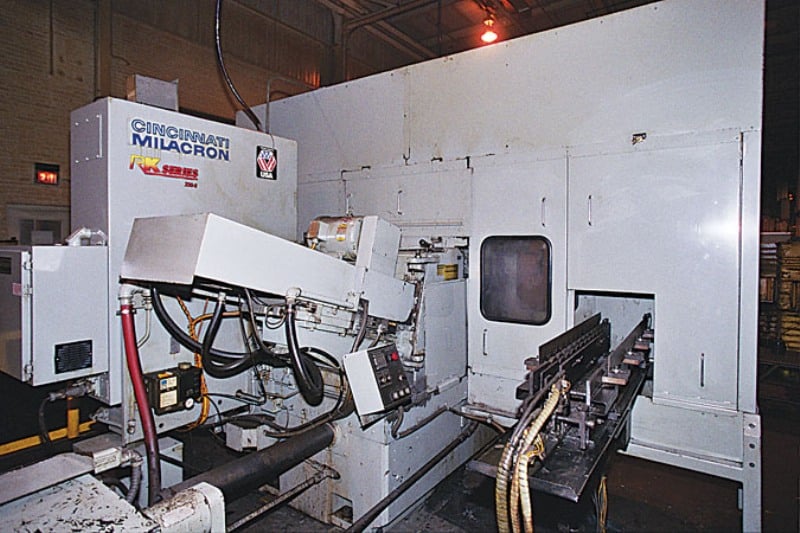

Cincinnati No. 220-8 Mdl. RK, centerless grinder, 4.5" diameter work capacity, 24" diameter x 10" width grinding wheel, 20 HP, 1800 RPM, 1991

#220-8 RK Cincinnati Centerless Grinder, Auto Load & Unload System
Ball Screw Feed Slides, Motion Control (PLC), Tooled For U-Joint Spiders
220-8 RK CINCINNATICENTERLESS GRINDER
S/N 9163A0191-0005 Year: 1991
STANDARD SPECIFICATIONS
Work Capacity
Maximum work piece diameter……………………………… 4.5
Minimum work piece diameter……………………………… 0.060
Grinding Wheel
Maximum new wheel diameter……………………………… 24
Minimum worn wheel diameter……………………………… 17
Maximum wheel width……………………………………… 10
Wheel mounting hole diameter……………………………… 12
Grinding Wheel Speed
Surface speed………………………………………………… 8500 ft/min. @ 1352 RPM
(Maximum diameter wheel)
Optional surface speed……………………………………… 6500 ft/min @1034RPM
(Maximum diameter wheel)
Grinding Wheel Drive Motor
256T Frame – 1800 RPM…………………………………… 20 HP
Drive belts…………………………………………………… 3V850
Grinding Wheel Dresser Crush Form
Cincinnati style.
Diamond roll width 8 wide.
Single barrel.
3 H.P. Drivemotor.
Siemens Servo motor with Heidenhain scale for diamond advance.
Regulating Wheel
Maximum new wheel diameter…………………………………… 14
Minimum worn wheel diameter………………………………… 11
Mounting hold diameter……………………………………………… 6
Maximum width (without cobore)………………………… 8
Maximum width (with cobore)………………………………… 10
Maximum RPM (during dressing)…………………………… 300 RPM
Minimum RPM…………………………………………………… 0 RPM
Surface speed……………………………………………… 0 to 1100 ft/min.
Surface speed……………………………………………… 0 to 335, 4 m/min.
Drive motor (Servo)……………………………… 14 N-m
Drive ratio…………………………………………………… 8.333:1
Regulating wheel housing swivel (work feed angle)………… +8 degrees to -2 degrees
Regulating Wheel Dresser
Traverse drive motor (Servo)…………………………………………. 1.2 N-m
Worm gear reducer ratio……………………………………………… 10:1
Traverse rate (across wheel)………………………………………….. 0 to 50 IPM
Traverse rate (across wheel)………………………………………….. 0 to 1270mm/min.
Maximum traverse distance…………………………………………... 11.02
Maximum profile depth………………………………………………. .63
Diamond holder – single point……………………………………… 0.437Shank Dia.
Diamond compensator
Manual advance dial………………………………………………… 0.0005 Division
Electric solenoid (optional)………………………………………… 0.0005
Dresser swivel……………………………………………………… +8 degrees to -2 degrees
Single Axis Slide Drive
Re-circulating ball screw……………………………………………. 10mm Pitch
Compensator resolution……………………………………………... 0.000004
Positioning rate (maximum)…………………………………………. 125 min.
Infeed
Rapid advance/retract rate………………………………………… 125 min.
Number of feed rates……………………………………………… 3
Maximum feed rate (rough rate)…………………………………… 1 min.
Minimum feed rate (rough rate)…………………………………… .001min.
Maximum feed rate (medium rate)………………………………… 1 min.
Minimum feed rate (medium rate)………………………………… .001min.
Maximum feed rate (fine rate)…………………………………… .1min.
Minimum feed rate (fine rate)……………………………………… .0001min.
Swivel Plate
Swivel to front (measured to adjustor)……………………………….. 0.50
Swivel to rear (measured to adjustor)………………………………… 0.50
Lower Slide
Maximum travel……………………………………………………… 9.05
Slide clamps (2)……………………………………………………… Manual
Upper Slide
Maximum travel……………………………………………………… 5.27
Slide clamps (2)……………………………………………………… Manual
Hydraulic System
Reservoir capacity…………………………………………………… 20 gal.
Oil specification……………………………………………………… CM P-38
Viscosity (S.U.S. @ 100 degrees F)………………………………………… 149 to 182
ISO viscosity grade…………………………………………………… ISO VG 32
Military spec. equivalent.………………………………… MIL-H-46001A Type 1
Pump capacity……………………………………………………… 4.3 gal per min.
Pump motor………………………………………………………… 1.5 HP – 1800 RPM
Frame…………………………………………………… 145TC, Nema C FaceMount
Pressure filter…………………………………………… Throw-Away Type Element
Bypass pressure……………………………………………………… 50 PSI
Schroeder replacement element……………………………………… 8TS3
Main system pressure………………………………………………… 250 PSI
Lubrication System
Reservoir capacity……………………………………………… .5 gal.
Oil specification………………………………………………… CM P-47
Viscosity (S.S.U. @ 100 degrees F)…………………………………… 317 to 389
ISO viscosity grade……………………………………………… ISO VG 68
Military specification equivalent……………………… MIL-L-46017Type 1 Medium
System pressure………………………………………………… 150 PSI
Lubrication cycle frequency…………………………… 15 seconds every 4hours
System type – positive displacement
Distributor points – grinding wheel dresser, regulating wheel dresser
Lubrication oil is also supplied at a constant pressure to the regulating wheel spindle bearings and drive unit by the hydraulic power unit.
Lubrication cycle frequency and points lubricated may vary due to optional/special equipment supplied.
Cutting Fluid System
Standard system…………….…………………………………… Hydrant and Sewer
Optional system…………………….…………………………… Pump and Tank
Tank capacity……………………………………………………. 150 gal.
Pump capacity (flow)……………………………………………. 40 gal. per min.
Pump motor……………………………………………………… 2 HP
Optional filter system……………………………………………. Barnes Drill MPE-25
Machine Weight
220-8 Centerless Grinder…………………………………… 22,102 lbs.
Unit Weights(All weights are approximate)
Base…………………………………………………………… 7,280 lbs.
Wheel head…………………………………………………… 1,575 lbs.
Upper slide…………………………………………………… 875 lbs.
Lower slide…………………………………………………… 1,038 lbs.
Swivel plate…………………………………………………… 1,780 lbs.
Regulating wheel housing……………………………………… 627 lbs.
Regulating wheel drive unit w/o motor………………………… 158 lbs.
Regulating wheel drive motor………………………………… 128 lbs.
Regulating wheel truing assembly……………………………… 900 lbs.
Regulating wheel housing w/motor…………………………… 975 lbs.
Grinding wheel truing assembly……………………………… 655 lbs.
Regulating wheel housing w/motor…………………………… 1,050 lbs.
Coolant tank – full (150 gal.)…………………………………… 1,600 lbs.
Coolant tank – empty…………………………………………… 300 lbs.
Tank – full (118 gal.)…………………………………………… 1,390 lbs.
Tank – empty…………………………………………………… 400 lbs.
Unit Weights(All weights are approximate) (continued)
Wheel guard……………………………………………………… 440 lbs.
Wheel guard door……………………………………………… 130 lbs.
Single axis slide drive w/ball screw……………………………… 640 lbs.
Hydraulic tank assy. (empty)…………………………………… 565 lbs.
Drive box w/o motor…………………………………………… 158 lbs.
Drive box motor………………………………………………… 128 lbs.
