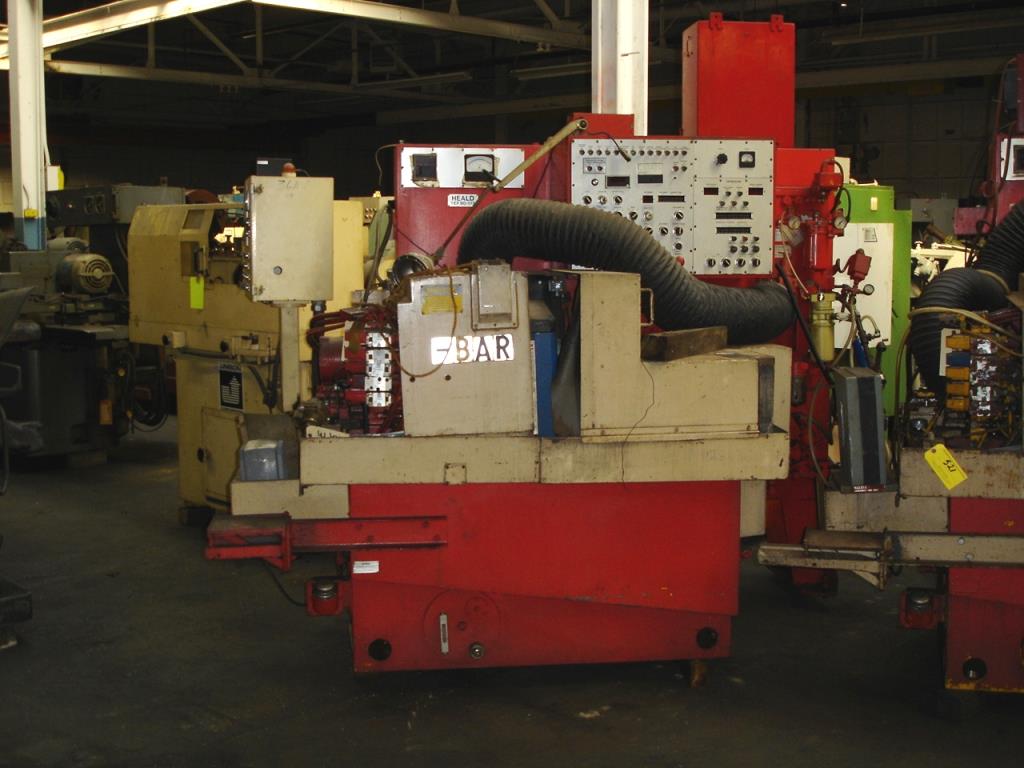

Cincinnati #1EF-90, internal grinder, 57" overall height, 3" O.D. x 1.5" L work capacity, 7" table travel, 1983

1983 CINCINNATI 1EF-90 Internal Grinder, 7" capacity, 1.5" max grinding bore, 0.5" stroke, 7" table travel. Includes features like dresser, loading chutes, and magnetic drive head.
1EF-90 CINCINNATI HEALD
S/N 49730 Year: 1983
STANDARD SPECIFICATIONS
Overall height……………………………………………………… 57"
Floor space (w/o coolant tank)…………………………………….. 60" long
……………………………………... 69" wide
Floor space (with coolant tank)……………………………………. 90" long
…………………………………….. 73" wide
Net weight of machine (approximately)…………………………… 6,500 lbs.
Gross weight of machine crated (approximately)…………………. 7,200 lbs.
Gross weight of machine boxed (approximately)…………………. 7,700 lbs.
SPEEDS AND FEEDS
Total table travel…………………………………………………… 7"
Standard table oscillator stroke (maximum)……………………….. .25"
Optional stroke (maximum)……………………………………….. .50"
Rate feed stroke (on diameter)…………………………………….. .0999"
Wheel wear compensation (on diameter)………………………….. .0001"
Wheel wear maximum (on diameter)……………………………… .999"
MACHINE CAPACITIES
Maximum outside diameter of work……………………………….. 3"
Minimum outside diameter of work……………………………….. 3/8"
Maximum length of work………………………………………….. 1 1/2"
Minimum bore size of work
Maximum swivel of work
Depends on work piece configuration
FEATURES
Dresser.
Loading chutes.
Magnetic drive head.
Specifications are deemed accurate, however, subject to verification or prior sale.
