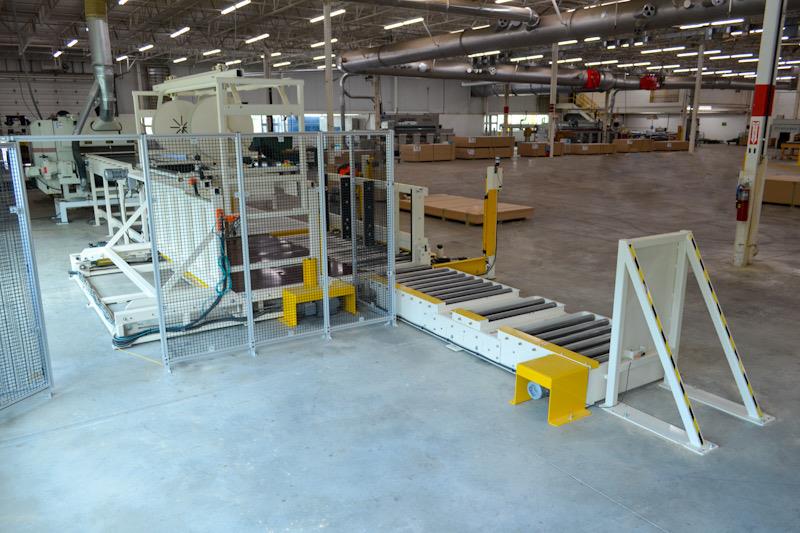

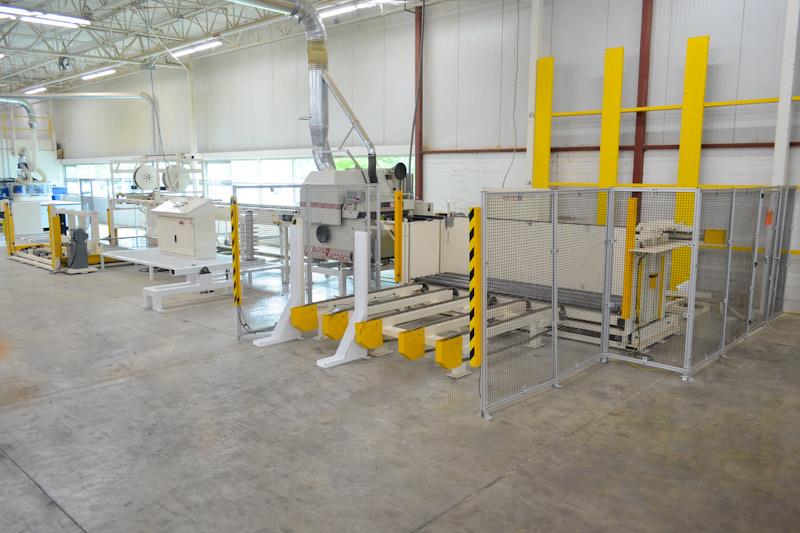

Choice Machinery Group #C12XX, Rip Saw Material Handling System, 24"-27" width x 36"-109" L x 0.5"-1.13" thick Panel Size, 2022

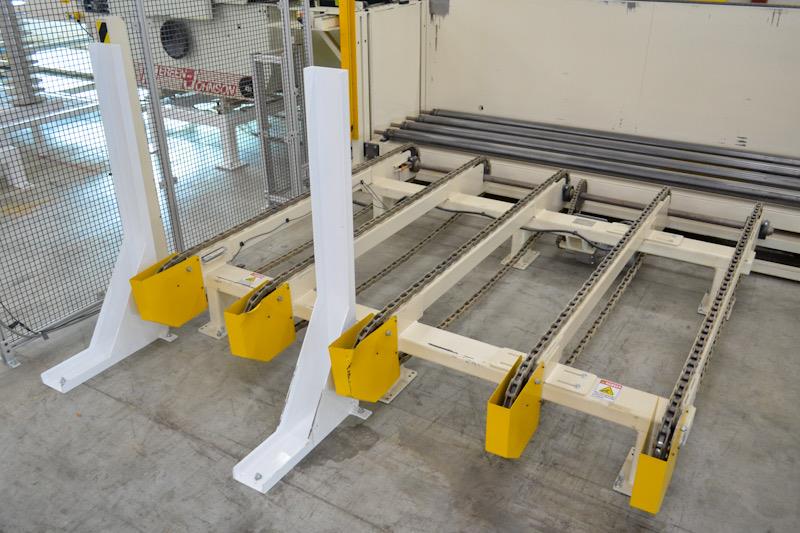

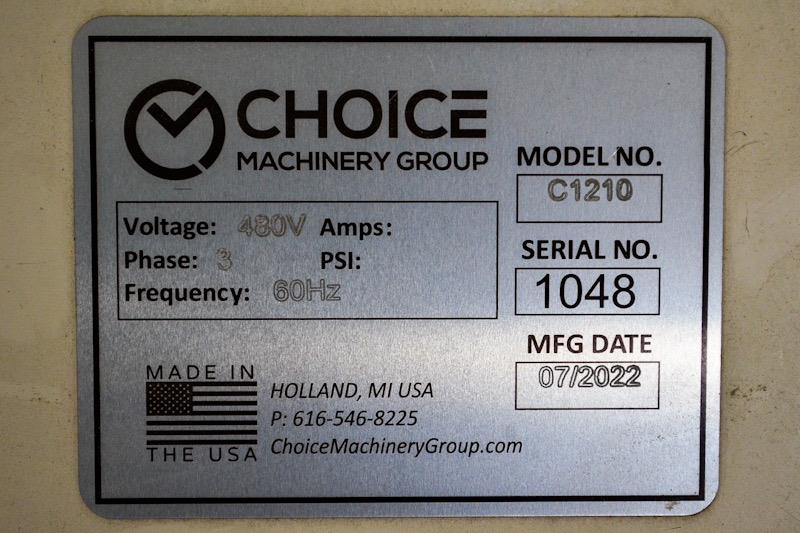

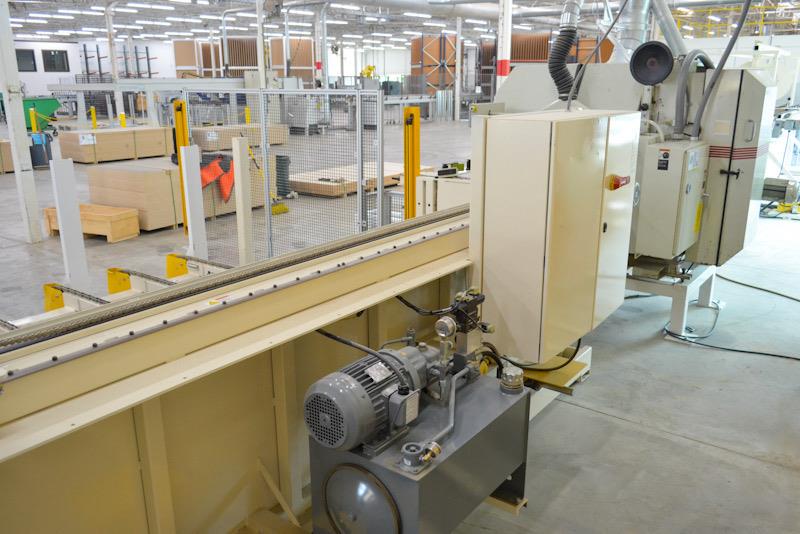

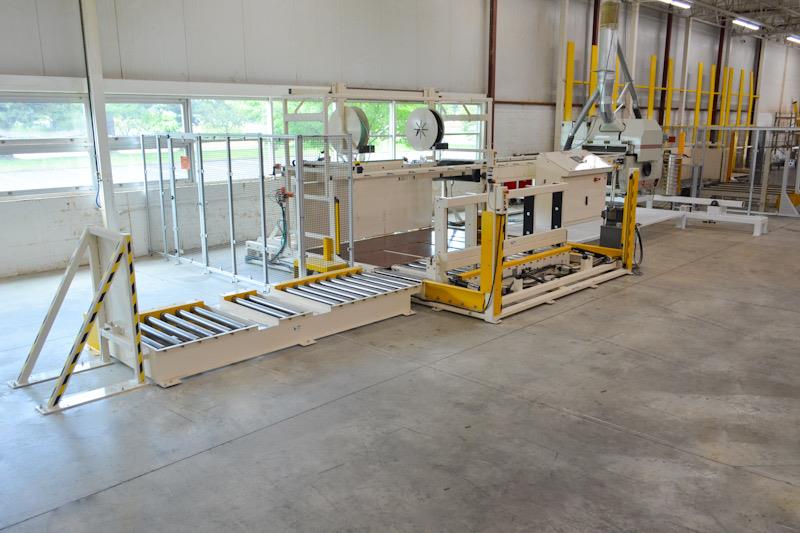

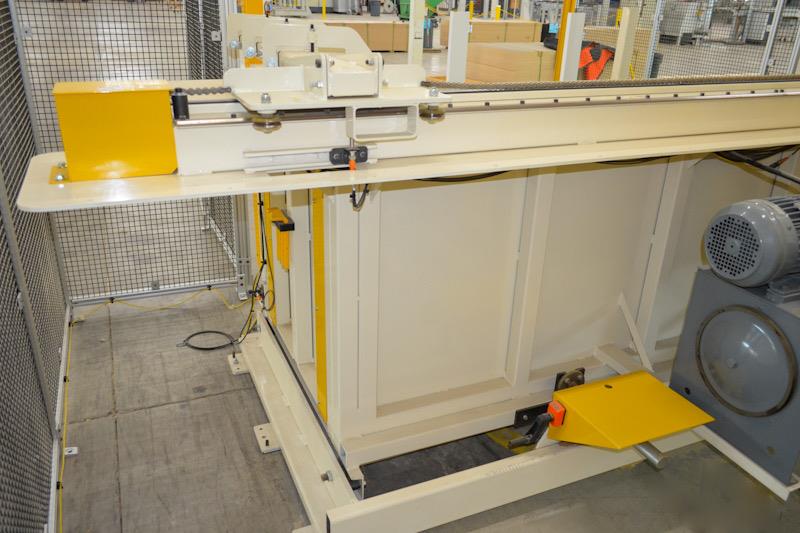

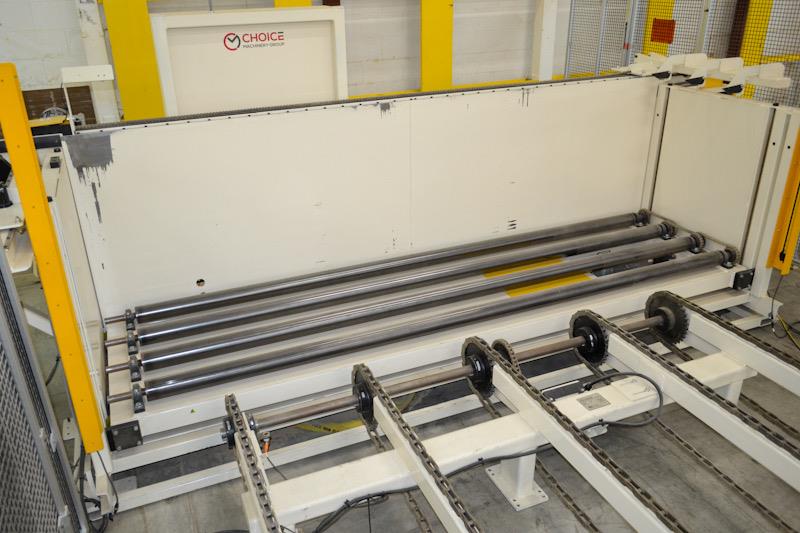

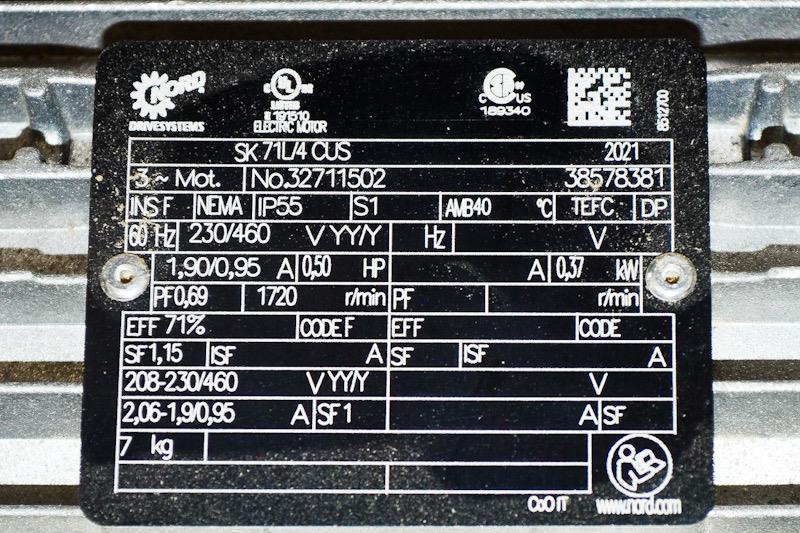

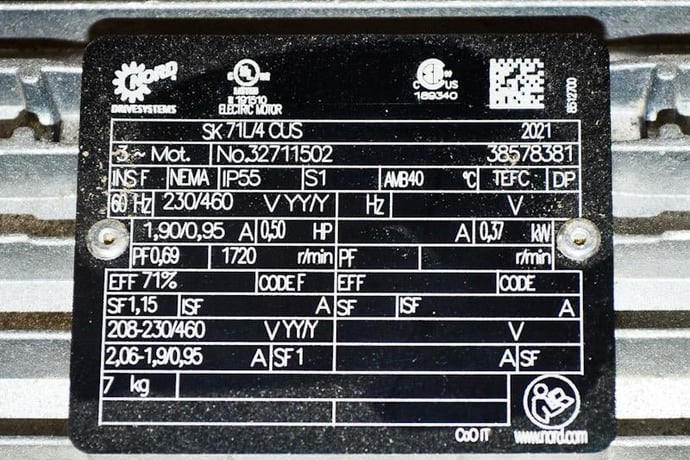

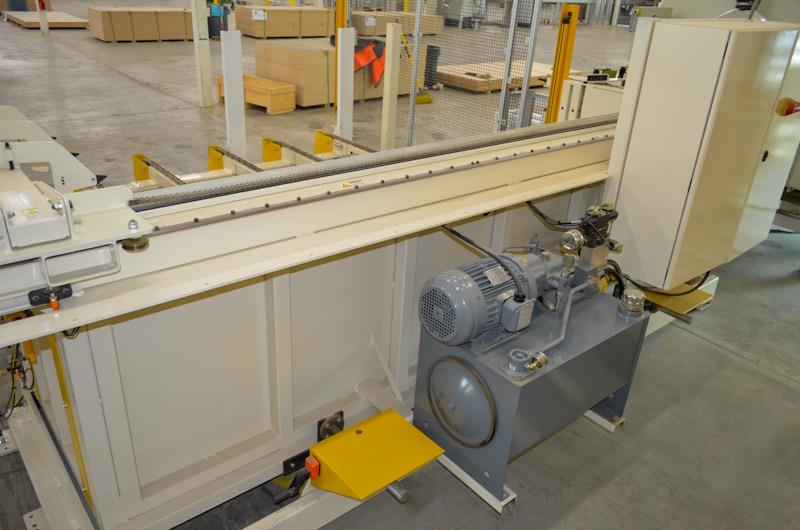

CHOICE MACHINERY GROUP - C1210 - C1260: Rip Saw Material Handling SystemOverall Specifications -- Panel width: 24" - 27". -- Panel length: 36" - 109". -- Panel thickness: 1/2" - 1-1/8".Consists of the following machines: -- C1210: 7-1/2’ W x 7’ L x 18-1/2"; H; 5-Chain Transfer Deck Conveyor; s/n 1048 with: Distance between chains (left-to-right): 22";; 22";; 21"; - 24";; 16"; - 19";; 1/2 HP - 1,720 RPM TEFC Motor; (2) 6"; W x 55"; H Back stops. -- C1220: 31" Capacity Automatic Unstacker/Panel Feeder; s/n 1049; Unstacker platform with: Raised height: 52"; lowered height: 18"; (4) 125"; L x 3-3/4"; dia. motorized rollers on: 9-1/2" Centers; safety light curtain; 5 HP Hydraulic unit; automatic panel feeder with: Chain driven pusher; 3/4 HP - 1,710 RPM TEFC Motor. -- C1230: Motorized Belt Conveyor. S/N: 1050; 3/4 HP - 1,710 RPM TEFC Motor. -- C1240: Dual Reel Automatic Strapper/Stacker. S/N: 1051; SOUTHWORTH 4,000 Lbs Cap. electric/hydraulic scissor lift platform with: 3.3 HP Hydraulic unit; safety light curtain. -- C1250: Tilt Unit. S/N: 1052; 5 HP Hydraulic unit; motorized rollers; 1/2 HP - 1,720 RPM TEFC Motor. -- C1260: Motorized Roller Conveyor. S/N: 1053; End stop. -- C12XX: Control Console. S/N 1054; SCHNEIDER "MAGELIS" Touchscreen control; operating manual; steel bar grating operator platform.NOTE: Material Handling System is part of a "complete" MEREEN-JOHNSON/CHOICE MACHINERY GROUP "431-DC-1/C1210 - C1260" Gang Rip Saw Line (listing #RG-011701) but can be sold separately. A video can be found in Listing #RG-011701.
