For Sale by Harris Machine Tools, Inc.
Surplus Record Dealer Since 1986
Location: Houston, TX
Contact Sales Dept.
Phone Number: 713...> Show Phone Number 713-462-5800
Let the seller know you found their listing on Surplus Record!
Description

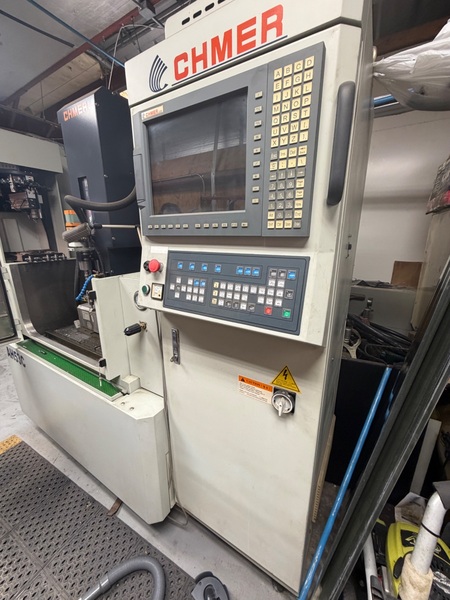

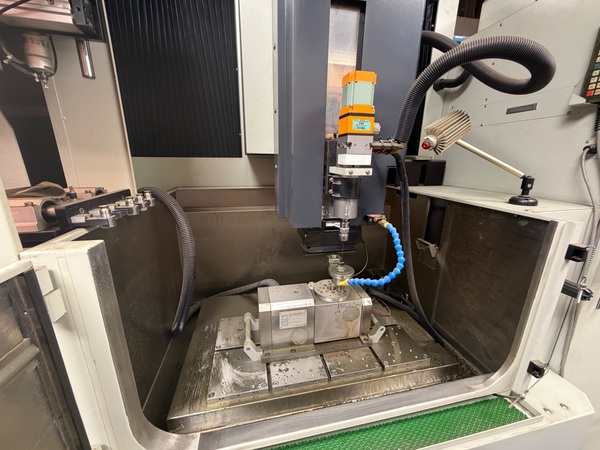

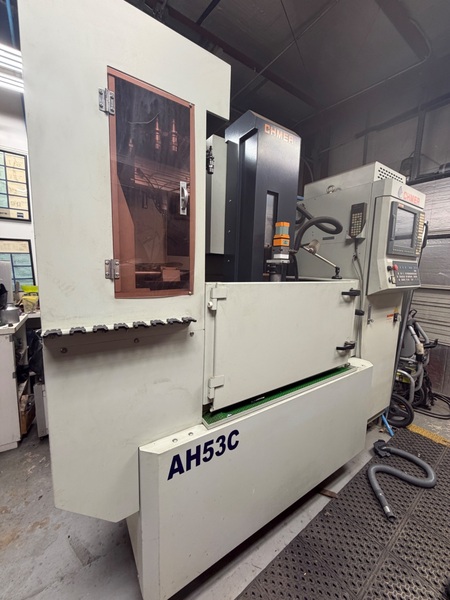

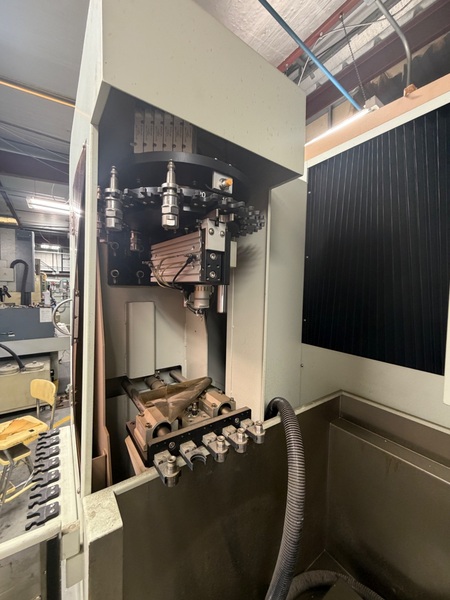

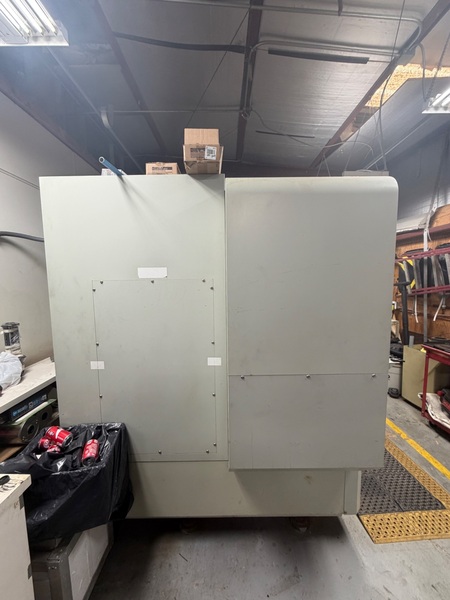

2012 CHMER AH53C
SPECIFICATIONS:
Hole-Dia. (Min)... 0.2 mm
Hole-Dia. (Max)... 3 mm
Work-W............ 310 mm
Work-L............ 630 mm
X................. 500 mm
Y................. 300 mm
Z................. 340 mm
SPECIFICATIONS:
Hole-Dia. (Min)... 0.2 mm
Hole-Dia. (Max)... 3 mm
Work-W............ 310 mm
Work-L............ 630 mm
X................. 500 mm
Y................. 300 mm
Z................. 340 mm
Get Your Price from Harris Machine Tools, Inc.!
