Description

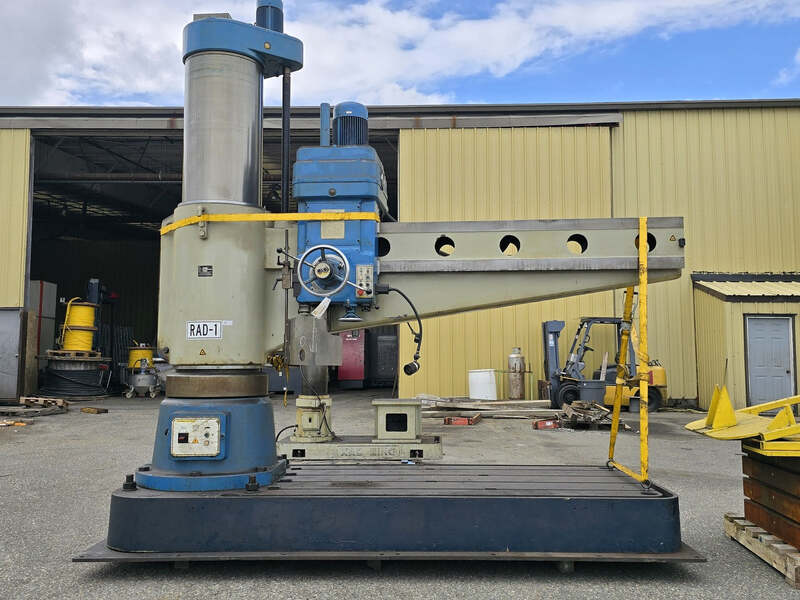

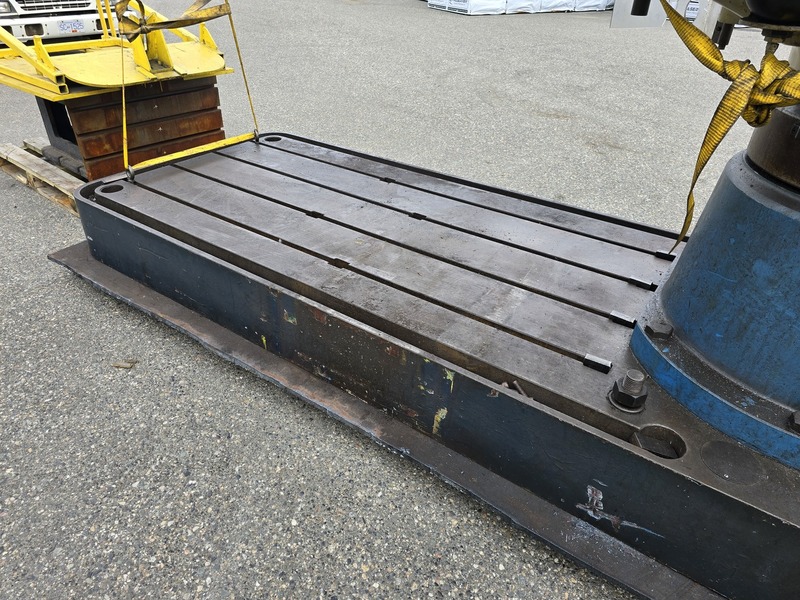

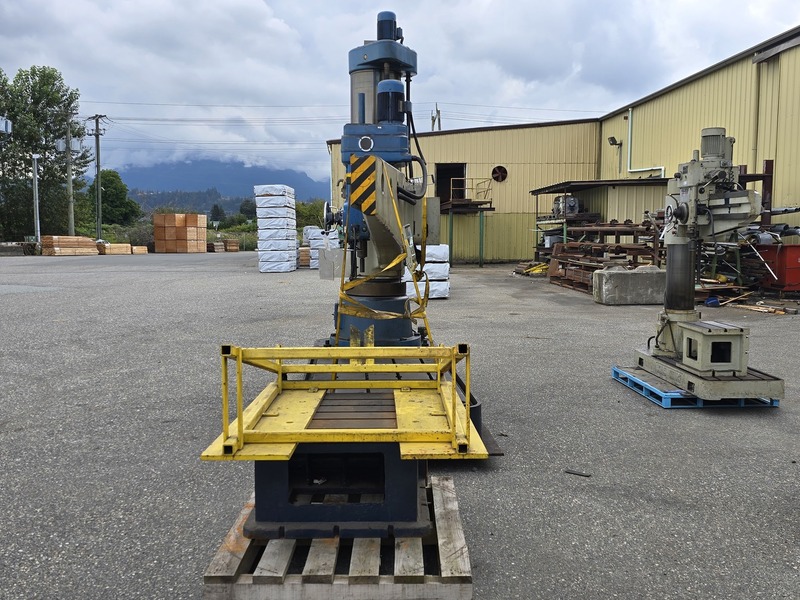

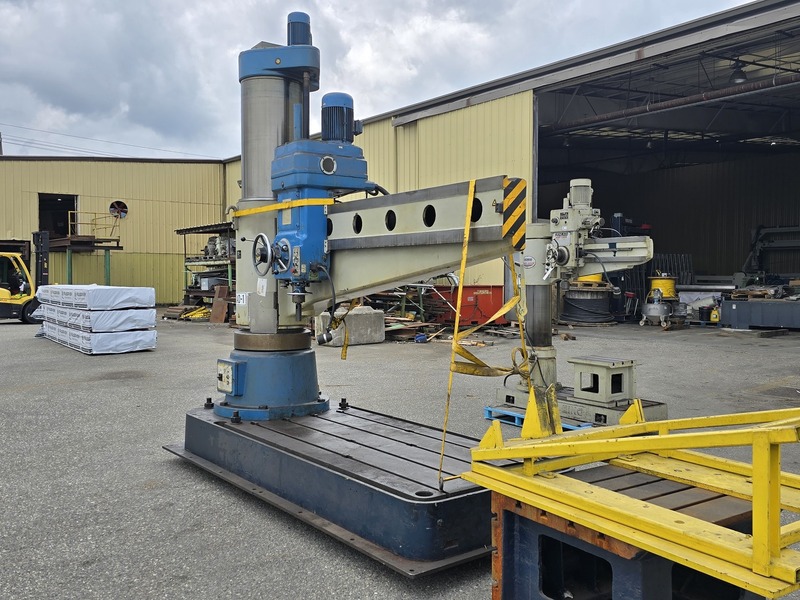

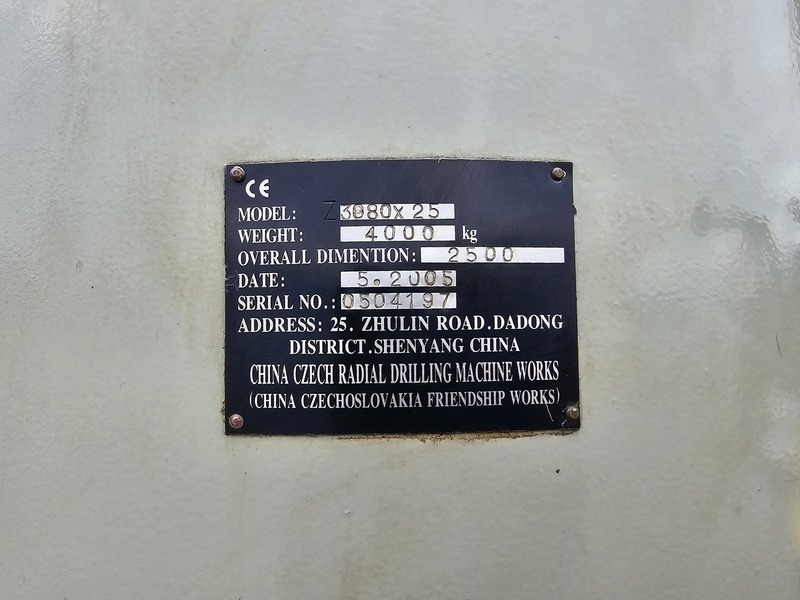

SKU: 124488 Model: Z3080x25 Year: 2005 Condition: Used S/N: 0504197 General Specifications: Type: Radial Arm Drill Electrical Specifications: Horsepower: 10 hp Voltage: 600 volts Phase: 3-phase Dimensions: 154.00 (H) x 64.00 (W) x 144.00 (L) inches Additional Description: Max Drilling capacity: 80mm // 3.15 in. Distance spindle axis to column generating line: 500-2500 mm // 19.68 - 98.43 in. Diameter of column: 550 mm // 21.65 in. Spindle travel: 450 mm // 17.72 in. Spindle speeds range: 16-1250 r/min Range of spindle feeds: 0.04-3.2 mm/r Spindle feeds steps: 16 Distance between spindle nose to working surface of base: 550-2000 mm // 21.65 - 78.74 in. Dimension or work table: 1000x800x560 mm // 39.37 x 31.50 x 22 in. Dimension of base: 3530x1400x300 // 139 x 55.12 x 11.81 in.
THE JAMES ARCHDALE & CO. LTD. RADIAL ARM DRILLING MACHINE IS AN INDUSTRIAL-GRADE MACHINE TOOL DESIGNED FOR PRECISION DRILLING AND METALWORKING. THIS SPECIFIC UNIT OPERATES ON A 550 V, THREE-PHASE ELECTRICAL SYSTEM AT A FREQUENCY OF 60 HZ, POWERED BY A 5.2 HP MOTOR. THE MACHINE S A CENTRALIZED CONTROL SYSTEM WITH A ...more
