Description

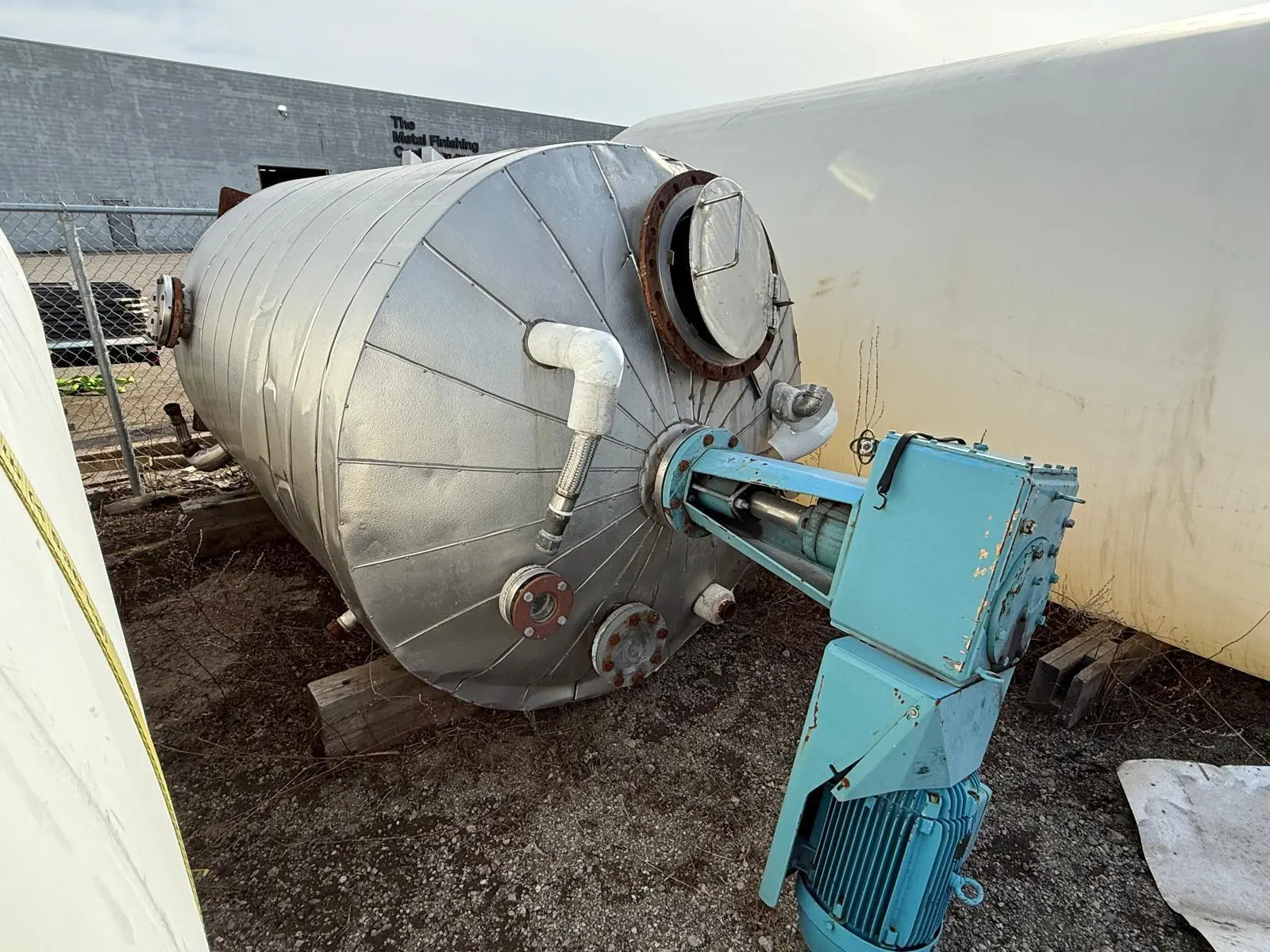

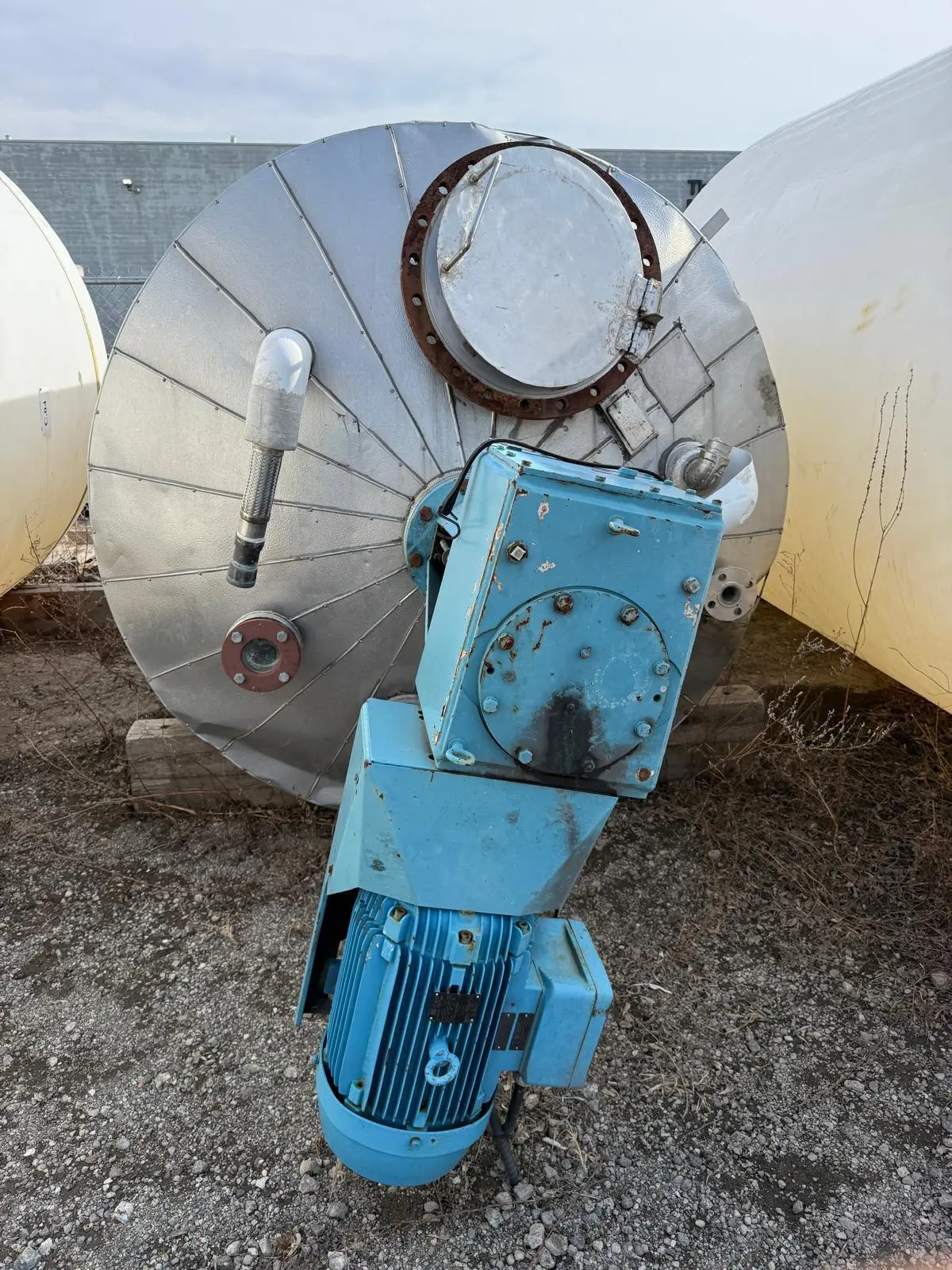

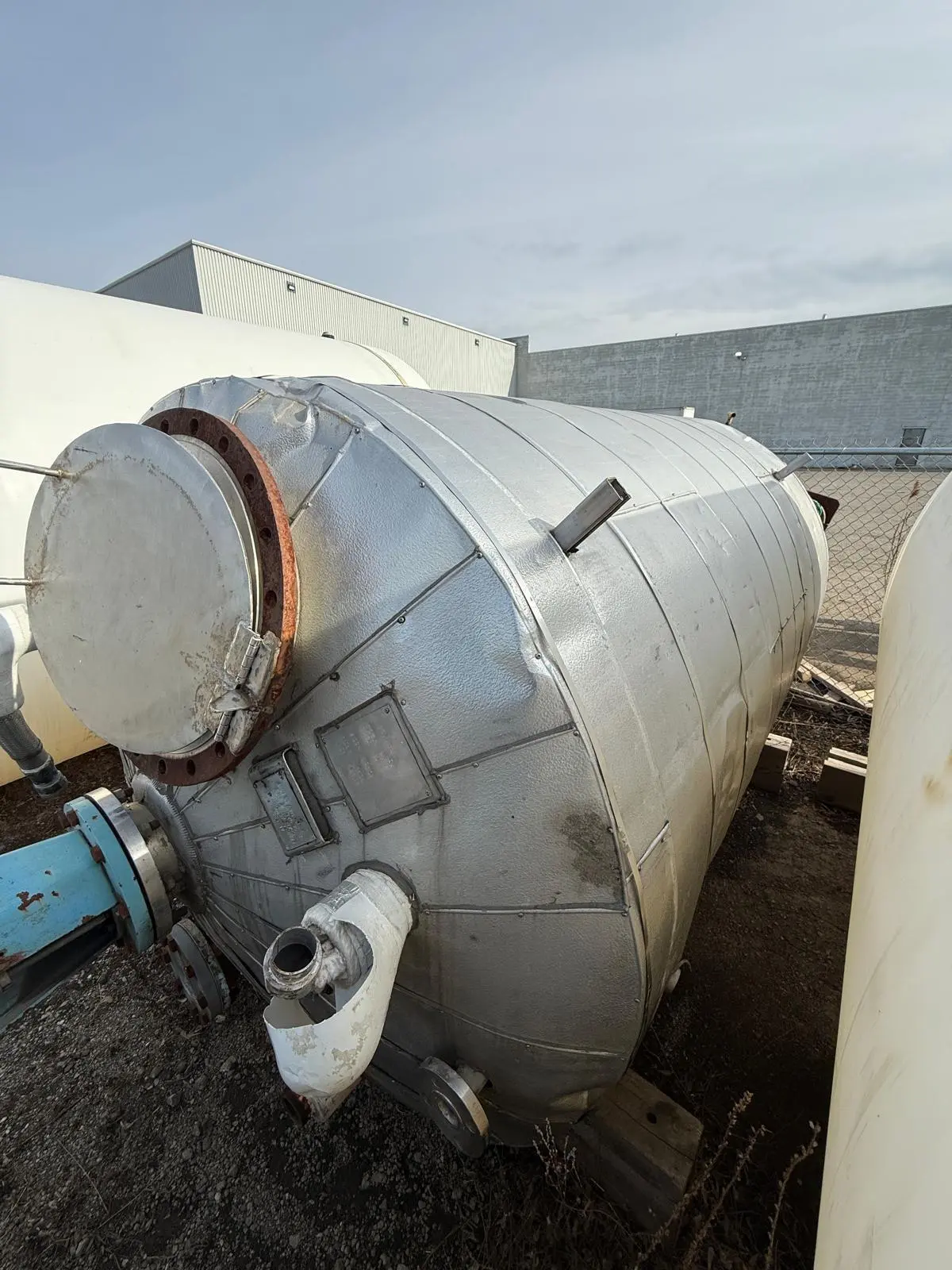

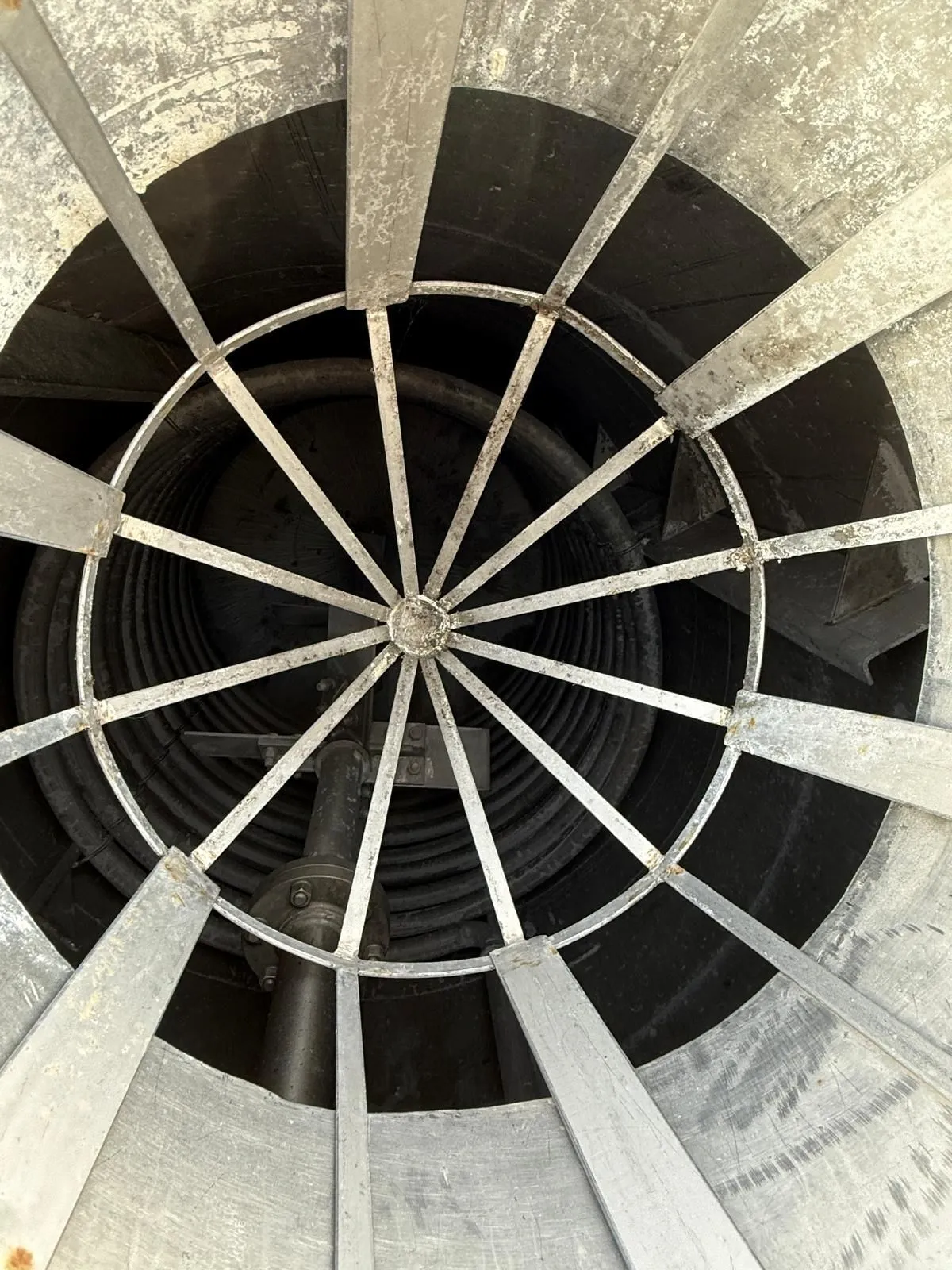

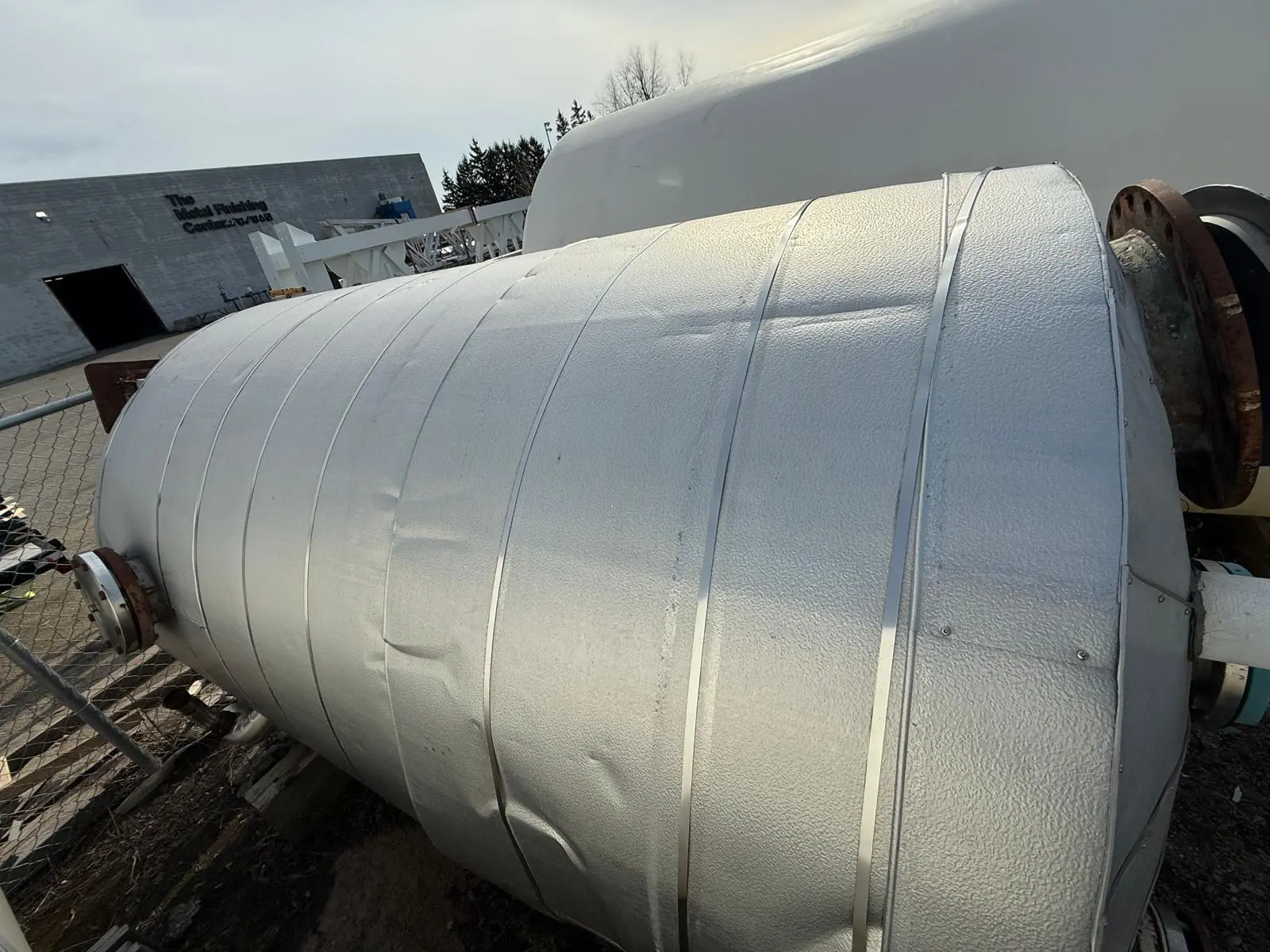

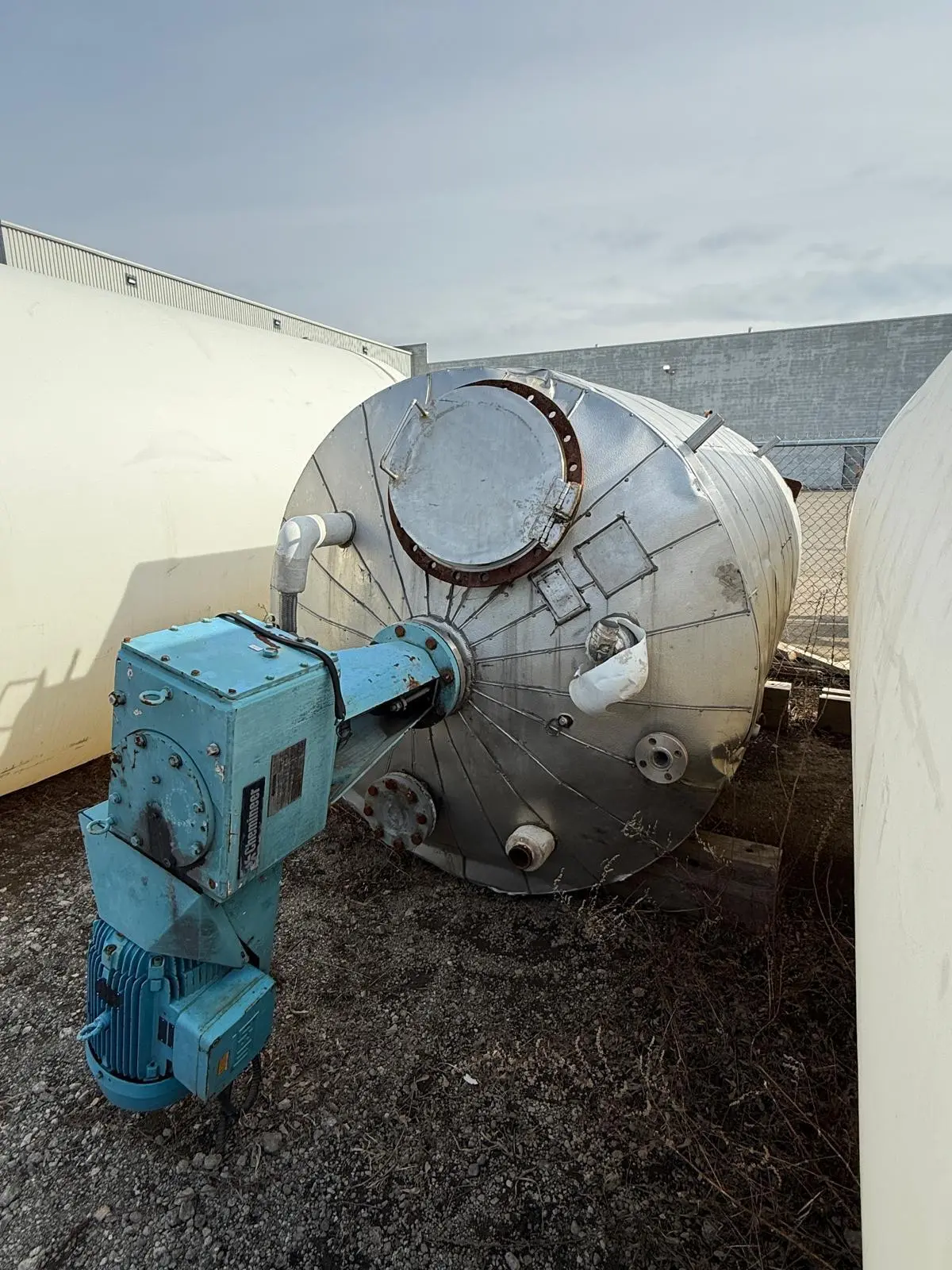

This Chemineer 3HTA20 jacketed stainless steel reactor features a working capacity of 2,600 gallons. The vertical vessel is constructed with a double-wall jacket and aluminum cladding insulation, mounted on a skid base. The agitation system is powered by a 20 HP WEG motor operating at 575V, 3 PH, and 60 Hz with a motor speed of 1755-1800 RPM and an output speed of 155 RPM. The motor is TEFC explosion-proof and rated for Class I, Zone 1 hazardous locations. Internal features include a helical heating coil, a central agitator shaft with impeller, and structural baffles. The unit utilizes a top-entry drive with a mechanical seal. Technical specifications include overall dimensions of 80 x 80 x 120 inches and a weight of 5,000 kgs.
Used 2,600 gallon Four Corp reactor, 304 stainless steel construction, approximately 84" diameter x 111" straight side, dish top and bottom, rated 100 psi and full vacuum at 400 f internal, 1/2 pipe jacket on side and bottom rated 90 psi at 400 f, Lightnin series 10 agitator drive wit mechanical seal, (4) baffles, on ...more
