Cefla #QEG, Panel Flipper, 600 V., 82 FPM, 5.9" W x 9.8" L Capacity

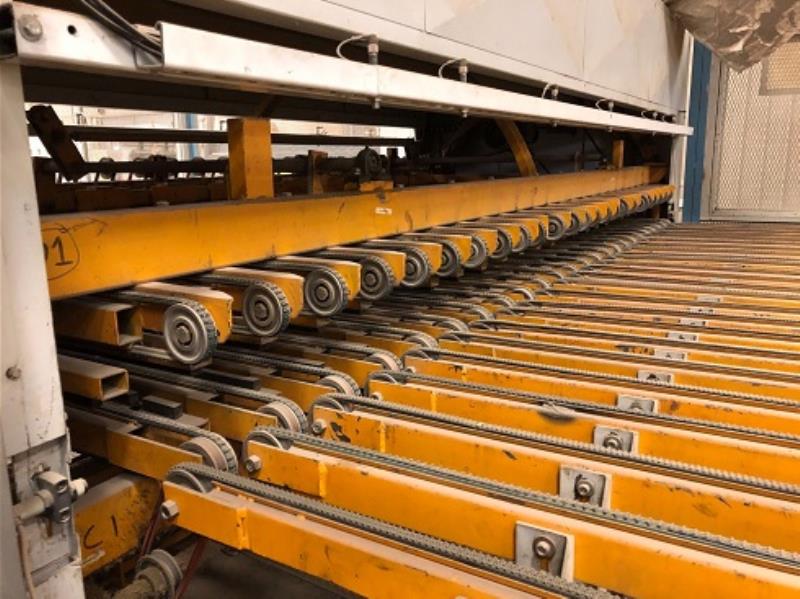

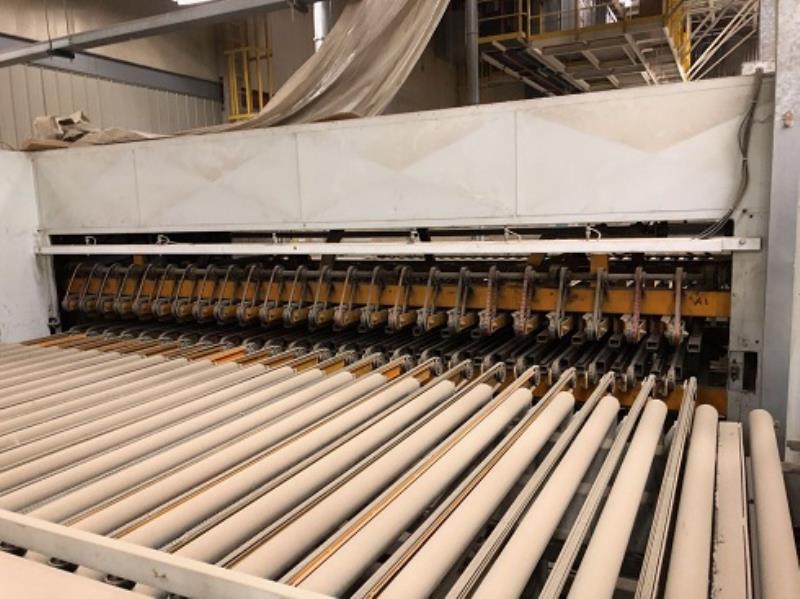

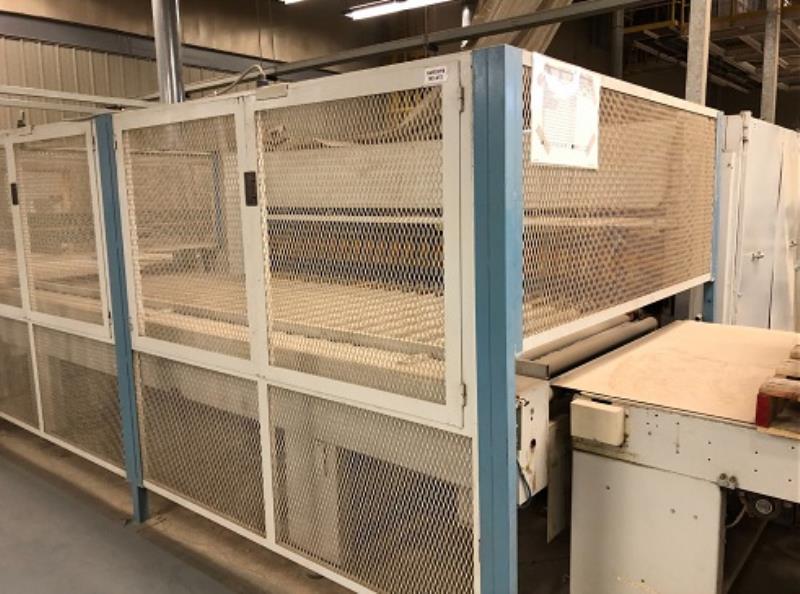

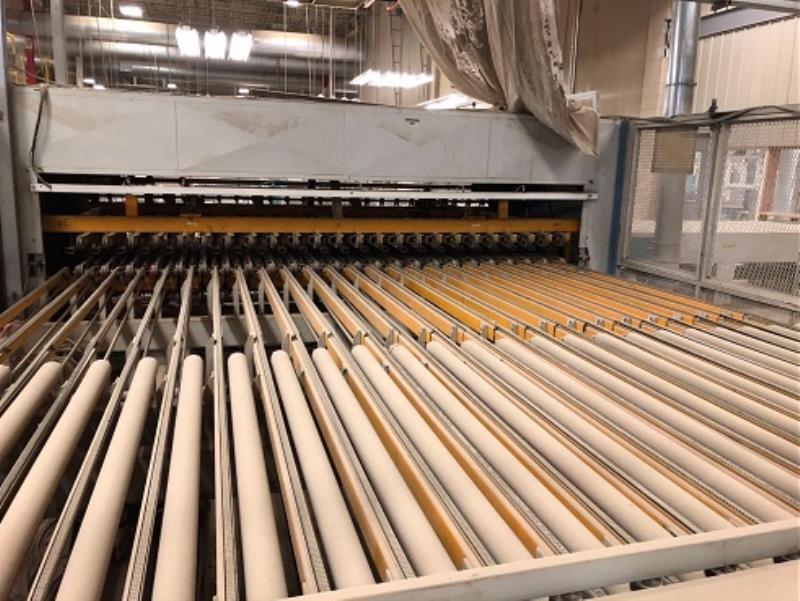

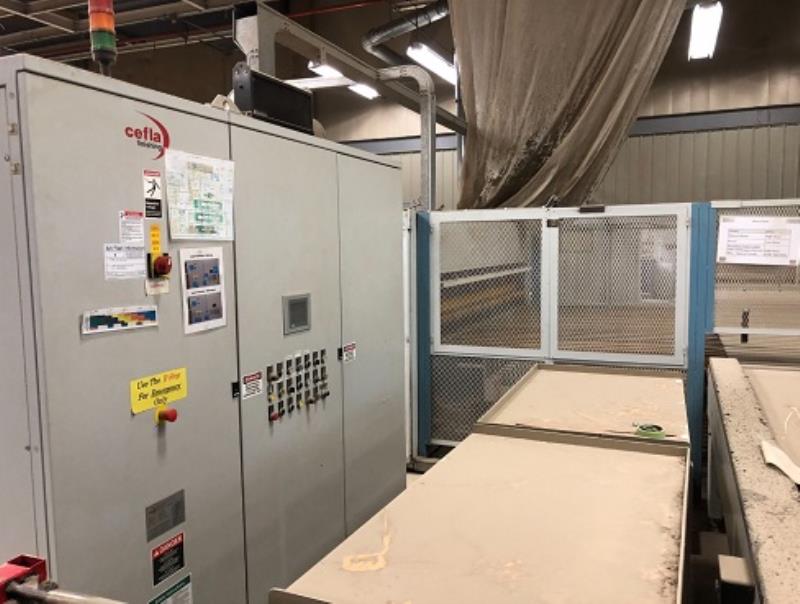

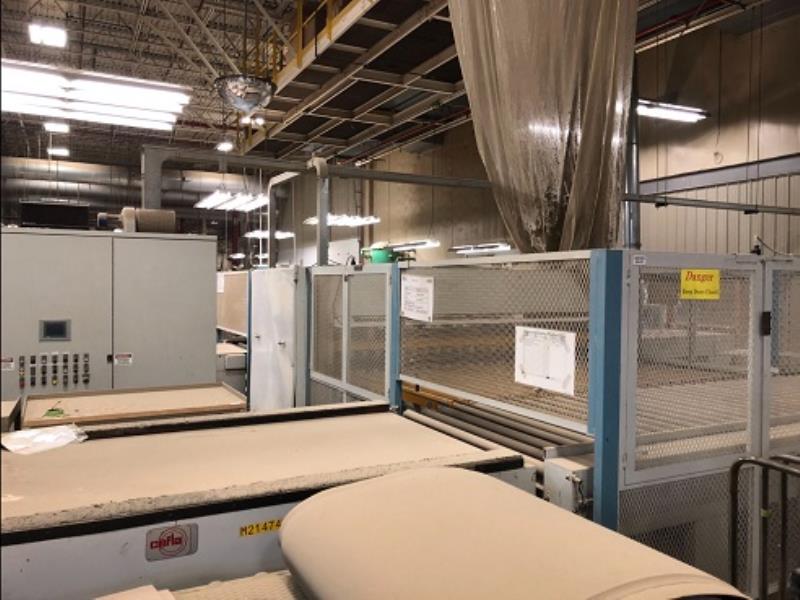

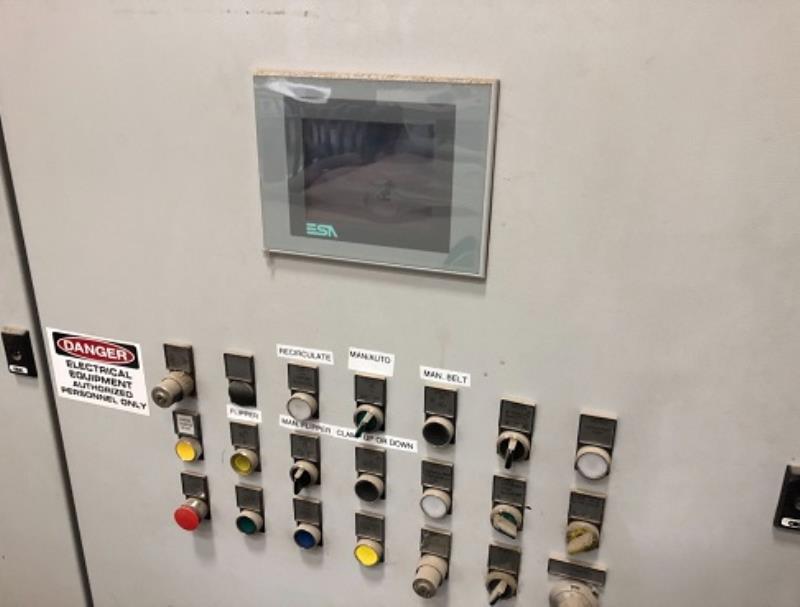

CEFLA MODEL QEG 180 FLIPPER/TURN OVER UNIT With 90 Belt Transfers on Infeed/Outfeed of Flipper: -- Specifications:Combination "TRANSFERS" & 180 Pneumatic clamping "TURN OVER" unit; --Variable Speed from approx.16 - 82 FPM (5 - 25 MPM); Transfer unit Unit requires approx.7.4 HP (5.5 kW) motor. -- Total power requirements approx.13.5 HP (10 KW). -- Processing Description: Enables system to provide multiple coat processing to both sides of the panel by automatically turning product over. -- Operating Description: Design enables 180 degree turn over and standard transport movement in one integrated unit. Transfer Working Capacity/Dimensions: -- Panel thickness 5 - 70 mm (0.2 - 2.75"). -- Working Length 3500 mm (137.8"). -- Working Width 1450 mm (57.1"). -- Distance between center axis of Infeed/Outfeed 3660 mm (144"). -- Spacing of belts and top hold-downs 140 mm (5.5"). -- Minimum work table height 895 mm (35.2" ). -- Compressed air consumption 30 Nl/cycle at 6 bar (90 PSI). -- Complete With:Control unit & safety fencing as pictured. -- Actual Model is CEFLA MODEL 'QEG'.
