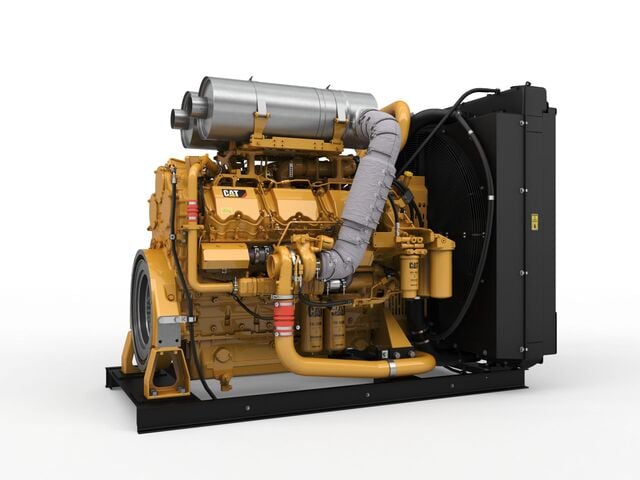

950 HP Caterpillar #C27, Industrial Power Unit, Tier 4F, new

The Cat C27 Industrial Power Unit is offered in ratings ranging from 597-783 bkW (800-1050 bhp)@ 1800 rpm. Conveniently pre-configured for a wide range of applications, the Cat Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel-efficient units are ready made for irrigation, industrial, mining and other pump applications.

Key Specs

Maximum Power

950 hp

Maximum Torque

3211 lb-ft @ 1200 rpm

Emissions

U.S. EPA Tier 4 Final, EU Stage V

• Product Specifications For C27

  Power Rating

  Maximum Power 950 hp

  Maximum Torque 3211 lb-ft @ 1200 rpm

  Rated Speed 1800 rpm

  Minimum Power 800 hp

  Emission Standards Emissions U.S. EPA Tier 4 Final,

  Engine Configuration V-12, 4-Stroke-Cycle Diesel

  Bore 5.7 in

  Stroke 6 in

  Displacement 1649.5 in3

  Compression Ratio 16.0:1

  Aspiration Twin Turbocharged-Aftercooled (TTA)

  Rotation from Flywheel End Counterclockwise

  Aftertreatment DOC

  C27 Standard Equipment

  Air Inlet System

  Turbocharged

  Air-to-Air Aftercooled

  Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, Stage IV)

  Control System

  Electronic control system

  Over-foam wiring harness

  Automatic altitude compensation

  Power compensated for fuel temperature

  Remote fan control

  Configurable software features

  Engine monitoring system SAE Jl 939 broadcast and control Integrated Electronic Control Unit (ECU)

  Cooling System

  Thermostats and housing, vertical outlet

  Centrifugal water pump

  Guidance on cooling system design available through your dealer to ensure equipment reliability

  Flywheels And Flywheel Housing

  Choice of SAE No. 0 or SAE No. 1 flywheel housing

  Available SAE No. 1 power take off with optional SAE A, SAE B or SAE C power take off drives. Engine powe can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage IV).

  Fuel System

  MEUI injection

  Primary fuel filter

  Secondary fuel filters

  Fuel transfer pump Electronic fuel priming

  Lube System

  Open crankcase ventilation system

  Oil cooler

  Oil filler

  Lube oil filter

  Oil dipstick

  Gear driven oil pump

  Choice of front, rear or center sumps

  Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, Stage IV)

  Power Take Off (PTO)

  SAE A, SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.

  General

  Paint: Caterpillar yellow, with optional colors available at request

  U.S. EPA Tier 4 Final, EU Stage IV Aftertreatment/ Clean Emissions Control

  Equipment

  Cat Regeneration System

  Aftertreatment information applies to ratings from 429-522 bkW (575-700 bhp)

  Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)

  Aftertreatment Electronic Control Unit (ECU)

  NOX Reduction System (NRS)

  Pump Electronic Control Unit (PETU)

  Selective Catalytic Reduction (SCR)

  Available in 12V or 24V systems
