Description

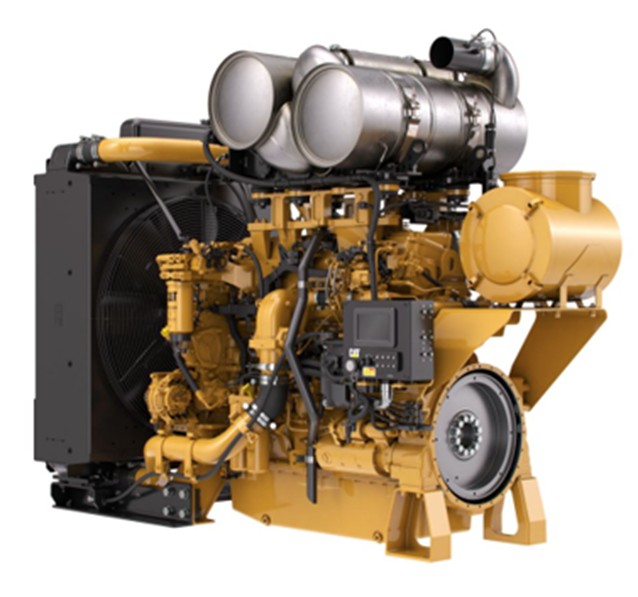

The Cat® C18 ACERT™ Industrial Power Unit TIER 4 F is offered in ratings ranging from 429-470 bkW (575-630 bhp)@ 1800
1900 rpm. Conveniently pre-configured for a wide range of
applications, the Cat® Industrial Power Unit is a complete
power package containing a radiator, flywheel, alternator
and alternator wiring completely pre-assembled for fast,
straightforward installation in a number of OEM, customer
and packager applications. These fuel efficient units are
ready made for irrigation, industrial, mining and other pump
applications.
TECHNICAL SPECIFICATIONS
Product Specifications For C18 (<560 KW) Power Rating
Maximum Power
630 hp
Rated Speed
1800-2100
Minimum Power
575 hp
Emission Standards
Emissions U.S. EPA Tier T4F Equivalent
General
Engine Configuration
Bore
Stroke
Displacement
Compression Ratio
Aspiration
Rotation from Flywheel End
Aftertreatment
Power Unit Dimensions
Width
Height
Inline 6, 4-Stroke-Cycle Diesel
5.7 in
7.2 in
1104.5 in3
16.3:1
Turbocharged Aftercooled (TA)
Counterclockwise
54.6 in
36.3 in
48.9 in
Weight 48440 LBS
Air Inlet System
Turbocharged Aftercooled (429-470 bkW, 575-630 bhp)
Twin Turbocharged Aftercooled (522-597 bkW, 700-800 bhp) Air-to-Air Aftercooled
Charging System
Charging alternator 24 volt, 50 amp
Control System
Electronic governing, PTO speed control
Programmable ratings
Automatic altitude compensation
Power compensation for fuel temperature
Programmable low and high idle and total engine limit
Electronic diagnostics and fault logging
Engine monitoring system SAE Jl 939 broadcast and control ADEM TM A4 Electronic Control Unit (ECU)
Cooling System
Thermostats and housing, vertical outlet
Jacket water pump, centrifugal Water pump, inlet
Exhaust System
Exhaust manifold, dry
Optional exhaust outlet
Flywheels And Flywheel Housing
SAE No. 1 flywheel housing
Fuel System
MEUI injection
Fuel filter, secondary (2 micron)
ACERTTM Technology
Fuel transfer pump
Fuel priming pump
Lube System
Crankcase breather
Oil cooler
Oil filler
Lube oil filter
Front sump oil pan
Oil dipstick
Gear driven oil pump
General
Vibration damper
Lifting eyes
Cold start capability to -200 C (-40 F)
Paint: Caterpillar yellow, with optional colors available at request
Get Your Price from Atlantic Power & Equipment!
Buyers Who Viewed This Listing Also Viewed:

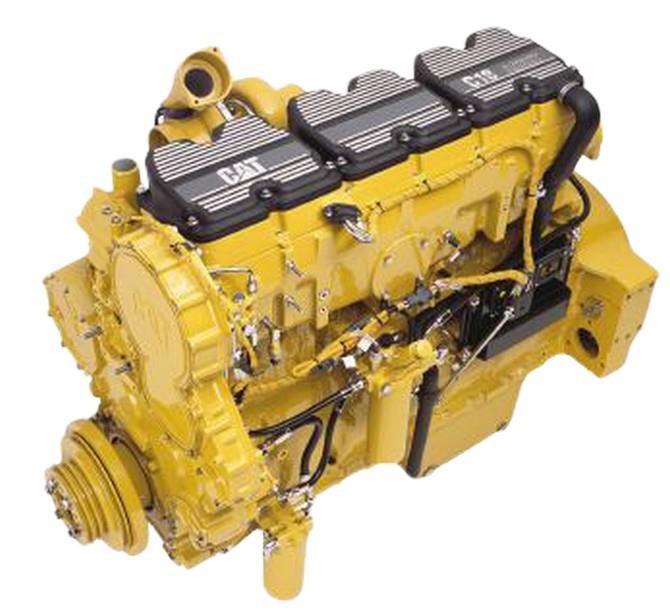

Caterpillar #C18, diesel engine, rblt.
