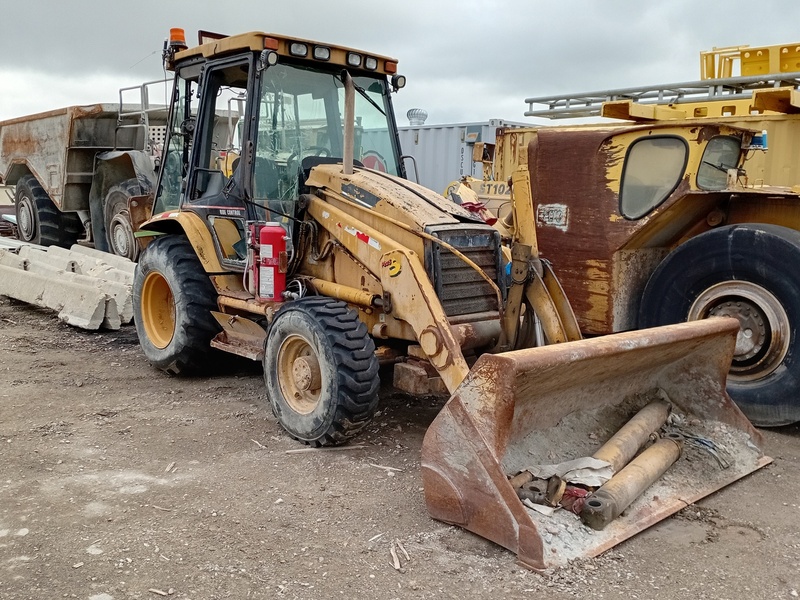

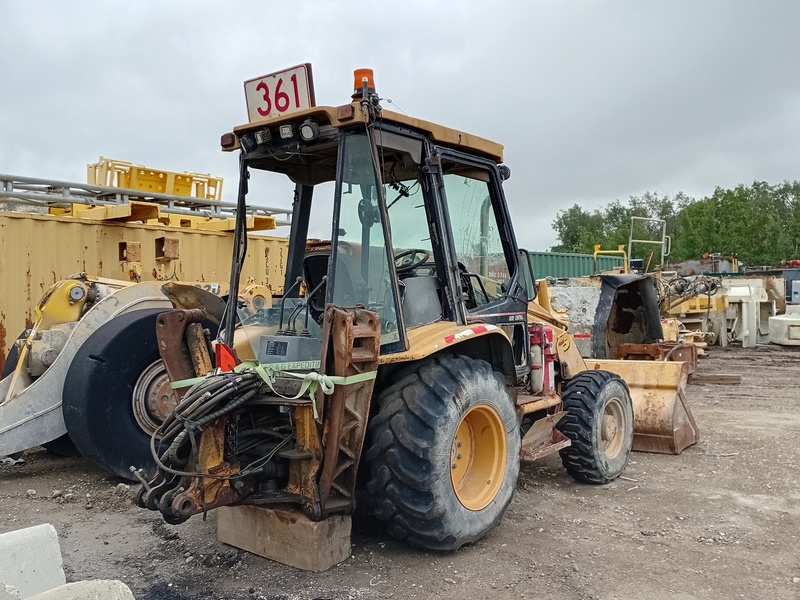

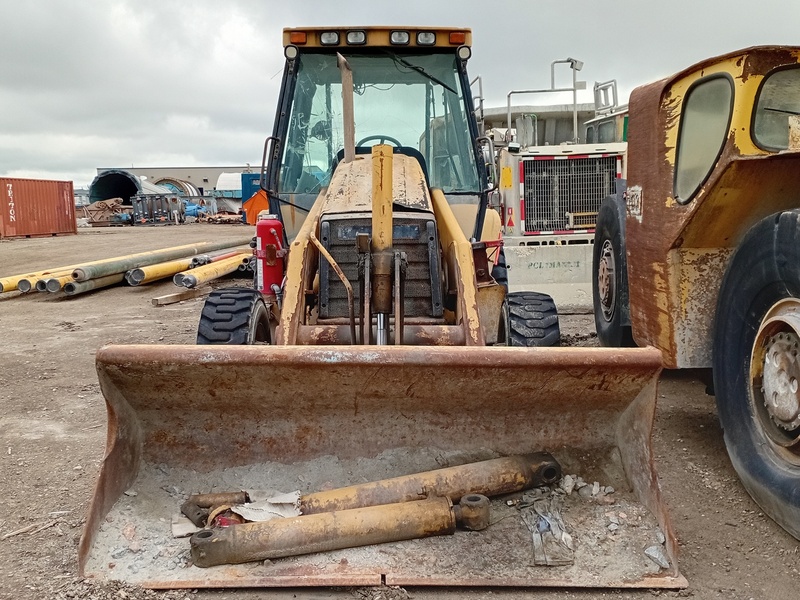

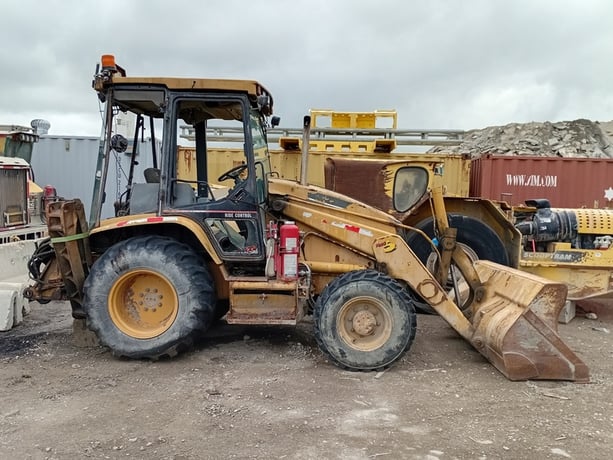

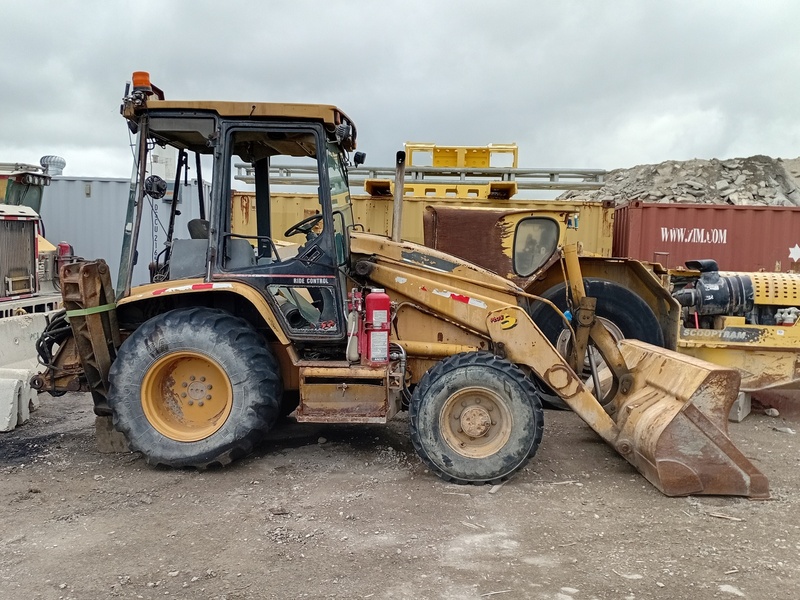

Cat 436C, Backhoe Loader, 88.5 HP Cat 3054T diesel engine, 1.31 yd bucket, 16.24' digging depth, 24.15' horizontal reach

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 157598
Model: 436C
Condition: Used
Dimensions: 120.00 (H) x 95.00 (W) x 234.00 (L) inches
Additional Description:
Standard Tires: Front 14.5/75x16 10PR // Rear 19.5x24 8PR
Bucket Width: 2.41 m // 7.91 ft
Bucket Capacity: 1.00 m3 // 1.31 yd3
Backhoe Bucket Capacity: 0.07-0.31 m3 // 0.09-0.41 yd3
Transport Length: 7.30 m // 23.95 ft
Transport Width: 2.41 m // 7.91 ft
Transport Height: 3.75 m // 12.30 ft
Tear-Out Force: 45.7 kN // 10,274 lbf
Backhoe Tear-Out Force: 64.1 kN // 14,410 lbf
Maximum Horizontal Reach: 7.36 m // 24.15 ft
Digging Depth: 4.95 m // 16.24 ft
Maximum Discharge Height: 2.67 m // 8.76 ft
Travel Speed: 33.7 km/h // 20.9 mph
Engine Manufacturer: Caterpillar
Engine Model: 3054T
Engine Power: 66 kW // 88.5 HP
Engine Displacement: 4.0 L // 244 cu in
Maximum Torque: 345 Nm // 254 lb-ft
Cylinder Bore x Stroke: 100 x 127 mm // 3.94 x 5.00 in
