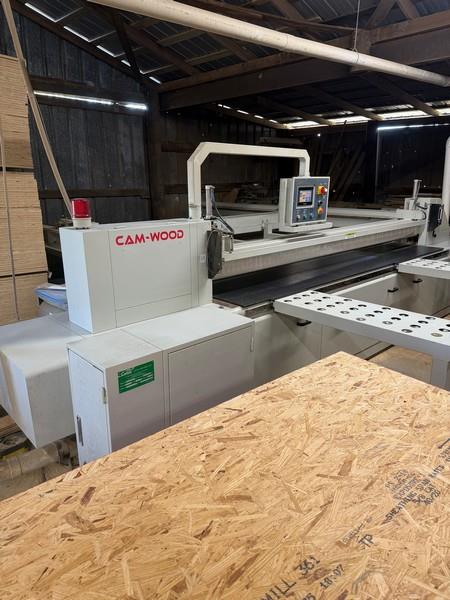

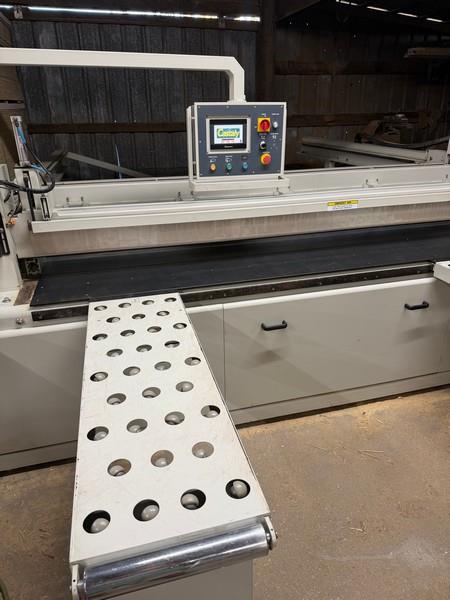

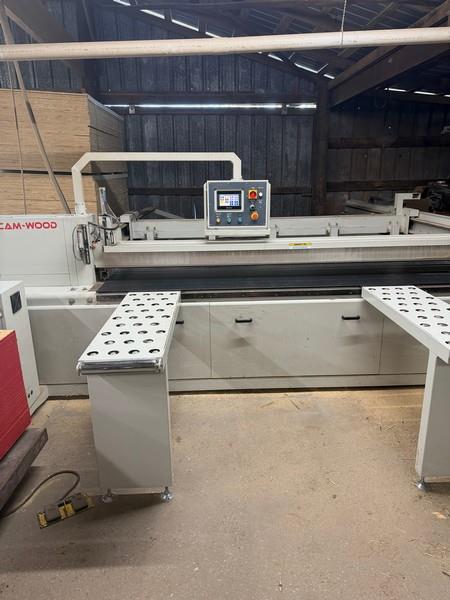

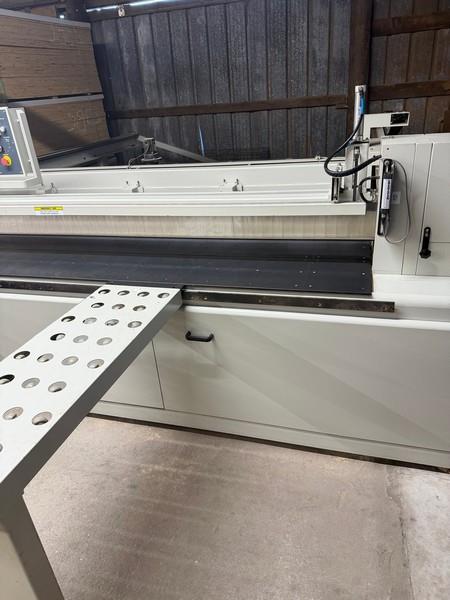

Cam-Wood #TX-P10AATX, front load automatic panel saw, 128" rip capacity, 4" depth of cut, 15 HP, 13.9" blade, 6.3" scoring blade, PC control, 2022

CAM-WOOD TX-P10AAT FRONT LOAD AUTOMATIC PANEL SAW: Shop Saw -- Specifications: 128" (3,250 mm) Max. rip cut cap. & 128" (3,250 mm) max. pull-back front/back; 15 HP (11.45 kW) saw blades motor, 1" dia. arbors,4" (101 mm) max. depth of cut with 355 mm (13.9") dia. blade at 4,500 RPM,160 mm (6.3") scoring blade at 6,000 RPM blade speed. -- Positioning Speed:2 HP Saw carriage drive motor, variable cutting speed from 16 - 98 FPM (5 - 30 MPM), return speed of 98 FPM (30 MPM). -- Pusher Fence: Programmable rear material push fence with servo drive, made of square tubular steel bar;0.5 HP pusher motor, rack & pinion drive, 16 - 49 FPM (5 - 15 MPM) speed. -- Operator & Machine Control:PC Controller with touch-screen to program cutting patterns or individual line cutting operation, graphic displays, self-diagnostics, machine parameter list; touch-screen keypad for data entry. -- Complete with: (3) Bakelite covered front support tables and fully covered rear table; (optional air flotation tables available at additional cost)(4) Dust collector outlets, (1) on each end of the saw base, (1) on the right side at cut-line height, and (1) on the right-hand side on top of the pressure beam. --
