Description

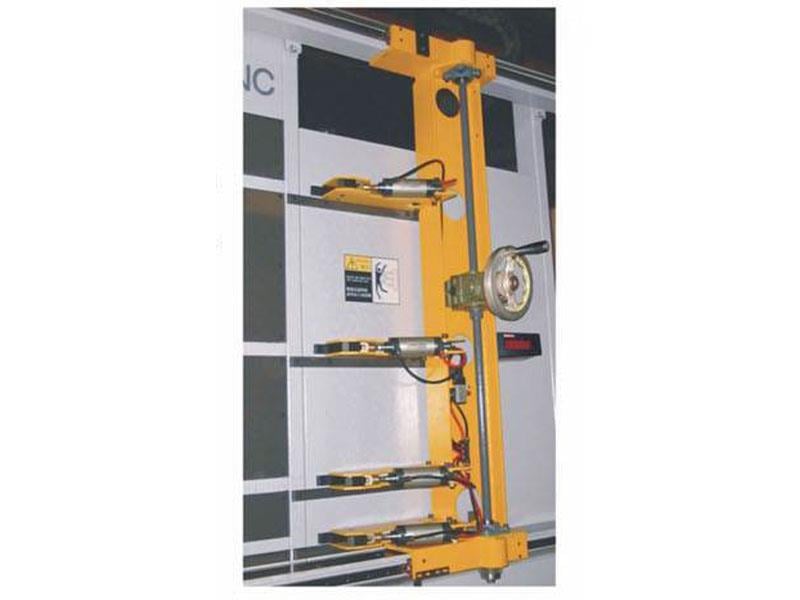

CAM-WOOD TX-E8V Automatic Vertical Panel SawSpecifications: -- 98-1/2" Cutting length (cuts vertically top to bottom), adjustable depth of cut up to 2-3/8", 12" blade dia. with 1" dia. bore, single blade scoring; 5 HP main motor.Equipped with: -- Manually positioned pusher fence with grippers; precision ground guide rod, made from medium carbon steel coated with hard chrome, provides smooth and accurate travel. -- (3) Cutting modes: Standard, trim & cutoff to permit clean burrs, repeat cutting mode; heavy gauge base frame & table rest is welded from cold rolling steel plate, offering rugged construction. -- The uniform holding pressure through the entire pressure beam is achieved through a linkage mechanism, ensuring synchronized cylinder actuation on both sides. Flexible saw stroke adjustment enables the operator to select the desired stroke either full way or run out panel return depending on the panel length to be cut, this reduces considerable cycle time. Complete with: -- Fence made of cast iron and the surface precision ground is fitted with a flip-over stop for convenient repetitive cutting; saw carriage runs with bronze wheel, which is CNC lathe precision machined or accurate concentrically producing fine smooth surface cut; the guide rods, hard chrome-plated, provides rigid support for saw carriage; the ripping accuracy is guaranteed. -- 1 HP drive, variable speed saw carriage, cuts 16 - 98 FPM; return speed 98 FPM. Includes: -- Dust chute is covered with a split rubber to form a totally enclosed dust collection system, and fully prevents the hose from being broken resulting from its fatigue. -- Sectional dust guard not only acts as a surrounding saw blade guard but also fully prevents sawdust from spraying out of the machine.
