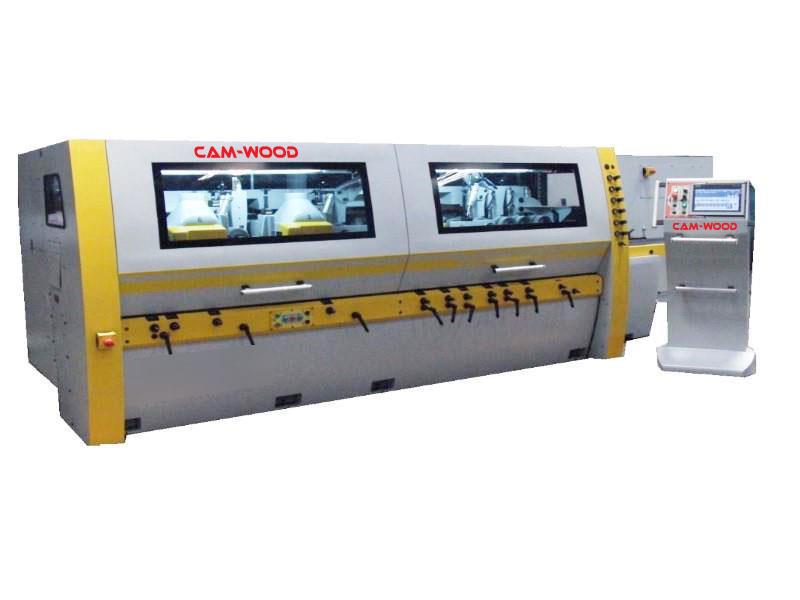

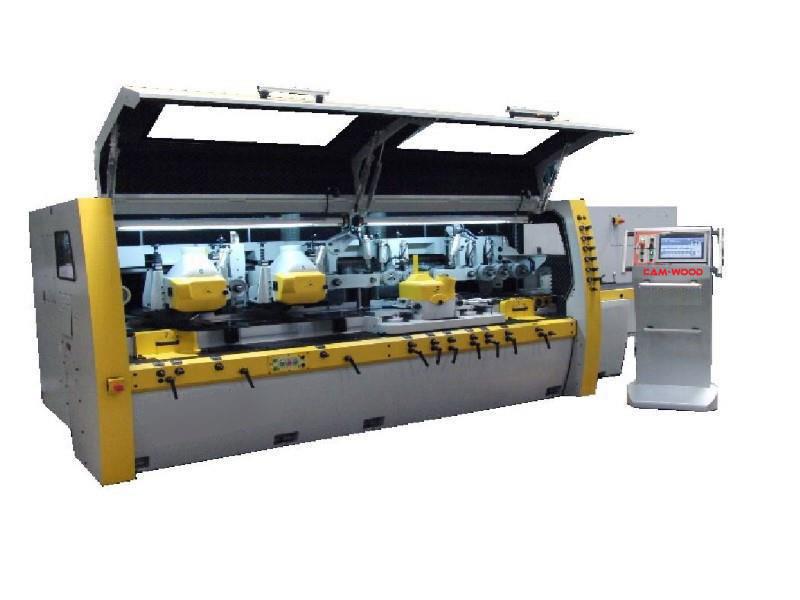

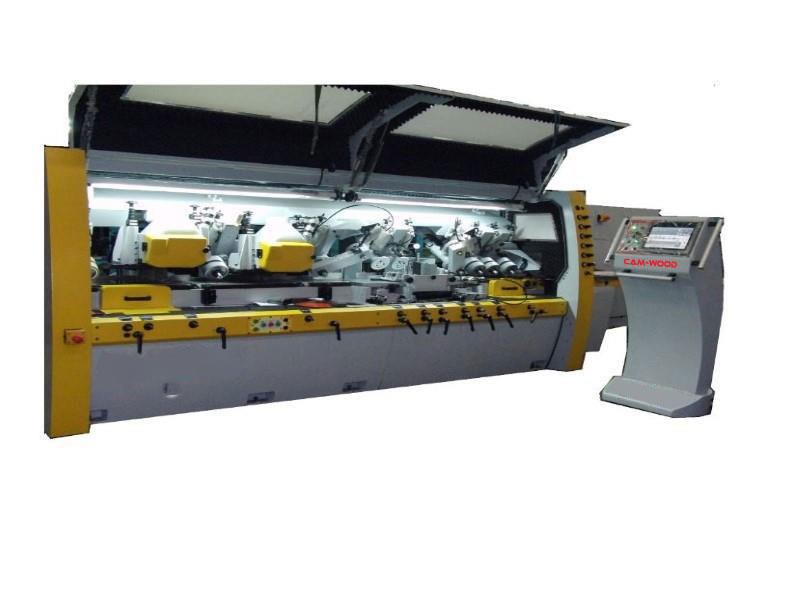

Cam-wood SM-632HSX, feed through moulder, 6-head, 12-1/2" x 6-1/4" working capacity, 9-1/2" min length, 50 mm spindle diameter, 6200 RPM, 2026, new

$174,900 USD

Request Formal Quote

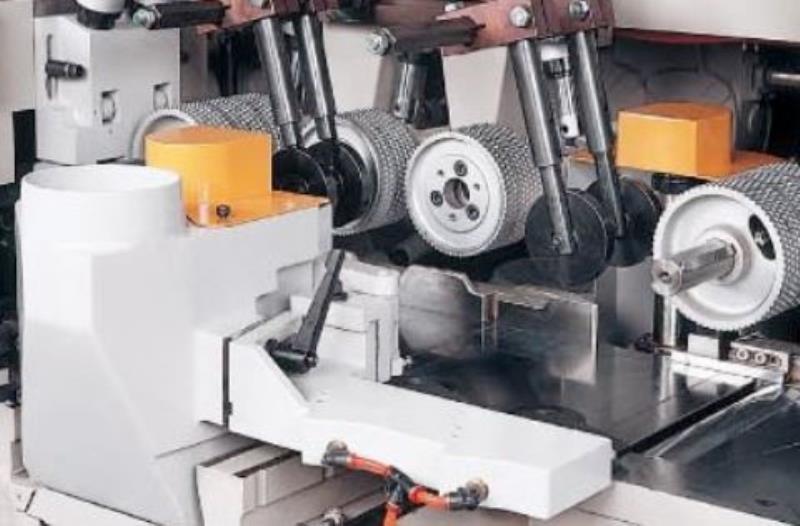

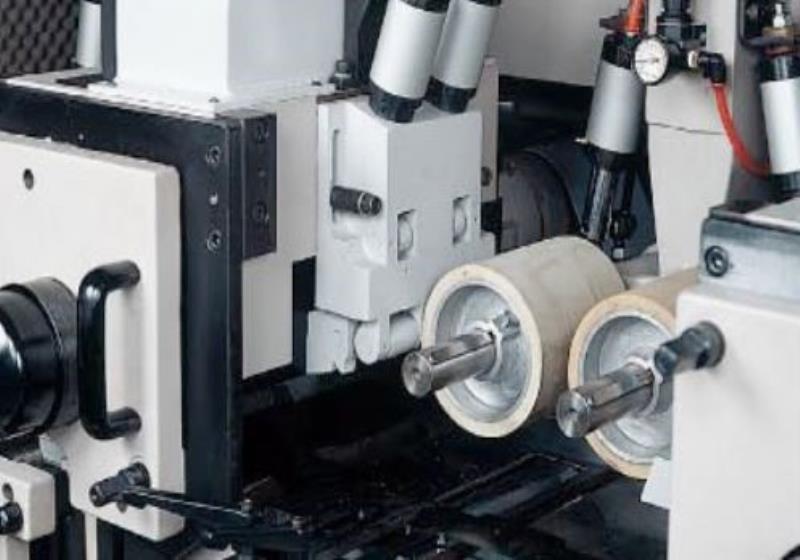

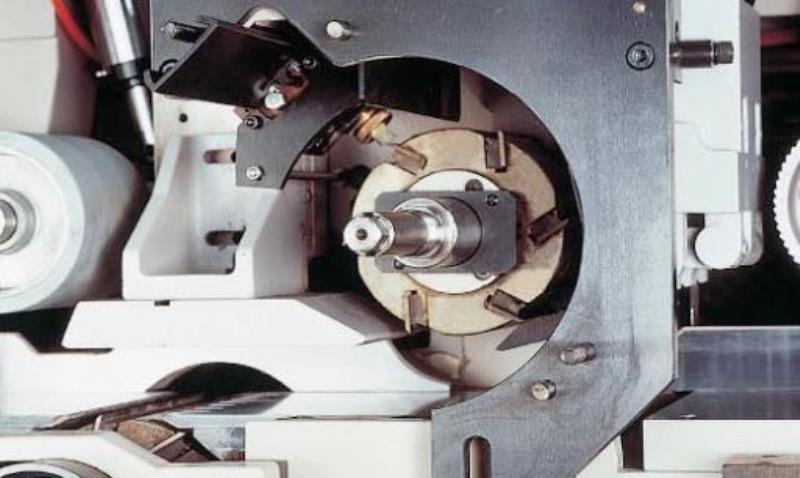

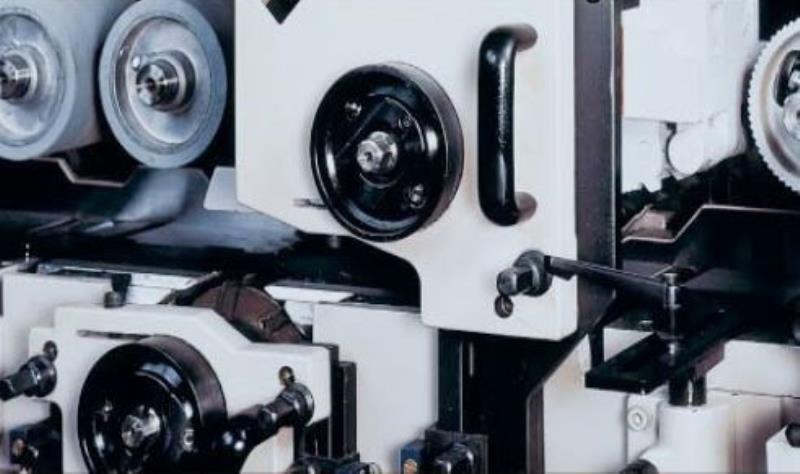

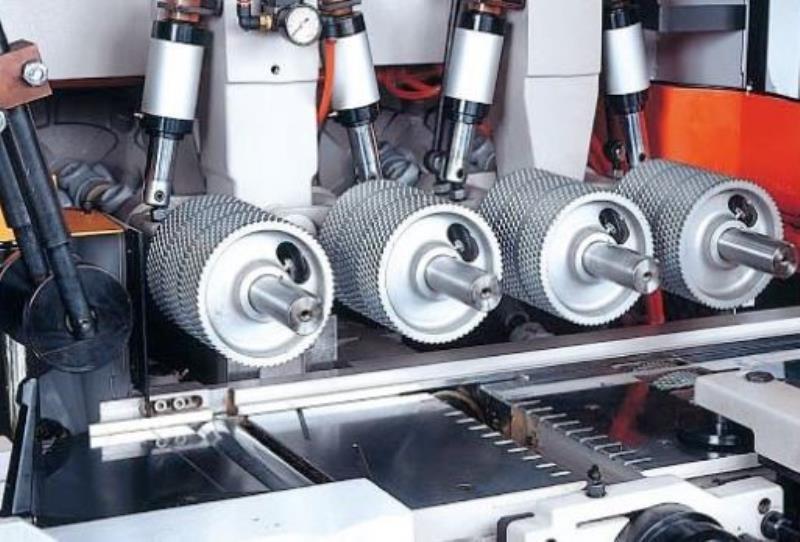

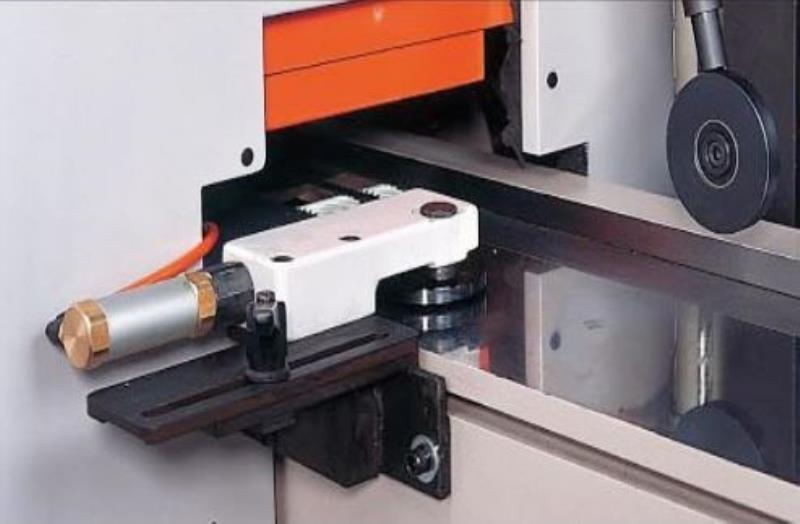

CAM-WOOD SM-632 HS 6-Heads High-Speed Through Feed Moulder(6) Heads (B-R-L-T-T-B), working cap. 12-1/2" x 6-1/4"".Specifications: -- Max/Min working width 12 " - 3/4" -- Max/Min thickness 6" - 5/16" -- Minimum length 9-1/2" -- Head sequence: Bottom 15 HP, right 15 HP, left 15 HP, top 20 HP, top 20 HP and bottom 20 HP motor. -- All Horizontal spindles have outboard bearings -- Spindle dia. 50 mm with cutterhead speed of 6,200 RPM. -- All spindles are equipped with mechanical digital readouts, "Dual mechanical" readouts on the left and top spindles. Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter driven 15 HP feed system with feed speeds of 20 - 260 FPM. -- Infeed table 2M (6'6"), chromed tables, and fences. Side pressure roller mounted at infeed. Features and complete with: -- Feed speeds ranging from 20' ~ 260' per minute are a standard feature. -- The full safety enclosure also works as a chip guard and helps to reduce noise. -- Table surface is hard chrome-plated for maximum wear resistance. -- All manually adjusted turning parts are housed in dry bearings for oil-free lubrication. -- One piece cast iron machine frame and table is especially normalization heat treated for maximum stability and rigidity. -- Fence adjustment is quickly accomplished by a quick-setting lever. -- The three independent section pneumatic pressure for the infeed rollers, in-process rollers and outfeed rollers can be set with individual pressure allowing for consistent feeding results and outstanding effect. -- All control levers for the spindles are located at the front of the machine for convenient adjustment. -- Each spindle is provided with a mechanical digital readout, giving accurate adjustment. -- Vertical spindle adjustment up to 80 mm, allows fitting several tools on the vertical spindle, eliminating troublesome cutter change. -- Separate adjustment of vertical spindle and insert table permits the table to be positioned extremely close to the cutterheads for added cutting stability. -- An individual motor drives each spindle and is separately mounted to eliminate spindle chattering during high-speed running. -- Centralized lubrication system Available options: -- Automatic Jointer for all (6) heads add: ...$46,900 -- Digital (electronic) display for X and Y axis for each head add $ 3,200 /per head -- NC Automatic positioning control system. This option consists of motorized adjustment of the head control from the main screen of the machine.This option include: -- 15" HMI (1000 memory setting), -- Servo motor positioning, Simple and easy to operate. -- Width and thickness quickly & auto set-up -- Tools management system -- Lateral chain feeder (quoted with customer material specifications) -- For 6 heads machine add $82,800 -- For 7 heads machine add $ 90,600
