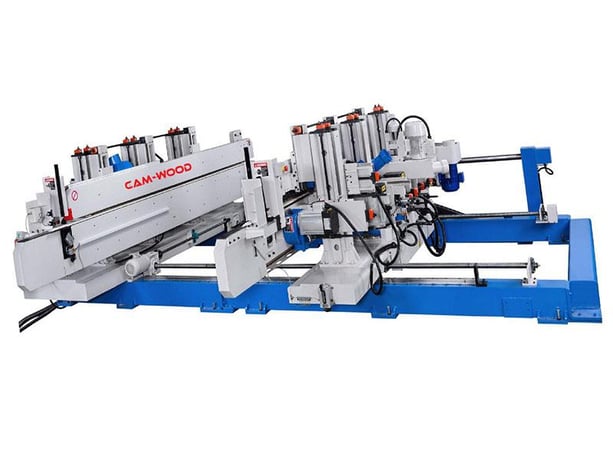

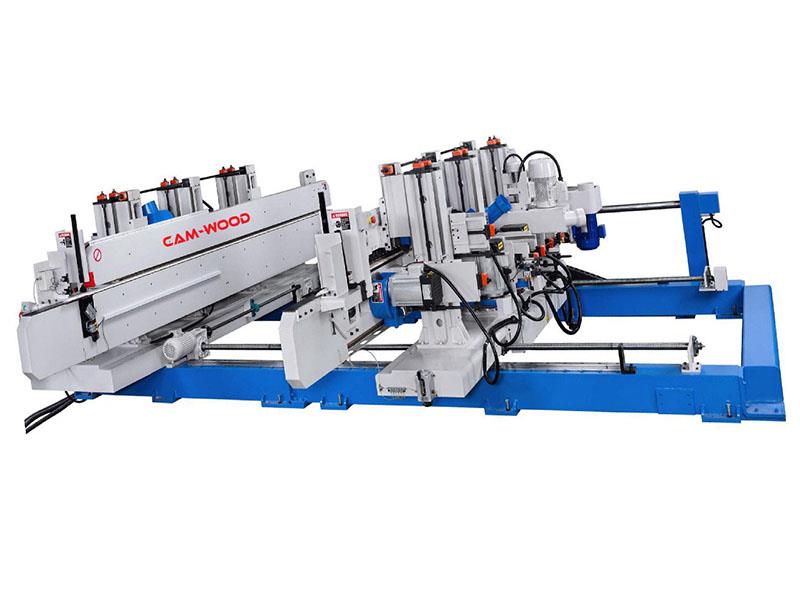

Cam-Wood #Set-88DET-CKX, Double End Tenoner for Click System, 8-Head, 2-1/4" max thickness, 98" max work length, 20-72 FPM, 1/7.5 HP motors, 2026, new

$259,900 USD

Request Formal Quote

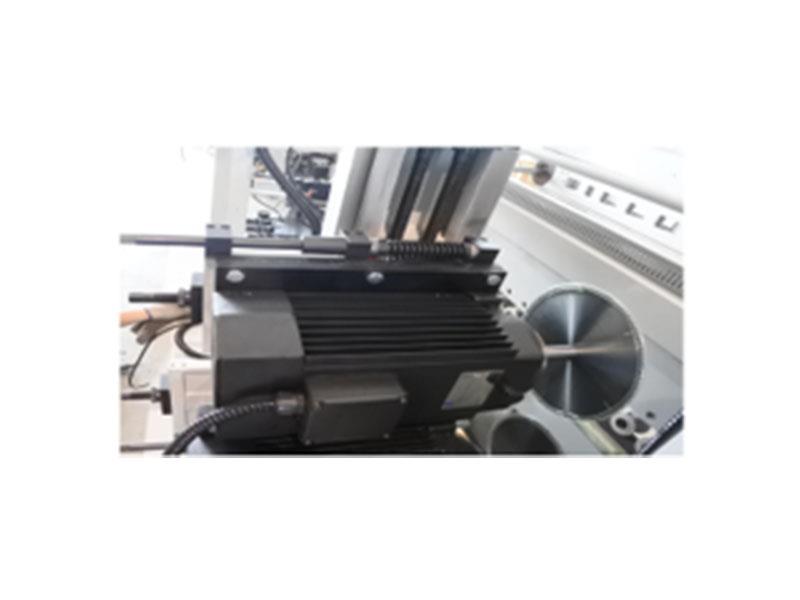

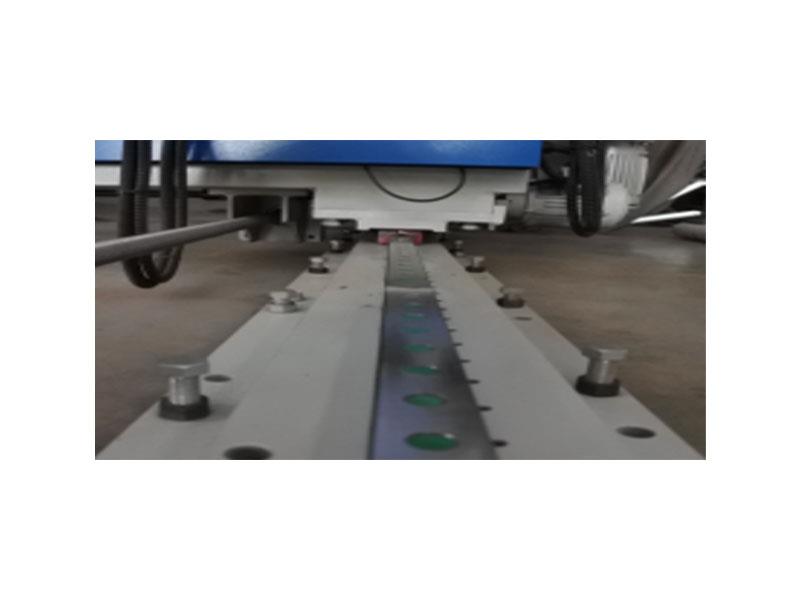

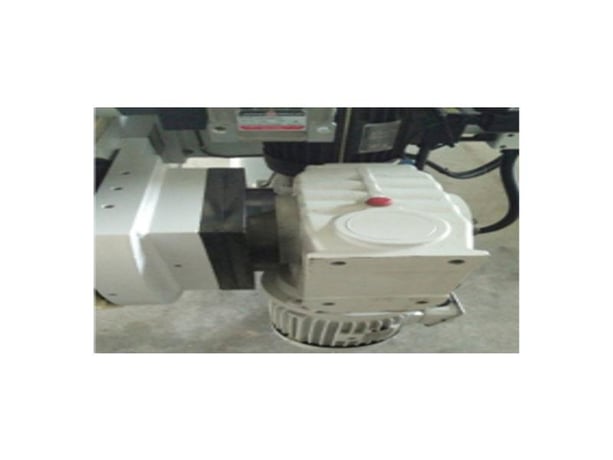

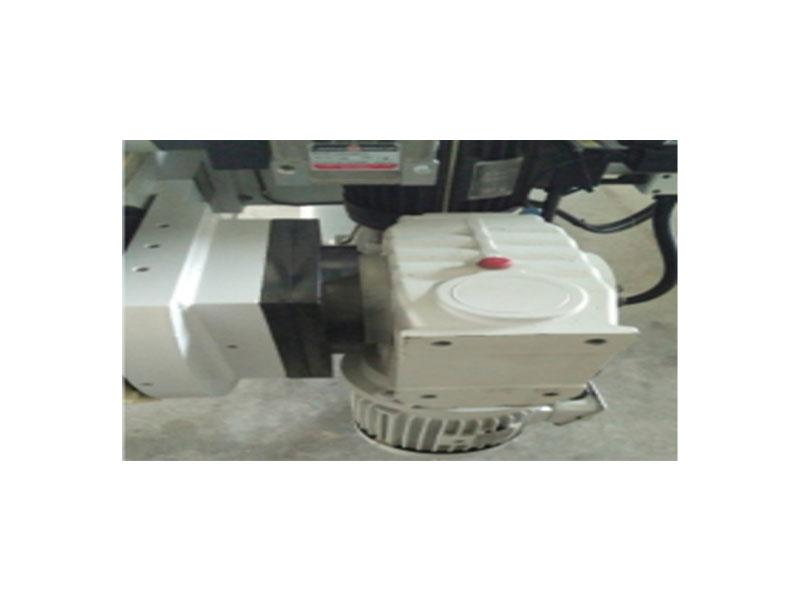

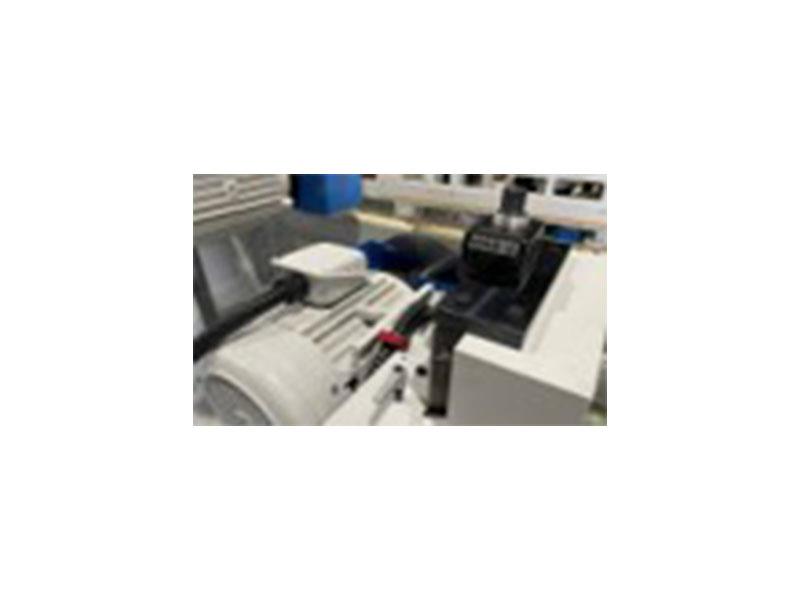

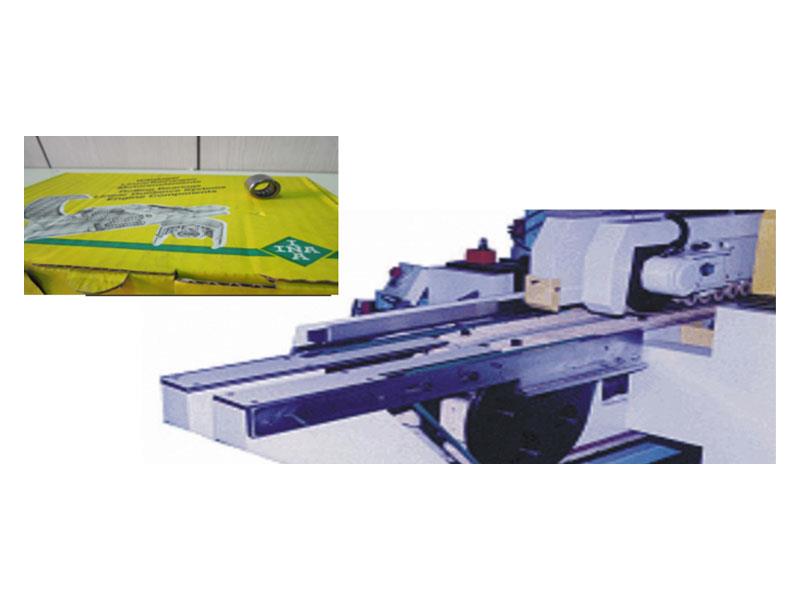

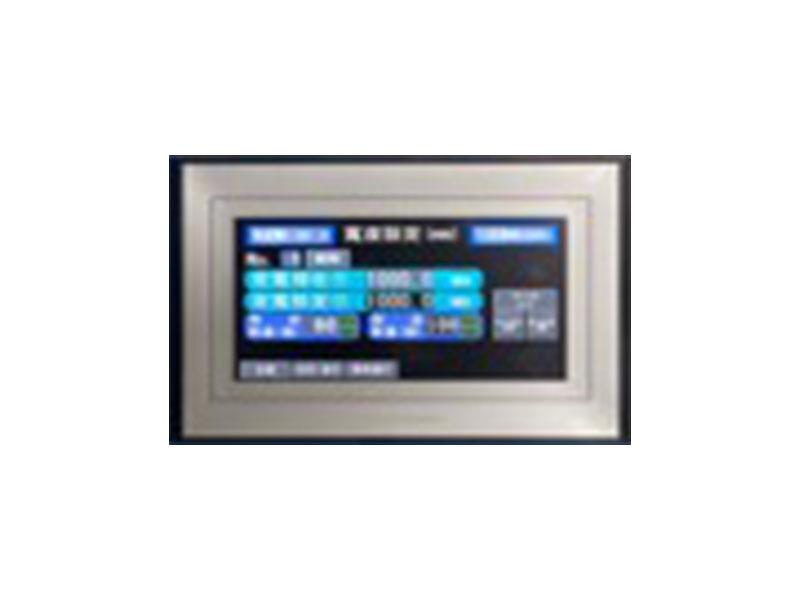

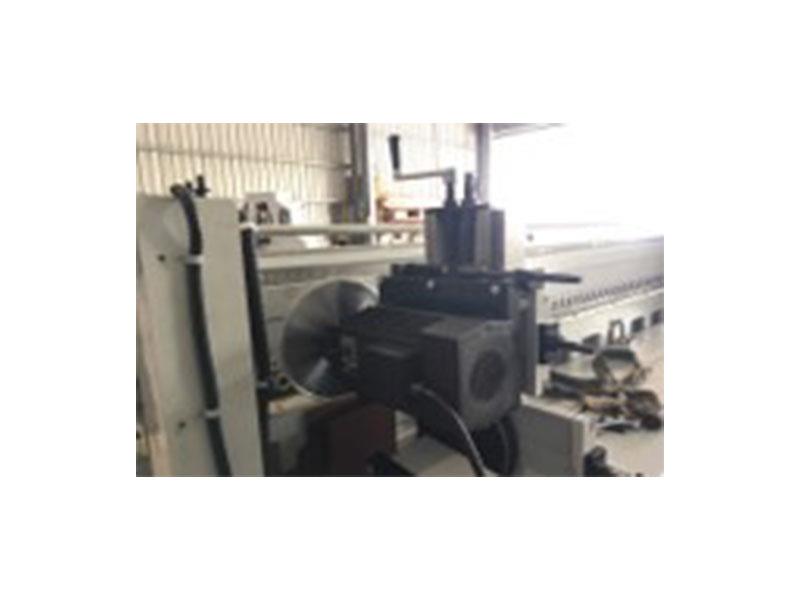

CAM-WOOD SET-88-DET CKX Double End Tenoner for "Click System"Features: -- (9) Heads total as Scoring, Trim Saw, Jump Shaper X 5, and Free Space -- Configured for click-lock System application -- Special design for Click Lock System project with 31"; extra Outfeed Conveyor Space. -- HMI / Touch Screen Plus PLC controller for easy and quick setting -- The automatic high-speed through feed device allows for perfect finishing at speeds ranging from 20~76 FPM. -- Suitable for mass production of woodworking factory for processing of double-end cutting, tenoning, grooving, moulding, and sanding. -- It is a powerful machine great for heavy-duty production. In addition to the double-end cutting, all the settings and other processing can also be executed with high accuracy. -- Since the machine is so versatile, we believe it should be one of the most satisfactory equipment for volume production lumber-processing factories. -- The specially designed numeric controller allows quick setting of sizes, for tolerance within 0.004";. -- Variable speed, through feed, wide rubber pad, and feed chain with spring-loaded dogs for the best finish selections. -- Heavy-duty powered pressure rolls at the top of the wide-width conveyor to hold the material tight to prevent sliding during the cutting process. -- Equipped with industrial motor for full power cutting and sanding capacity. -- Trim saw heads can be tilted for different angular setups. -- Heavy cast iron base for durability usage.Specifications: -- Maximum working thickness 2-1/4" -- Maximum working length 98" -- Minimum working length: 9" -- (2) Scoring Saw motors, 7.5 HP each -- (2) Trim/hogging saw, motors 7.5 HP each -- (5) Shaper motor with jump servo-controlled 7.5 HP at 6,200 RPM, arbor 40 mm diameter, spindle tilting 0 - 90 -- the (2) shaper head on the 4th station will have a special motor with 90-degree spindles for the toe notch -- Feed speed 20 to 72 FPM, servo drive motor 7.5 HP -- Motorized opening with 1 HP motor -- Control with a color touchscreenAvailable options: -- SET-2TRAN two-stage transfer line Additional: ...$86,900 -- Hopper feed magazine additional ...$86,900 -- Sound enclosure additional ...$14,900 -- Infeed extension 48" additional ...$12,600
