For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
Description

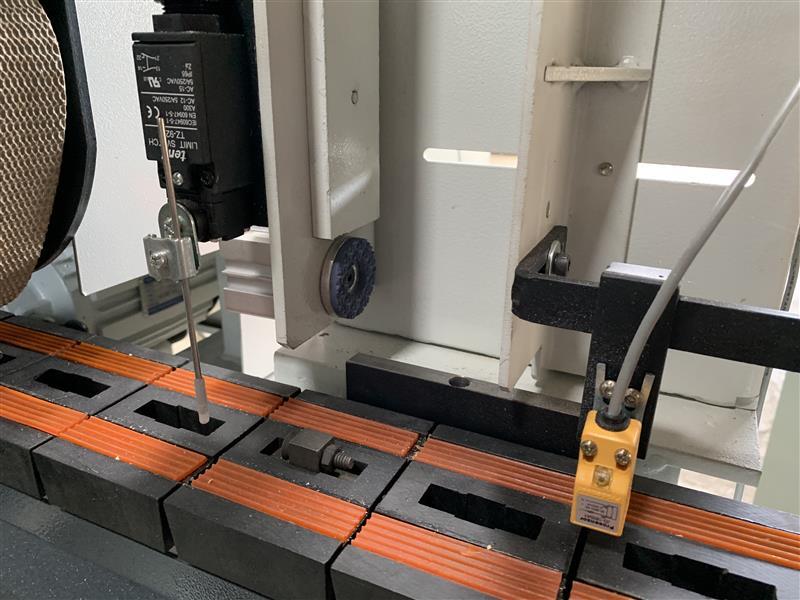

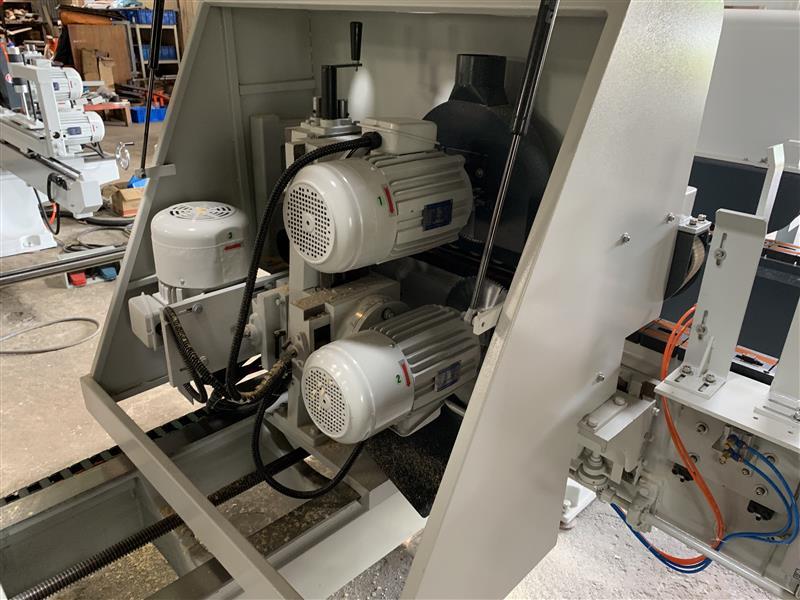

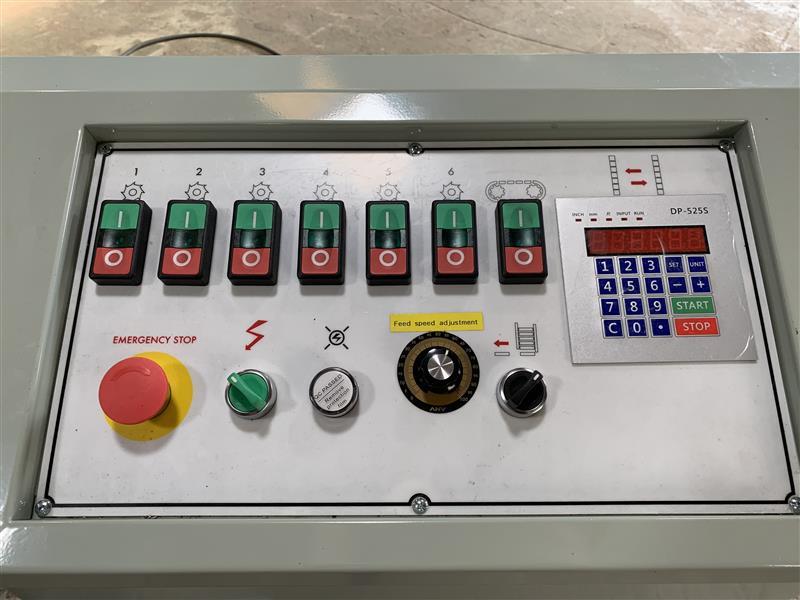

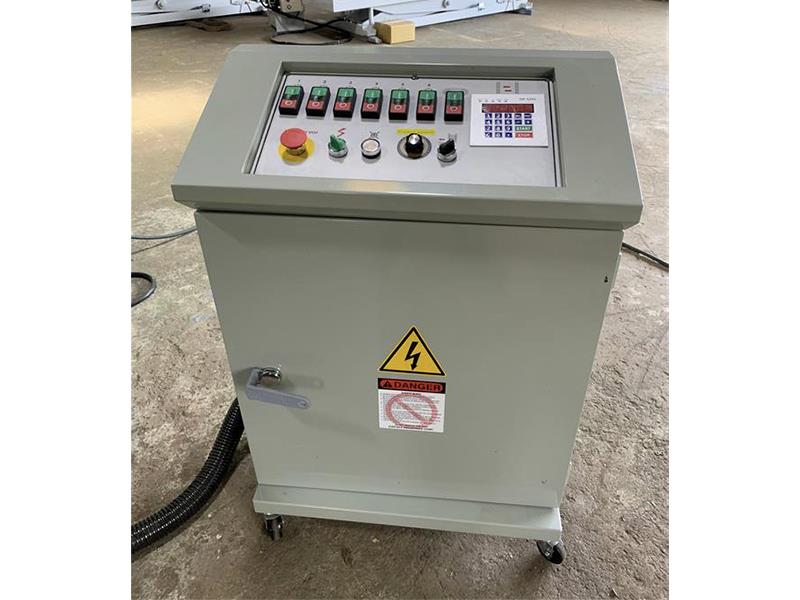

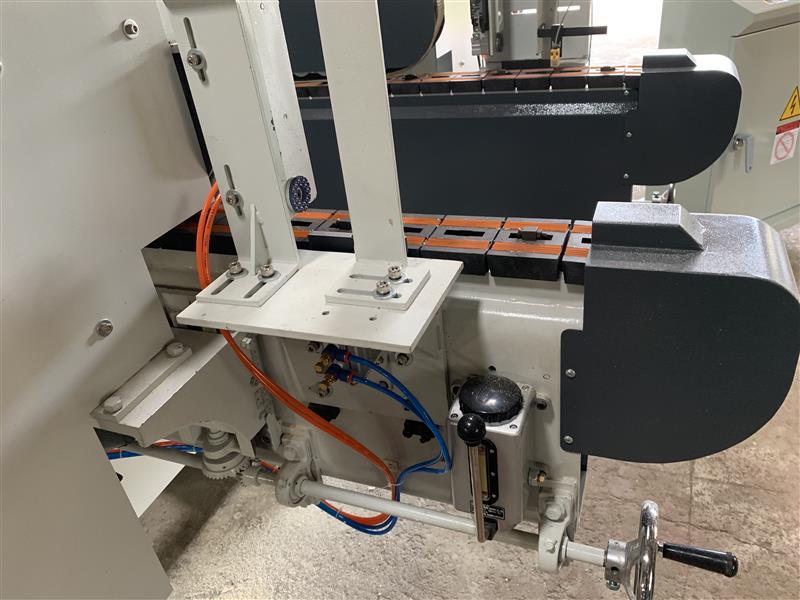

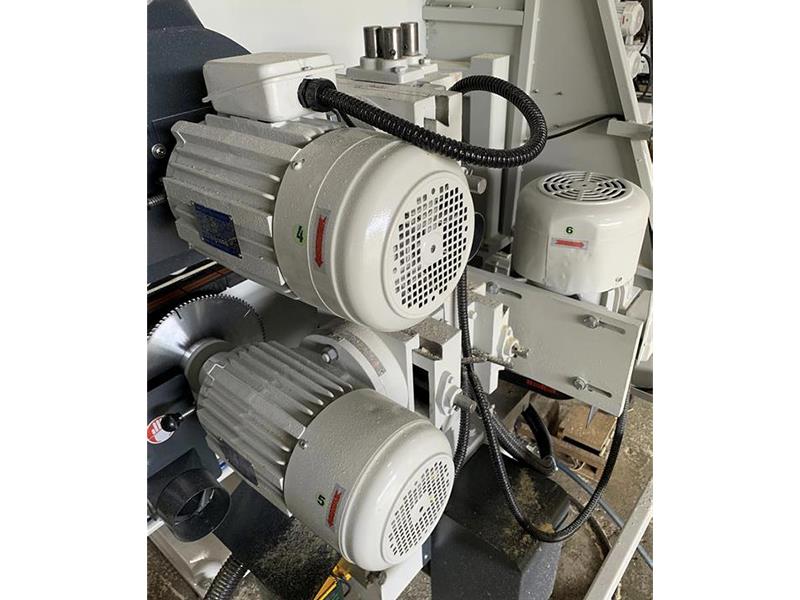

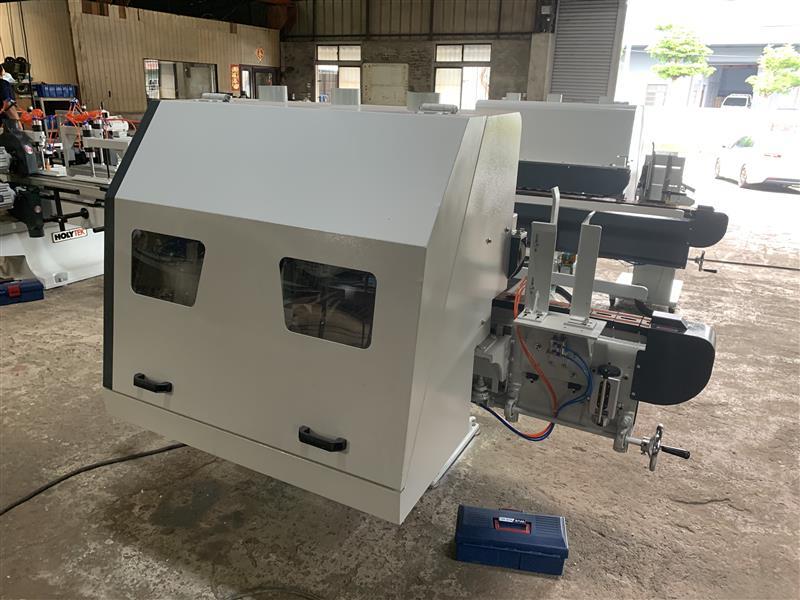

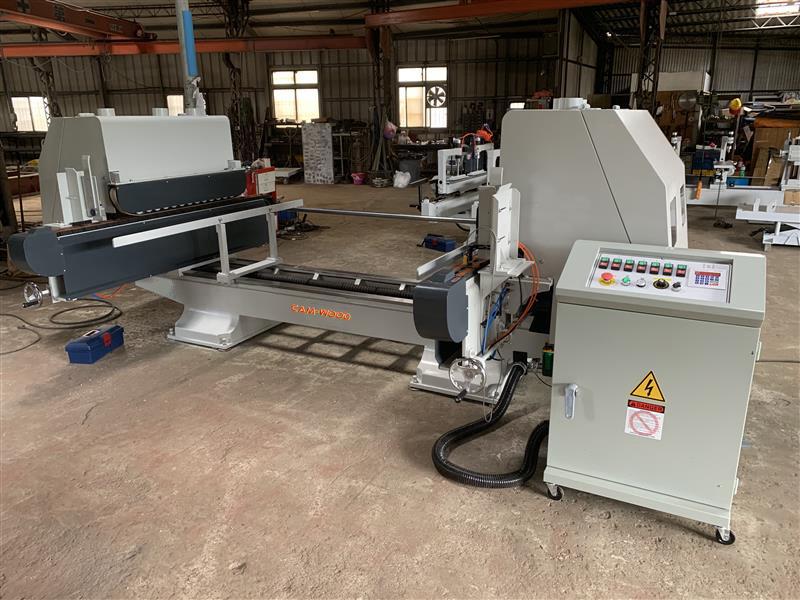

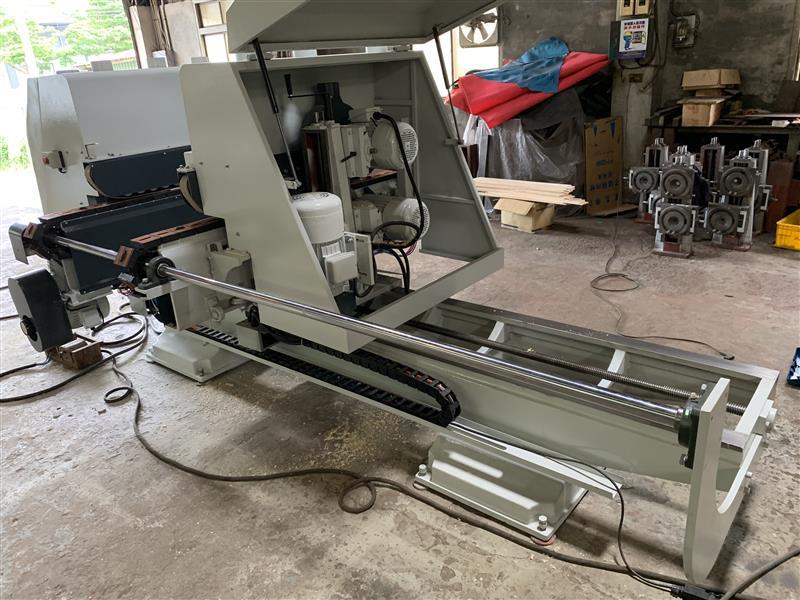

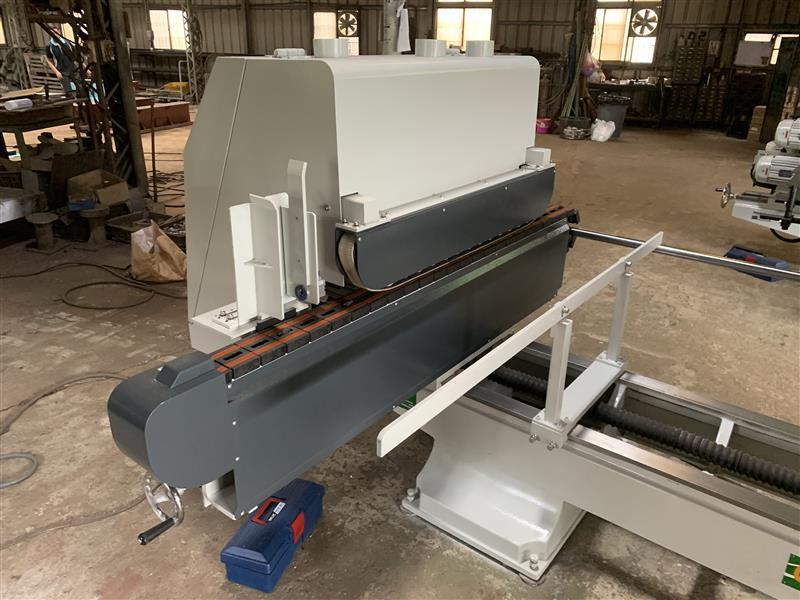

CAM-WOOD SET-84 -TS - SH Double End Tenoner, (4) Heads4-Head machine (two on each side) with Scoring/Cutting and HoggingCapacity & Style: -- Max. 98" working capacity, min. 12"; max. 4" opening, 24" load area in front of hold-downs. -- Single-post machine, single "dual-track" base, right side fixed, left side movable. -- Motorized opening with LED indicator.Each side equipped with: -- Scoring head, 3 HP - 3,600 RPM motor, and 1" dia. arbor for up to 10" blade. -- Hogging/cutting unit 5 HP - 3,600 RPM motor, 1" dia. arbor, 10" max. dia. cutter-head. -- Variable feed speed from 12 - 52 FPM, 1 HP motor, steel feed chains with plastic anti-slip pads, and dogs at 6" center. -- Spring loaded overhead hold-down beams with endless belts. -- Separate electrical control cabinet with operator controls.Options Available: -- Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional $38,900). -- Hopper feed magazine (additional $3,990). -- 42" Infeed extension (additional $4,500) -- Sound enclosure ...$6,900 -- Electric motor brake -- Central supportNote: Pictures are showing the machine with several options included
Get Your Price from Ex-Factory!
