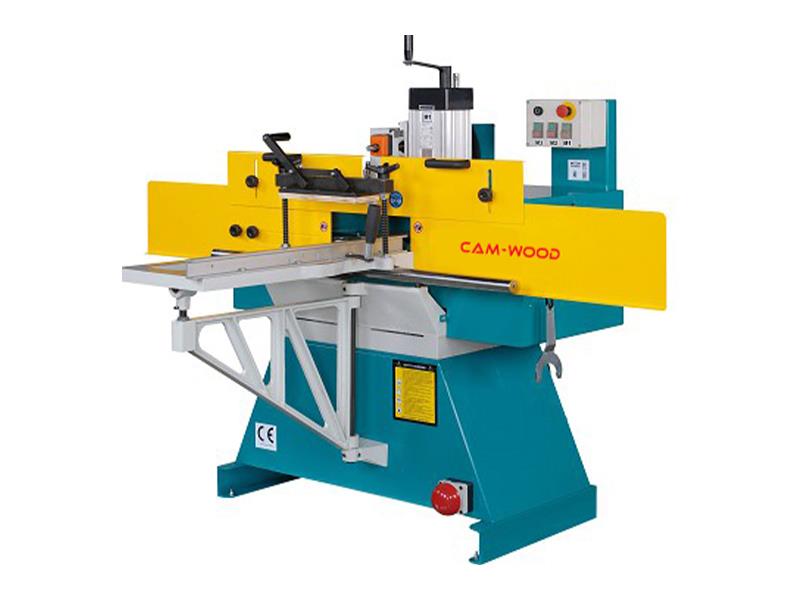

Cam-Wood #Set-83-3M, Single End Tenoner, 31" width x 12" L table, 5" Min. L cut, 5" width cut pass once, 5" H tennor, 6" tenoner depth, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

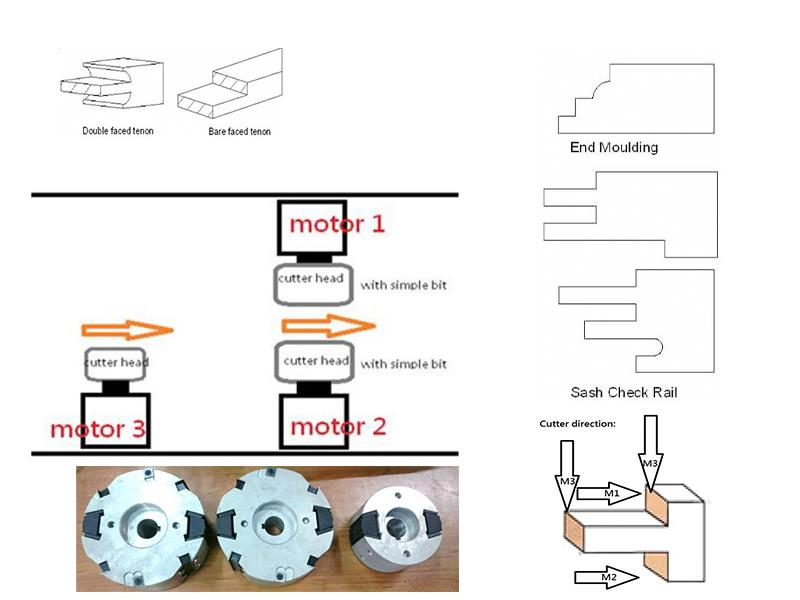

CAM-WOOD SET 83-3M Single End TenonerIt performs tenon, moulding functions. -- Three tenon cutters, cope spindles accepts general shaper cutter. -- Suited for cutting tenons, finger joints for windows or door frames and general joint-tenon. -- Hand, manually operated clamping and feeding of stock. -- Then two horizontal moulding, tenon spindles and one vertical coping spindle enables machine to perform edge tenon, moulding. -- Since each head is adjusted independently, a wide variety of tenons can be cut. -- At the end, the cope spindle provides 6000 RPM cutting, allowing to feature a spindle sharperSpecifications: -- Table Size 31"; W x 12"; L -- Max. Length of Cut ~ -- Min. Length of Cut 5"; -- Max. Width of Cut Pass Once 5", Pass Twice 8"; -- Max. Tennor Height 5"; -- Max. Tenoner Depth 6"; -- HORIZONTAL COPING HEADS X 2 UNITS (M1 & M2) -- Cutter Head Dia. 6-3/4";, Cutter Arbor Dia. 30 mm, Cutter Head Length 2-3/8";, Cutter Speed 4,000 RPM -- VERTICAL COPING HEAD (M3), Cutter Head Dia. 5";, Cutter Arbor Dia. 30 mm, Cutter Head Length 2-3/8";, Cutter Speed 4,000 RPMTRAVERSE -- Saw Longitudinal Travel 3" -- Saw Vertical Travel 3" -- Carriage Cross Travel 20" -- MOTOR Saw & Tenoner Head 3 HP x 2 -- Cope Head 5 HP x 1 -- DUST HOOD Out Diameter 6"; x 2
