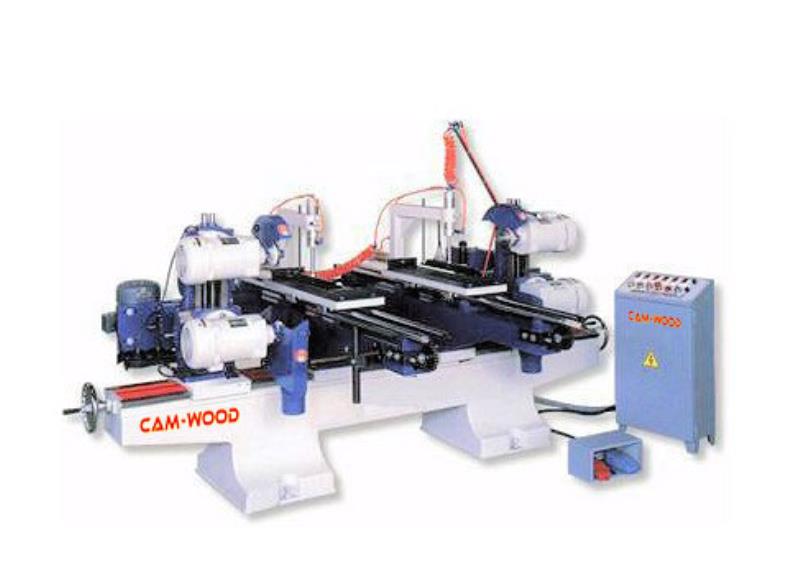

Cam-Wood #Set-52SATX, Double End Tenoner, 6-Head, 60" cut length, 24" cut width, 4-1/2" clamping thickness, 12" blade diameter, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

CAM-WOOD SET-56SAT 6-Head Double End Tenoner (Not Feed Through)Capacity: -- Length of cut: 12" to 60" (opening). -- Max. width of cut: 24" (cross cut). -- Max. clamping thickness: 4-1/2". -- Saw blade dia. 8" to 12"; saw arbor dia. 1"; saw blade speed 3,400 RPM; saw head swivels 180 degrees. -- Moulder (Shaper) spindle: 1" Dia. x 5" long; spindle speed 6,000 RPM; spindle swivels 180 degrees. -- Vertical travel: 17" vertical. -- Carriage (table) travel (front/back): 24".Equipped with: -- Saw motors: (4), each 2 HP motors (1 top & bottom each side). -- Shaper spindles: (2), each 3 HP motors (1 each side). -- Powered length setting: 1/2 HP motor (machine opening).Features: -- With the double end miter saw set-up, you can cut-off stock faster or consider a double end miter saw combined with moulding (shaper) head. It lets you cut and machine stock and moulding pattern in a single feed, saves time, space and cost. -- Air-operated vertical clamps hold sticks firmly in place. After the work piece is clamped, table start to feed, performs trimming and shaping operations. -- Trim saw allows to cut stock accurately with a clean cut. -- Moulding (Shaper) spindle mounted at the rear of saw head enables the machine to perform edge moulding after stock is cut off. -- The entire cutting cycle, cut-off, shaping/tenon or mortise is automatically operated in a single pass of stock feeding. -- The material Clamping table travels on a precision linear motion guide for stability. -- The table traverse is motorized, ensuring very stable, smooth workpiece feeding. -- Material transport thru machine powered by variable speed inverter drive for 10 to 20 Sec per cycle -- Variable feed speed permits proper feed selection for hard or soft wood materials. -- Large hand-wheel to adjust depth of cut. -- All controls are grouped in a control panel. -- Industrial motors for optimal cutting results.Machine Stations: -- 1: Top & Bottom Trim Saws powered by (4) 2 HP saw arbor motors for trimming to length. -- 2: Shaper spindles powered by (2) 2 HP spindle motors for applying tenons and grooves. -- Floor space requirement: 94" X 40" X 54" high. -- Cycle time: 10 to 20 Sec per cycle.Available option at additional cost: -- Auto Outfeed device -- Return conveyor
