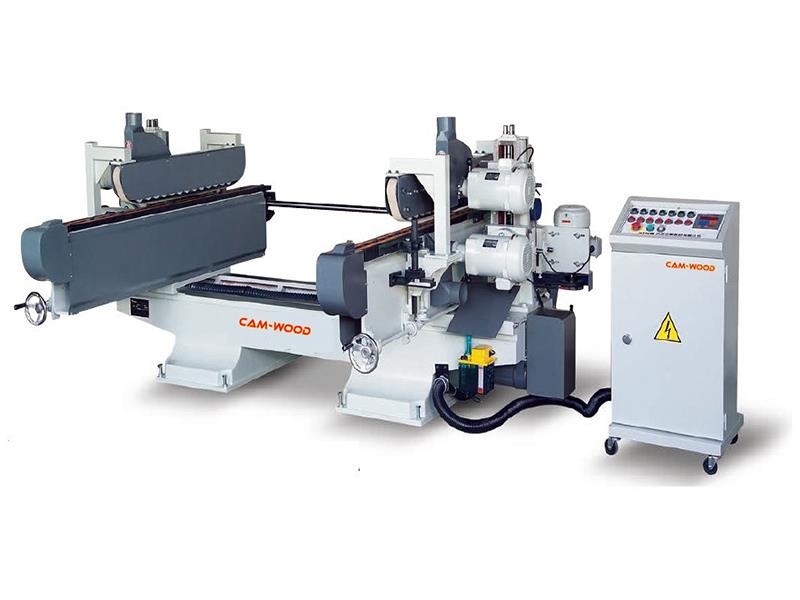

CAM-WOOD SET-46TS 6 Heads 48" Double End Tenoner: Soring, trimming and shapingCapacity: -- Max. 48" working capacity, min. 12"; max. 4" opening, 24" load area in front of hold-downs. -- Motorized opening with LED indicator; -- Single-post machine, single "dual-track" base, right side fixed, left side movable.Each side equipped -- Front of post: Bottom scoring unit, 2 HP - 3,600 RPM motor, 1" dia. arbor & up to 10" blade; -- Top trim head, 3 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade; (saw blade included) -- Back of post: Vertical shaping head, 5 HP - 7,200 RPM motor, 5-7/8" (150 mm) long & 1" dia. arbor, 8" max. dia. cutter-head. -- Variable feed speed from 12 - 52 FPM, 1 HP motor, steel feed chains with plastic anti-slip pads and dogs at 6" center, --Spring loaded overhead hold-down beams w/endless belts. -- Separate electrical control cabinet with operator controls.Options Available: -- Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional $ 61,125) -- Hopper feed magazine (additional )Extended infeed 42" (additional $5,625) -- Sound enclosure additional $ 8,625 -- Pneumatic jump control on scoring or shaping unit -- Same machine with 8' opening
Friulmac Model Floormat/EQ Double End Tenoner with Top and Bottom Scoring/Cut-off Units (Tilting) and one Fixed Profiling Unit each SideFour 4 HP (3 KW)Trim/Cut-off Motors 2 (2 each side) 30mm Bore on Trim Units150mm Saw Blade Dia. Two 7 1/2 HP (5.5 KW) Fixed Profiling Units (1 each side)Profiling Units have 40mm Bore ...more
Wisconsin Automated Machine C-450, single end shaper, Automatic double head shaper/coping, Model C-450, Serial: C-450-6901-00, 230 volts, 3 phase, 60 Hz., Allen-Bradley and Motortronics electrical, Only motors are 230 volts, 48 full load amps., 15.2 amps on largest motor.
