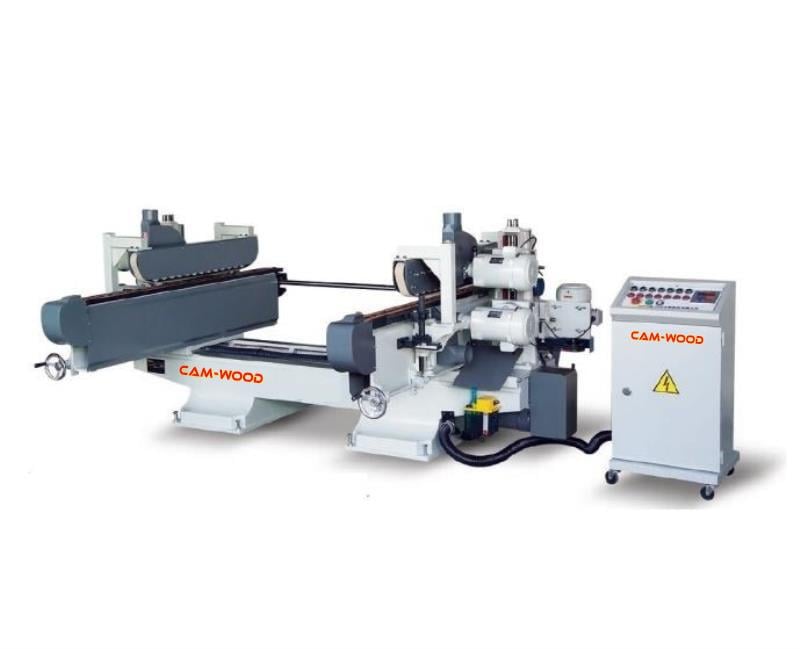

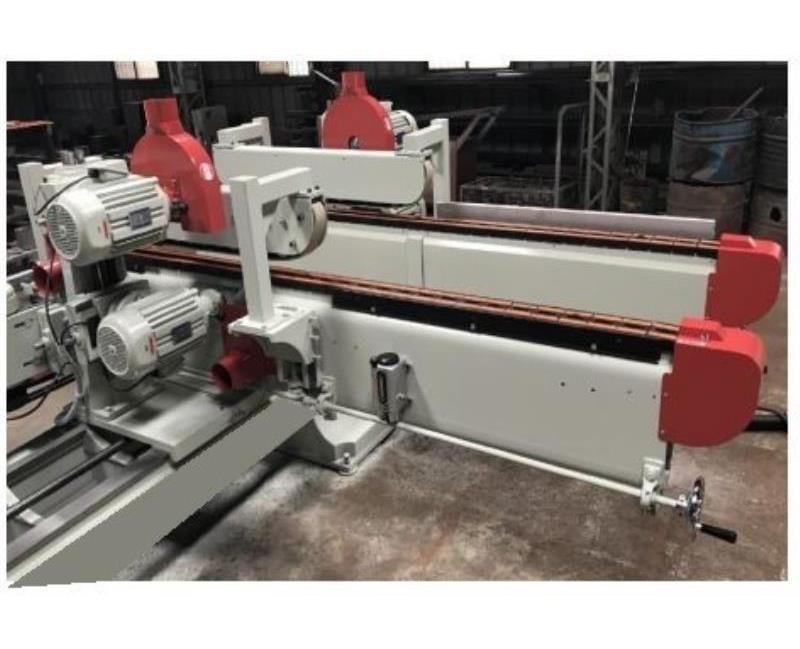

Cam-Wood #Set-106TS-SHCX, double end tenoner, 6-head, 120" working capacity, 2025, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

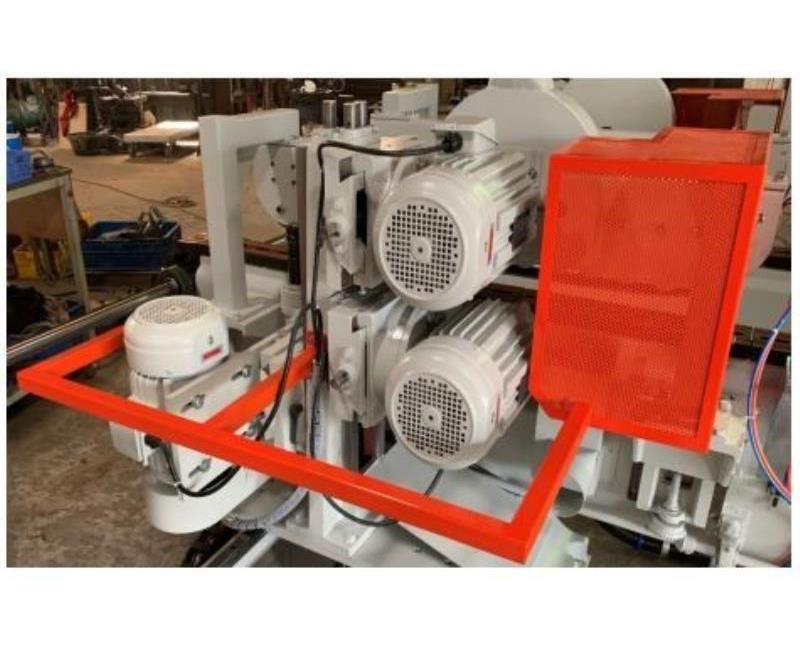

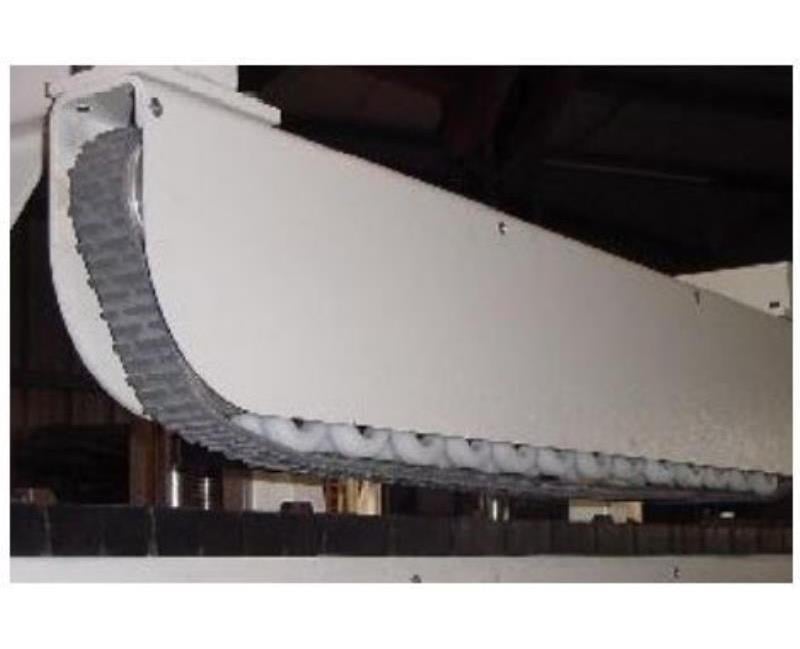

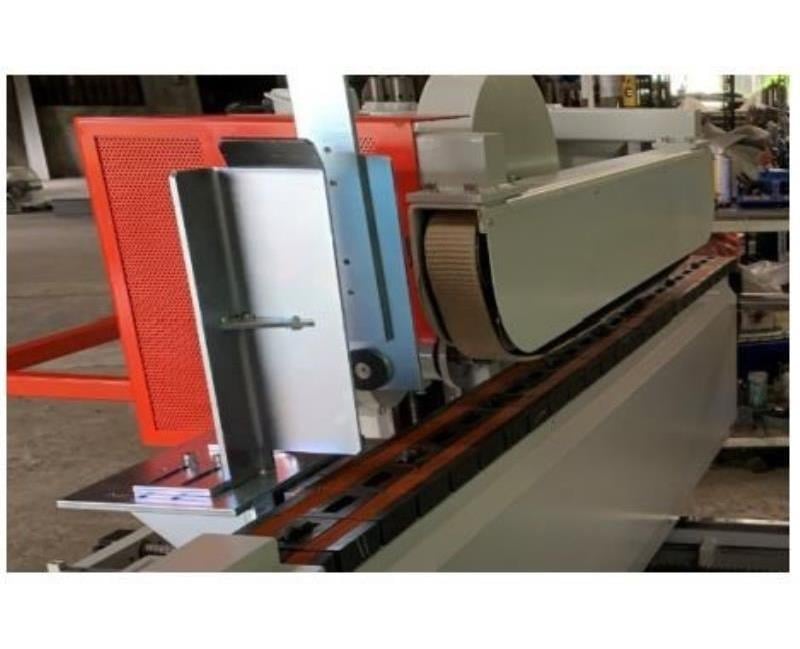

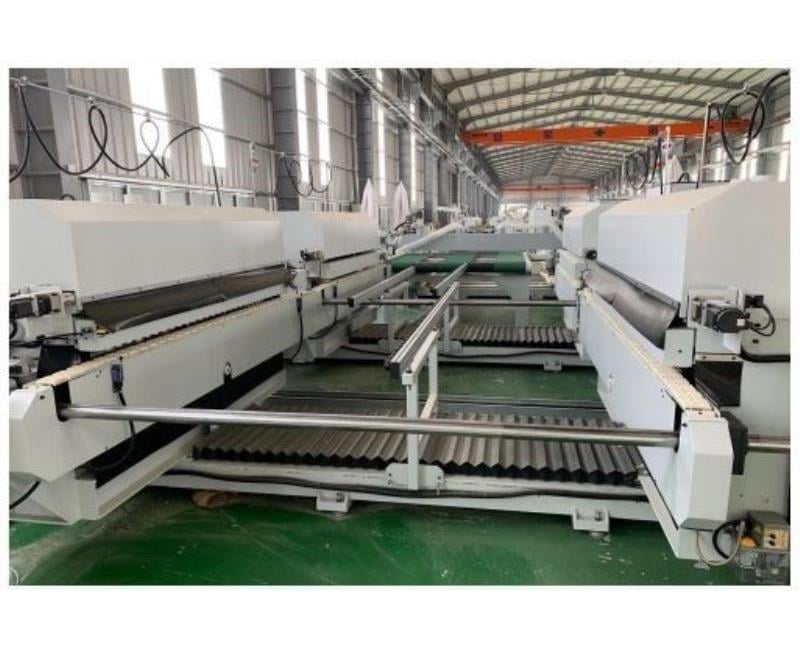

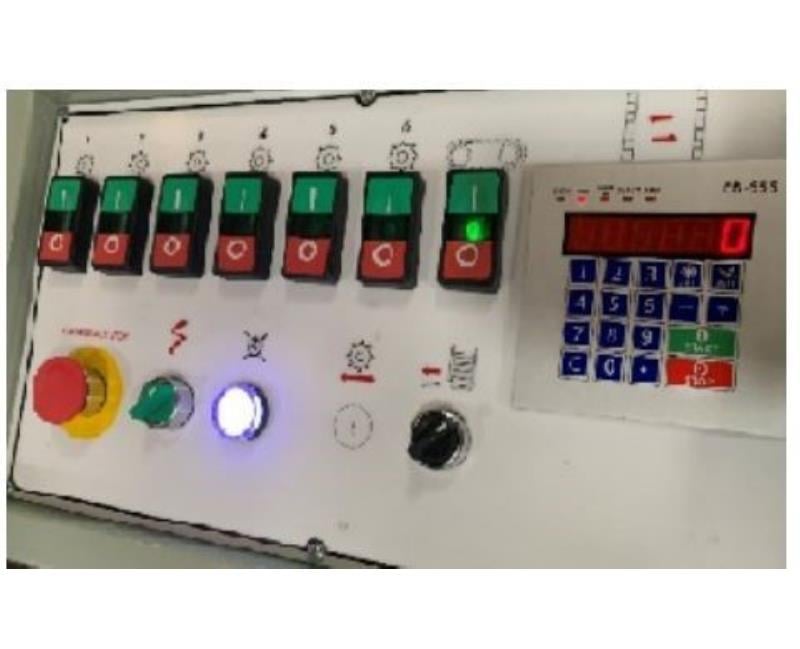

CAM-WOOD SET-106TS- SJC Double End Tenoner, (6) HeadsCapacity & Style: -- Max. 120" working capacity, min. 12"; max. 4" opening(thickness), 24" load area in front of hold-downs. -- Single-post machine, single "dual-track" base, right side fixed, left side movable. -- Motorized opening with LED indicator.Each side equipped with: -- Top scoring head, 2 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade. -- Top trim head , 10 HP - 7,200 RPM motor, 5-7/8" (150 mm) long & 1" dia. arbor, 8" max. dia. cutter-head. -- Jump Cope shaping head, 7.5 HP - 7,200 RPM motor, (150 mm) 5-7/8" long x 1" diameter arbor, 6" to 8" max. dia. cutter head -- Variable feed speed from 12 - 52 FPM, 2 HP motor, steel feed chains with plastic anti-slip pads, and dogs at 16" center. -- Spring-loaded overhead hold-down beams with endless belts. -- Separate electrical control cabinet with operator controls.Options Available: (Pricing to be confirmed at time of order) -- Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional ...$61,125). -- Hopper feed magazine (additional ...$4,990). -- 42" Infeed extension (additional ...$5,620) -- Pneumatic jump control on scoring or shaping unit. -- Sound enclosure ($8,625) -- Electric motor brake -- Central support Included for 10' opening machineNote: Pictures are showing the machine with several options included
