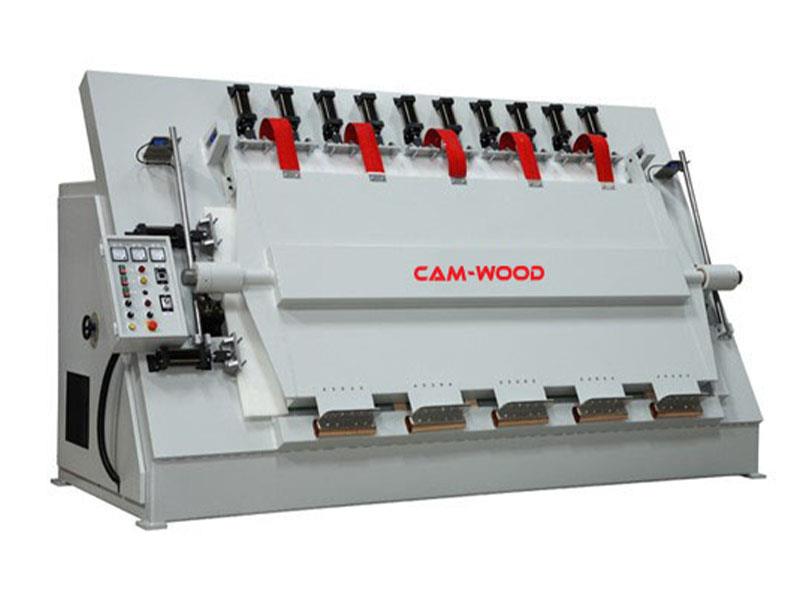

Cam-Wood #PT-48S3FH, High Frequency 3-Sided Board press, 4' x 8' / 5' x 10' capacity, 49" width x 110" L x 9/16" - 2-3/4" H, 5 HP pump, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

CAM-WOOD PT-48S3FH High Frequency, 3-Sided Board PressSlanted type High Frequency Press with a 4' X 8' capacity; also available with 5' x 10' capacity.Features: -- Mass production for wooden boards, 2 to 3 minutes for drying a 4' x 8' or 5' x 10' wooden board -- Equipped with a massive upper platen that applies powerful hydraulic pressure. It presses the entire surface of a (wooden) board evening out and flattens an uneven wood-based board. -- Due to the flatness it makes, it may not require Double-Sided Planer processing. This saves processing time and material. -- The top-quality wood board is manufactured by way of cured glue and hardened glue joins with high-frequency heating -- All processing steps are integrated into the HMI interface control panel for easy one-touch control right on the screen. -- Utilizes high-frequency, curing the glue evenly from the inner of the glue lines.Specifications: -- Input Power 50 KVA, High Frequency Power 30 KW max. -- Working Width 49" Max. -- Working Length 110" -- Working Height (board thickness) 9/16" ~ 2-3/4" -- Press Pressure 65 kG cm (924 PSI) -- Hydraulic Pump 5 HP -- Press Cylinders (top) 2 Pcs -- Press Cylinders (Rear Side) 12 Pcs -- Press Cylinders (Left Side) 2 Pcs -- Machine Size (L x W x H) 155" x 67" x 83" -- Machine weight 12,300 LbsOption:Twin table (as shown in the video)Twin table model Price: $ 149,990
