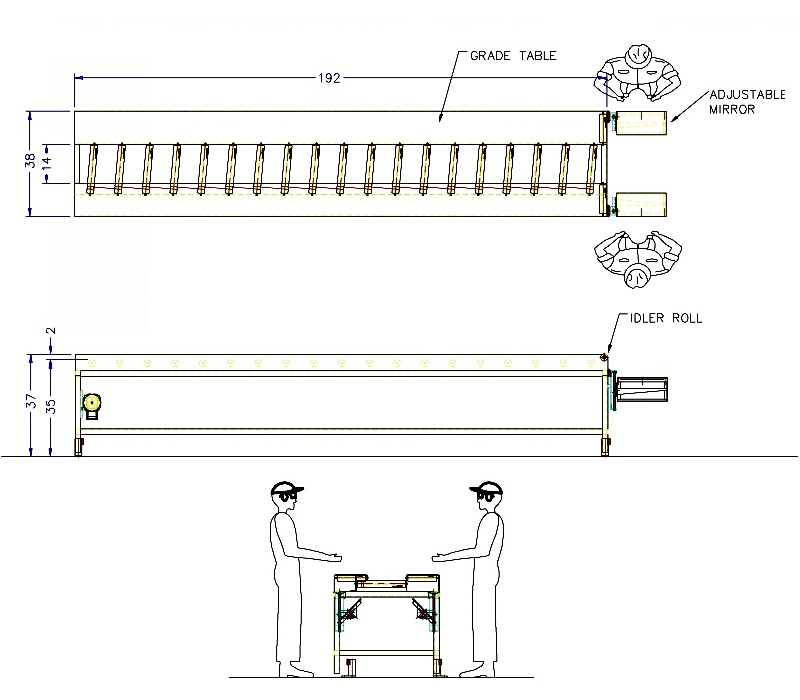

CAM-WOOD OPTI-FEED 216 BX Top & Bottom, Two-Station Marking SystemTwo Graders, facing each other, pull lumber from an adjacent unit and crayon mark defects. Adjustable, impact-resistant mirrors are attached to the frame to allow the Grader to view the bottom of the board for defects, eliminating the need to turn/flip the lumber. As each board is graded, the Grader pushes it onto a table area. An idler roll in the Grader end of each table assists the Grader as he pulls material from the unit.A powered, canted roll conveyor is located between the marking tables. Canted rolls keep marked boards against the fence side for proper positioning into the scanner section. As Graders finish marking, they alternate placing boards onto the roll section. A gear motor powers the rolls at a fixed speed. A VFD can be attached to adjust speeds to be appropriate for saw’s processing ability or to match other production requirements.2-Man marking station; fit's most Optimizing Saws. Handles boards from 30" to 16' long x 1-1/2" to 12" wide x 1/2" to 2" thick. Overall machine is 16' long x 40" wide with a 34" to 36" adjustable pass line. -- Equipped with 12" long x 2-1/2" dia steel smooth face "snap in" rollers with internal bearings; rollers are driven by round urethane belting at a fixed speed; rolls on approximately 10" centers, 12" wide x 3/16" thick steel table areas, 2-1/2" dia idler rollers in the table end; 3-axis adjustable, impact resistant 12" x 18" mirrors. -- Fixed 100 FPM feed speed via 1-1/2 HP gearmotor for connection to your motor starter or VFD. -- Operation is as follows: Two Graders, facing each other, pull lumber from an adjacent unit and crayon-mark defects. After each board is graded, the Grader pushes it onto a table area. -- Adjustable, impact-resistant mirrors are attached to the frame to allow the Grader to view the bottom of the board for defects, eliminating the need to turn/flip the lumber. -- An idler roll in the far end of each table assists the Grader as he pulls material from the unit. A powered, canted roll conveyor is located between the marking tables. -- Canted rolls keep marked boards against the fence side of the line for proper positioning thru the camera section. As Graders finish marking, they nudge the board onto the roll section, ensuring an adequate board in the process.
Northtech NT UCS30 L or R Up Cut Saw Max cutting capacity: 2"x27", 4"x24", 6"x21", 8"x16", 10"x10" 15HP motor 30" Carbide tipped blade included 1600RPM 2" Saw arbor diameter Cycle speed: 10~15 stroke/min Pneumatic cycle Quick access on front of the machine to adjust blade stroke Safety interlock on blade access door ...more
CAM-WOOD CS-30L Upcut Saw(2" x 26-3/4", 6" x 20-7/8", 9-1/2" x 9-1/2" Capacity) & s: -- Heavy Duty Cutoff Saw with Dual Palm Button; raise/lower by hydraulic power. -- "Incremental leaf" blade guard keeps hands clear of the cutting area. -- Activates the guard clamp while activating the cut cycle. -- After cutting ...more
Westlake 2 saw cutoff, 24” blades, 19′6” long x 9” thick capacity, 20” wide belly waste conveyor with 15” belt and heavy gear box, Very low hours of usage, Includes deck - 11′6” wide x 16′ long, 3 strand with very heavy gear box, very low hours of usage.
