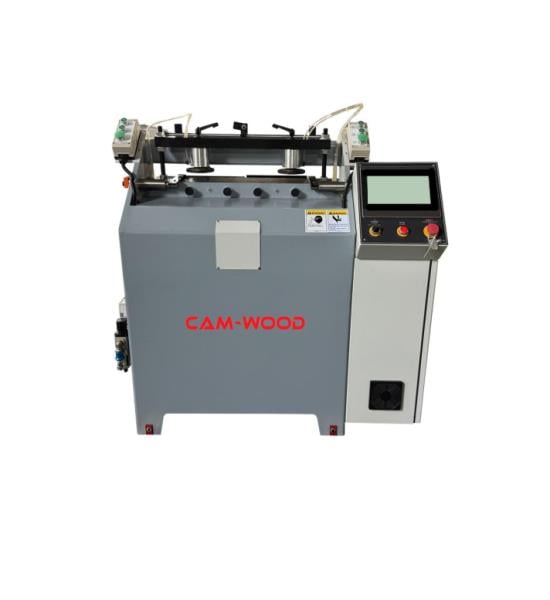

Cam-Wood #CM-530CNC-4S, CNC Dovetail Machine, 1" - 20-7/8" working width, 3/8"-1" thickness, 2 HP, 20,000 RPM, Syntec CNC, 2026

Estimated monthly payment valid upon approved credit.

Request Formal Quote

CAM-WOOD CM-530-4S CNC CONTROLLED DOVETAILEROperators can choose the models according to demands, able to change or design wood materials variously, set the working speed, sizes of tenons & mortises, intervals by simple human operation interface. The files can be saved for repeat use. Heavy steel frame and cast-iron table for long-life usage. (4) Large air clamps for making two sets of male and female dovetails at the same time. Working Width 1" - 20-7/8" Working Thickness 3/8" - 1". Servo router head travels at precision linear bearing providing smoothness and accuracy. Male and female dovetails are produced at the same time for maximum match accuracy. Variable cutting speeds for best finish of different materials. Easy operation and maintenance. Equipped with: Main Motor 2 HP High Frequency with variable speed up to 20,000 RPM. Quality Syntec CNC Control with four styles of dovetails programmed. -- English dovetail joints with all the same fixed length’s dovetail and pitch. (Dovetail length/pitch 25 to 100 mm). -- French blind dovetails. (Dovetail length 0 to 600 mm) -- Threading Dovetail Joints rectangular instead of round fingers. (Dovetail length 14.5 to 100 mm, Pitch 14.5 to 100 mm) -- Alter English One dovetail joints with all the same length’s dovetail by different/variable pitch (Dovetail length 13.5 to 100 mm, pitch 13.5 to 120 mm) -- Alter English Two dovetail joints with different length’s dovetail and different pitch (Dovetail length 13.5 to 100 mm, pitch 13.5 to 120 mm) -- Parallel indent straight cut (beehive type) fingers joints.
