Description

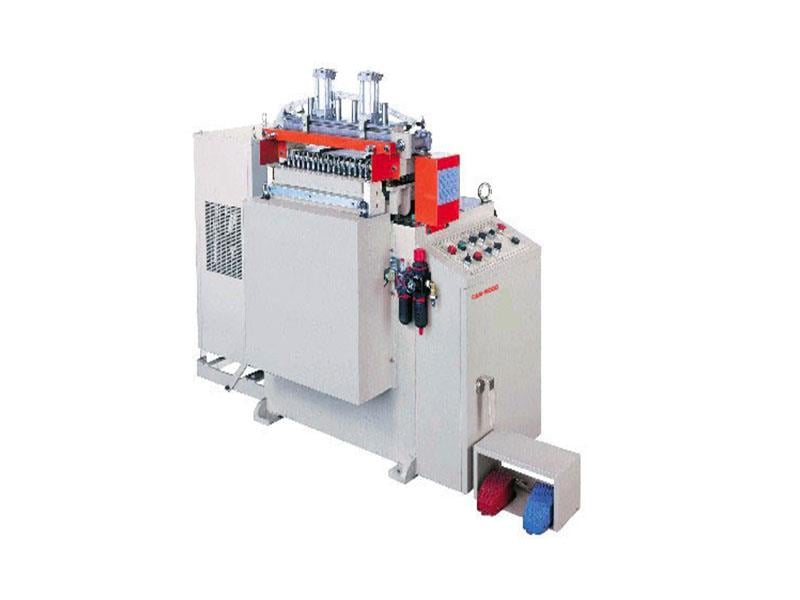

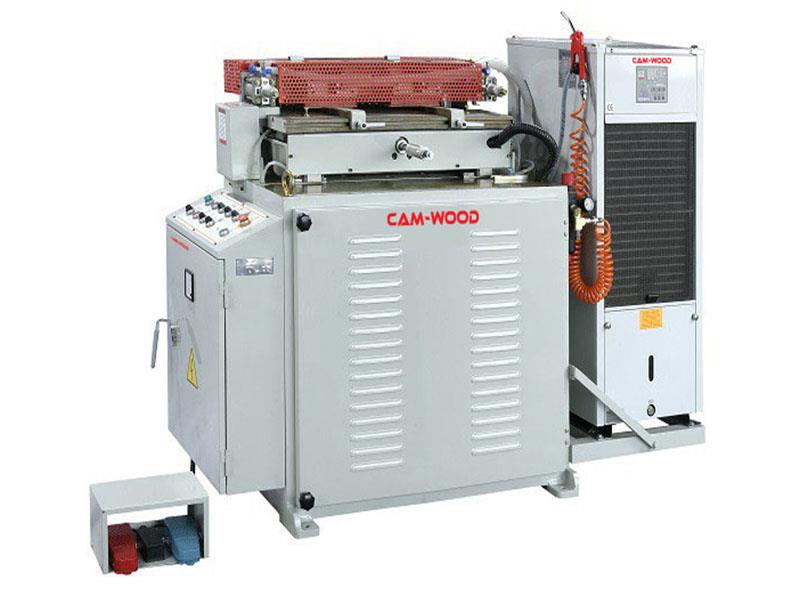

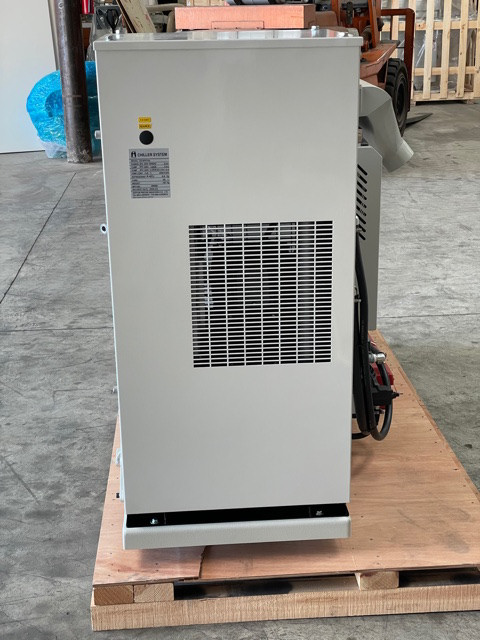

CAM-WOOD 24-ATX Multi-Spindle Dovetailer24-Spindle Dovetailer can mill up to (24) Dovetails in one cycle.Capacity: -- 24" Width max., male and female dovetails with one automatic stroke for mass production. -- Dovetail Max Thickness: 9/16; - Dovetail Max Width: 9/16"; - Dovetail Max Depth: 1-1/2".Features: -- Unique design, variable speed of the air-hydraulic system for even cutting feed pressure to achieve a fine finish. -- Linear bearing guide for the smooth movement at high-speed strokes. -- Auto gearbox cooling system for 24-hour per day working capability. -- Pneumatic clamps and powerful industrial motor for max. cutting results.Complete with: -- Foot pedal controls automatic clamps and cutting cycle. -- Heavy steel frame and cast iron table for long durability of usage. -- Easy micro-adjustment for the match of the dovetail tightness.Technical Data: -- Main Motor: 10 HP. -- Spindle Rotation: 7,500 RPM. -- 4" Diameter dust hood
*Note: Freight Damaged, See Pics* For the angular cutting and dovetail assembly processes of wooden profiles. Cutting at 15°, 22.5°, 30°, 45°, 90° right and left angle fixing Automatic cutting of opening of dovetail slots for wooden profiles 2 pneumatic horizontal-piston for dovetail operations 2 ...more
Made in Germany, very heavy-duty, freestanding production unit designed to simultaneously process two workpieces for the Hoffmann Dovetail Joining System.- Precision Engineering: Built with a heavy-duty cast aluminum table and precision linear bearings for vibration-free, professional-grade routing.- High Efficiency: ...more
