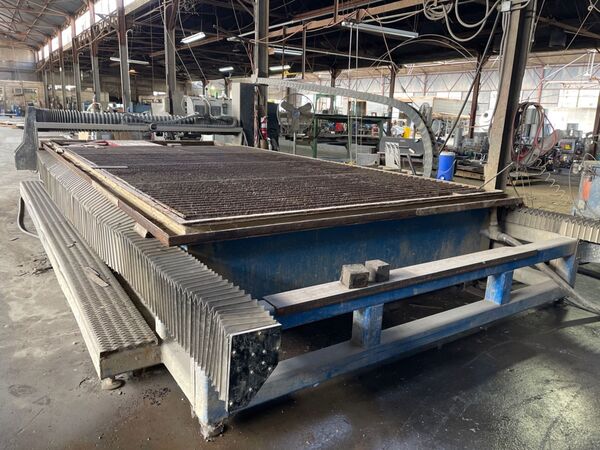

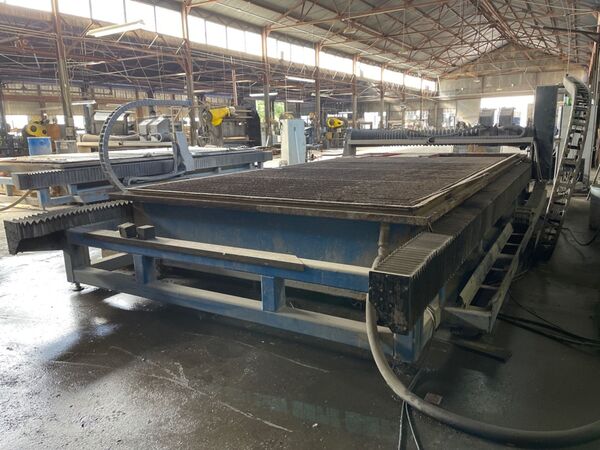

Calypso #LWA, Waterjet System, 9' x 20', refurbished, 2008

9’ X 20’ Dual Head CNC Abrasive Waterjet Cutting System with
Calypso PC Based Controller System, NC Geomate/Console Operating System, 50HP 60KPSI Intensifier Pump, Dual Head with Programmable Offsetting and Mirror Cutting Capabilities, 600 LB Bulk Abrasive Hopper - Installation, Training, Updated Software and Warranty Included!
GENERAL SPECIFICATIONS

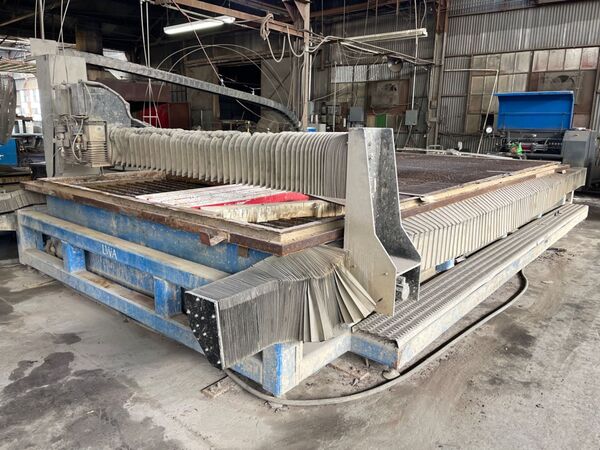

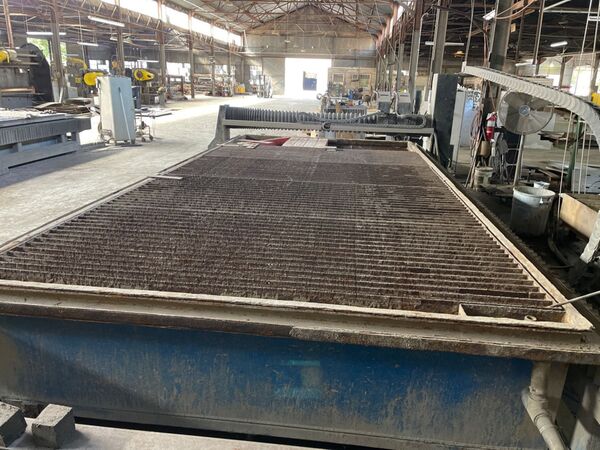

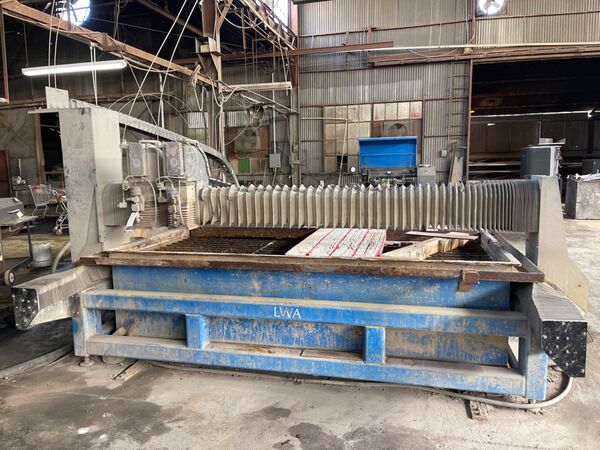

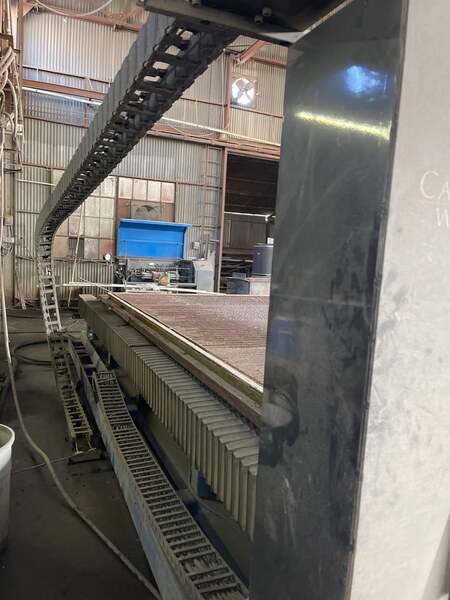

Bridge Gantry X-Y Table: 9’ x 20’
Travel X axis (width): 109”
Travel Y axis (depth): 245”
Travel Z Axis (Tool): 8”
Park Area: Bridge parks completely out of the work area providing
complete clearance for loading material
Speeds:
Rapid Traverse: 1000”
Profiling/Contouring: 0.01 to 500”

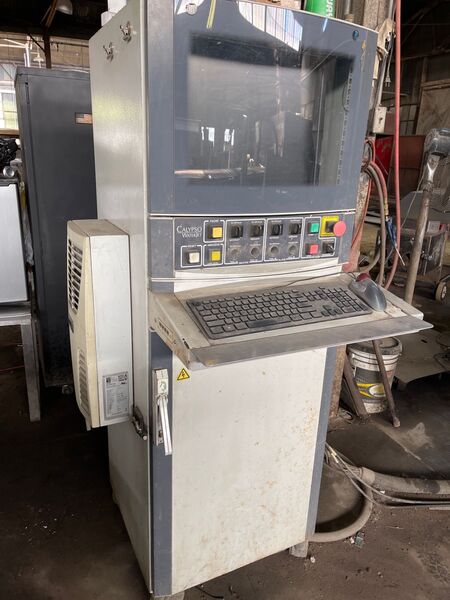

Controller
Control Console: Industrially Hardened and Climate Controlled PC Control Features:
Nema 4 Enclosure – water and dust tight
Mk4 Waterjet Control system
PC based (Windows 10)
Requires 20 amp single phase at 230 vac (+/-10%)
External USB 4-port hub
Wifi Capable

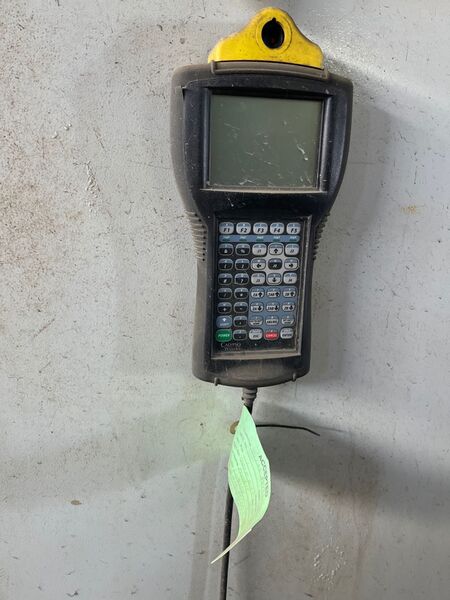

Bluetooth Capable for Remote Operator Android App

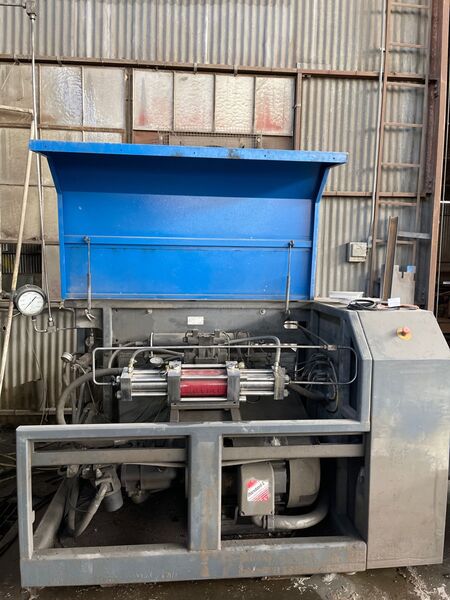

Intensifier Pump HP: 50 HP
Operating Pressure: 60,000 PSI
Intensifier Type: “ESL”
Pump Output: 1.0 gal/min output in normal operation
Voltage: 480V
HP Pump
Pump Features:
Pump control fully integrated to the waterjet control system
Start/Stop/Estop
Programmable Pressure Hi/Low/Auto
Pump diagnostics returned to console
Hydraulic Accumulator
Improves high pressure water profile, making smoother cuts
Improves life of hydraulic components by reducing pressure spikes
Pump Protection Sensor Suite:
Water Pressure low, Low Oil, High Oil Temp
Abrasive Delivery System

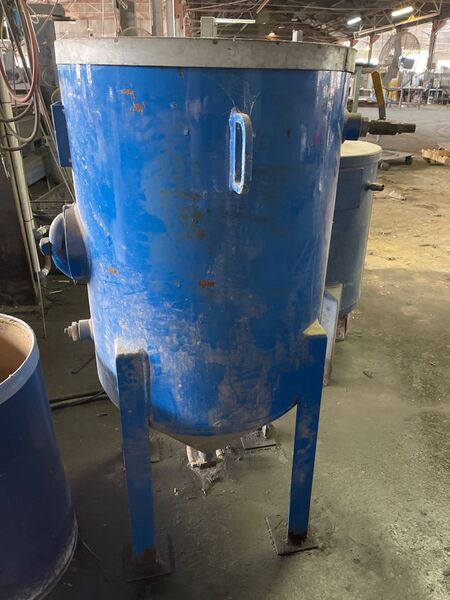

Supply: 600 LB bulk delivery hopper to automatically maintain abrasive flow Metering Device: Programmable Digital Rotary Feeder Over the Cutting Heads
Abrasive Flow Rate: 0.25 Lb. per min to 1.5 Lb. per min
INCLUDES: Calypso PC Based Controller System, NC Geomate/Console Operating System, 50HP 60KPSI Intensifier Pump, Dual Head with Programmable Offsetting and Mirror Cutting Capabilities, 600 LB Bulk Abrasive Hopper - Installation, Training, Updated Software and Warranty Included (Buyer responsible for travel and per diem expenses).

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
