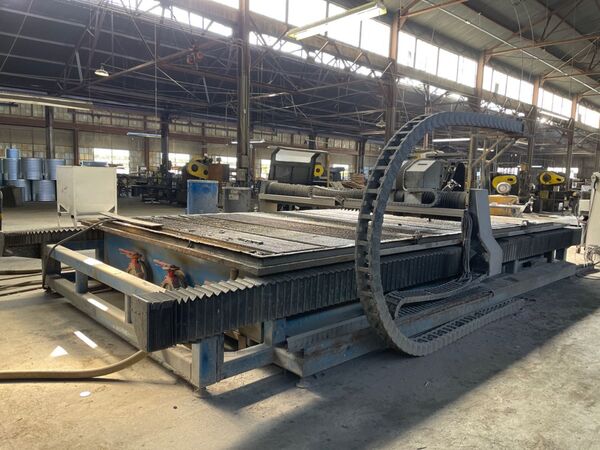

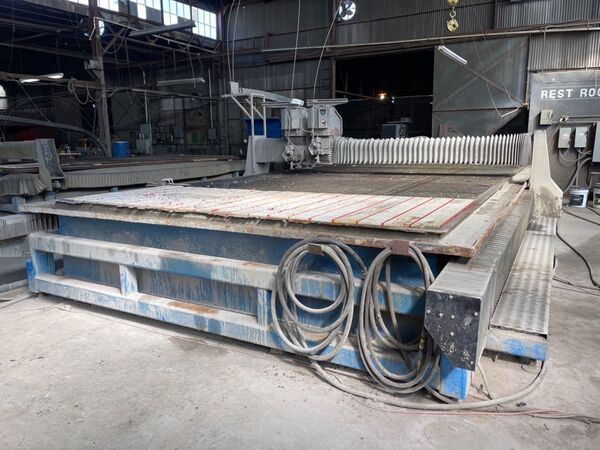

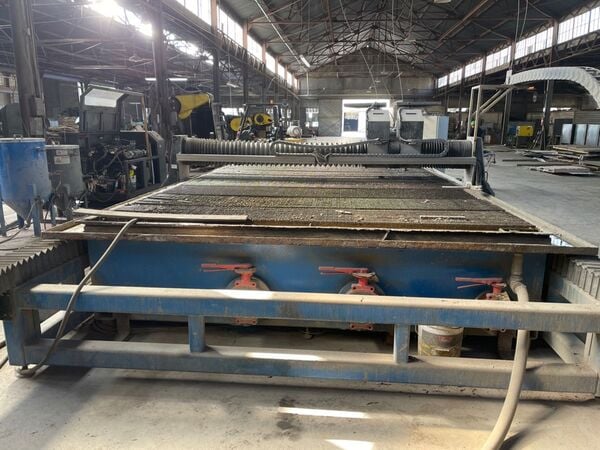

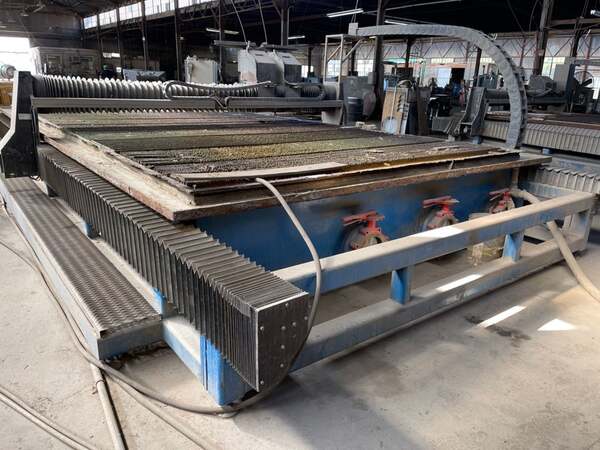

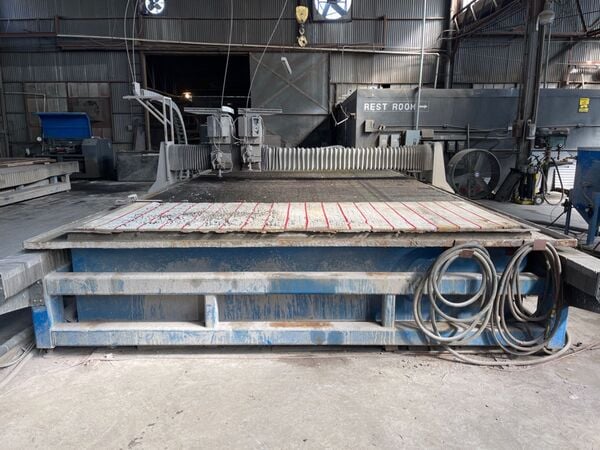

Calypso #LWA, 10' x 20', 100 HP, 60k PSI, 2008

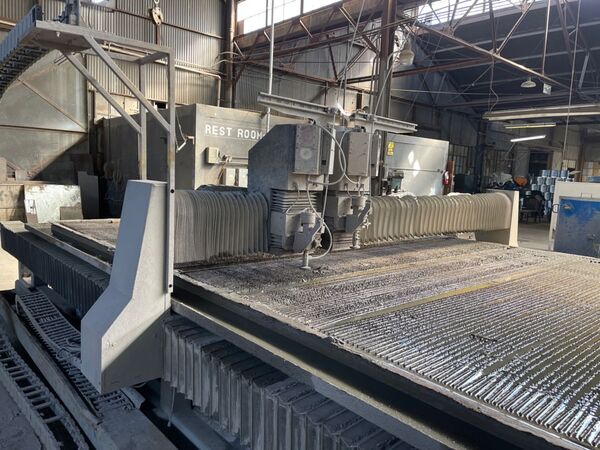

FULLY REFURBISHED - 10’ X 20’ CNC Abrasive Waterjet Cutting System with Current Calypso PC Based Controller System, NC Geomate/Console Operating System, , 600 LB Bulk Abrasive Hopper.

GENERAL SPECIFICATIONS
Bridge Gantry X-Y Table: 10’ x 20’
Travel X axis (width): 121”
Travel Y axis (depth): 245”
Travel Z Axis (Tool): 8”
Park Area: Bridge parks completely out of the work area providing
complete clearance for loading material
Rapid Traverse: 1000” IPM
Profiling/Contouring: 0.01 to 500”

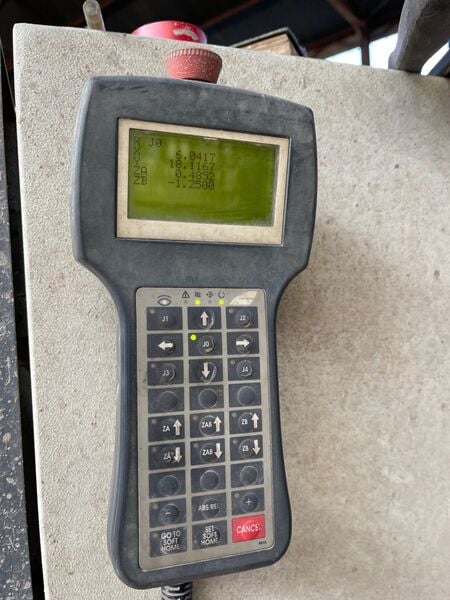

Controller
Control Console: Industrially Hardened and Climate Controlled PC Control Features:
Nema 4 Enclosure – water and dust tight
Mk4 Waterjet Control system
PC based (Windows 10)
Requires 20 amp single phase at 230 vac (+/-10%)
External USB 4-port hub
Wifi Capable
Bluetooth Capable for Remote Operator Android App
Intensifier Pump HP: 30, 50 and 100HP AVA
Operating Pressure: 55KPSI, 60KPSI, 90KPSI AVAILABLE
Intensifier Type: “ESL”
Pump Output: 1.0-2.0 gal/min output in normal operation
Voltage: 200 amp service req’d at 208-240 vac

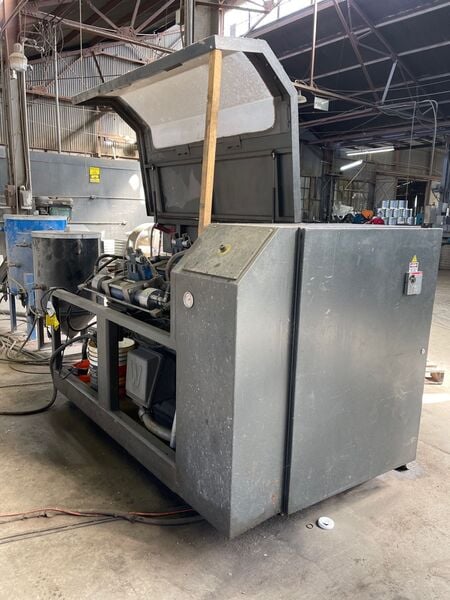

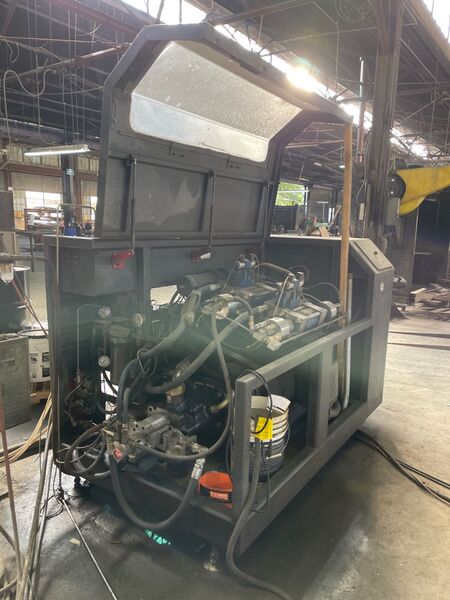

HP Pump
Pump Features:
Pump control fully integrated to the waterjet control system
Start/Stop/Estop
Pressure Hi/Low/Auto
Pump diagnostics returned to console
Hydraulic Accumulator
Improves high pressure water profile, making smoother cuts
Improves life of hydraulic components by reducing pressure spikes
Pump Protection Sensor Suite:
Water Pressure low, Low Oil, High Oil Temp

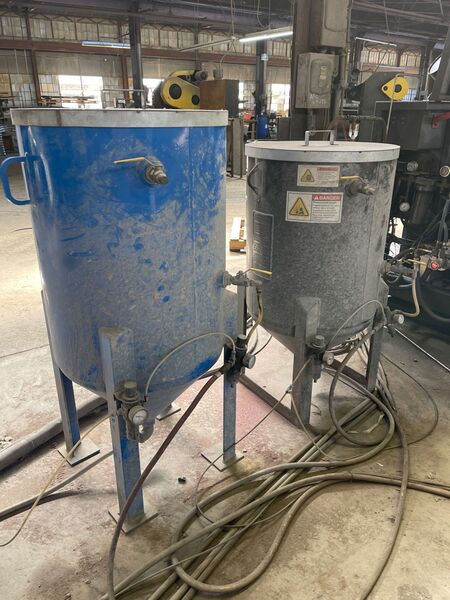

Abrasive Delivery System
Supply: Dual 600 LB bulk delivery hopper to automatically maintain abrasive Flow Metering: Programmable Digital Rotary Feeder Over the Cutting Head
Flow Rate: 0.25 Lb. per min to 1.5 Lb. per min
INCLUDES: American Machinery Group PC Based Controller System, NC Geomate/Console Operating System, 600 LB Bulk Abrasive Hopper, Warranty Included

AVAILABLE OPTIONS:

Dual Cutting Heads
Onsite Installation & Training
Selection of Pump Pressures & Horsepower
Height Sensor
Drilling Attachment

***All Price, Location and Specifications Subject to Change without Notice***

NOTE: SOME PHOTOS SHOW MACHINE IN PRE-REFURBISHED CONDITION
