Bystronic #I.G.-2745-R-L, Insulated Glass Line, 106" x 177" glass size, R-L, 15 mm glass thick, 13/16" width spacer, 48 MPM, 2011

$369,740 USD

Request Formal Quote

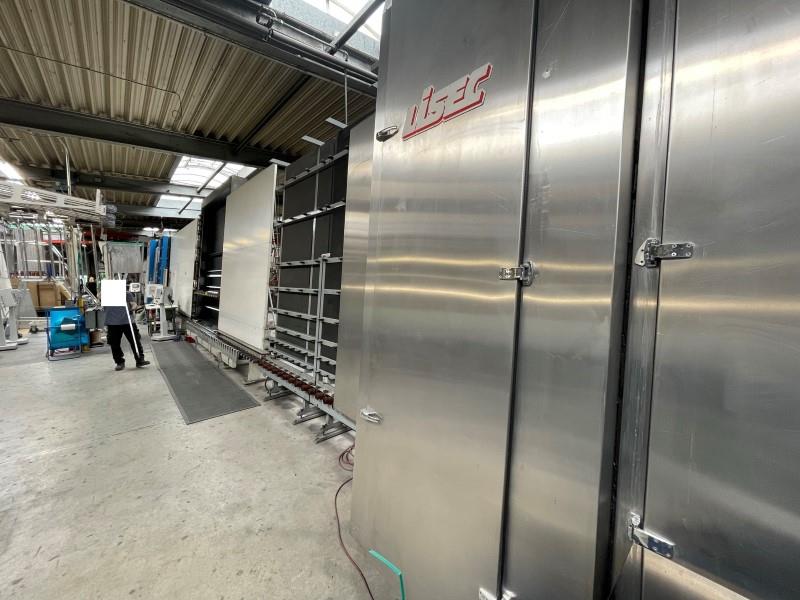

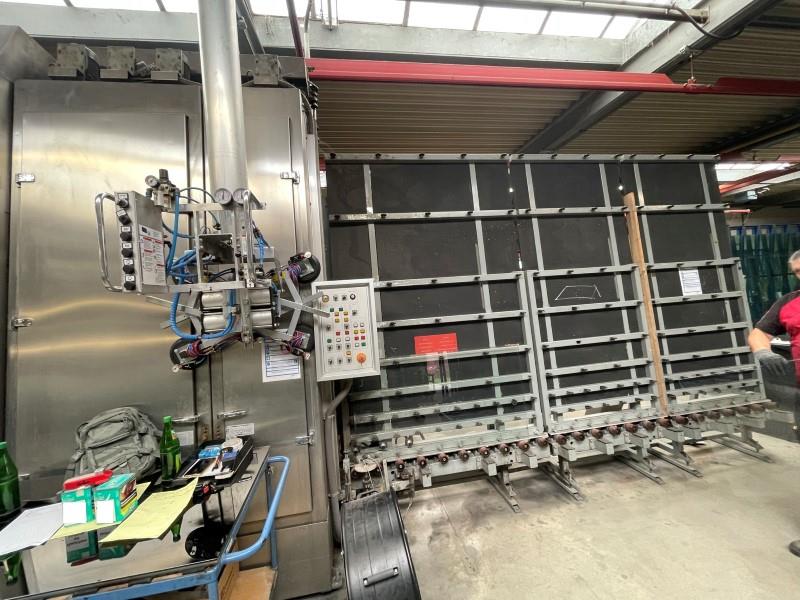

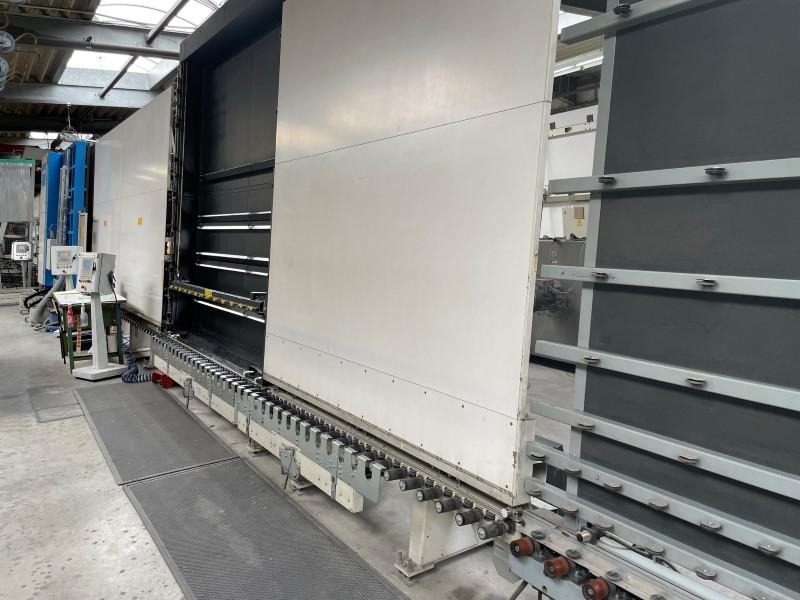

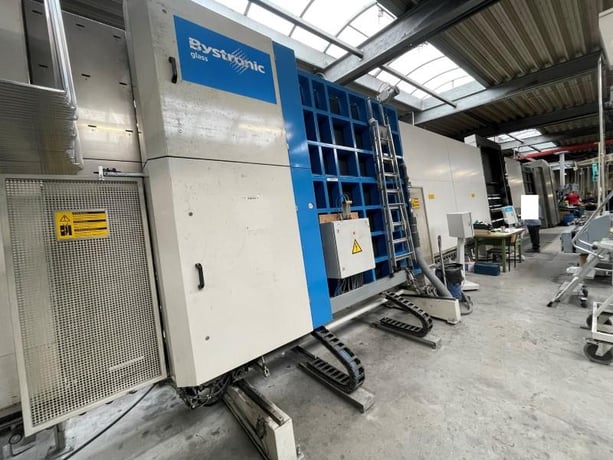

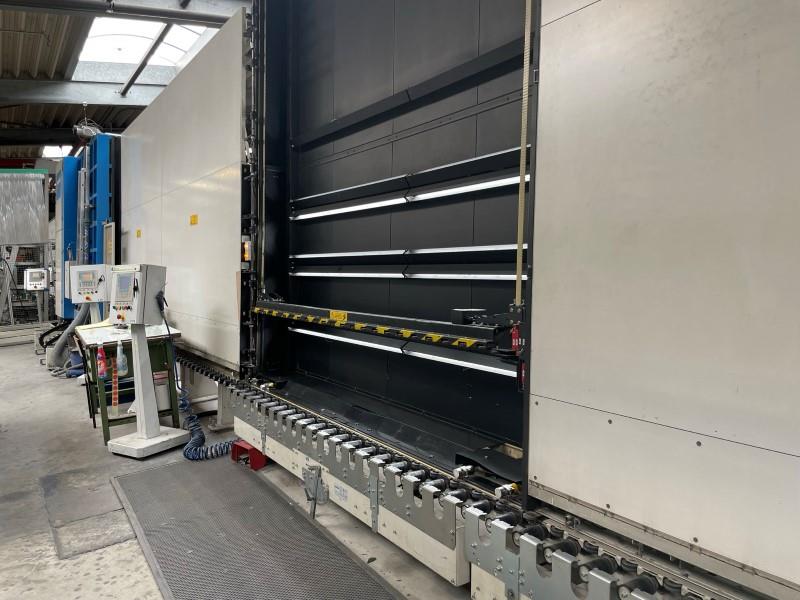

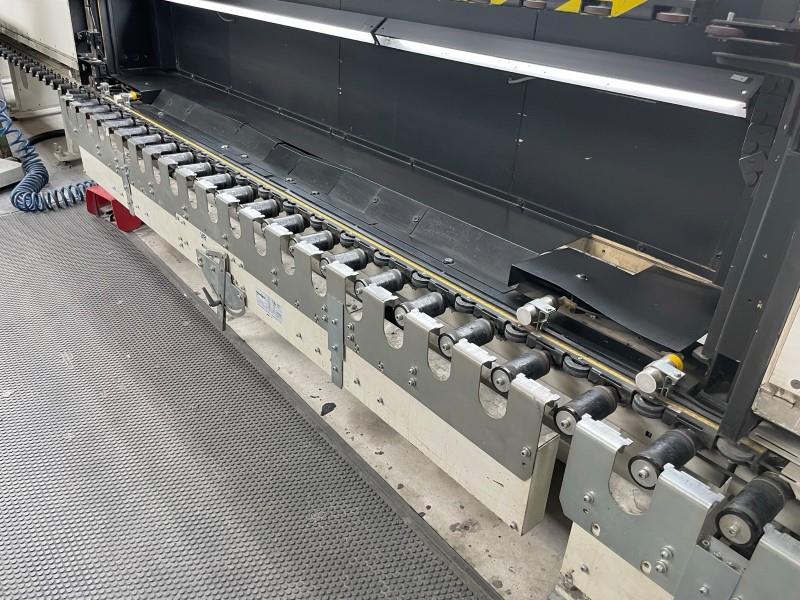

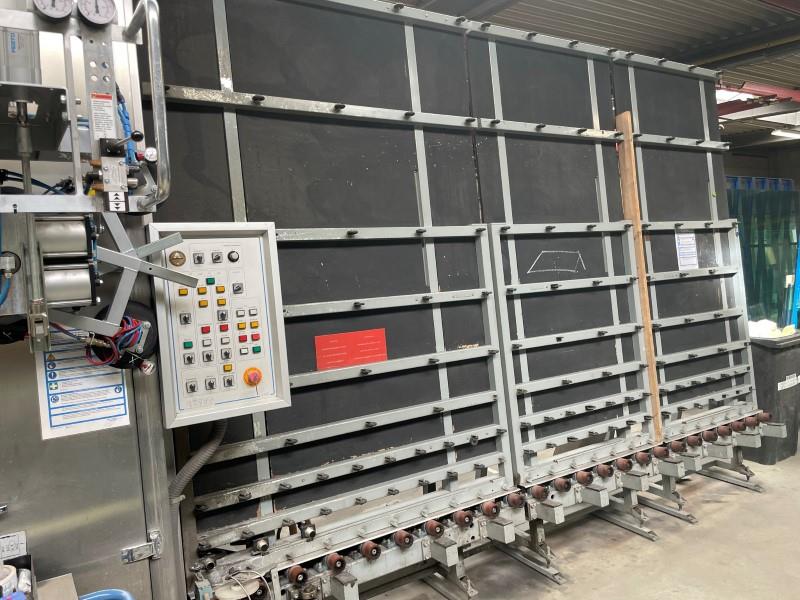

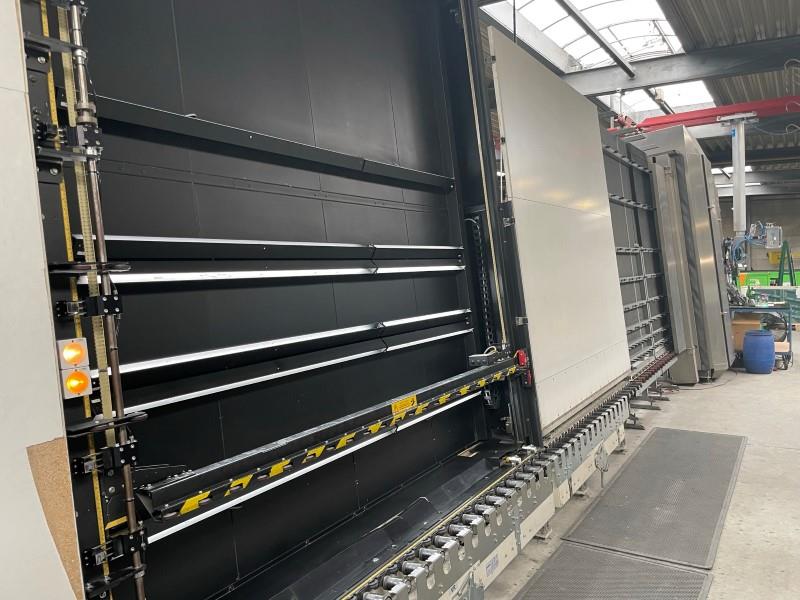

BYSTRONIC / LISEC I.G. 2745 R-L Insulating Glass Line - 2700 x 4500 mm (106"; x 177";)Complete BYSTRONIC Production Line for the production and assembly of insulating glass units. Offers high-quality gas-filled IG manufacturing with an excellent cost to performance ratio. Maximum glass size: 2700 x 4500 mm (106"; x 177";) .The production line is suitable for the manufacture of double and triple insulated glass units (rectangular, congruent) according to Bystronic specifications. Shaped I.G. units (congruent) according to Bystronic shape catalog and 3-sided stepped units . Automatic gas filling of double and triple insulating glass units according to Bystronic specifications.Specifications: ● Working direction: Right to Left ● Max. glass size: 2700 x 4500 mm (106"; x 177";) ● Min. glass size: 190 x 350 mm (7-1/2" x 14") ● Thickness of insulated glass units: 12 - 60 mm ● Glass thickness: 3 - 15 mm ● Spacer widths: 6 - 24 mm (1/3"; - 13/16";) ● Spacer setback, adjustable: 3 - 10 mm (3/8") ● Conveyor speed: V = 48 m/Min. ● Inclination of the production line: 6 (degree) ● Vertical glass transport height: 500 +/- 20 mm ● Max. weight of insulating glass units: 1000 kG resp. 250 kG/m ● Length of Line: Approx 38 m (125 ft) Complete Line Includes The Following Equipment Components: LISEC "RTV-38/25WE" Inlet Conveyor (1994)LISEC "VHW-25V8" Glass Washing Machine (1994)Cleans and dries glass plates in insulating glass production and the solar industry. Water is systematically returned to the glass washing process via the pure water circulation system. LISEC "RTV-27/25ST" Outlet Conveyor (1994)BYSTRONIC "Type TB-LK-V" Transport Conveyor Station (2011)For transport of glass plates and insulating glass units via air-float design without touching the support wall BYSTRONIC "VR" Assembly, Inspection and Frame Positioning Station (2011)Total visual glass surface monitoring with contrasting lighting for fast and efficient glass plate inspection. Automatic height adjustment accommodates glass dimensions; Program-controlled vertical and horizontal frame positioning girder.BYSTRONIC "Type TB-LK" Transport Conveyor Station (2011)BYSTRONIC "ZPG" Automatic Tandem Assembly, Gas Fill And Press Robot - Argon (2011)The units are assembled in the penultimate step of the insulating glass production process. The correct amount of pressure and utmost accuracy are both crucial at this point. Assembles insulating glass units quickly and precisely and also fills them with gas. Processing of different dimensions and spacer widths in any sequence - Constant pressing of double and triple insulating glass units.BYSTRONIC "Type TB-LK" Transport Conveyor Station (2011)BYSTRONIC "DA" Cork applicator (2011)Automatic application of spacer pads on insulating glass units with up to five application levels. Pad material for application: cork, synthetic material or similar material with adhesive backing. Automatically controlle
