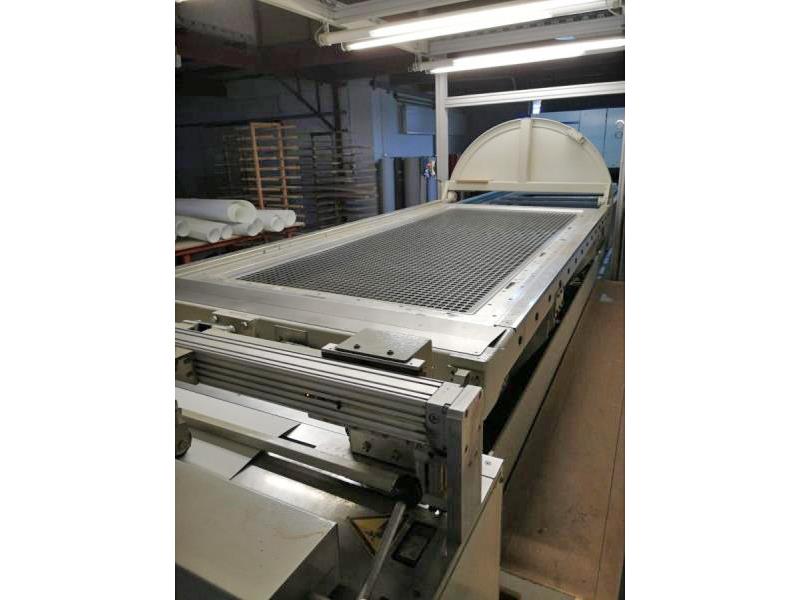

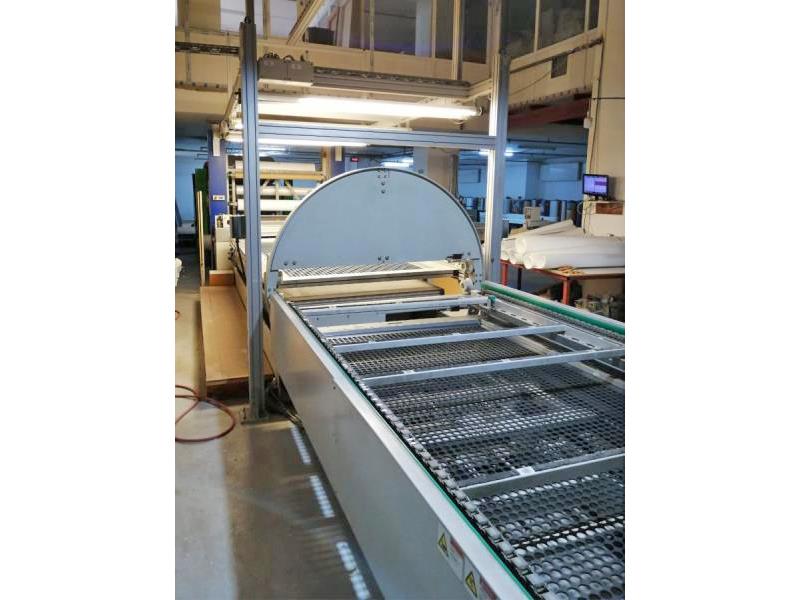

Burkle #Multifoiler-BTF1528-1400, Membrane Press, 59" x 110.2" Platen Capacity, 400 V., 2010

BURKLE BTF 1528-1400 Automatic Pin Press with (2) Trays, and Panel Turnover Device.Designed for lamination of pre-shaped and glued panels with PVC & Polypropylene films without the use of a membrane. This configuration allows for cycle times as short as (1-1/2 - 2) Min depending on the 0.3 - 1 mm max. film thickness. -- Platen dimensions: Overall 59" x 110.2"" (1500 x 2800 mm); Usable tray area 51.2" x 104.3" (1300 x 2560 mm); Daylight opening 10"; Max. workpiece thickness 2"; Specific pressure 85 PSI (6 bar). -- End loading with automatic shuttle loading; (2) shuttle tables with automatic "Pin System", shuttle loading tray runs on transport system with automatic movement in-and-out of press for continuous operation. Automatic return of the shuttle tray underneath and on the same end of the press. -- Platen construction: Solid steel top & bottom platens 90 mm thick (3-1/2") through-bored for thermal oil flow, upper press platen opens-and-closes with pressure from (6) large dia. down stroke hydraulic cylinders; 4-1/2" cylinder stroke. -- Electrically heated thermal oil heating system, max. platen temperature of 140 C (288 F); 31 KW power rating for heating. -- Vacuum system with high cap. accumulator tank for very rapid drawdown of the film over the shaped panels, mounted on top of press. -- Separate electrical control cabinet houses the programmable SIEMENS "SPS" controller and operator control panel, and features error diagnostic via phone modem. -- The concept of working without a membrane allows for forming the film into deep & vertical-sided profiles, very small profiles like vein lines, and lipped profiles which are not possible using a membrane. Working without a membrane permits the higher working temperatures required for laminating the environmentally preferred Polypropylene films and saves the expense of regularly replacing damaged/worn membranes. -- Complete with: Lay-up feeding tray station & outfeed station on the same side of Press. The position next to the press has an integral lift/lower scissor lift mechanism providing the upper/lower position of trays. After the outfeed tray is the Turnover Device. At the discharge of the Turnover Device is an Automatic Unloading Unit. -- Features: HG mode. Ability to produce brighter & smoother panels with Glossy Foils; Utilization of half trays with separator. device. -- Included Parts: (1) Used (needs repair) special coated 6 mm black perforated aluminum tray. (500) spare pin cylinders. Side and Rear covers are included with machine. -- Storage carousel: PVC dispensing system with automatic foil feeding, positioned in front infeed tray (stores approx. 10 rolls). Foil cutting and Anti-dust, Anti-static. -- Overall Elec. Load/Length/Weight: Total Elec. Load is about 51 kW. Length is 11,825 mm (38.8'). Total Weight is approx. 15,000 Kg (33,000 Lbs.)
