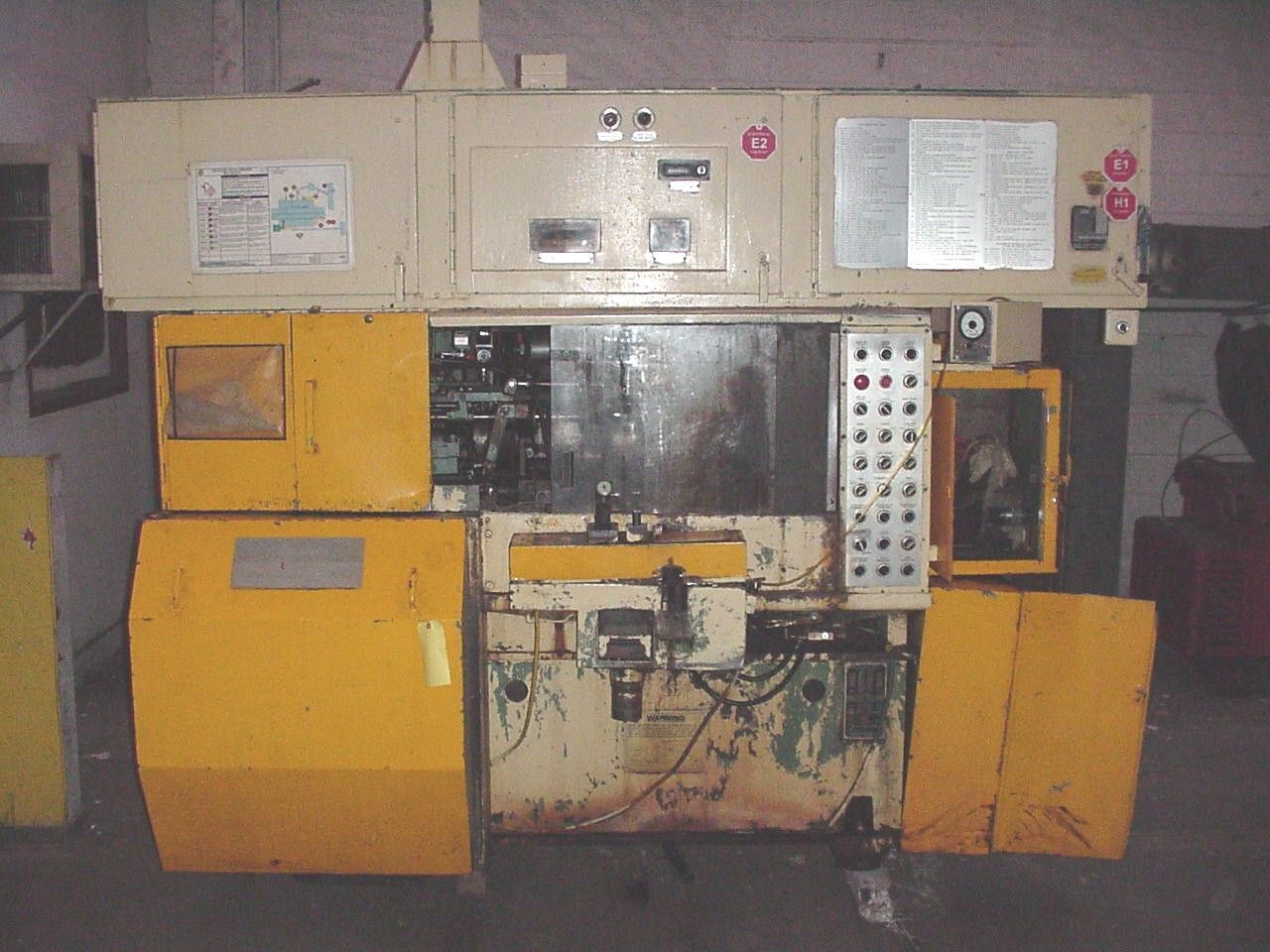

Bryant #Uni-Slide-100, internal grinder, 4" O.D. work capacity, 10" swing, 1" grinding stroke, 6" wheel Slide stroke, 400 SPM, 1978

100 Uni-slide Bryant, 3-Jaw Chuck, High Frequency ID Spindle, Auto Load & Unload, Rotary Diamond Dresser, Federal Post Prcess Gaging, As Is.
BRYANT UNI-SLIDE 100
For Long Run, High Production Grinding of Straight Bores
S/N G-15796
STANDARD SPECIFICATIONS

Maximum diameter swing………………………………………………. 10"
Maximum O.D. of work part (auto loading)……………………………. 4"
Grinding stroke – adjustable……………………………………………. up to 1"
Total wheel slide stroke………………………………………………….. 6"
Maximum cross feed (on diameter)……………………………………… 1.200"
Work head spindle flange diameter (chucker only) - ASA #2…………… 5"
Work head belt/sheave system for desired R.P.M.
Grinding stroke (depending upon stroke length) - up to 400 strokes per minute
Floor space (less coolant tank)….............................................................. 79.5" x 48"
Net weight (approx.)……………………………………………………. 7,500 lbs.
The Bryant Uni-Slide 100 automatically grinds work parts such as universal joint needle bearing cups.
Cam operated; the machine features the constant, reliable performance of a mechanical system permitting split-second timing, resulting in the shortest possible cycling. It eliminates the need for hydraulic or other systems with their inherent problems.
STANDARD SPECIFICATIONS (continued)
Both wheel traverse and cross feed motions are furnished by a single slide unit. This unique construction permits securing the work head directly to the machine base. Deflections due to grinding forces are minimized far more effectively than on conventional machines which require the use of two slides to provide necessary grinding motions.
The grinding cycle of the Uni-Slide 100 is controlled and constantly monitored by the Bryant Solid State Control System.
Operation of the machine is easily understood and maintenance simple.
Specifications are deemed accurate, however, subject to verification or prior sale
