Brown & Sharpe #Hexagon-SF-4.5.4, coordinate measuring machine shop floor, 2013/2021 (factory refurbished)

BROWN & SHARPE HEXAGON SF 4.5.4 CMM SHOP FLOOR, 2013/2021 (FACTORY REFURBISHED)
MODEL: SF 4.5.4
CALIBRATION DATE: NOV./04/2025 REQUESTED DUE DATE: NOV./04/2028

WORK CAPACITY:
MEASURING ENVELOPE: X-14" x Y-20.2" x Z-13.9"
WORK CAPACITY: X-24" x Y-43.3" x Z-18"
MAX. PART WEIGHT: 350 LBS
MACHINE WEIGHT: 1386 LBS


System
• 4.5.4 Shop Floor CMM
• Controller, H3C-T 600W, US 120V
• Workpiece Standard Thermal Sensor
• Next Jogbox
Probe Heads & Sensors
• Manual Probe Head, HH-T, Tesastar Probe w/ Amp
HDP-22
• Styli Kit 3, M3
Computer & Software
• PC-DMIS CAD
• PC-DMIS Sheet Metal
• Touchscreen, ELO 1502L 15" LED
• Computer, Lenovo P520, WIN10-IOT-ENT-LTSB

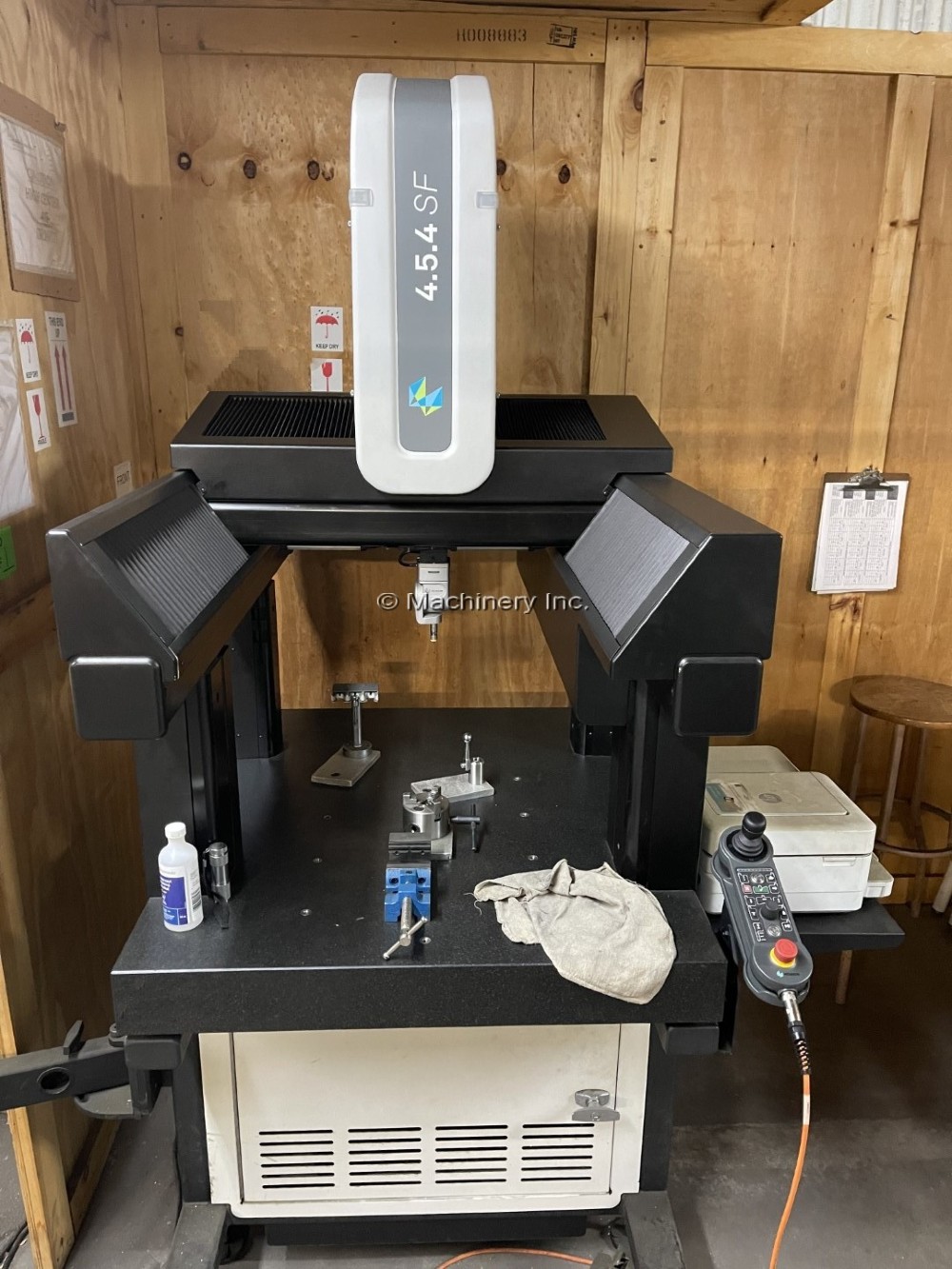

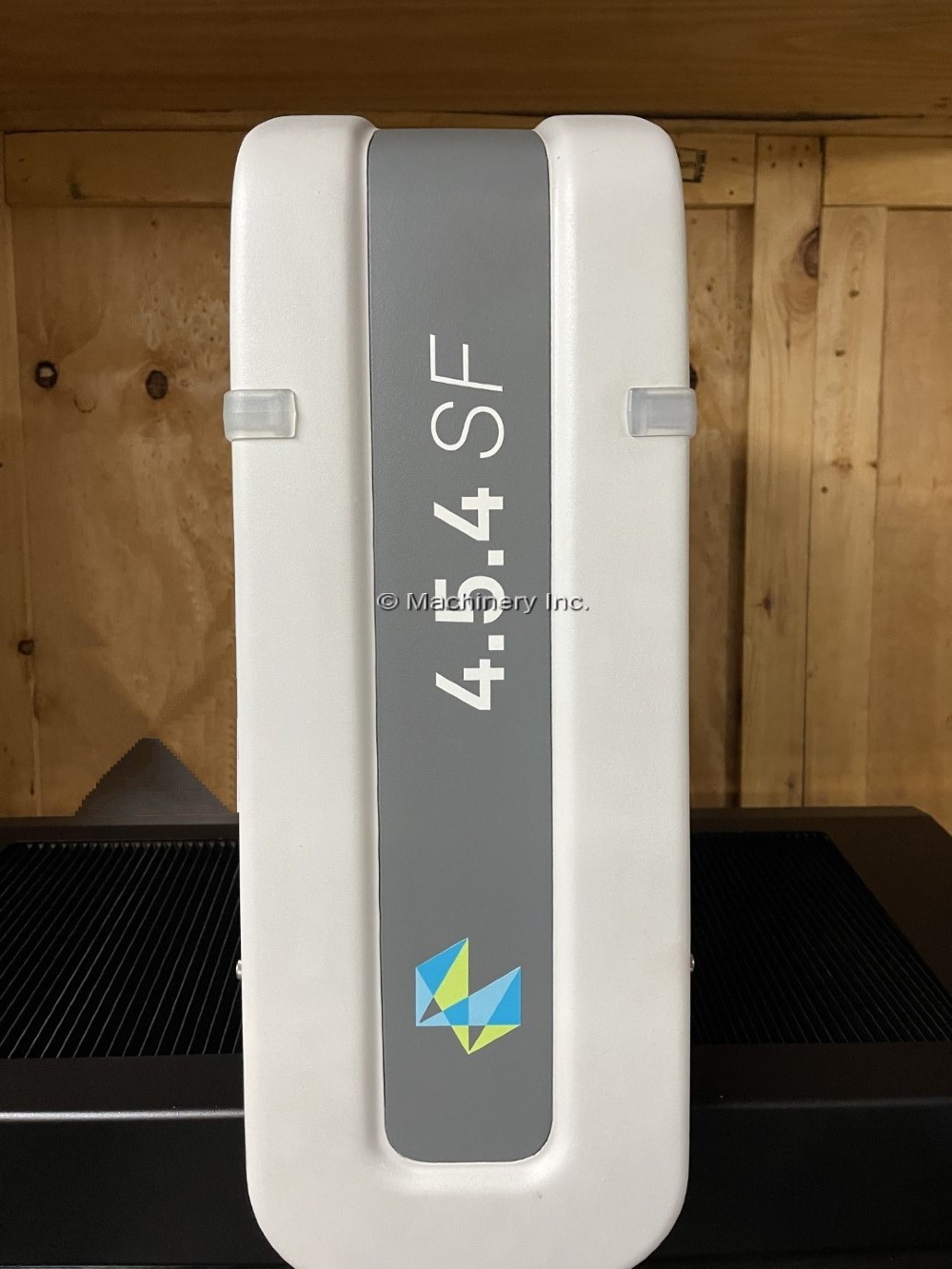

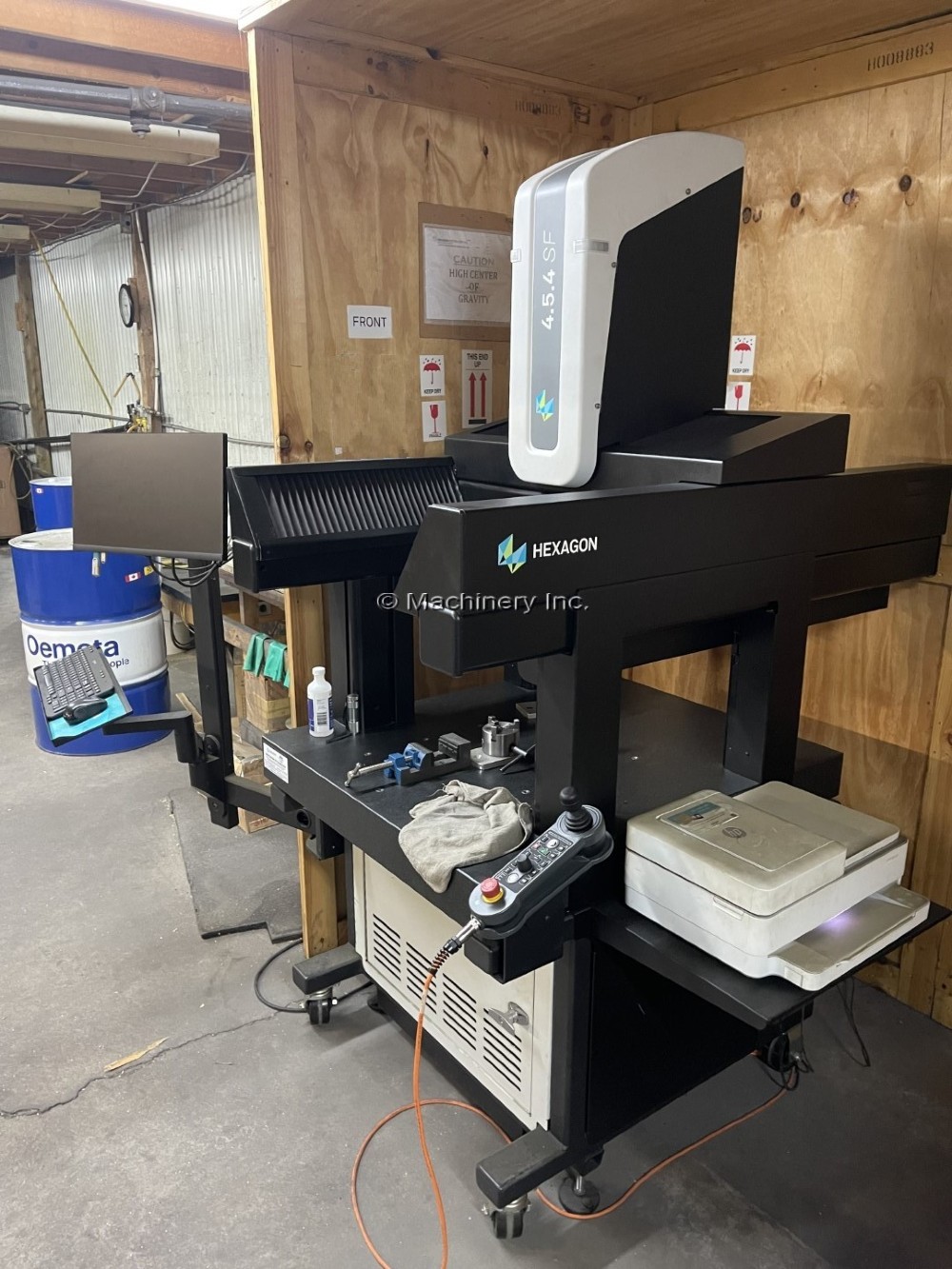

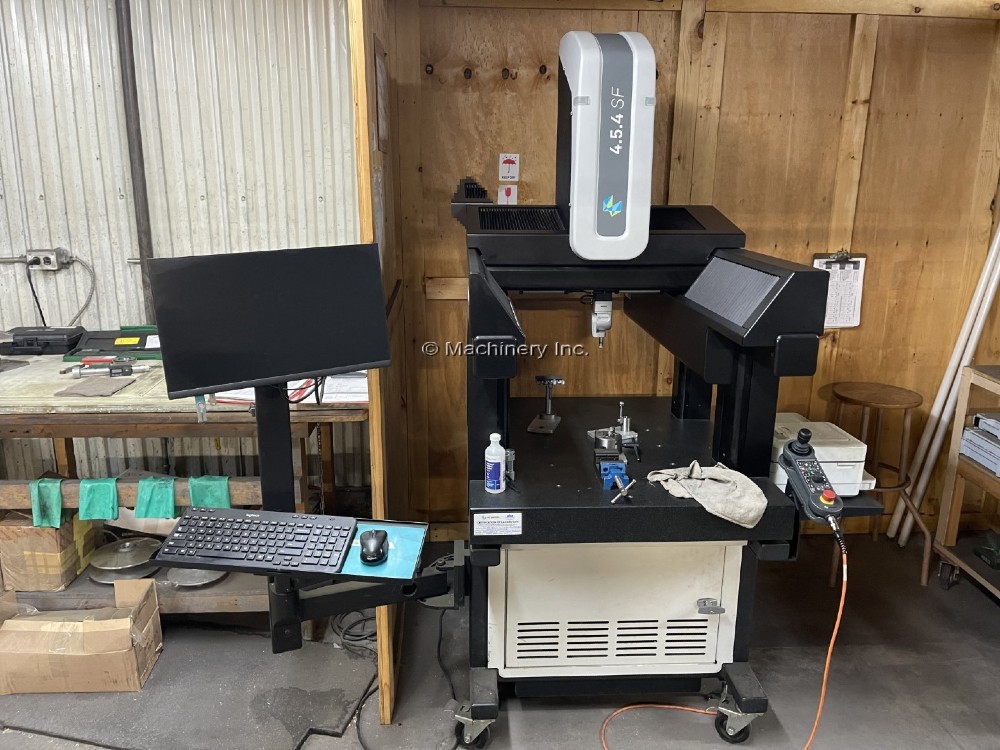

4.5.4 Shop Floor CMM
The 4.5.4 SF CMM offers a robust dimensional inspection capability in a
fully automated and economical CMM designed and built to excel in harsh
manufacturing environments, shoulder-to-shoulder with machine tools.
Linear bearings and heavy-duty components provide a highly reliable and
low maintenance measurement solution. Furthermore, every attention to
detail has been taken to provide a first in class user experience. • Measuring Range 355mm (14”) x 514mm (20.2”) x 353mm (13.9”)
• See the 4.5.4 Shop Floor CMM in action.

Controller, H3C-T 600W, US 120V
Controller electronics support touch-trigger capability and temperature
compensation on the SF 4.5.4. The H3C-T is also compatible with the
Next Jogbox (NJB) which comes standard with all Shop Floor CMMs. The
H3C-T comes in a compact IP-32 rated electrical cabinet that is mounted
to the back of the machine.

Workpiece Standard Thermal Sensor

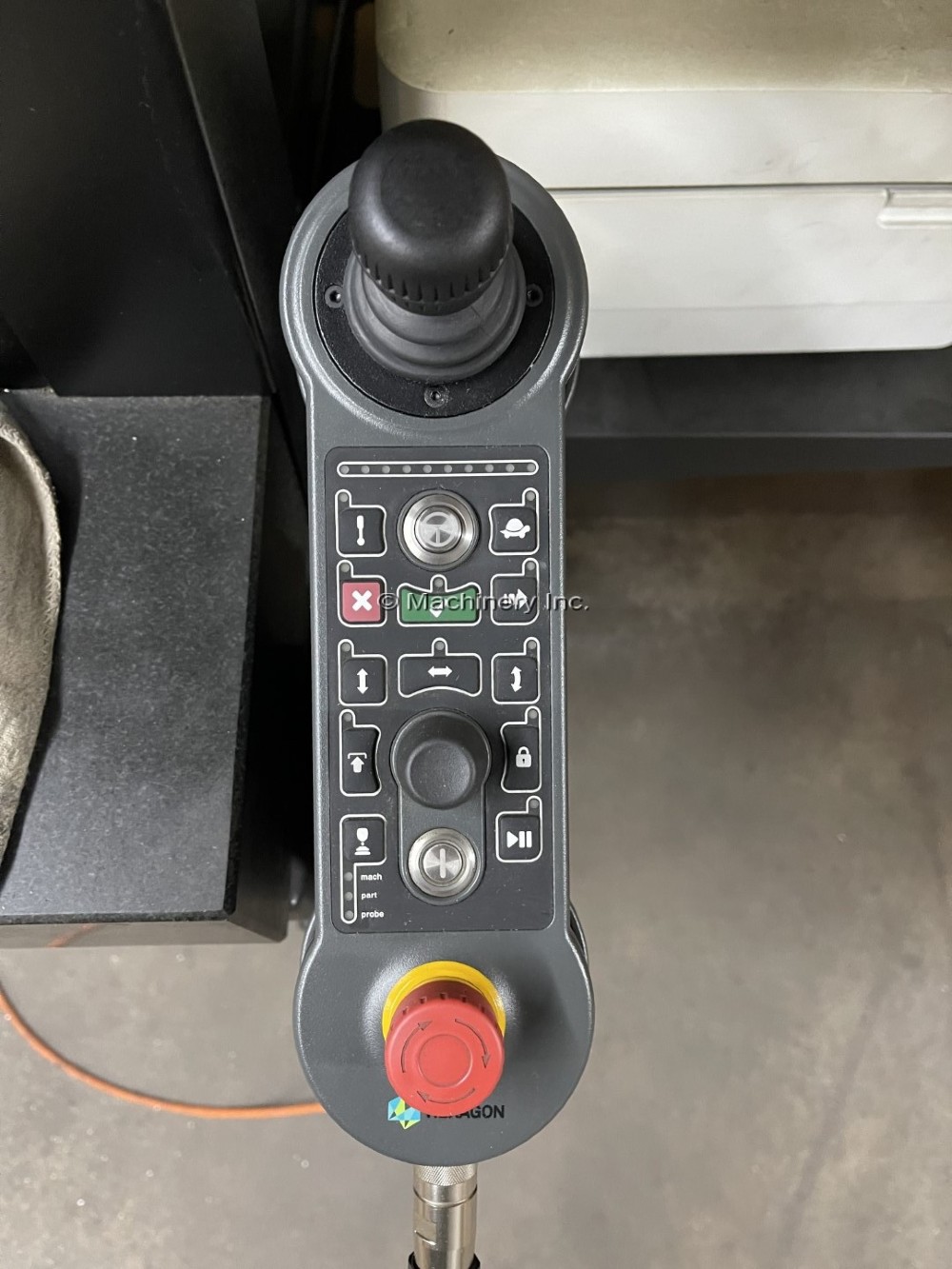

Next Jogbox
The Next Jogbox (NJB) is the first manual coordinate measuring machine
(CMM) control interface to be designed based on extensive user
experience research. Offering ergonomic design coupled with robust
construction, it lets you take control of your CMM comfortably – all day,
every day. The Next Jogbox was developed for you, the user. A combination of
extensive user research, iterative prototyping, extensive knowledge of
manufacturing and carefully chosen components led Hexagon
Manufacturing Intelligence to create the NJB in an effort to transform the
user experience and significantly increase product durability in the field.
Most importantly, the NJB can easily be added and installed to most
Hexagon CMM systems as an upgrade. Please contact your local service
department for a full list of supported machines.

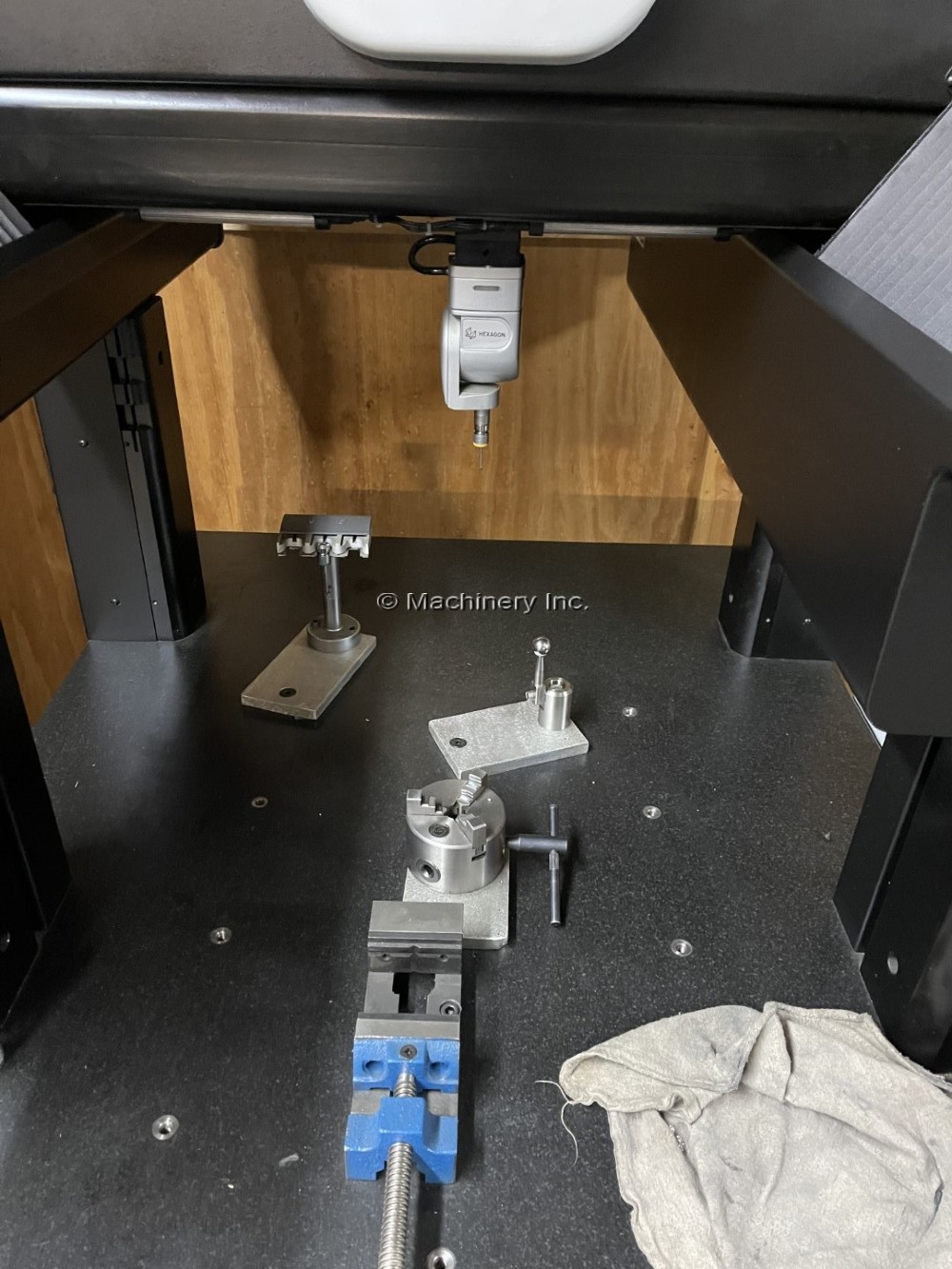

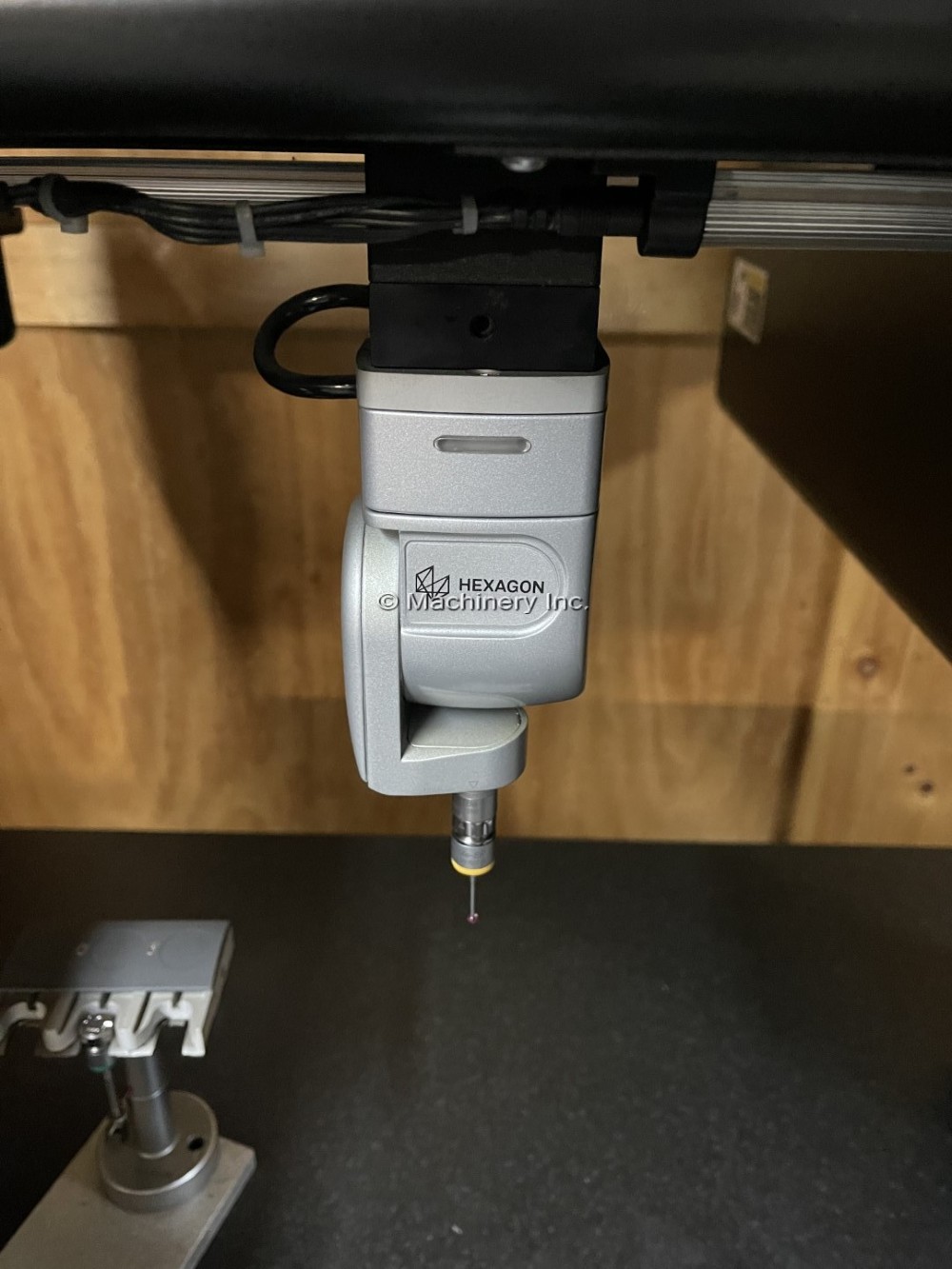

Manual Probe Head, HH-T, Tesastar Probe w/ Amp HDP-22
The HH-T is a manually adjustable probe head that can be rotated into an
infinite number of non-repeatable positions. The built in compact touch
trigger probe can be manually adjusted to allow for a wide range of probe
combinations. The HH-T is the ideal tool for small and entry level
machines.

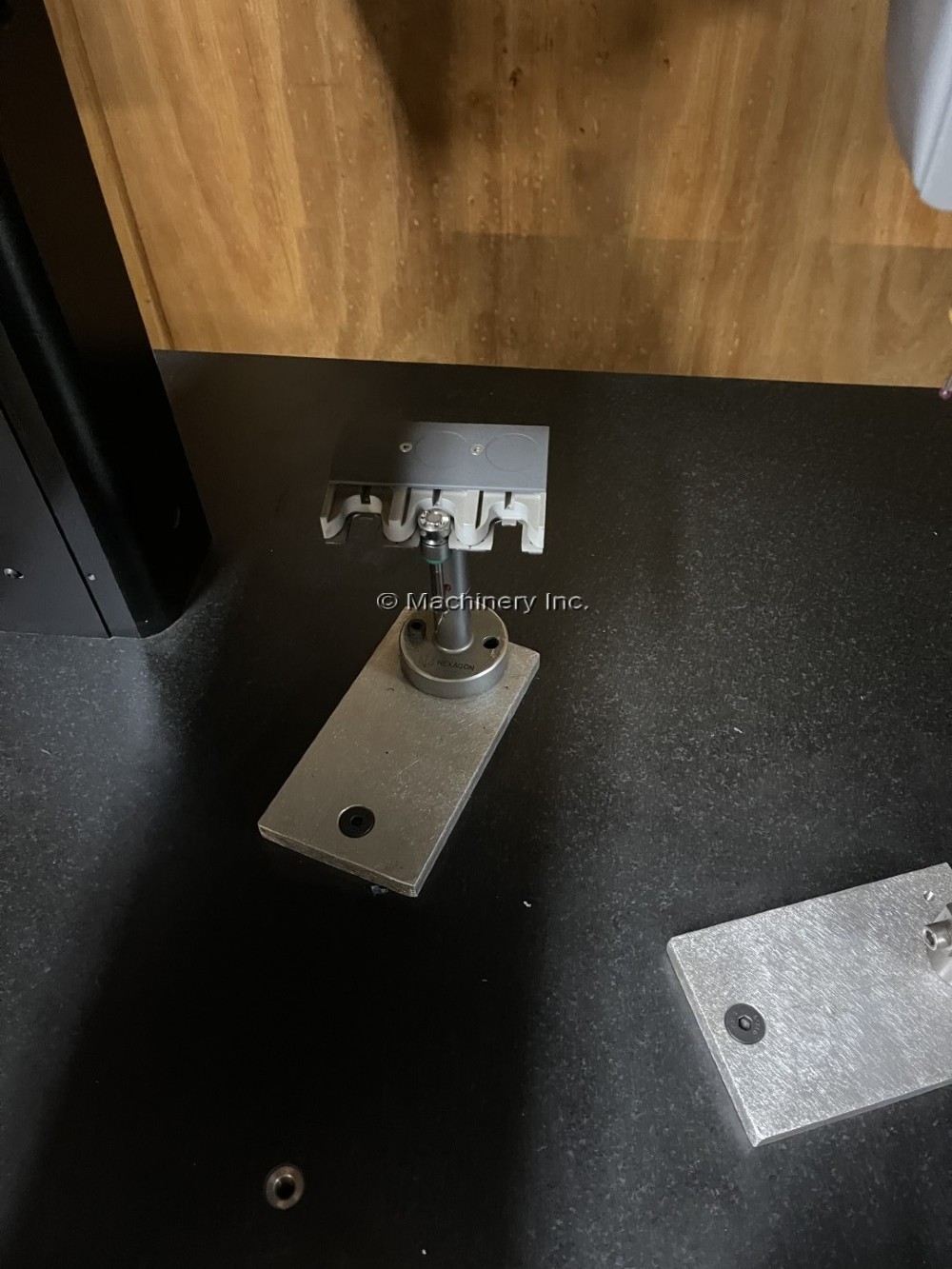

Styli Kit 3, M3
Includes: • 1x Mounted probe Ø 6.35 mm
• 1x Ball stylus Ø 2 mm x L 21 mm, Steel
• 1x Ball stylus Ø 3 mm x L 21 mm, Steel
• 1x Ball stylus Ø 4 mm x L 21 mm, Steel
• 1x Extension L 10 mm, Steel
• 1x Extension L 20 mm, Steel
• 1x 5-way stylus center, Steel

Touchscreen, ELO 1502L 15" LED

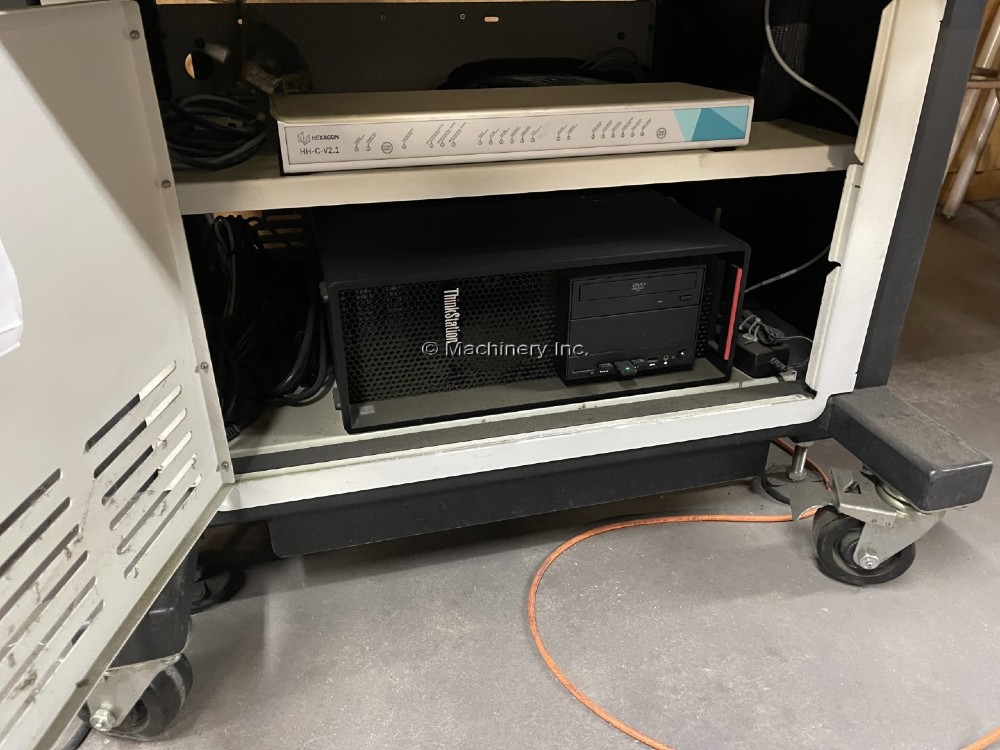

Computer, Lenovo P520, WIN10-IOT-ENT-LTSB
Lenovo ThinkStation P520 or current model P ROCESSOR: Intel Xeon W-2123 Processor (8.25MB Cache, 3.60GHz) RAM: 16GB DDR4 2666MHz ECC RDIMM HD1: 256GB Solid State Drive,
M.2, PCIe, Opal. HD2: 1TB Hard Drive, 7200RPM, 3.5", SATA3 GRAPHICS: Nvidia Quadro P620 2GB (miniDPx4) MOUSE:Lenovo USB Mouse OS: Windows 10 IoT Enterprise 2016 – LTSB
LAN:1 Gb Ethernet Adapter Plus 1 Dual-port Gb Ethernet Adapter (PCIe) PORTS:1 Serial Ports

PC-DMIS CAD
PC-DMIS CAD lets customers create inspection programs and evaluate
measurement results taking full advantage of their CAD models. The
software provides the tools needed to work with CAD files ranging from
simple 2D drawings through complex 3D solid models. The PC-DMIS
CAD allows the import and export of CAD data in the following formats:
IGES/STEP/ DXF/ DWG/STL/VDAFS/XYZIJK/DMIS/DES. Auto Utilities™
include vector point, circle, cone, cylinder, sphere, line and plane.
