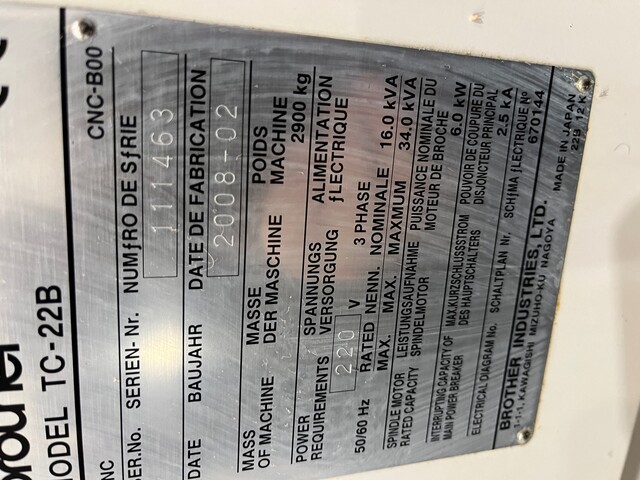

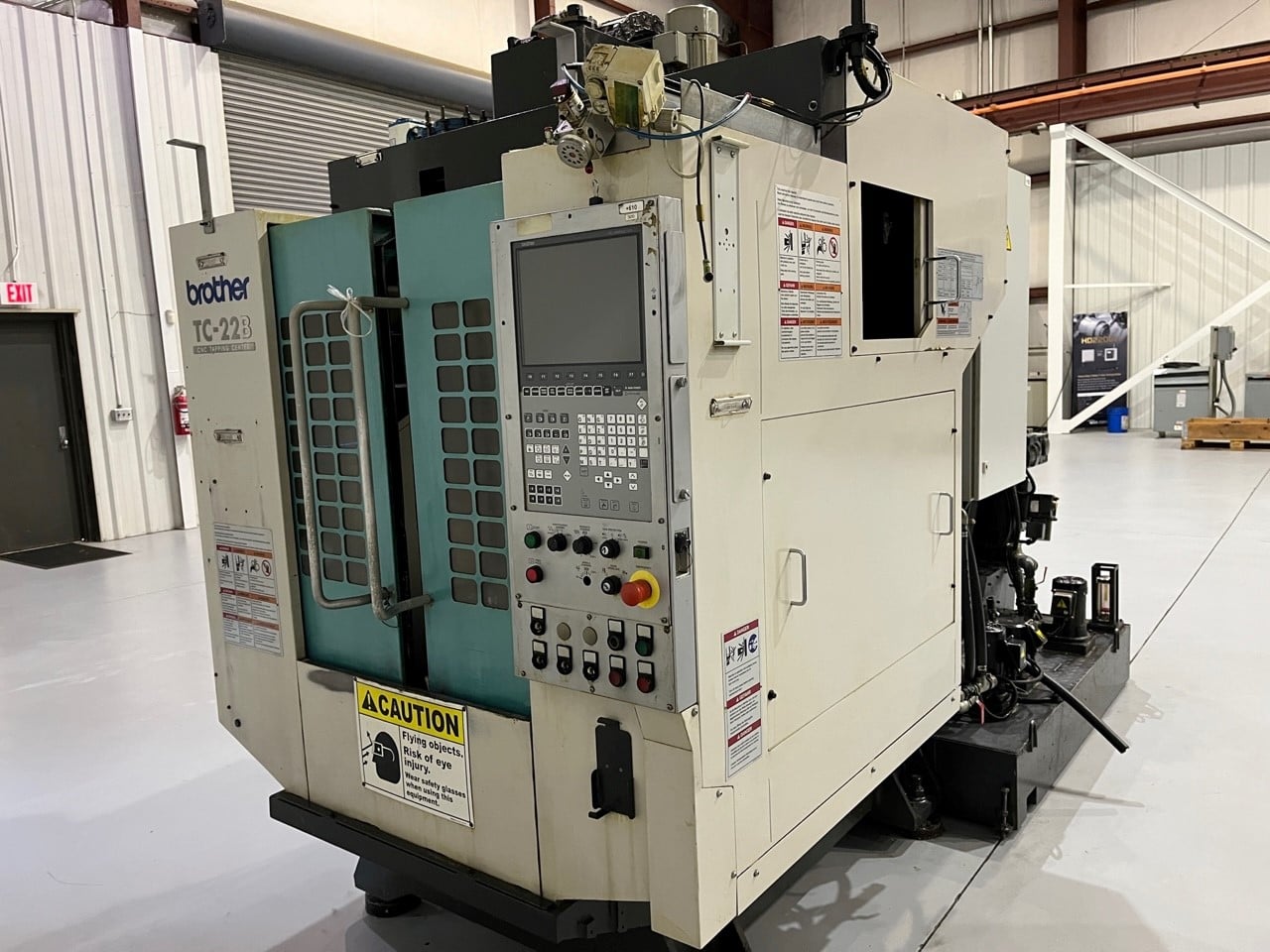

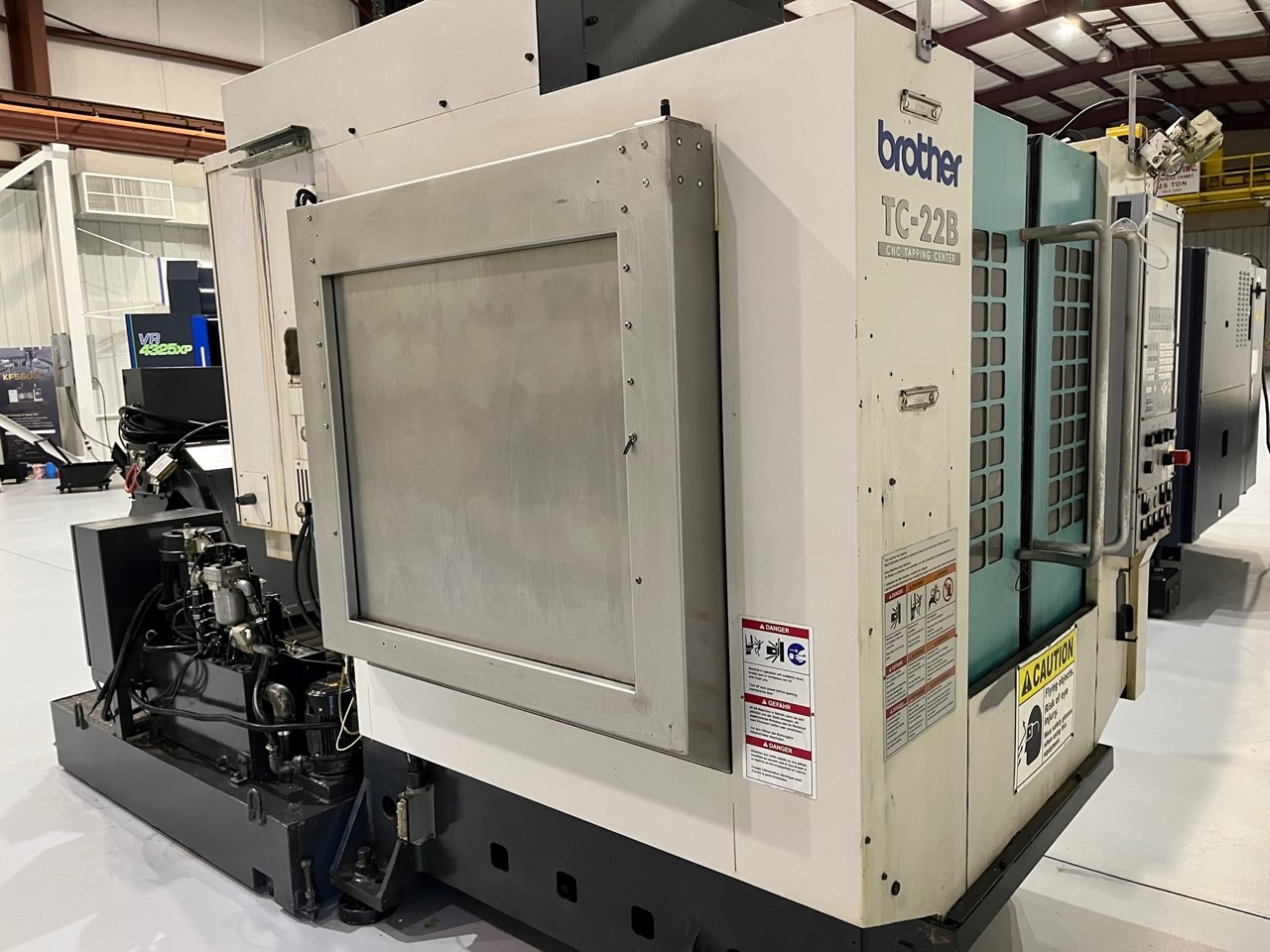

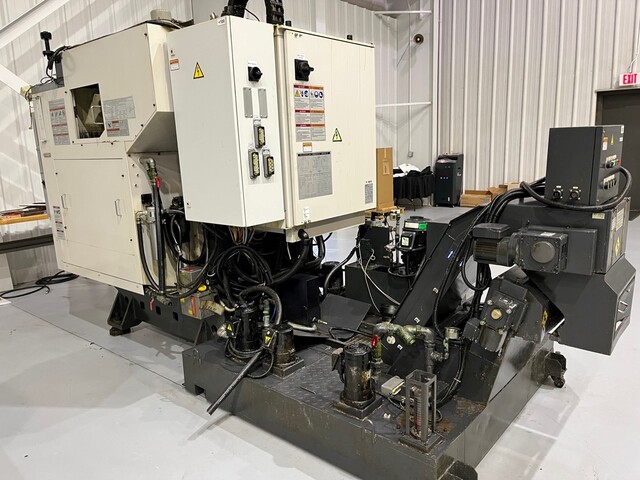

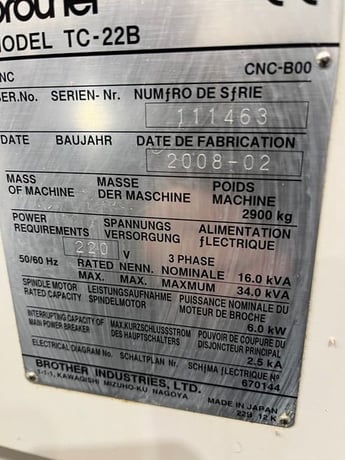

Brother #TC-22B, CNC B00,17.7" x19.7", #30,16000 RPM, 2755 IPM, 27 ATC, thru spindle coolant, HPP coolant, chip conveyor, S/N 111463

SPECIFICATIONS:

TRAVEL:
X-axis: 19.7"
Y-axis: 17.7"
Z-axis: 16.1"
Distance between table top to spindle nose: 26"

TABLE :
Work area size: 25.6" x 17.7"
Maximum loading capacity: 551 lbs.
Table surface: T slotted

SPINDLE:
Spindle speed IPM motor: 16 - 16,000 RPM
Tapping speed: 8,000 RPM
Spindle taper: 7/24, #30 Taper

FEED RATE:
Rapid traverse X, Y & Z-axis: 2,755 IPM
Cutting feed rate: 0.04-787 IPM

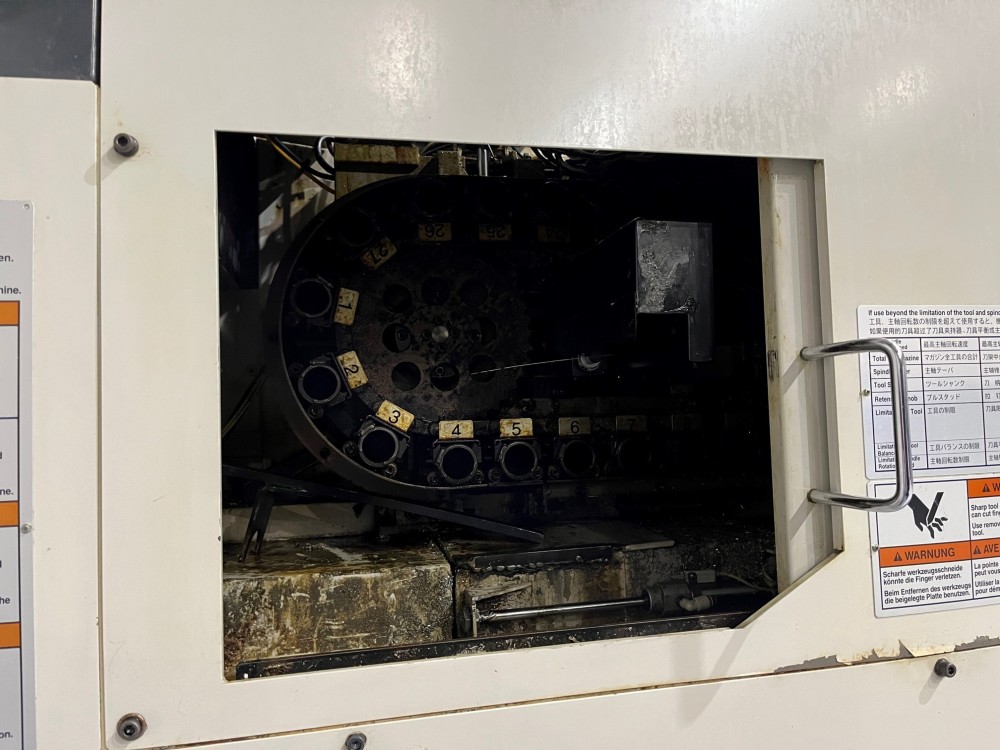

ATC:
Tool storage capacity: 27
Tool shank type: MAS-BT30
Pull stud type: (BT30) MAS-P30T-2
Maximum tool diameter: 4.9"
Maximum tool length: 9.8"
Maximum tool weight: ( 176 lbs. total in magazine) 7.7 lbs.
Tool selection: Random Path
Tool Change time: (tool-to-tool in seconds) (chip-to-chip in seconds) 0.9 / 2.4

MOTORS:
For IPM spindle: 13.41 / 9.8 HP
For axis feed X, Y & Z-axis: 1.74 HP
Z-axis thrust: 2005 ft-lbs.
POWER SOURCE:
Power supply: 200V-230V, 3-Ph. +-10% 50/60Hz
Power capacity KVA for IPM (max): 18 (37)
Working air pressure MPa: 0.4-0.6 (4-6kg f/cm2 )
Required air flow L/min: 180

MACHINE DIMENSIONS:
Machine height: 99.9"
Floor Space required: 58.9" x 122.1"
Machine weight: 6,129 lbs
