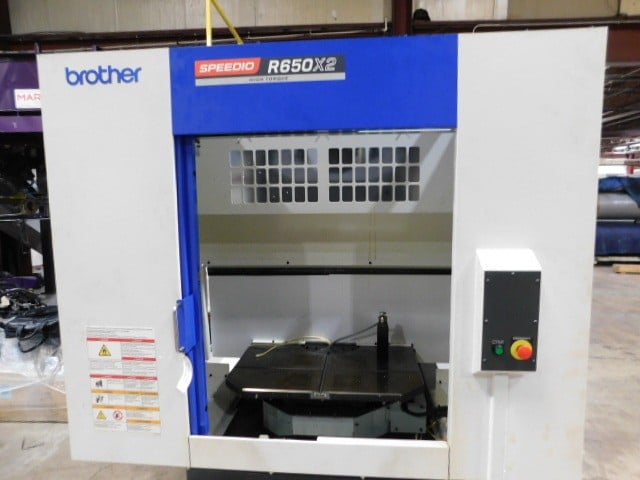

Brother #Speedio-R650x2 High Torque CNC Drill, tap, and machine vertical machining center

ONE USED LATE MODEL BROTHER “SPEEDIO” CNC DRILLING & TAPPING DUAL ROTARY PALLET MACHINING CENTER with HIGH TORQUE SPINDLE

Model: Speedio R650x2

Pallet size: 31.5” x 15.7”

Pallet indexing time: 3.4 seconds

Travels: 25.6” x 15.7” x 12”

Rapid travels: 1,969 ipm in X, Y, & Z

Cutting feed rates: 0.04-1,181 ipm

Distance from table top to nose: 9.8” – 21.8”

Max. jig height: 16.5”

Spindle RPM: 10,000

Max. tapping RPM: 6,000

Spindle taper: Cat 30 Big Plus

Spindle HP: 17/11.7 HP High Torque

ATC capacity: 22

Tool to tool: 0.8 sec

Chip to chip: 1.6 sec

Dimensions: 74.7” x 135.7” x 106.1” high x 7,716 lbs.

Shipping dimensions:

Machine: 75” x 120” x 88” high

Coolant pan: 66” x 34” x 28” high

Chip pan: 35” x 60” x 27” high

EQUIPPED WITH:

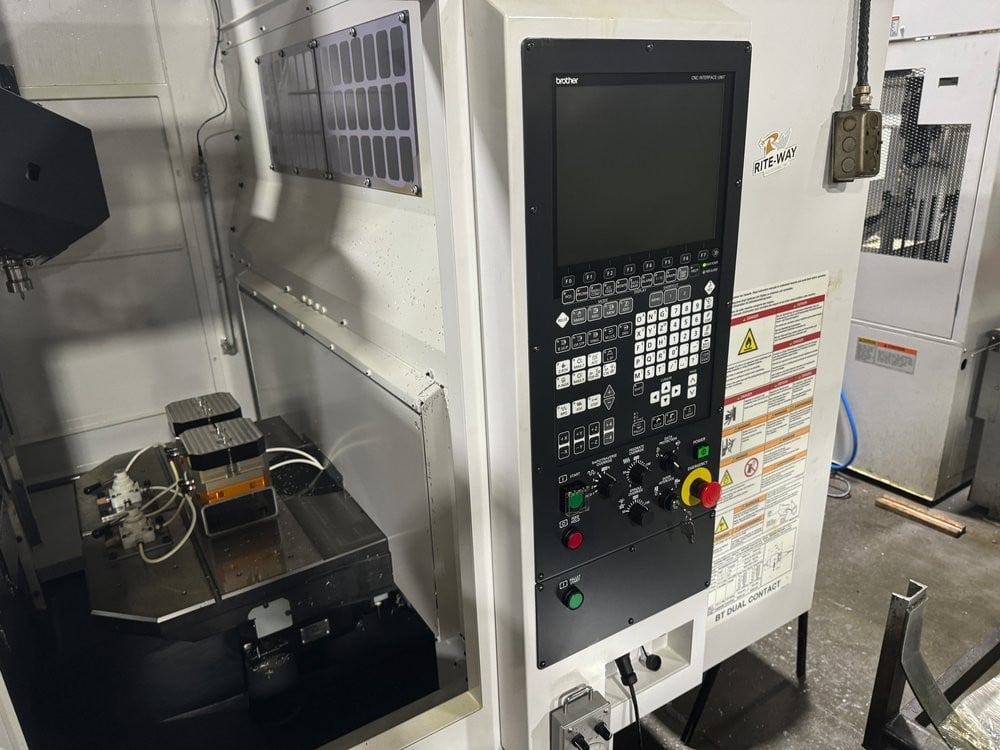

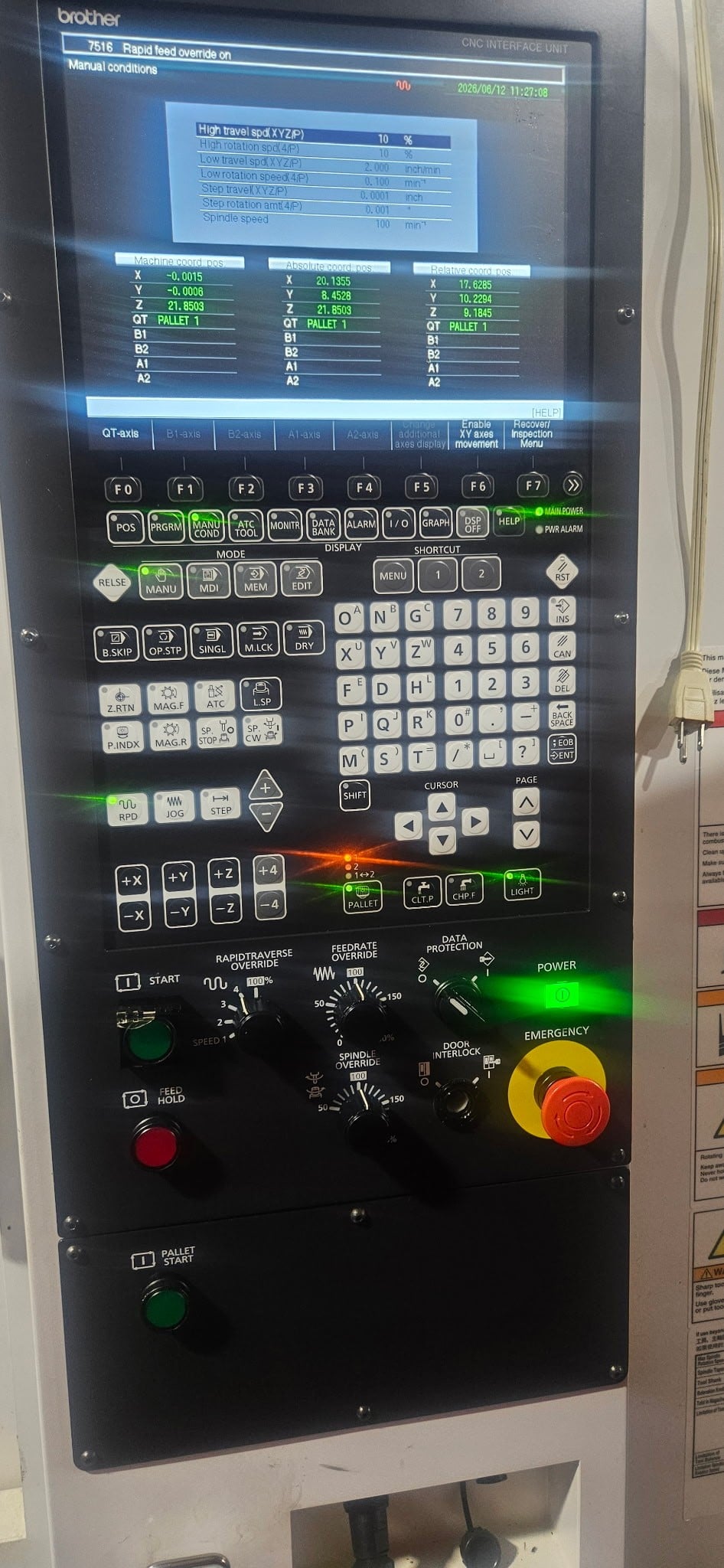

CNC – C00 (WX) control with PLC

Manual Pulse Generator

3-stage light

Work light

Spindle speed override

Shower gun

Coolant system w/200L tank

CTS prepped

Top cover

Door interlock

Blum ZX Speed wired w/150mm riser

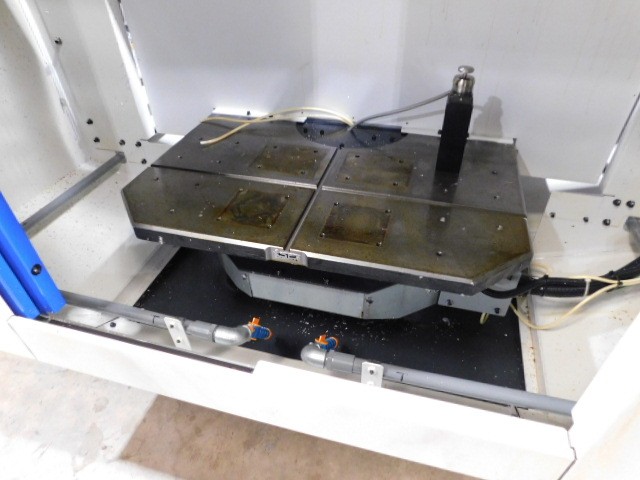

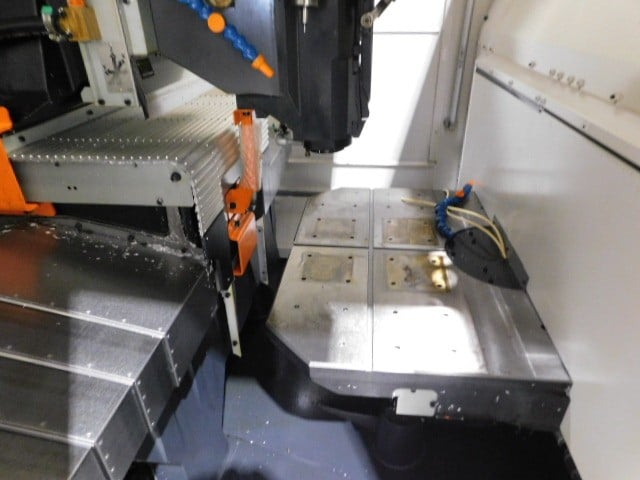

Dual pallets, rotary type

16) Cat 30 Big Plus tool holders, 6) ER32, 10) Straight shank from 5/16” to 1”

Original Shipping brackets installed

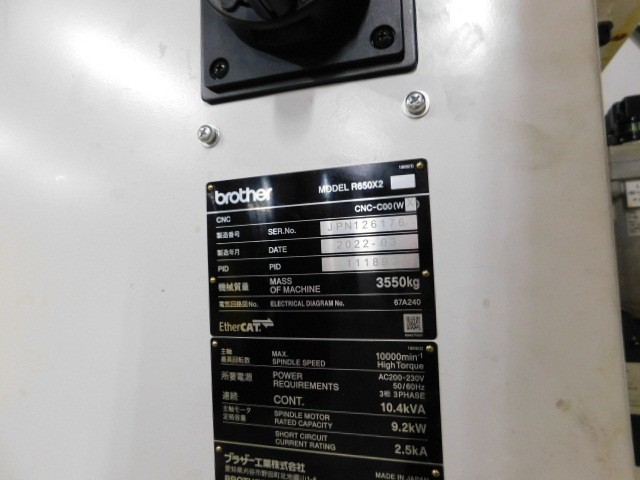

New: 2022, SN: JPN 126176

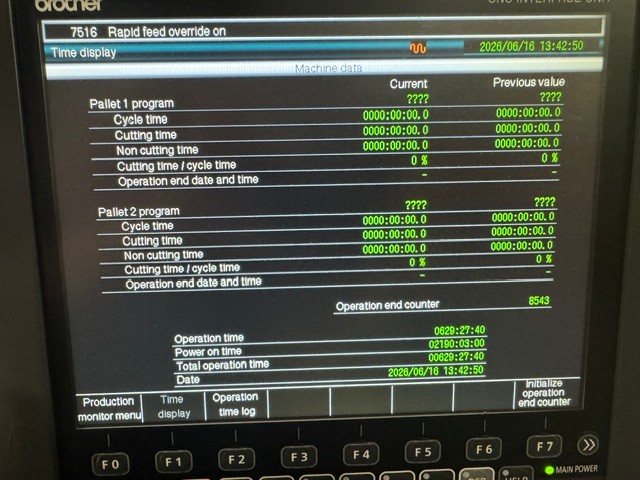

Hours: as of June 16, 2026

On Hours: 2,190

Operation Hours: 629:27:40

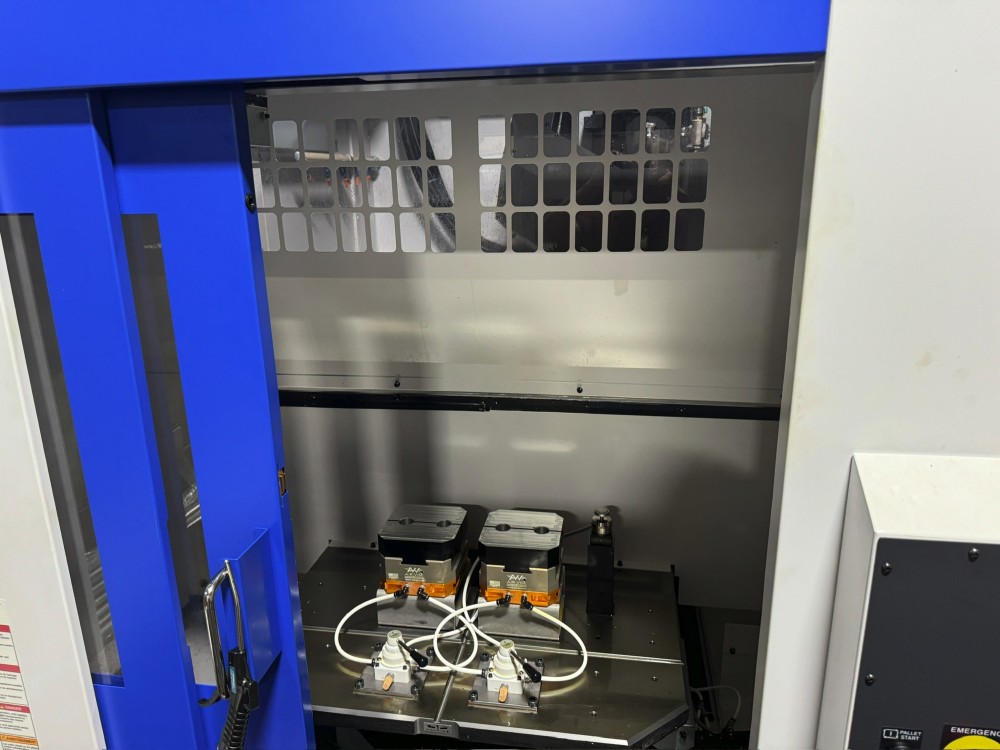

Fixtures in photos are included

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

Video link: https://youtube.com/shorts/WH9y4Uj0Yak?si=0hEUApztGg5U6eE9

F.O.B. Lake Zurich, IL Price - $109,900.00
