Description

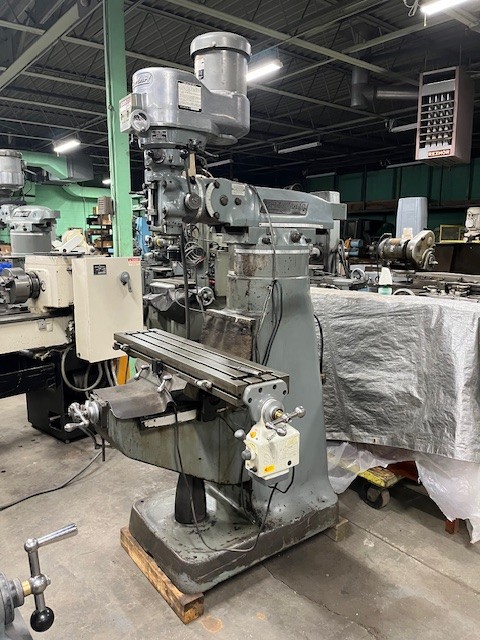

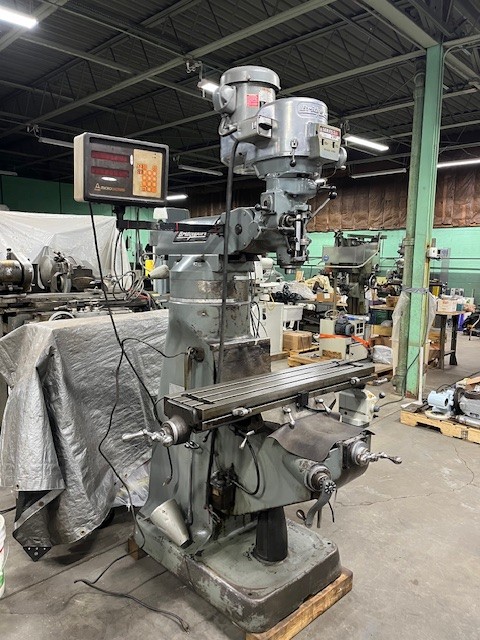

Bridgeport Series I Vertical Mill,

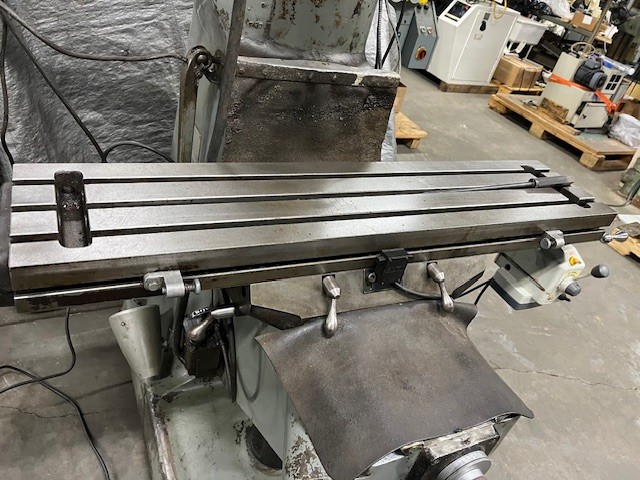

9” x 48 Table
2 HP Spindle motor
Specifications:
Table travel (X-Axis) 36”
Saddle Travel (Y-Axis) 12”
Quill Travel 5”
Knee Travel (Z-Axis) 16”
Ram Travel 12”
Throat Distance (Min.) 18.75”
Throat Distance (Max.) 6.75”
T Slot center distance 3 @ 2.5” centers
7" riser

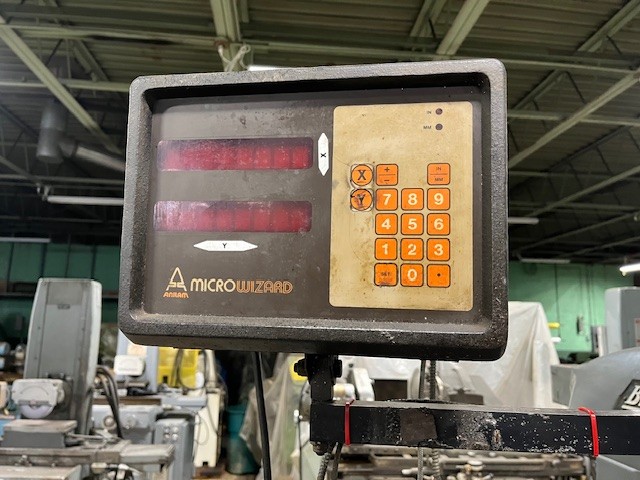

2 Axis DRO
Power feed on Table and Knee
Power Draw Bar
Slotting Attachment
Head has new bushing and bearings
9” x 48 Table
2 HP Spindle motor
Specifications:
Table travel (X-Axis) 36”
Saddle Travel (Y-Axis) 12”
Quill Travel 5”
Knee Travel (Z-Axis) 16”
Ram Travel 12”
Throat Distance (Min.) 18.75”
Throat Distance (Max.) 6.75”
T Slot center distance 3 @ 2.5” centers
7" riser
2 Axis DRO
Power feed on Table and Knee
Power Draw Bar
Slotting Attachment
Head has new bushing and bearings
