Description

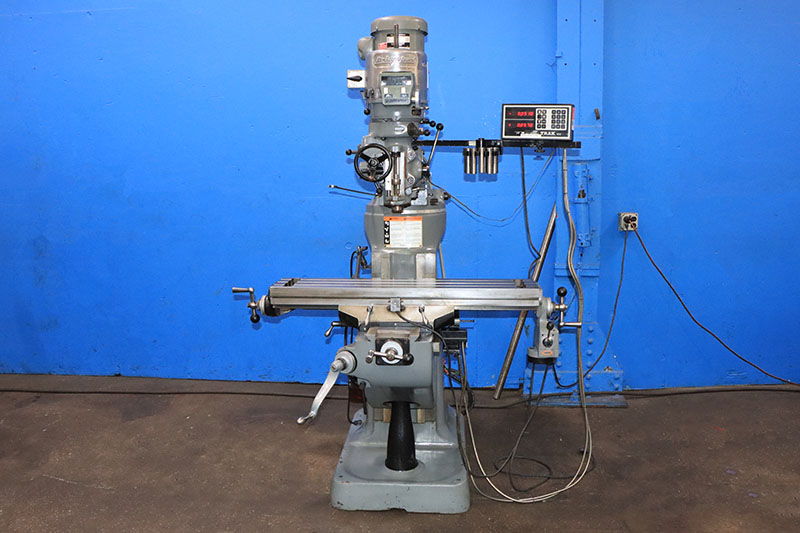

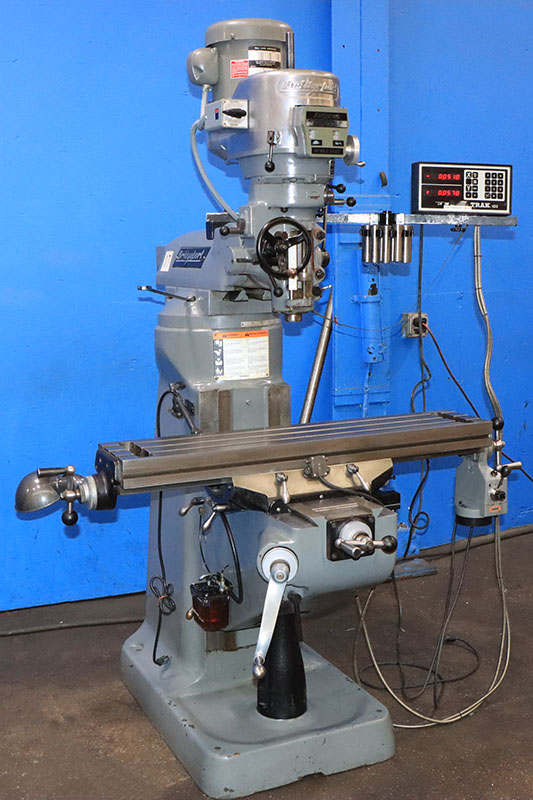

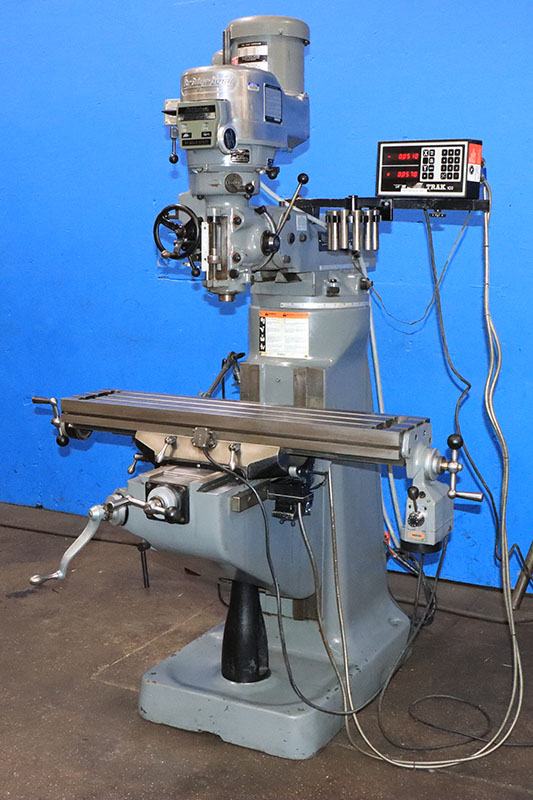

BRIDGEPORT VERTICAL MILLING MACHINE
MODEL: SERIES I, S/N: BR 258895, NEW: 1991
SPECIFICATIONS:
TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS .......................″
LONGITUDINAL TABLE TRAVEL ...............″6"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT… RIGHT ................. 90 DEGREES
HEAD TILT, FRONT… REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY .....................″/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS
EQUIPPED WITH:
TRAK TWO AXIS DIGITAL READOUT
SERVO POWER FEED FOR LONGITUDINAL TRAVEL
CHROME WAYS
BIJUR ONE SHOT LUBRICATION SYSTEM

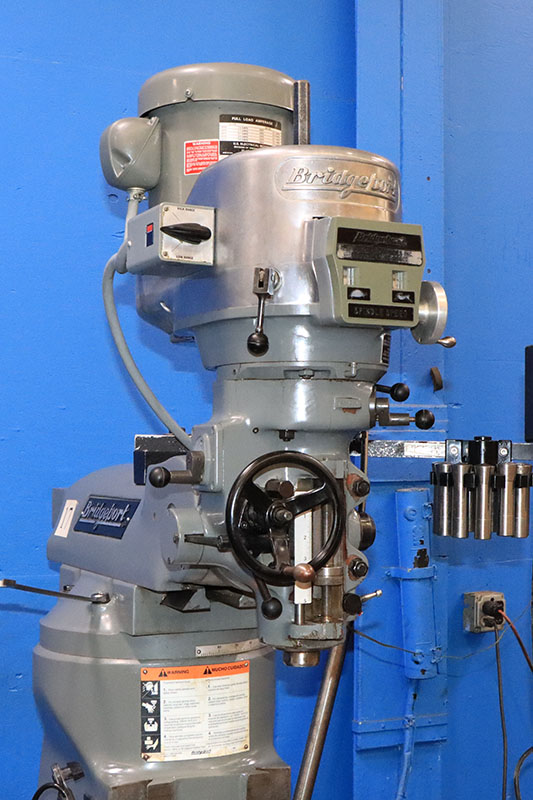

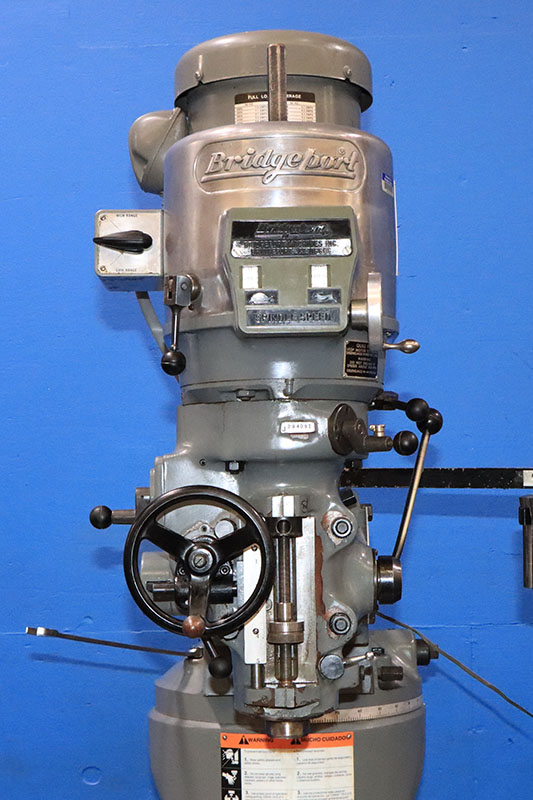

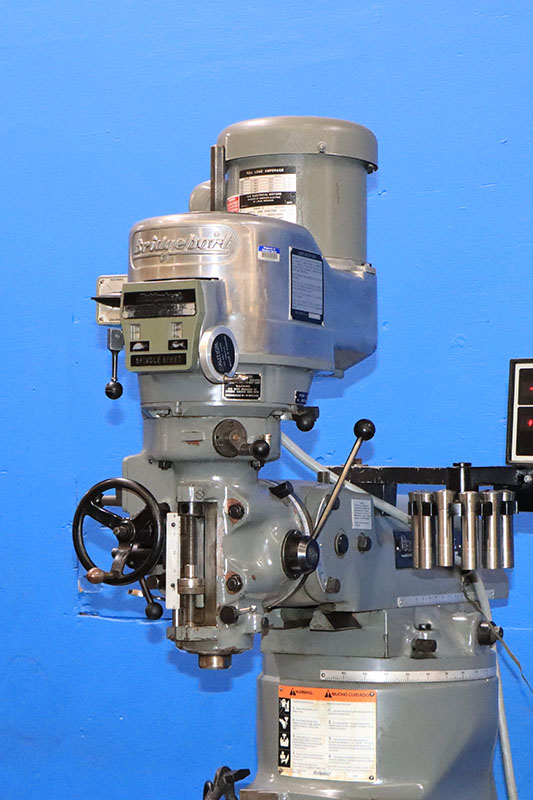

BRIDGEPORT SERIES I MILLING HEAD
2 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
CONDITION:… *** SUPERB… ***
