For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Peter Sonneborn
847-27...> Show Seller's Phone Number 847-276-2761 Let the seller know you found their listing on Surplus Record!
Description

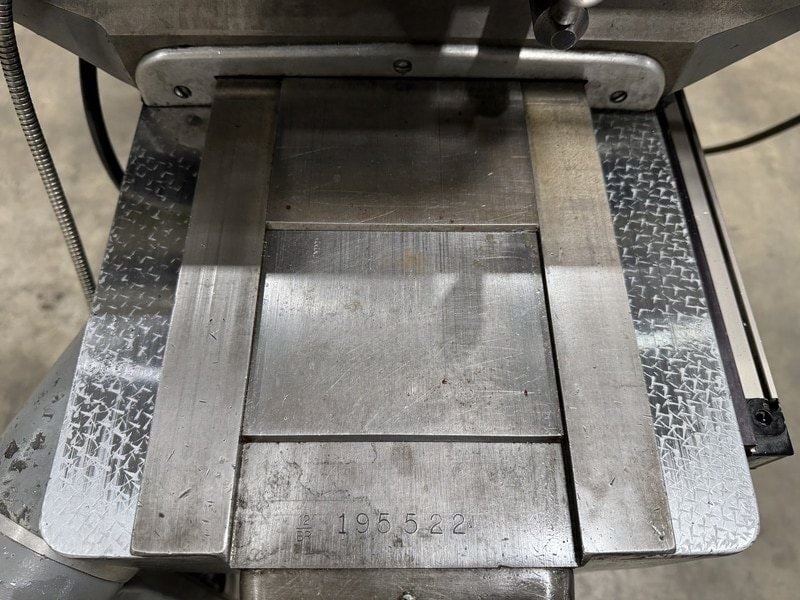

Serial No. 195522
SPECIFICATIONS:
Travels:
- X-Axis - Table............30"
- Y-Axis - Saddle............12"
- Z-Axis - Knee............16"
- Quill............5"
- Ram............12"
Throat Distance............6.75" - 18.75"

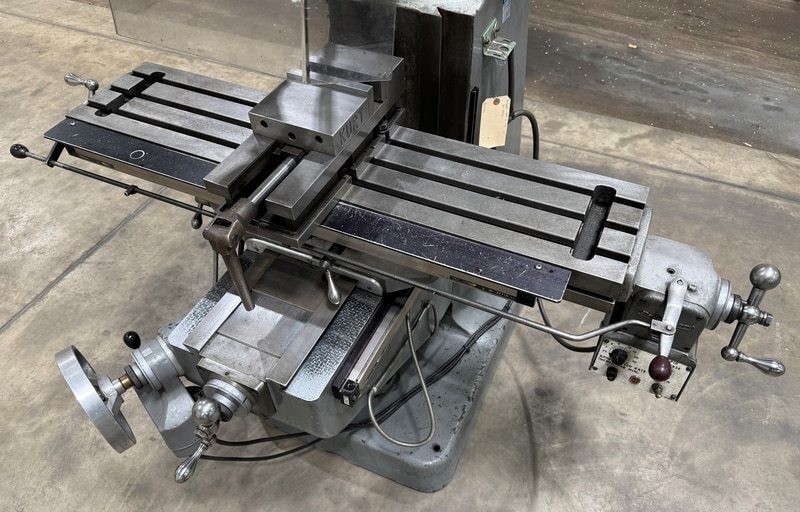

Table:
- Spindle Nose to Gauge Line............2.5" - 18.25"
- Table............48" x 9"
- T-slot Centers............3 @ 2.5"
- T-slot Size............0.625"
- Weight of Workpiece - Maximum............750 Lbs.
Spindle:
- Power............2 HP
- Taper............R-8
- High Speed Range - Infinitely Variable............500 - 4,200 RPM
- Low Speed Range............60 - 500 RPM
Capacity:
- Milling Capacity - Mild Steel............2 CI/Min.
- Boring Range - Mild Steel............6" Dia.
Electrics............
Dimensions - Approximate............100" x 95" x 87"H
Weight - Catalog............1,930 Lbs.
EQUIPPED WITH:

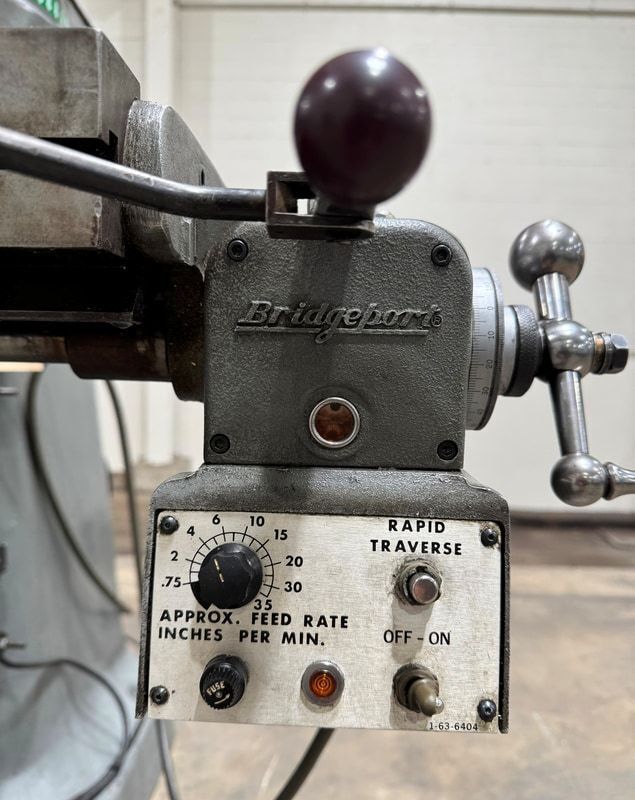

Bridgeport Power Feed Unit for X-Axis (Table)
Type 140 Servo Power Feed Unit on Knee

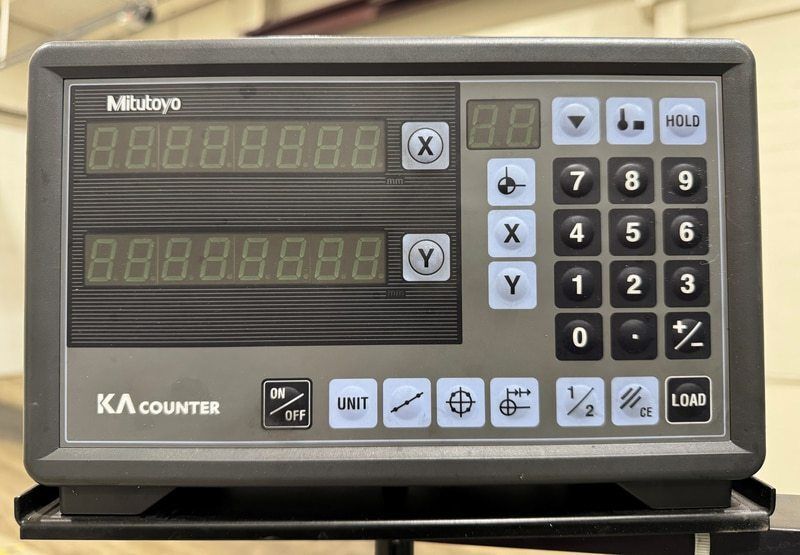

Mitutoyo KA-12. Two-Axis DRO
Mitutoyo Digimatic Scale on Quill
6" Kurt Model 3600V Vise
Chip Guard
Bijur Lubrication System
Work Light
*Catalog specifications, pending confirmation
SPECIFICATIONS:
Travels:
- X-Axis - Table............30"
- Y-Axis - Saddle............12"
- Z-Axis - Knee............16"
- Quill............5"
- Ram............12"
Throat Distance............6.75" - 18.75"
Table:
- Spindle Nose to Gauge Line............2.5" - 18.25"
- Table............48" x 9"
- T-slot Centers............3 @ 2.5"
- T-slot Size............0.625"
- Weight of Workpiece - Maximum............750 Lbs.
Spindle:
- Power............2 HP
- Taper............R-8
- High Speed Range - Infinitely Variable............500 - 4,200 RPM
- Low Speed Range............60 - 500 RPM
Capacity:
- Milling Capacity - Mild Steel............2 CI/Min.
- Boring Range - Mild Steel............6" Dia.
Electrics............
Dimensions - Approximate............100" x 95" x 87"H
Weight - Catalog............1,930 Lbs.
EQUIPPED WITH:
Bridgeport Power Feed Unit for X-Axis (Table)
Type 140 Servo Power Feed Unit on Knee
Mitutoyo KA-12. Two-Axis DRO
Mitutoyo Digimatic Scale on Quill
6" Kurt Model 3600V Vise
Chip Guard
Bijur Lubrication System
Work Light
*Catalog specifications, pending confirmation
