Brewer #Side-Winder, Feed-Thru Deduster with Unscrambler

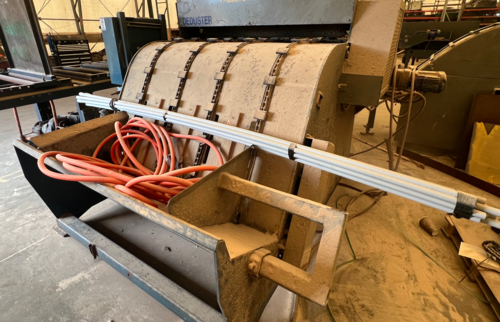

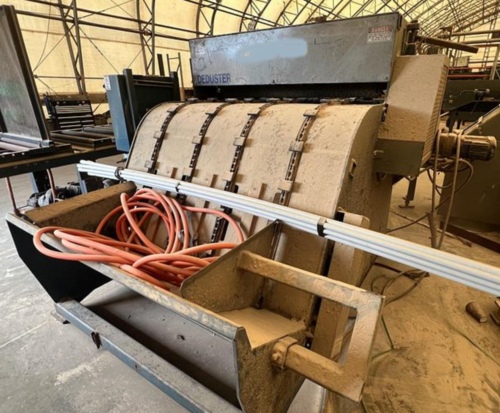

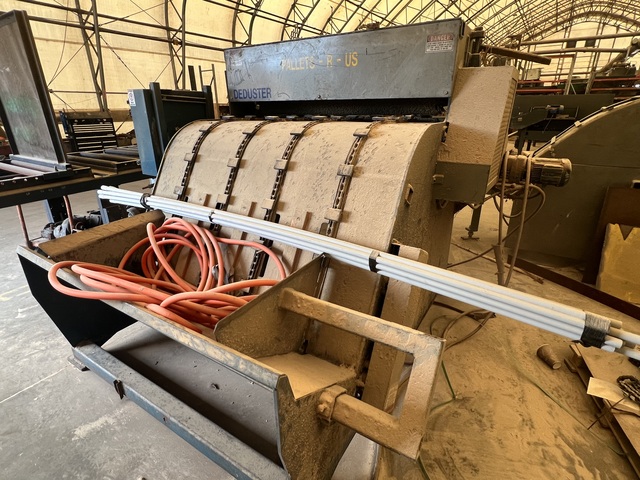

Brewer Deduster with unscrambler.
Disconnected and ready to ship.

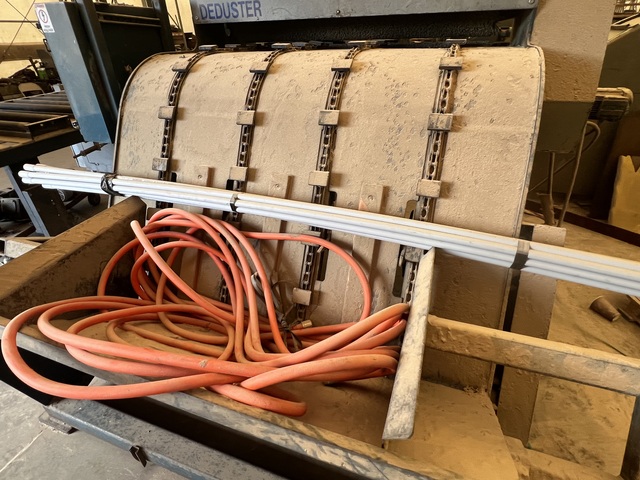

Designed to remove saw dust from boards 30" to 60" long x 3" to 8" wide x 3/8" to 2
½ " thick. Unscrambler style feed with four strands of #2060 chain and ½ " tall dogs
feed boards from a lower hopper singular and sideways through 8" diameter upper and
lower spiral, nylon drum brushes.
Feed chains are powered by 2 HP motor and gear reducer with VFD for variable feed
speed. Brush arbors are powered by 2 HP motor and gear reducer. Frame is
constructed of heavy duty 3/8" steel plate sides. Electrical - control and starter

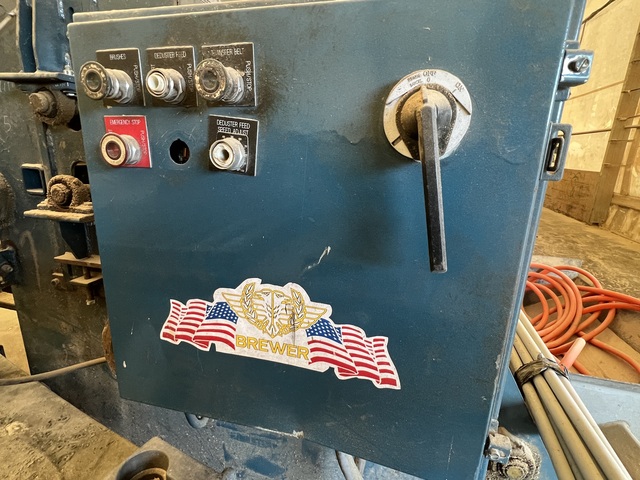

panel is pre-wired for fast installation. Electrical controls are provided including start
stop buttons, overload protection and starters for two 2 HP motors.
FEATURES:
Stacks 15 layers per minute
• Installs behind notchers, chamfers, trim saws, band saws & gang saw:
R u n your whole line with one grader/operato
INCLUDES:
1 1 ' of Infeed Conveyor
10' Integrated exit conveyor
SPECIFICATIONS:
Board Sizes
Other Specs Infeed Conveyor Height
Power Requirements
Pneumatic Requirements
Minimum Maximum
Board Length 32" 72"
Board Length
(with optional tie strips)
36" 72"
Board Thickness 3/8" 1-1/2"
Board Width 2"
30" min - 38" max
480 VAC / Three Phase / 40 Amp
