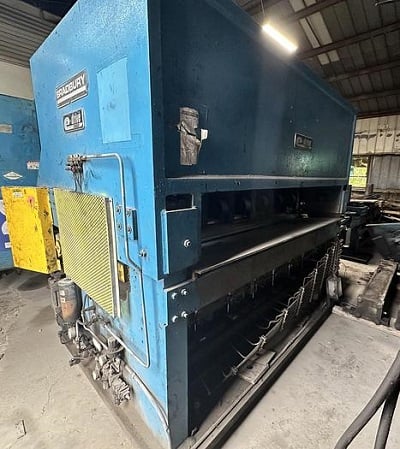

Bradbury, E-drive leveler, 72" x .250", 11 work rolls, L to R, 150 FPM

SPECIFICATIONS
MATERIAL TYPE:
HOT ROLLED STEEL-BLACK AND P&O
ASTM A36, A572, A871, A1011
CAPACITIES (MAXIMUM):
0.250" X 72" @65,000 PSI-GRADE 50
0.205" X 72" @ 80,000 PSI-GRADE 65
CAPACITIES (MINIMUM):
0.100 X 36"@ 80,000 PSI-GRADE 65
0.075" X 36" @ 70,000 PSI
0.060" X 36" @ 55,000 PSI
WORK ROLL NUMBER: 11: 5 UP, 6 DOWN
WORK ROLL SIZE: 3.50" DIAMETER X 86" FACE
BACK UP FLIGHTS: 7 TOP AND 7 BOTTOM
FLIGHT ADJUSTMENT CYLINDERS : 7 ENTRY AND 7 EXIT
MAIN DRIVE AND DRIVE MOTOR: (2) 150HP PATENT PENDING EDRIVE(TM)
MAXIMUM SPEED: 150 FPM (@ 1750 RPM)
PASS LINE HEIGHT: 44.25" WITH 1.25" OF GROUT. THE EXISTING PASSLINE HEIGHT IS
44" TO THE BOTTOM
OF THE MATERIAL.
INTERMEDIATE ROLLS: 4 HI
LINE FLOW: LEFT TO RIGHT
FLATNESS PRECISION: 20 TIMES "I" UNIT IMPROVEMENT ON INCOMING STRIP TO
OUTGOING STRIP AT OR
BELOW A MAXIMUM INCOMING CROSSBOW OF 6" OR LESS.
POWER REQUIREMENTS:
460 V, 60 CYCLES, 3 PHASE
24 V DC CONTROLS
