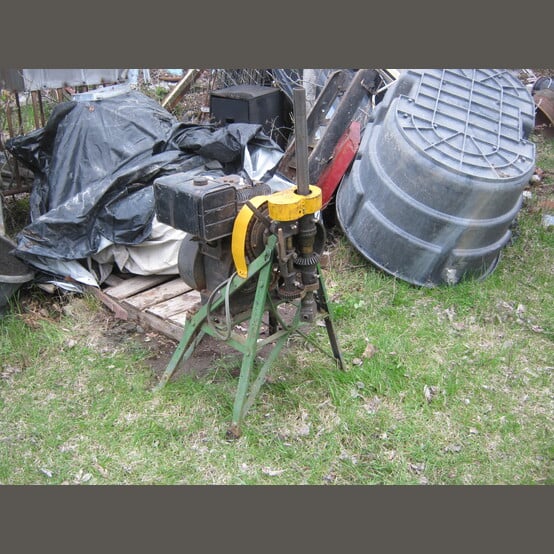

Boyles Bros. X-Ray Diamond Core Drill
Quantity: (2) Drill Package
- Make: Boyles Bros.
- Model: X-Ray
- Type: Diamond Core Drill
- Condition: Used Condition - Drill Heads are Complete and in Good Shape, as are the Frames

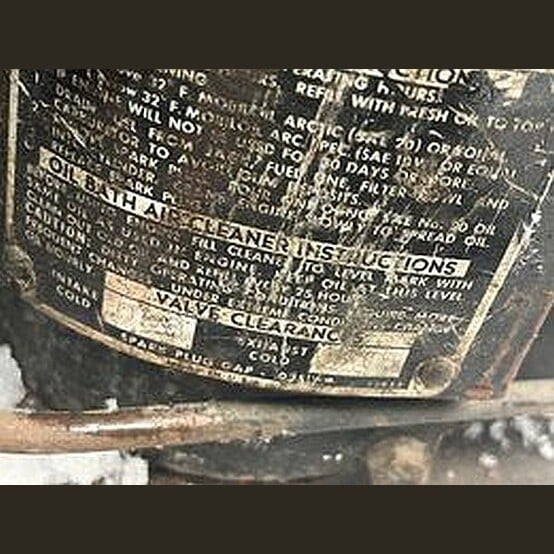

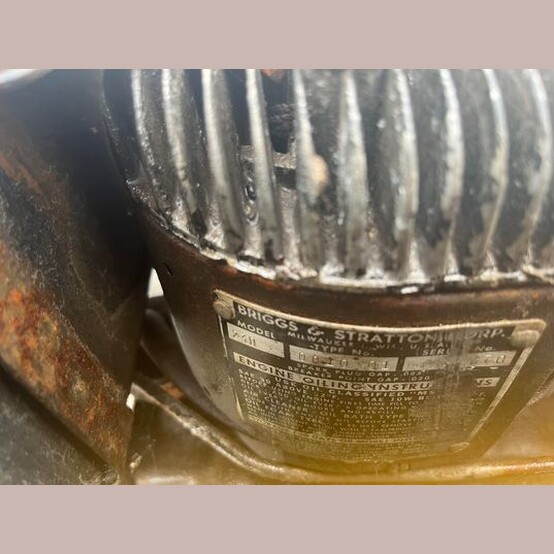

- Drives: (3) Briggs-Stratton 9HP Engines
- One Engine is for Parts
- General Specifications:
- Depth Rating:
- RW: 250ft (76m)
- EW: 150ft (46m)
- AW: 100ft (30m)
- BW: 75ft (23m)

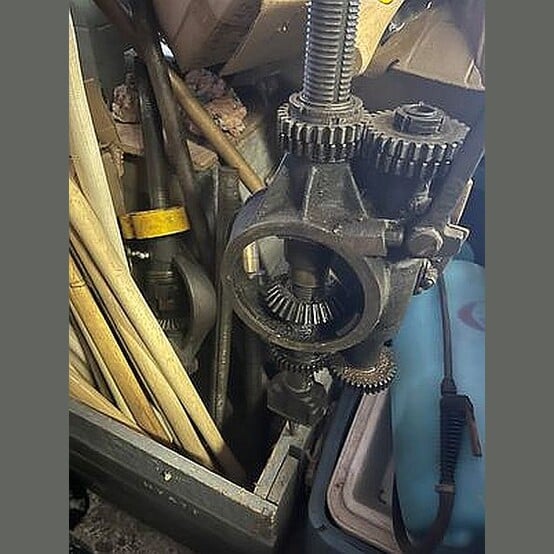

- "X-RAY" Swivelheads:
- Gear-Feed:
- I.D. Feedscrew: 1-1/8in (28.6mm)
- Feed Travel: 16in
- Chuck RPM:
- Standard 1:1 Bevel Gear: 720 to 1440 RPM
- Low Speed 2:1 Bevel Gear: 360 to 720 RPM
- Length: 32in (813mm)
- Weight: 39 Lbs. (17.7kg)
- Feed Gears:
- Standard: 300 RPM and 550 RPM
- Optional: 75, 200, 400, 675, 800 and 900 RPM
- Hand-Feed:
- I.D. Feedscrew: 1-1/8in (28.6mm)
- Feed Travel: 10in (254mm)
- Chuck RPM:
- Standard 1:1 Bevel Gear: 720 to 1440 RPM
- Low Speed 2: 1 Bevel Gear: 360 to 720 RPM
- Length: 39in (990mm)
- Weight: 68 Lbs. (31kg)
- Gear-Feed:
- Depth Rating:
- Location: Eastern Canada
