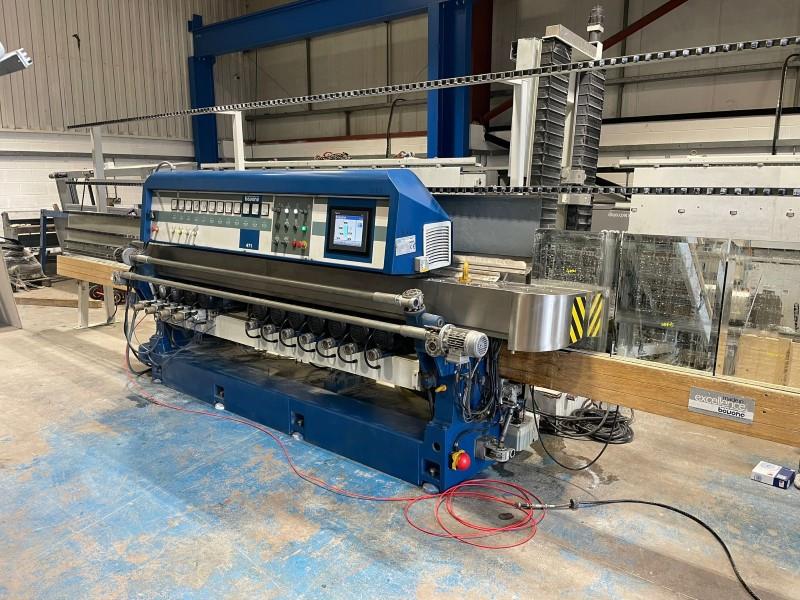

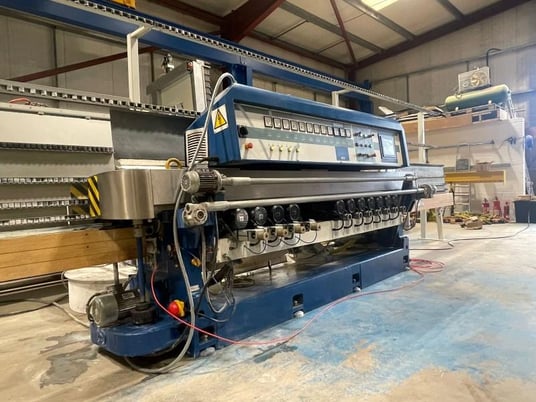

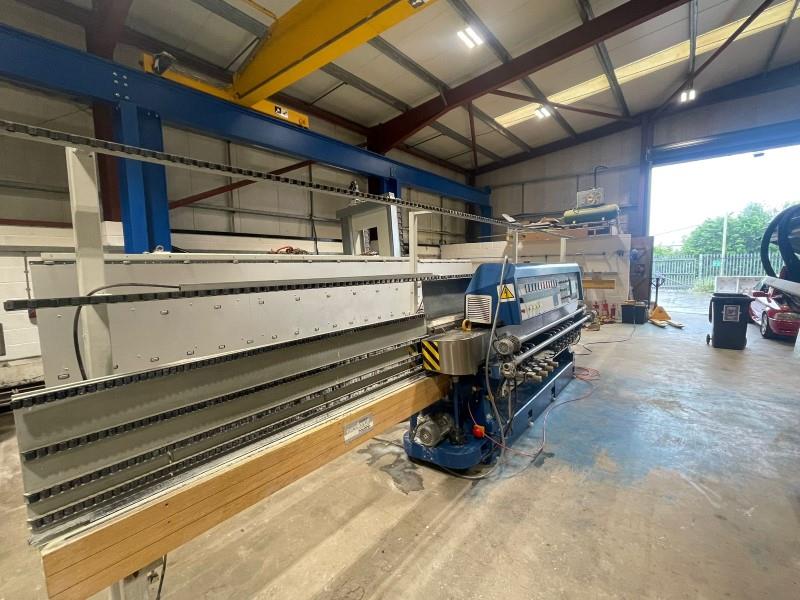

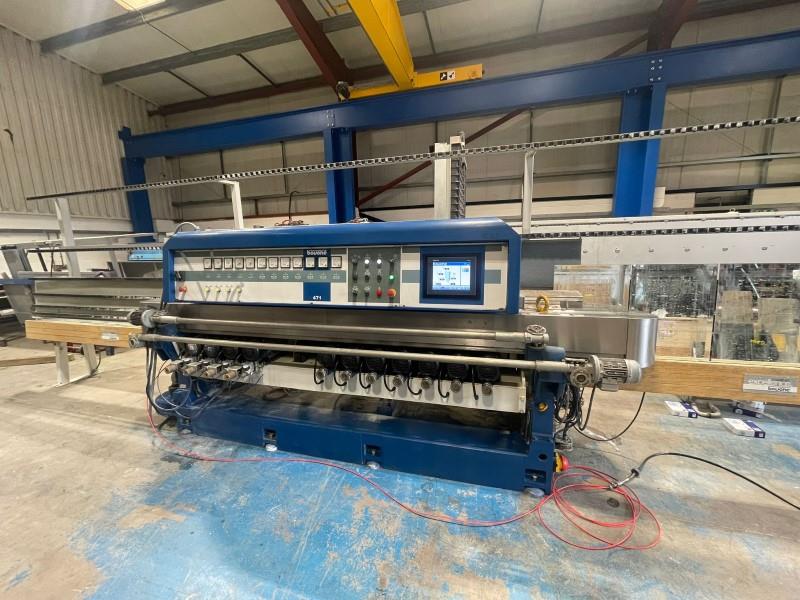

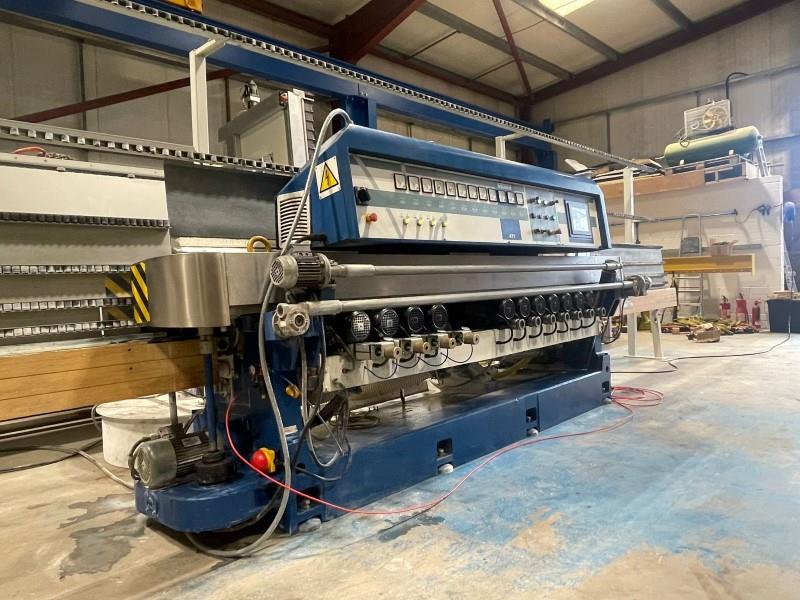

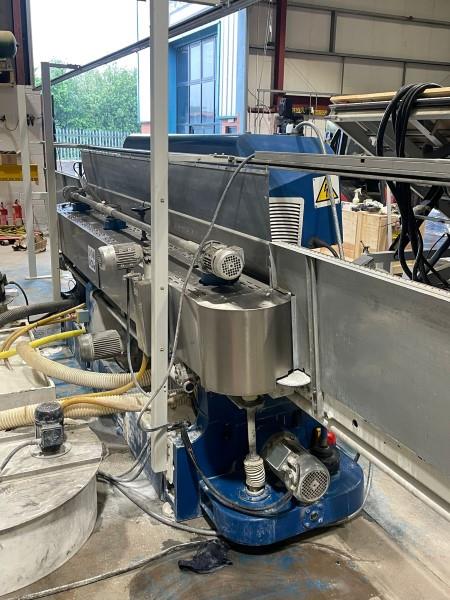

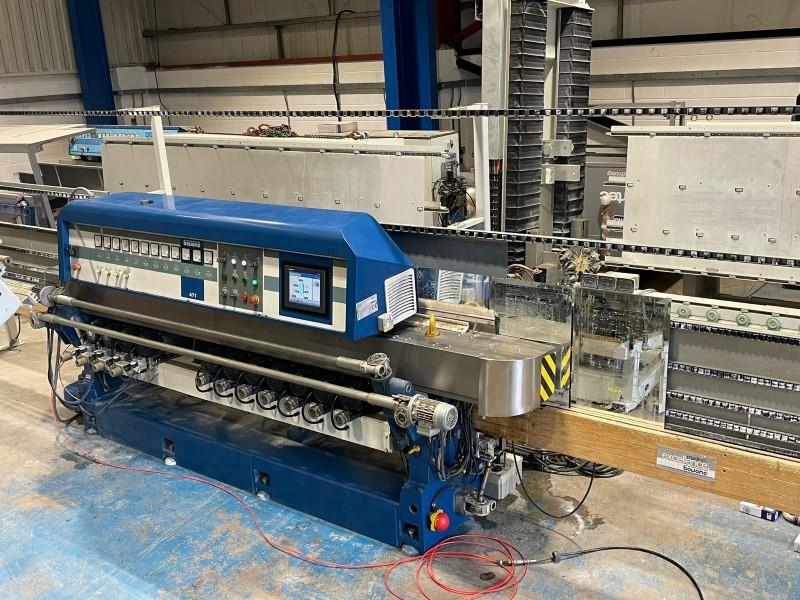

Bovone #471, vertical straight line beveler, 12 spindle, 2015

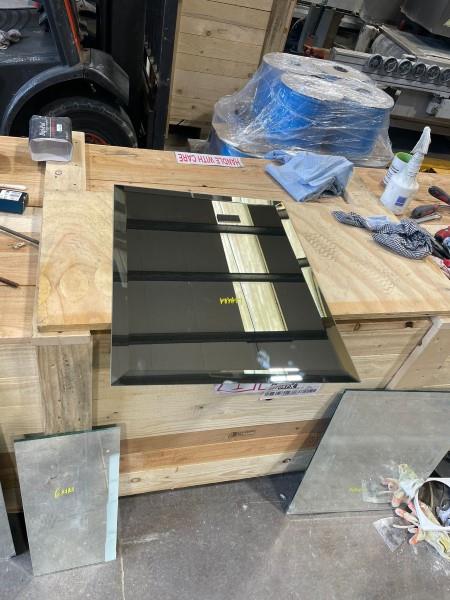

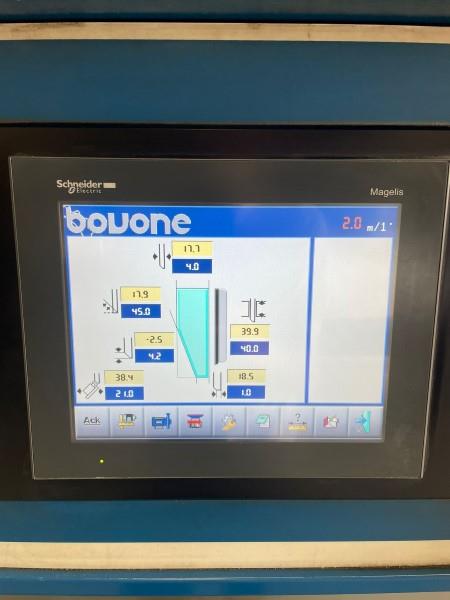

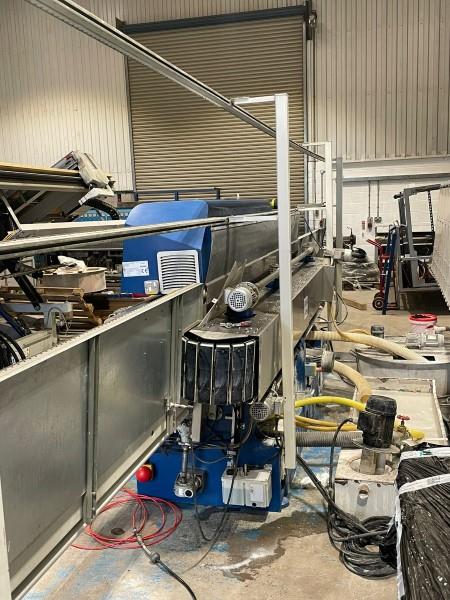

BOVONE 471 Vertical Straight Line Bevelling Machine(12) Spindle straight line bevelling machine for cerium polished bevel and pencil edge grinding/polishing of flat glass. Designed for producing consistent high-quality edges in high production environments. Beveling, smoothing and polishing wheel spindles are mounted on a separate swiveling beam which is adjustable for angle variation in seconds. This allows a quick change of angle from 3 up to 45 without adjusting each spindle. Electronic speed adjustment of the diamond and resin wheels for consistently high grinding quality even with higher feed rates.Wheel Configuration: POS. 1 Diamond Metallic cup wheel CCPOS. 2 Diamond Metallic cup wheel CCPOS. 3 Diamond / Resin cup wheelPOS. 4 Diamond / Resin cup wheelPOS. 5 Diamond / Resin cup wheelPOS. 6 Diamond / Resin cup wheelPOS. 7 Diamond / Resin cup wheelPOS. 8 Pencil Edge Diamond Metallic WheelPOS. 9 Felt PolishingPOS. 10 Felt PolishingPOS. 11 Felt PolishingPOS. 12 Felt PolishingSpecifications: ● Number of spindles: 12 ● Min. glass size: 35 x 35 mm (1-3/8" x 1-3/8") ● Glass thickness: 3 - 25 mm (1/8" - 1") ● Max. bevel range: 3 - 45 ● Max. bevel length: 60 mm (2-5/16") ● Feed: 0.4 - 5.4 m/Min ● Working height: 825 mm ● Power: 28 Kw ● Dimensions: 8200 x 1300 x 2200 mm ● Weight: 4900 kGNOTE: Machine is in very good condition and is ready for immediate shipment. The rear track has been newly replaced. Machine has also back track scrubber to clean & preserve the back track for long-life.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; to your Door. …Packaging, Freight, Insurance (door to door), domestic shipping to your Plant Door.
