Description

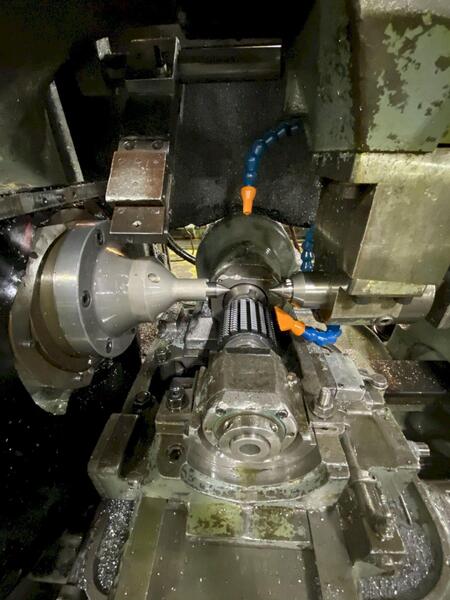

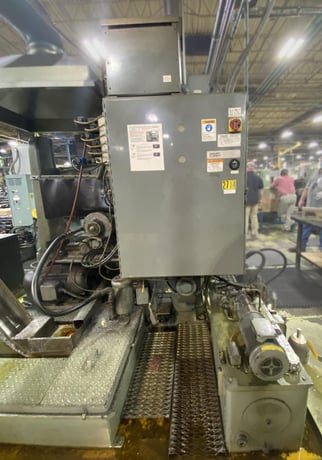

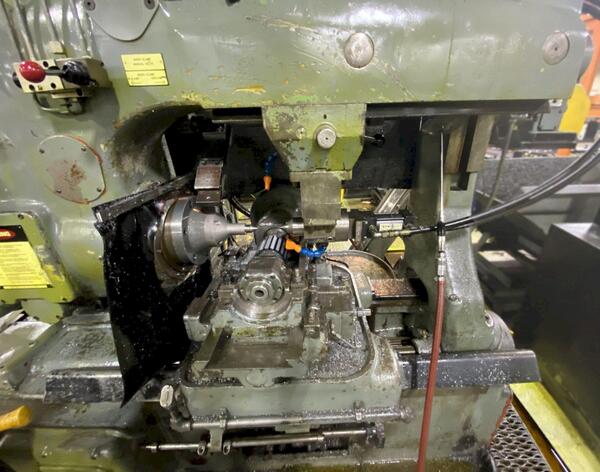

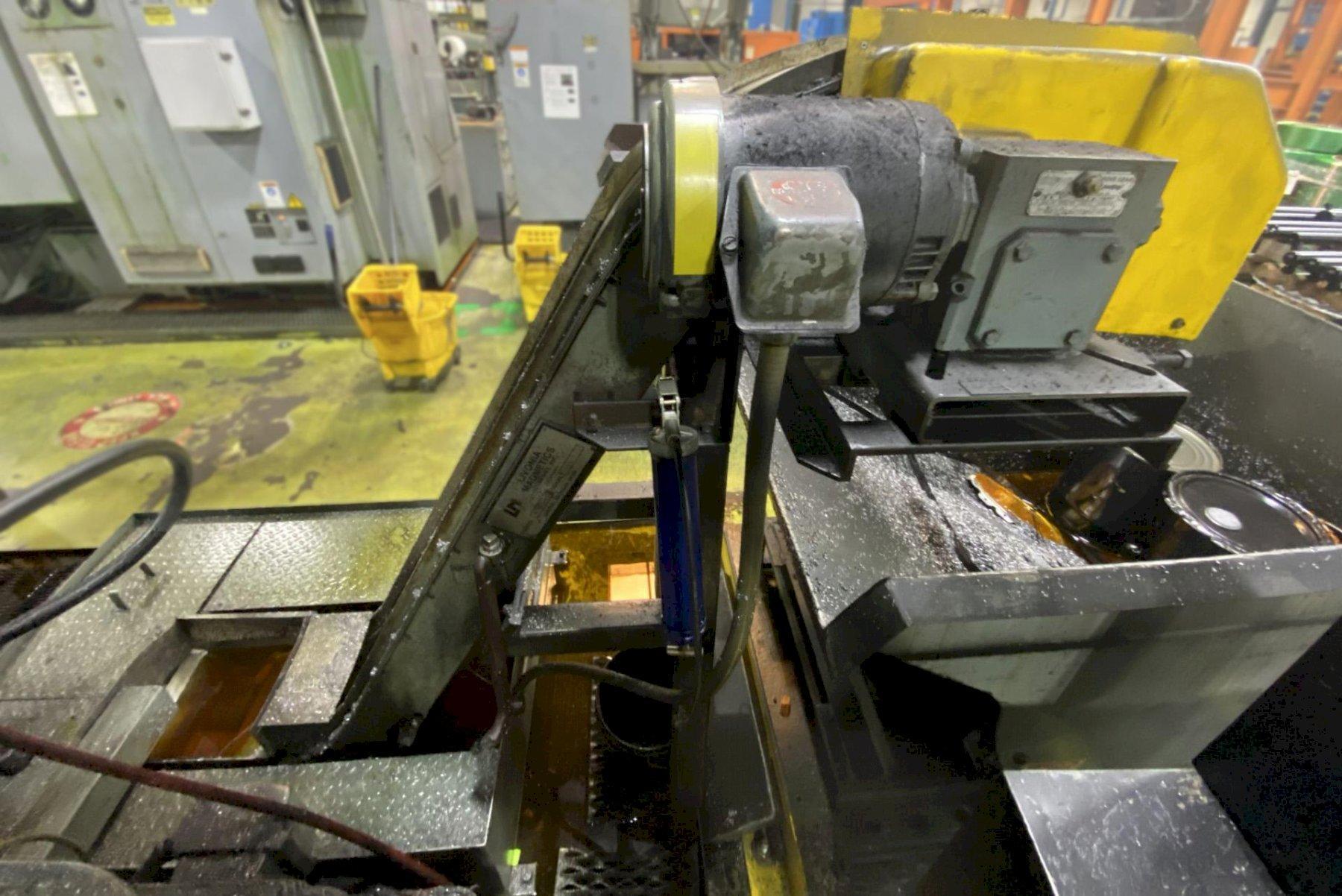

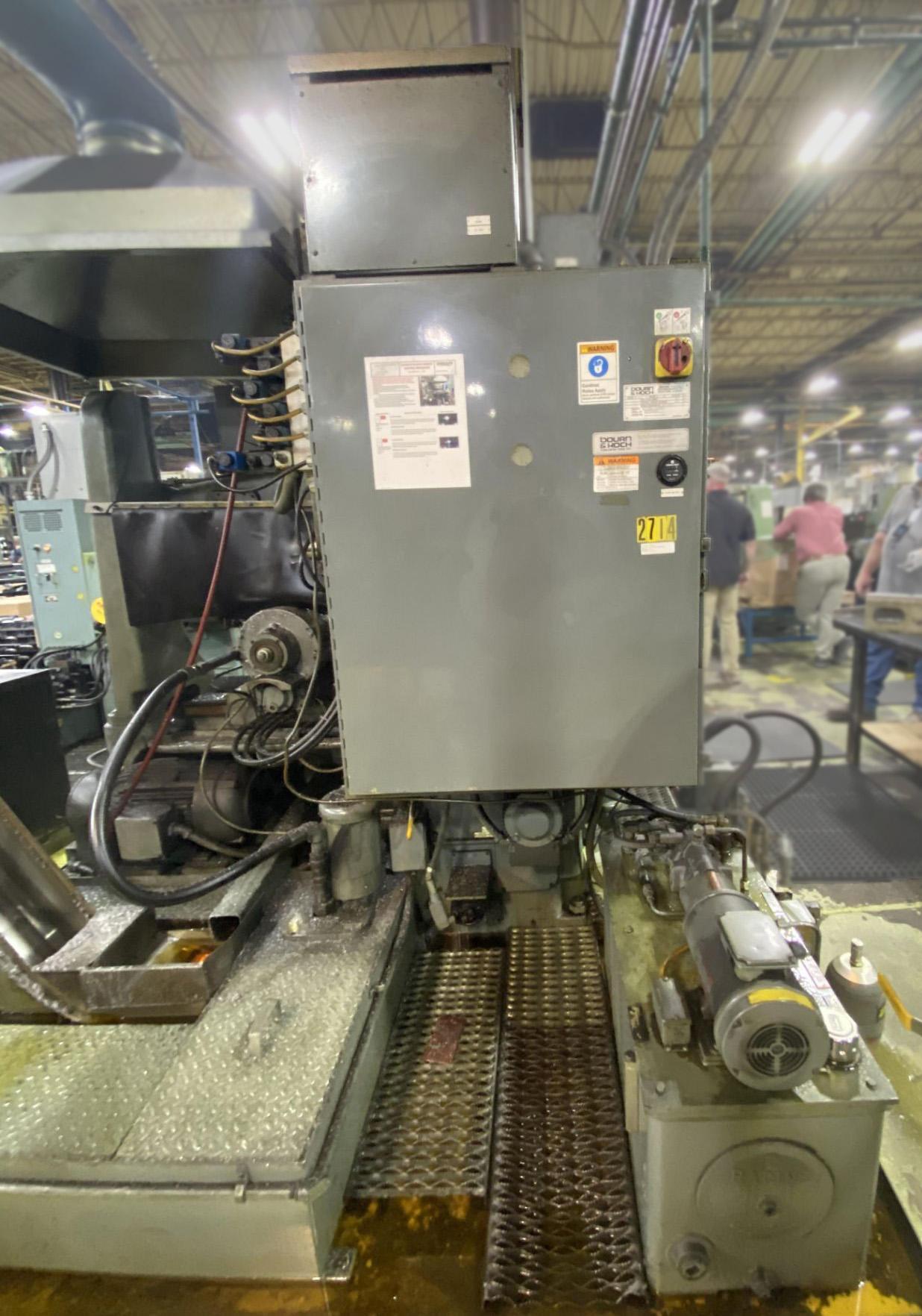

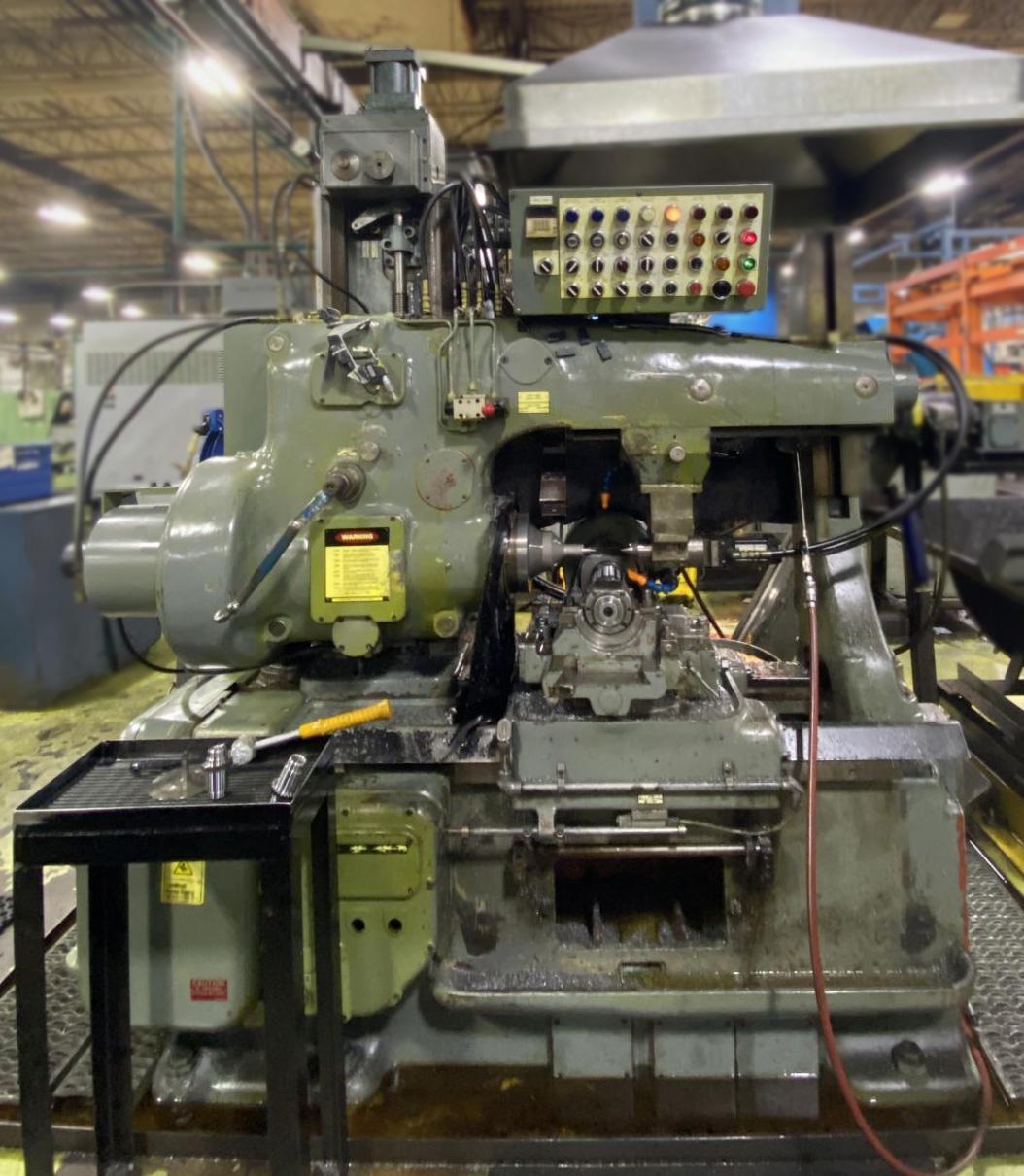

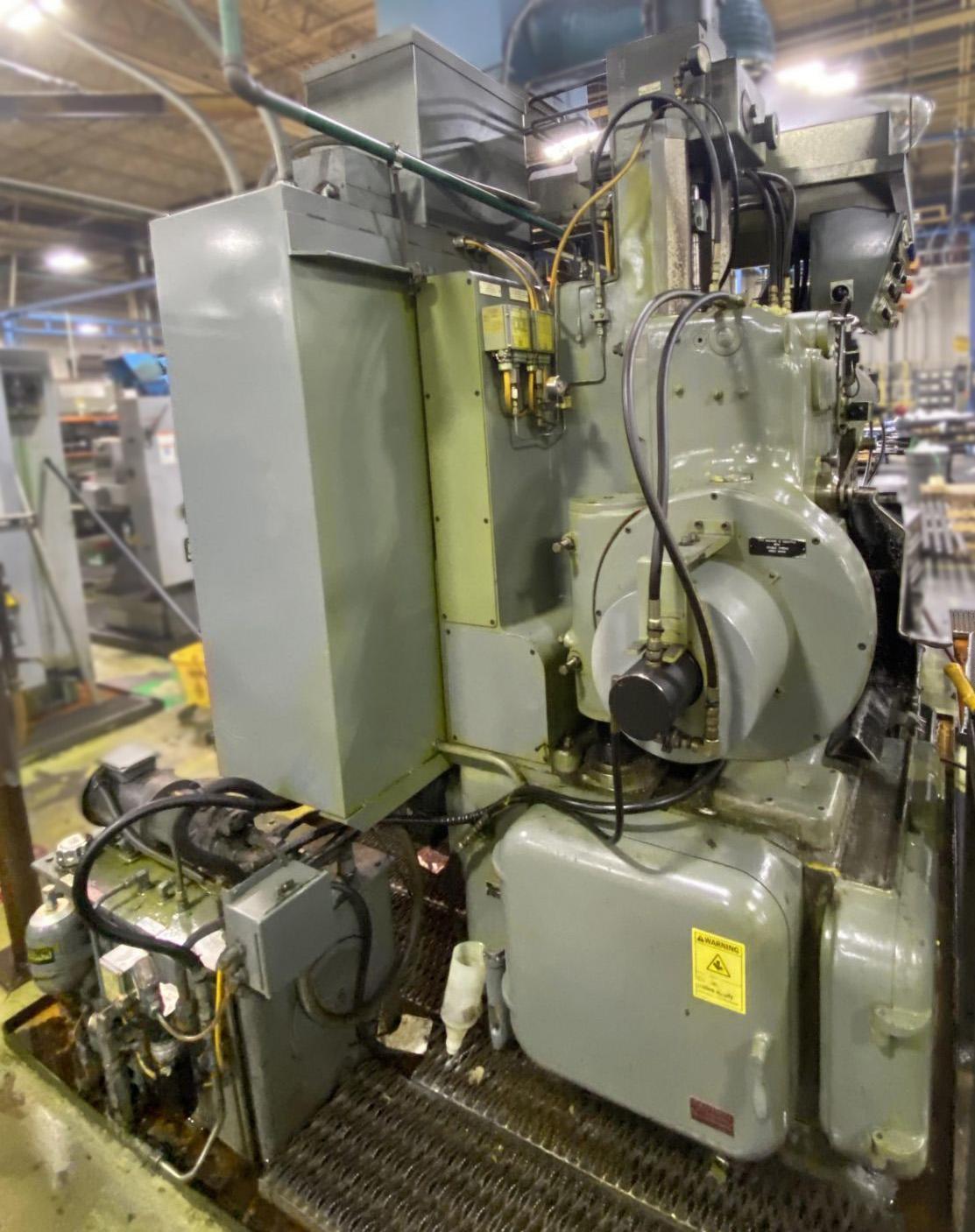

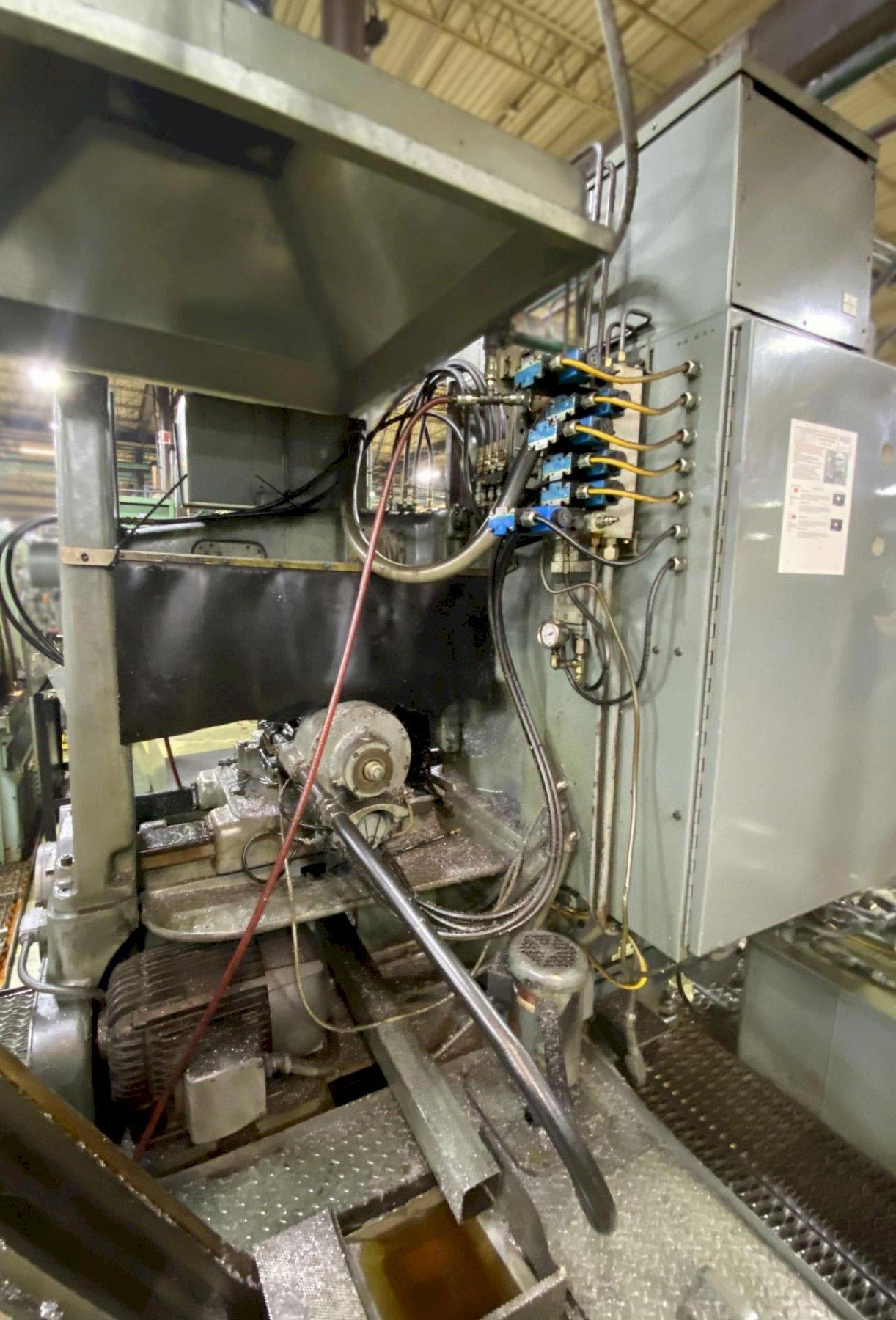

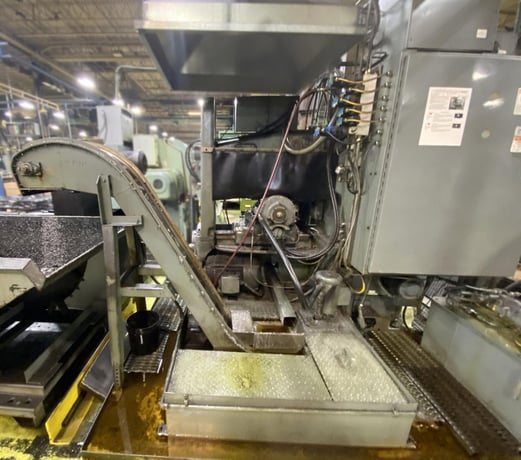

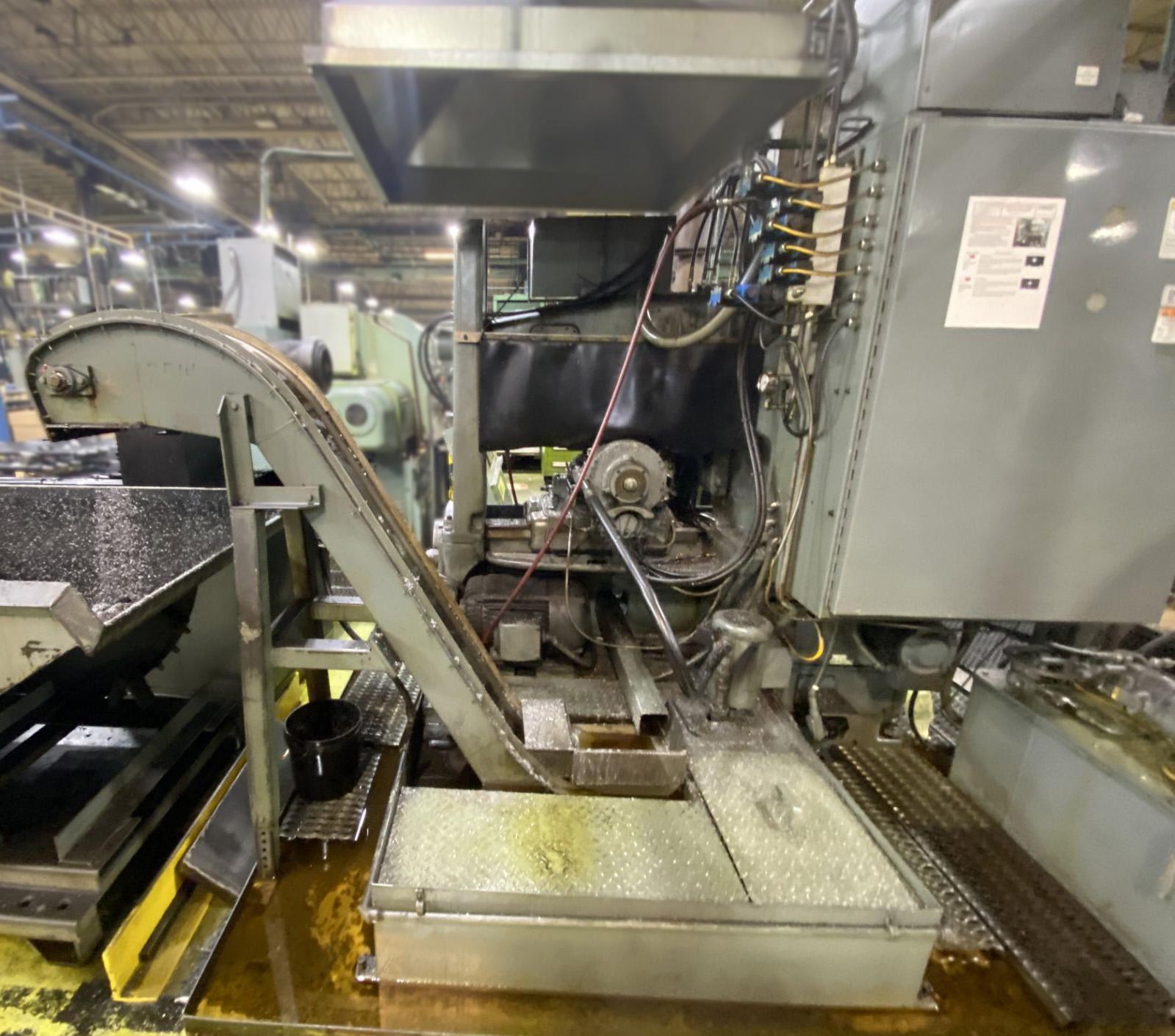

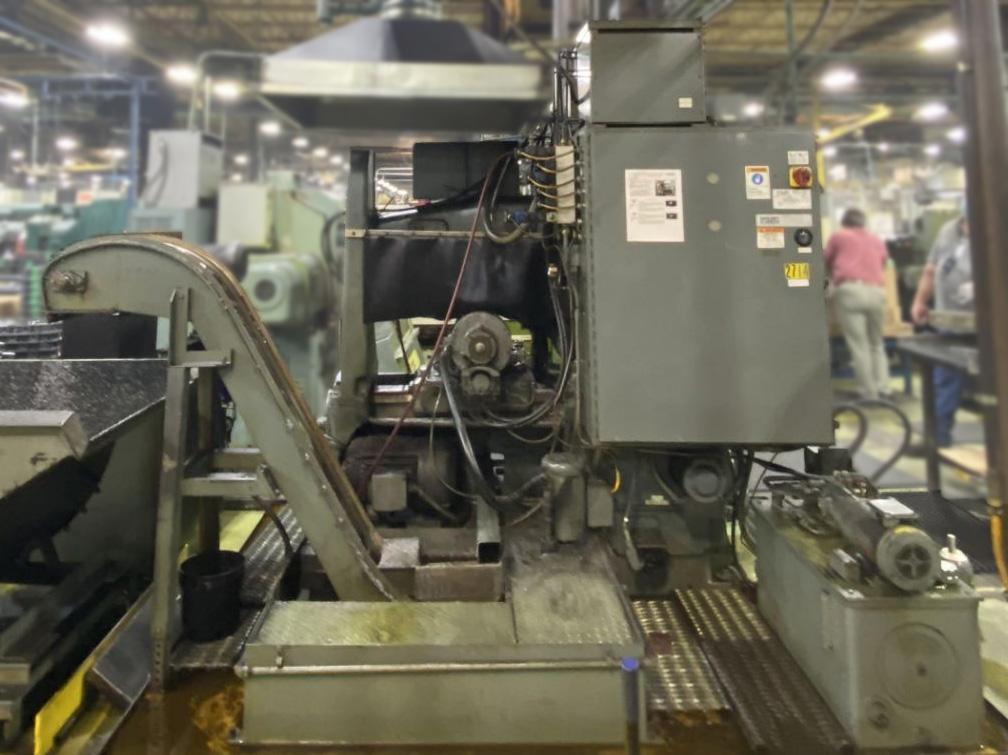

BOURN & KOCH 22-15 GEAR HOBBING MACHINE
Model 22-15, S/N 20032896REB98, Rebuilt 1998
Stock# Q10547
Model 22-15, S/N 20032896REB98, Rebuilt 1998
Stock# Q10547
EQUIPPED WITH:
Standard Hob Head with Anti-Friction Bearing Spindle, Anti-Friction Bearing Work Spindle, Double-Thread Index Worm (Hardened and Ground), Bronze Worm Gear, Built-In Differential Mechanism, Power Forced Lubrication to All Working Elements, Automatic Hob Shift-Clamped During Working Cycle, Hydraulic Tailstock - Automatic 2-Cut Cycle, Dwell Timer for Blind Cuts, (1) Hob Arbor, Single Set-up of Speed / Index / Differential Change Gears, Hydraulic Chucking Work Head with Work Spindle (Collet) Adaptor, Hydraulic Power Unit, Coolant Pan, Pump and Piping.
CATALOG SPECIFICATIONS:
| Max Rated Work Diameter | 22" |
| Max Pitch in Steel | 3.5 DP |
| Max Travel of Hob Slide | 15" |
| Max Distance Work Spindle Face to Tail Center | 27.25" |
| Max Distance Work Spindle Centerline to Hob Spindle | 9.75" |
| Min Distance Work Spindle Centerline to Hob Spindle | 1.75" |
| Work Spindle Bore (Standard) | 4.18" |
| Index Worm Gear Pitch Diameter | 17.9" |
| Max/Min Number of Teeth Cut | 300/4 |
| Max Hob Diameter (Standard) | 6.25" |
| Max Swivel Angle (Helix) Setting R/L | 50° |
| Max Hob Shift Travel | 4" |
| Main Drive Horsepower | 10 HP |
| Hydraulic Pump Horsepower | 3 HP |
| Lubricating Pump Horsepower | 1/4 HP |
| Coolant Pump Horsepower | 1 HP |
| Approximate Machine Dimensions | 114" x 81" |
| Approximate Machine Height | 90" |
| Approximate Machine Weight | 14,500 LBS |
CONDITION: Machine Appears to be in Excellent Condition !
