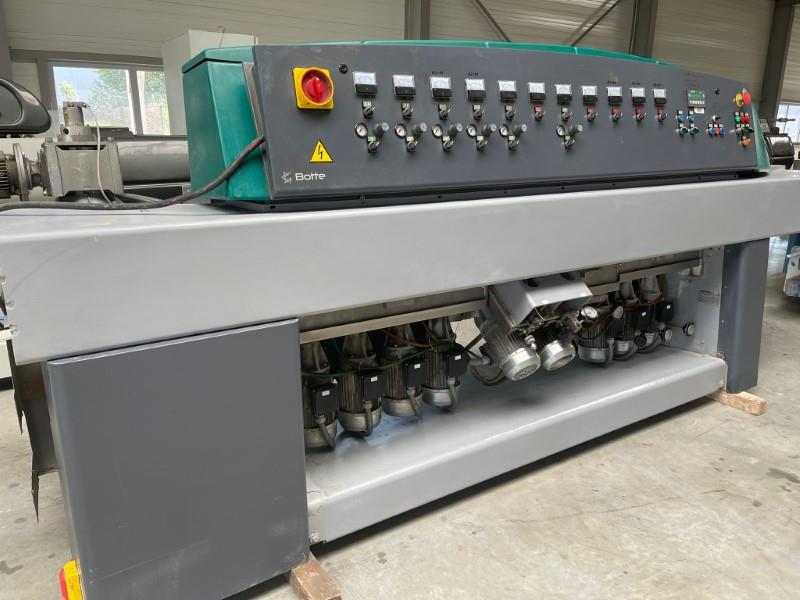

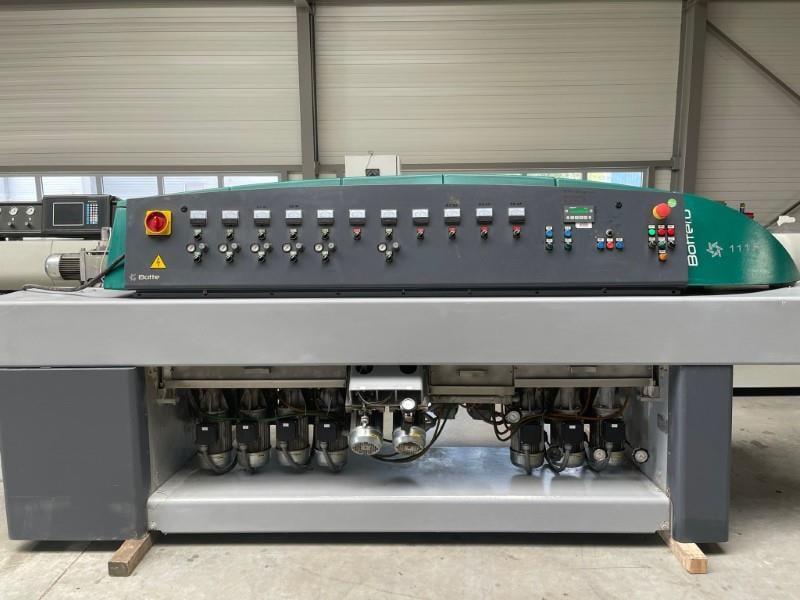

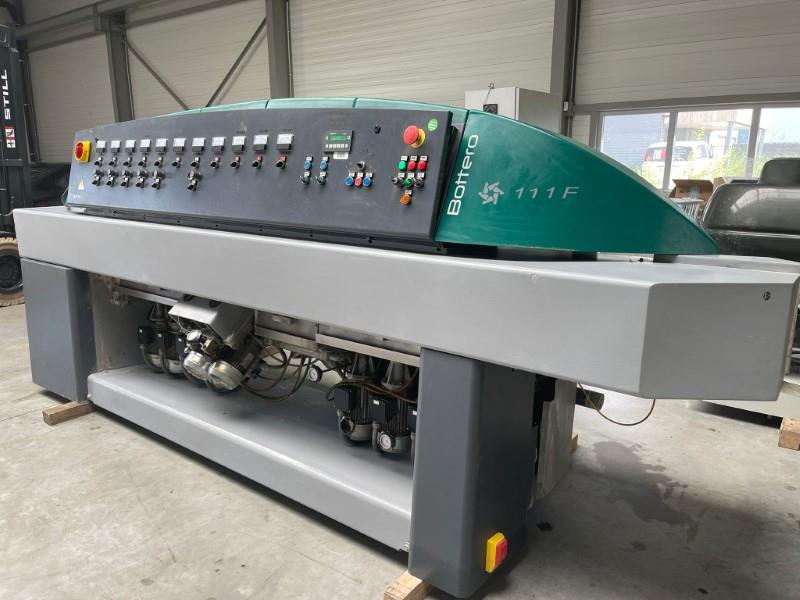

Bottero Victralux-111-F, Vertical Glass Edge Grinder, 11-Spindle, 24 - 240 IPM, 1.57" x 1.57" min. glass measure, 2" thick, 15-2022

Estimated monthly payment valid upon approved credit.

Request Formal Quote

BOTTERO 111 FC Straight-Line Vertical Glass Edging Machine

(11) Spindles straight Line grinder for edging with arrises for heavy duty production of medium/thin glass. The presence of (3) diamond grinding wheels on the edge allows working glass that is up to 50 mm (1” 31/32) thick. The cerium oxide felt in the last position ensures an excellent brilliant finish for the profile.

Designed to operate in a (24) hour production environment. The machine need only be stopped when the operator requires a break.

Wheel Configuration:
POS. 1 Diamond cup wheel CC
POS. 2 Diamond cup wheel CC
POS. 3 Diamond resin cup wheel segmented
POS. 4 Diamond cup wheel arris
POS. 5 Polishing cup wheel arris
POS. 6 Diamond cup wheel arris
POS. 7 Polishing cup wheel arris
POS. 8 Polishing cup wheel
POS. 9 Polishing cup wheel
POS.10 Polishing cup wheel
POS.11 Polishing cup wheel or Felt

Specifications:
● (11) Spindles
● Feed: 0.6 - 6 m/Min (24 - 240 IPM)
● Min. glass measure: 40 x 40 mm (1.57" x 1.57")
● Glass thickness: 3 - 50 mm (up to 2")
● Overall dimensions: 8355 x 2700 x 1550 mm
● Weight: 3600 kG (7937 Lbs)

NOTE: Machine is in very good condition and is ready for immediate delivery.

NOTE: Price includes “Full Service Logistics” from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
