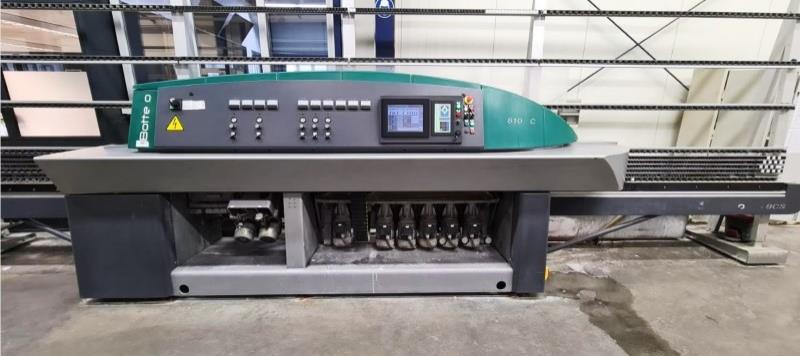

Bottero Variant-810BCS, Vertical Glass Edge Grinder, 10-spindle, 18 FPM, 4' x 4' min. glass measure, 0.18" thick, 0 - 45 deg angle, 32-1/2" working H, 27 KVA, 2014

Estimated monthly payment valid upon approved credit.

Request Formal Quote

BOTTERO VARIANT 810 BC Straight-Line Vertical Glass Edging Machine 45This machine is suitable for high-quality work (typically required for furniture). It provides a high precision mitering and a high quality polish with just 1-pass, all polished with liquid cerium. This process is typically used wherever high-quality finish and gloss are required, along with extreme precision like that required for tabletops and aquariums. For customers whose production involves flat edges and arrises, but who from time to time need to produce edges bevelled up to 45 . The machine's main movements are controlled by operator PLC.Wheel Configuration "Standard" for General Application:POS. 1 Diamond cup wheel open sectorsPOS. 2 Diamond cup wheel CCPOS. 3 Diamond cup wheel CCPOS. 4 Polishing cup wheelPOS. 5 Polishing cup wheelPOS. 6 FeltPOS. 7 Diamond resin cup arris wheel CCPOS. 8 Polishing cup wheelPOS. 9 Diamond resin cup arris wheel CCPOS.10 Polishing cup wheelSpecifications: ● Spindles: 10 ● Feed: 0.4 - 6 m/Min (18 FPM) ● Min. Glass measure: 40 x 40 mm (4' x 4') ● Glass thickness: 3 - 55 mm (0.18") ● Processing angle: 0 - 45 ● Working height: 825 mm (32-1/2") ● Installed Power: 27 KVA ● Dimensions: 8400 x 1700 x 2300 mm (331" x 67" x 91") ● Weight: 4600 kg (10141 Lbs)NOTE: Machine is dismantled and is ready for immediate shipment. NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
