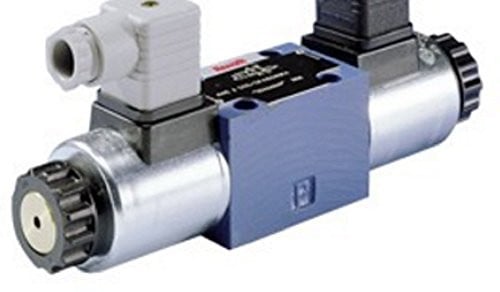

Bosch Rexroth R901089241 4WE 6 J70/HG24N9K4 Type WE Hydraulic Directional Valve, NEW

$370 USD

Request Formal Quote

Ports: 4 Main Ports. Type: Direction Valve. Size: 6. Spool Symbol: J. Component Series: 70. Directional valves type WE are solenoid operated directional spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of housing; one or two solenoids; control spool; and no, one, or two return springs. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates from 4000 PSI to 5000 PSI and 21 GPM to 32 GPM cover a wide range of applications. FEATURES: Size 6. For subplate mounting: Porting pattern according to ISO 4401-3, NFPA T3.5.1M R1, and ANSI B93.7 D 03. Wet-pin AC or DC solenoids. Solenoids with detachable coil. Electrical connection as individual or central connection. Optional spool position monitoring (RE 24830). Smooth switching characteristics. CSA certified part numbers in all sizes. SPECIFICATIONS: Ports: 4 Main Ports. Type: Direction Valve. Size: 6. Spool Symbol: J. Component Series: 70. With Spring Return. Power: Direct Voltage 24V. With Concealed Manual Override (Standard). Without Mating Connector, With Connector According to DIN EN 175301-803. Without Position Switch. Clamping Length: 42mm. Seal Material: NBR Seals. Without Locating Hole. Made in Germany.. Bosch Rexroth. Bosch Rexroth AG. 4WE 6 J70/HG24N9K4.
