For Sale by Carolina Machinery Sales
Surplus Record Dealer Since 2021
Location: Monroe, NC
Contact Ralph Viegelmann
Phone Number: 704...> Show Phone Number 704-288-1904
Let the seller know you found their listing on Surplus Record!
Description
Manufacturer′s Specifications (to be confirmed)
Swing over bed: 12 9/16".
Swing over carriage: 5 1/8".
Distance between centers: 39 3/8".
Taper of barrel : MT5.
Spindle hole: 1 1/2".
Range of speed(variable): 100~2500r/min.
Feed motor power(X/Z): 4N.M/6N.M(Servo motor).
X rapid traverse: 5m/min.
Z rapid traverse : 10m/min.
Max. travel of X axis: 6 1/4".
Max. travel of Z axis : 35 7/16". (If the tail tool holder is moved outward, a maximum stroke of 39-3/8" can be achieved)
Motor power: 4 HP.

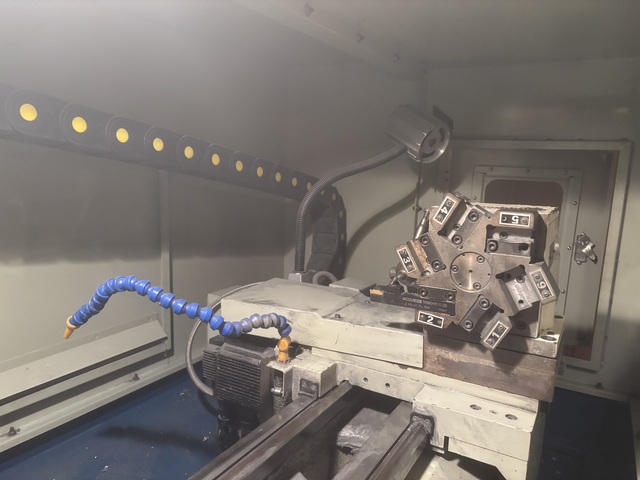

Tool-post : 4 stations.
Max.tool size: 5/8" x 5/8".
Min input unit: 0.001mm / 0.000039".
Repeatability accuracy(X/Y): 0.01mm / 0.00039".
Barrel travel of tailstock: 5 29/32".
Barrel taper of tailstock: MT3.
Packing size: 91" x 43" x 65".
N / G Weight: 2640LBS / 2860LBS.
Width of bed: 7 3/8"
Swing over bed: 12 9/16".
Swing over carriage: 5 1/8".
Distance between centers: 39 3/8".
Taper of barrel : MT5.
Spindle hole: 1 1/2".
Range of speed(variable): 100~2500r/min.
Feed motor power(X/Z): 4N.M/6N.M(Servo motor).
X rapid traverse: 5m/min.
Z rapid traverse : 10m/min.
Max. travel of X axis: 6 1/4".
Max. travel of Z axis : 35 7/16". (If the tail tool holder is moved outward, a maximum stroke of 39-3/8" can be achieved)
Motor power: 4 HP.
Tool-post : 4 stations.
Max.tool size: 5/8" x 5/8".
Min input unit: 0.001mm / 0.000039".
Repeatability accuracy(X/Y): 0.01mm / 0.00039".
Barrel travel of tailstock: 5 29/32".
Barrel taper of tailstock: MT3.
Packing size: 91" x 43" x 65".
N / G Weight: 2640LBS / 2860LBS.
Width of bed: 7 3/8"
Get Your Price from Carolina Machinery Sales!
