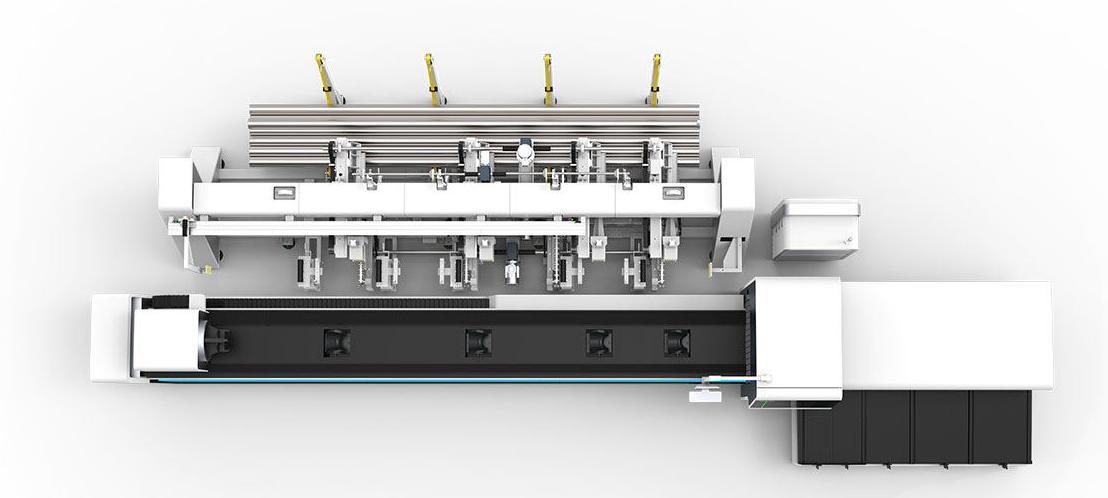

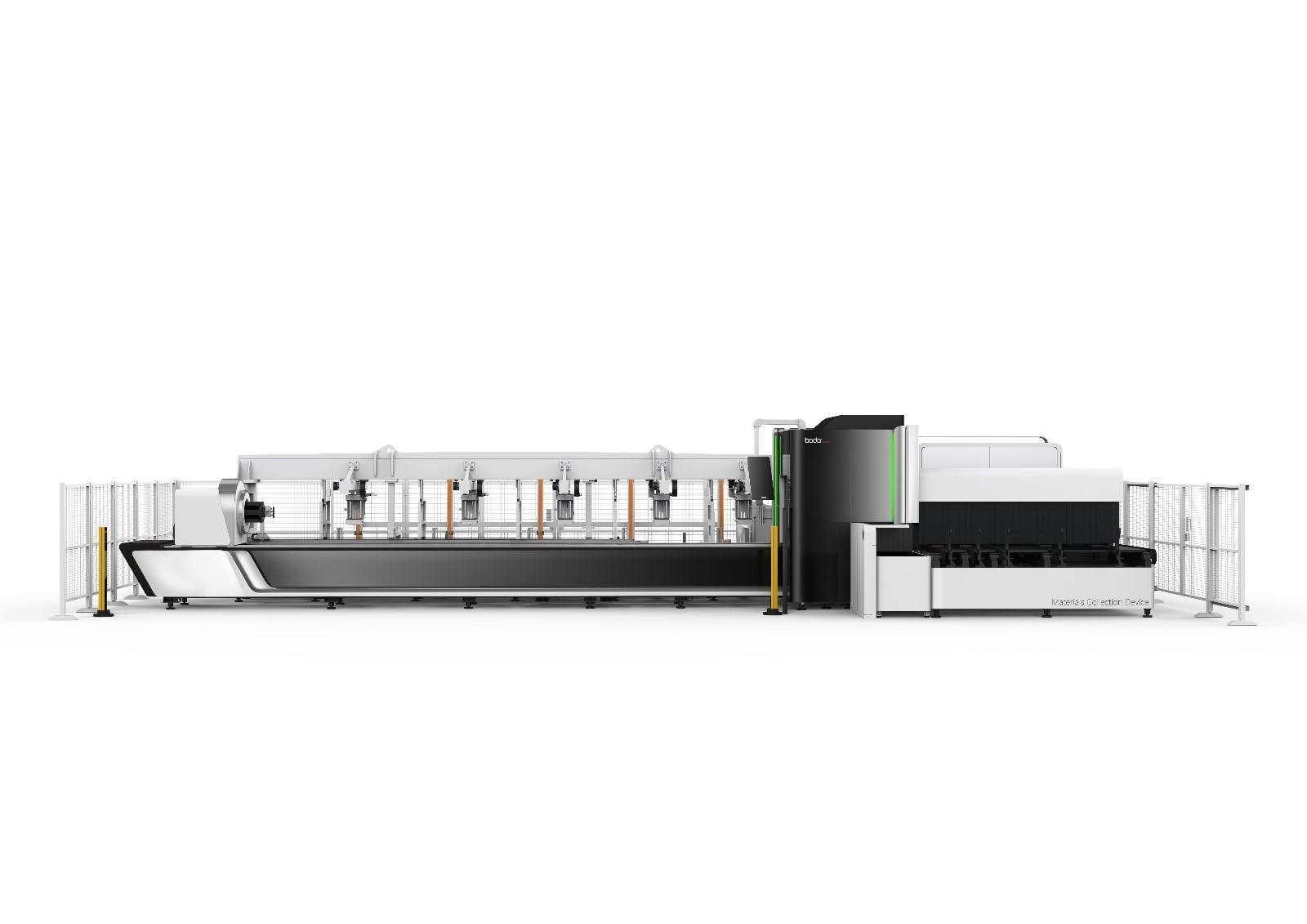

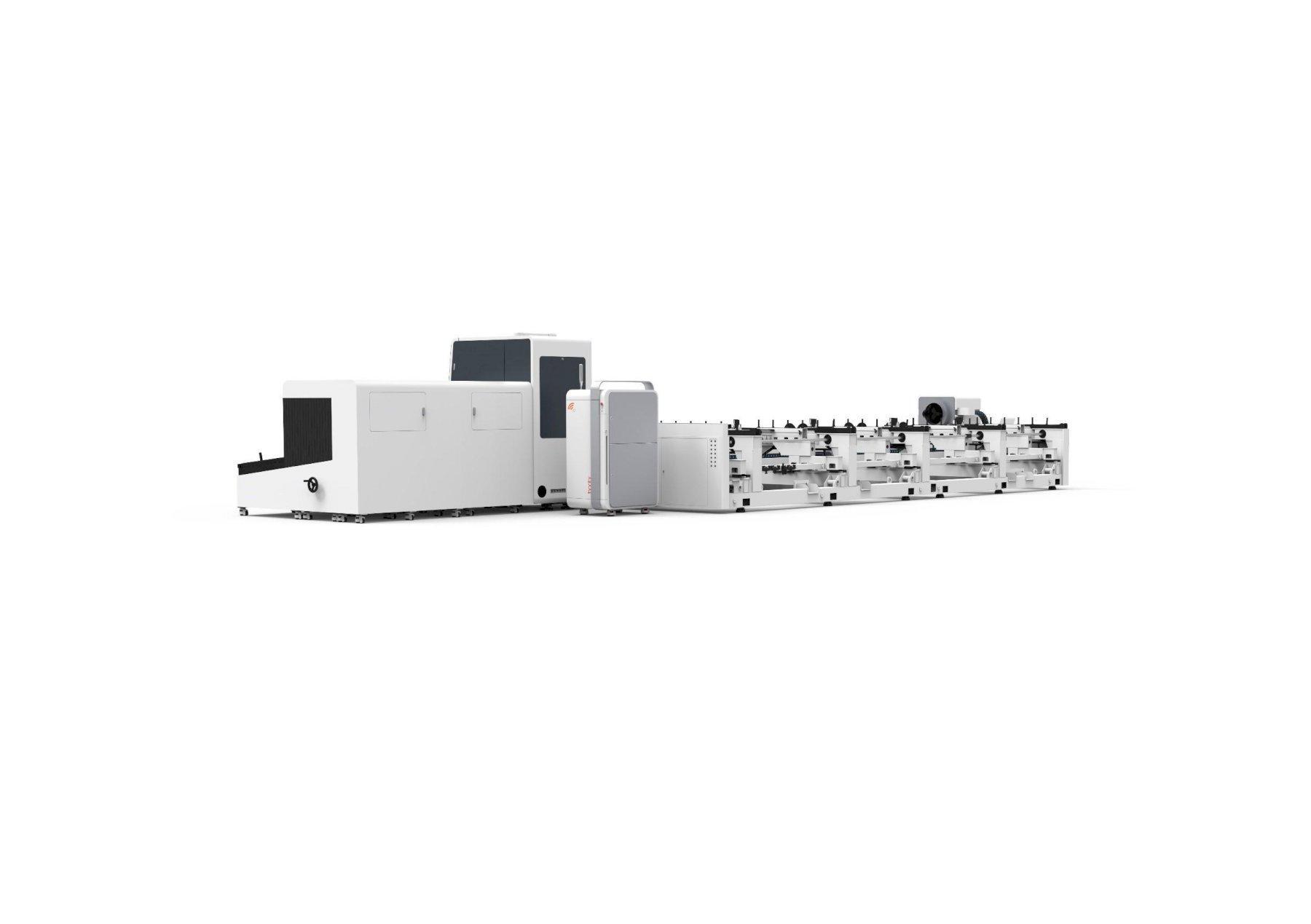

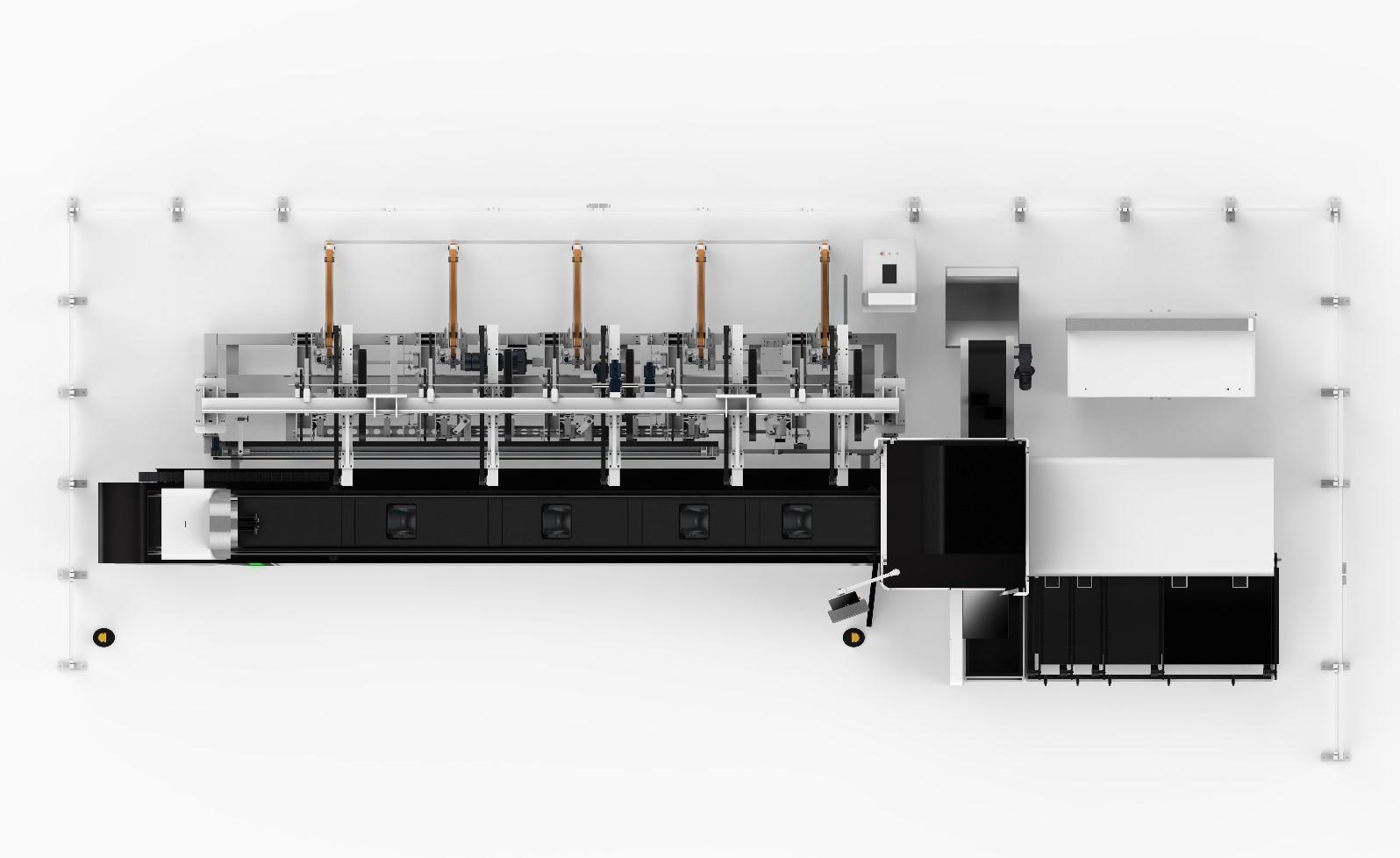

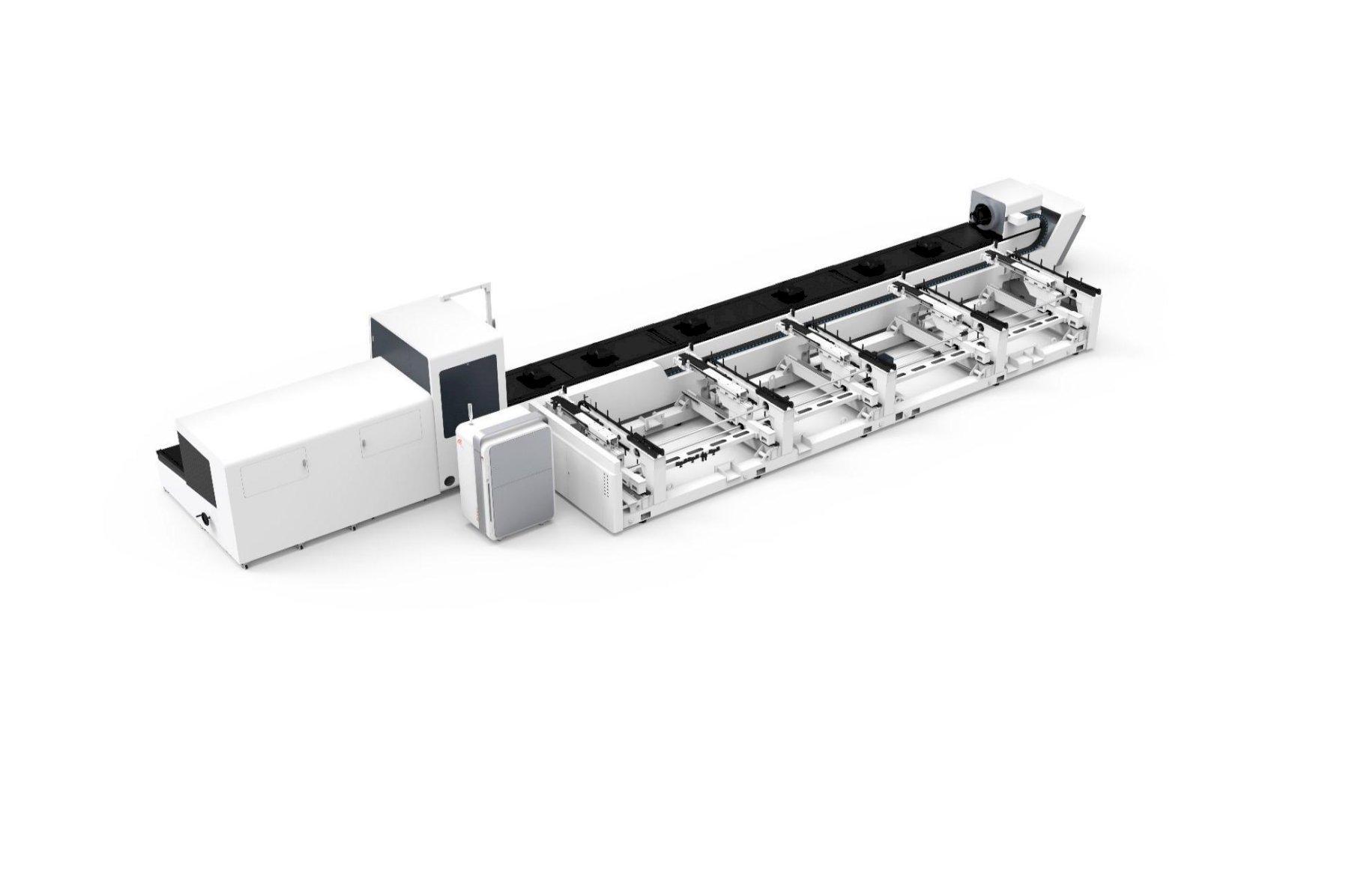

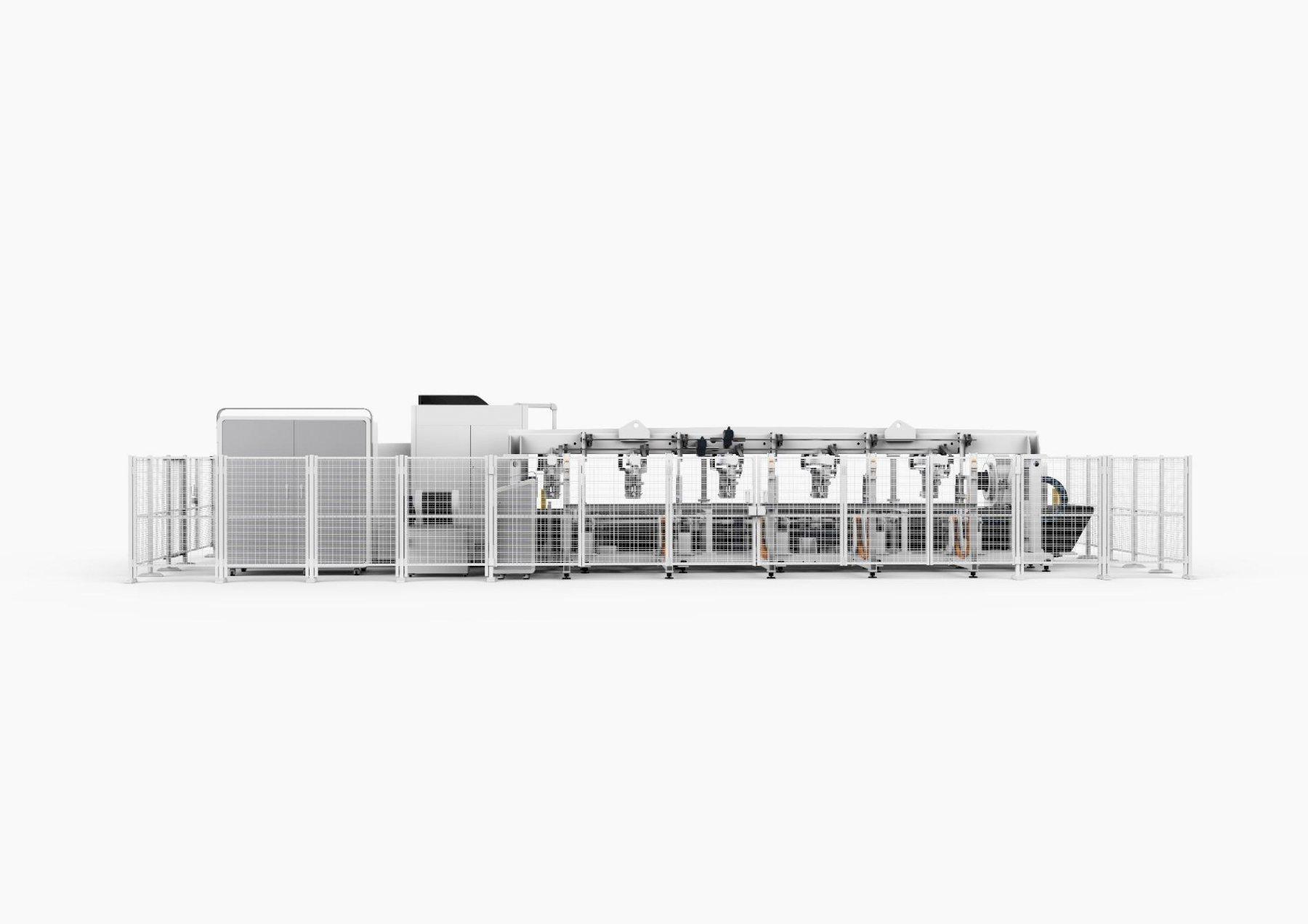

Bodor #T230A-3KW, Fiber Laser Metal Tube Cutting Machine, 3000 watt, NEW

Basic Parameter

Tube cross-sectional shape

Round, square, rectangular, oval, rounded rectangular, Angle steel, channel steel and other tubes

Tube size range

Round tubeφ20mm - φ230mm
Square tube 20-230mm
Rectangular tube
230mm≥Side length≥20mm
I-Beam: 10# - #14

Maximum machinable tube length

6500mm(21')Option 9200mm (30')

Configuration

Laser source

BodorPower

laser head

BodorGenius T

Chuck

pneumatic chuck

Waste Trolley

Yes

Standard tube support holder

Yes

Linear Rails

Bodor

Rack

Bodor

X-axisY-axisZ-axisA-axis
Servo motor and driver

Bodor

Control system

BodorThinker

Display size

21.5 inches

Intelligent alarm

Yes

Intelligent LED alert lights

Yes

File format

IGSDXFG Code

Water Chiller

Yes

Dust removal

Centrifugal fan Option Fume filter

Power capacity/Current

T230(21')

T230(30')

Total power capacity/current with 6KW source

61.48KVA/93.4A

59.5KVA/90.4 A

Total power capacity/current with 3KW source

45.78 KVA/69.6A

44KVA/66.85 A

Total power capacity/current with 2KW source

37.08 KVA/56.3A

36.5KVA/55.46 A

Total power capacity/current with 1.5KW source

43.28 KVA/65.8A

43.18KVA/65.6 A

Intelligent Function

Bodor Lightning perforation technology

Yes

High Speed Cutting Expert Database

Yes

Automatic tube inspection

four sides edge-seeking

Cutting gas automatic pressure regulation function

6kW belowO2
6kW and aboveO2N2air

Touch screen control

Yes

Automatic focusing function of laser head

Yes

Laser cutting technology database

Yes

Active obstacle avoidance function

Yes

Angle steel, channel steel cutting

Yes

Jaw position control

×

Anti-slag Protection

Yes

Gas-saving steady flow nozzle

Yes

Intelligent maintenance reminder

Yes

BodorCloud sevice

Yes

WIFI internet connection

Yes

Performance

Requirements for tubes

Diameterφ50mm thickness≥1.2mm
Diameter≥φ50mm
Wall thickness≥2.5% of Diameters of tubes

Maximum tube length

4500mm

Shortest remaining material

110mm(1.5-3kw
200mmipg3kw6kw

Dimensions

13500×3200×2500mm

Maximum tube weight

300Kg 46Kg/m

Overall weight

6700kg

Positioning accuracy

0.05mm

Repositioning accuracy

0.03mm

Max. Chuck rotating speed

120r/min

X axis maximum speed

100m/min

Y axis maximum speed

90m/min

X maximum acceleration

1G

Y maximum acceleration

1.2G

Z axis maximum speed

80m/min

Φ20mm roundness

≤0.15mm

20mm square diagonal size difference

≤0.20mm

20mm square position size difference

≤0.15mm3m
≤0.40mm6m

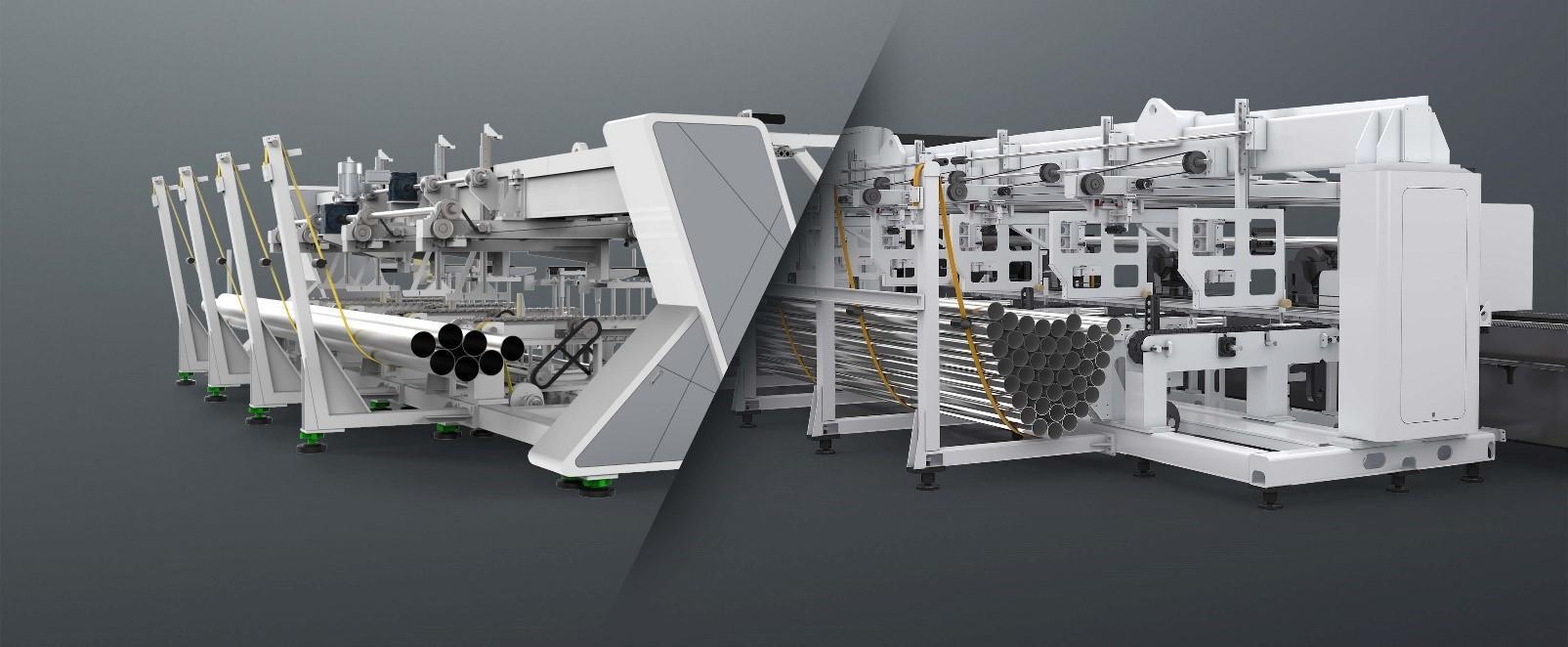

T-trans

Matching model

T seriesM230

Maximum machinable tube length

6500mm,9200mm

One-click setting

Yes

Lack of material alarm

Yes

Add Tube midway

Yes

Automatic loading

Yes

Anti-scratch tube

Yes

Host security interlock

Yes

Loading tube type

Round tube,Square tube,Rectangular tube

Tube size range

Round tube : Φ20-Φ230mm

Square tube 20 - 160mm

Rectangular Tube : 200mm≥Side length≥20mm
Circumscribed circle diameter≤230mm

Maximum tube weight

200Kg 30Kg/m

Tube loading length range

21'3000mm-6500mm
30'3000mm-9200mm

Maximum load capacity of storage bin

21'2 ton
30'3 ton

Maximum diameter of bundle

900mm

Module dimensions

21' 8050*3237*2192mm
30'10750*3230X2192mm

Weight

21'7600kg
30'11200kg

Total power capacity/current

21'9KVA/20.7A
30'12.5KVA/28.75A

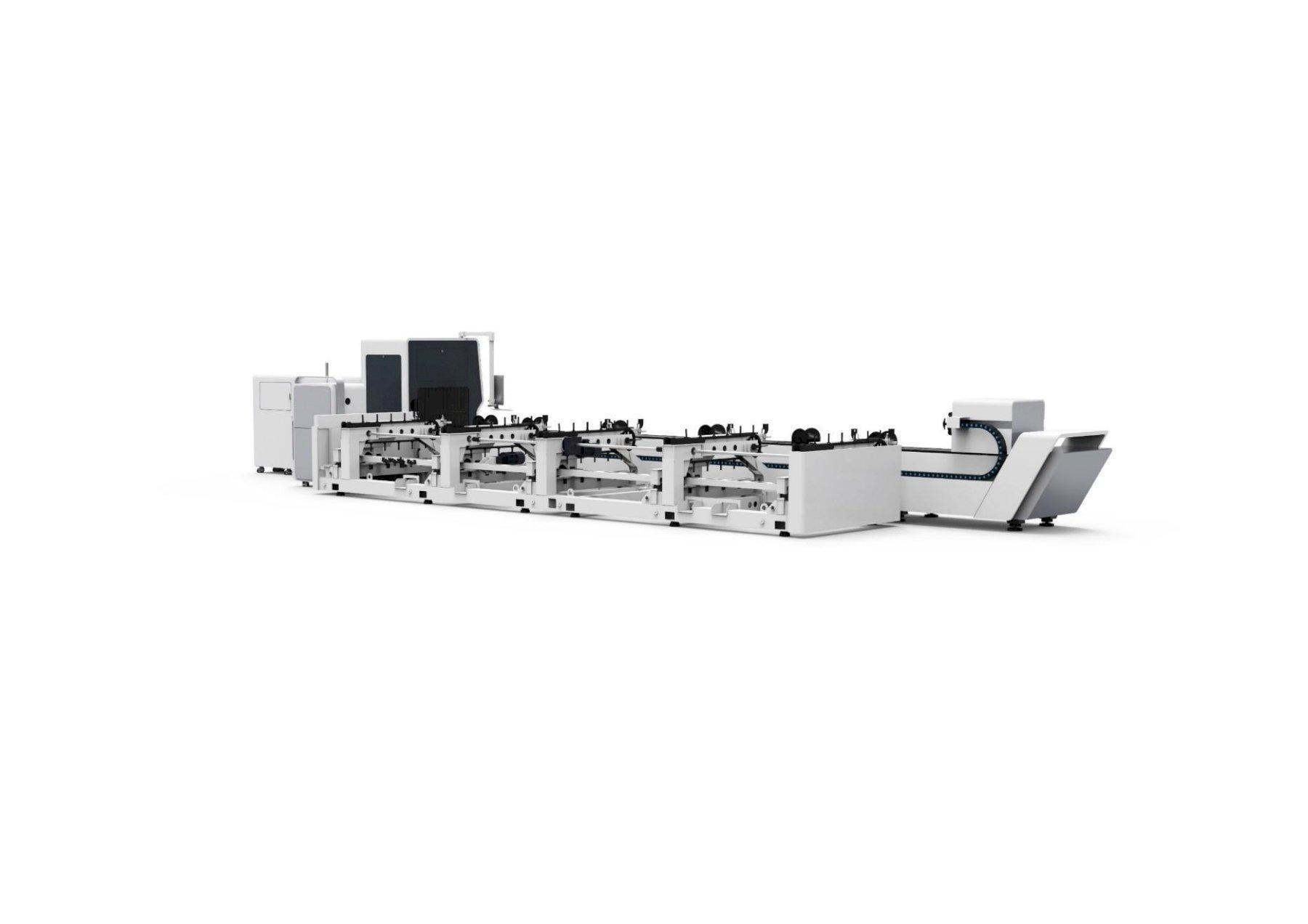

T-Loader

Matching model

T seriesM230

Maximum machinable tube length

6500mm,9200mm

One-click setting

Yes

Lack of material alarm

Yes

Add Tube midway

Yes

Automatic loading

Yes

Anti-scratch tube

Yes

Host security interlock

Yes

Loading tube type

Round tube,Square tube,Rectangular tube

Tube size range

Round tube : Φ20-Φ230mm

Square tube 20 - 160mm

Rectangular Tube : 170mm≥Side length≥20mm
Circumscribed circle diameter≤230mm

Maximum tube weight

300Kg

Tube loading length range

21'4500mm-6500mm
30'4500mm-9200mm

Maximum load capacity of storage bin

1.2t

Location number

11φ<906(φ>90)

Module dimensions

21'6598*2484*1265mm
(30')9598*2484*1265mm

Weight

21'3100kg
30'4300kg

Total power capacity/current

21'5KVA/11.5A
30'6KVA/13.8A

Module dimensions

21'6598*2484*1265mm
(30')9598*2484*1265mm

Weight

21'3100kg
30'4300kg

Total power capacity/current

21'5KVA/11.5A
30'6KVA/13.8A
