For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With

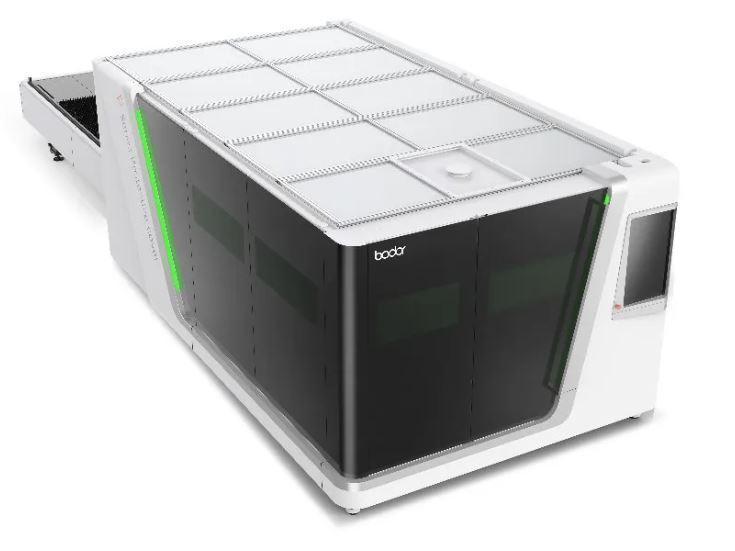

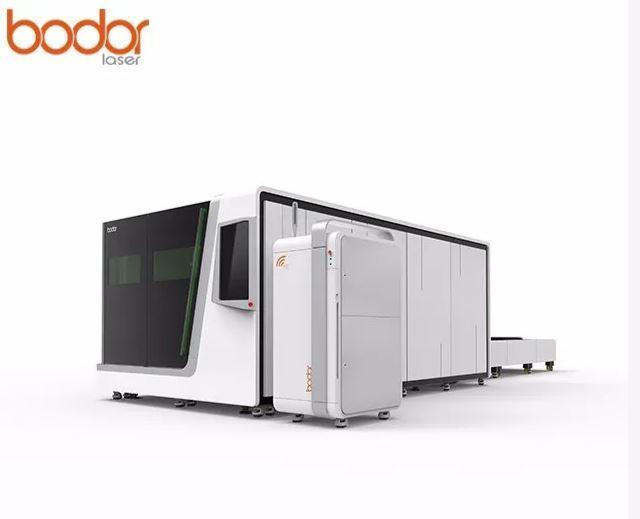

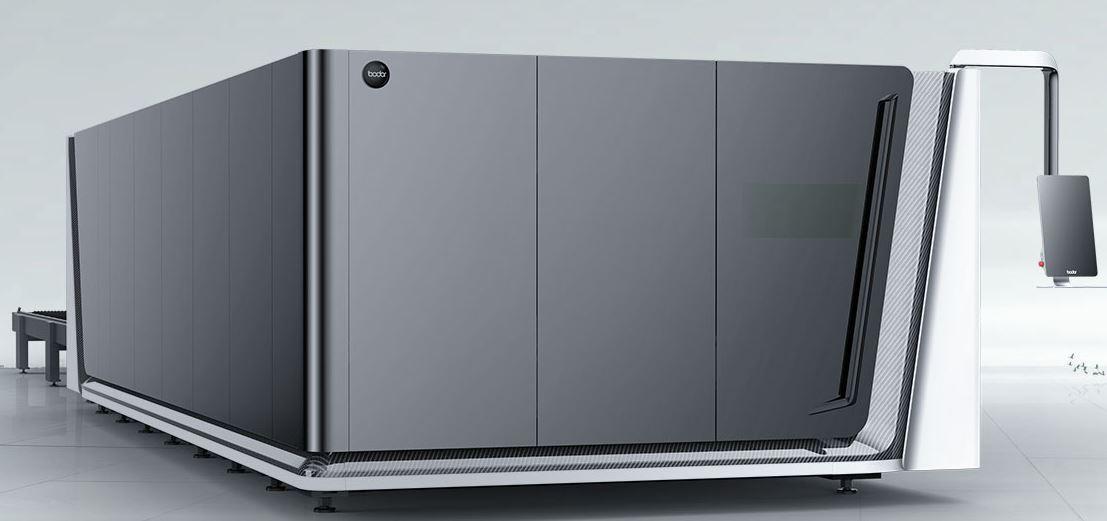

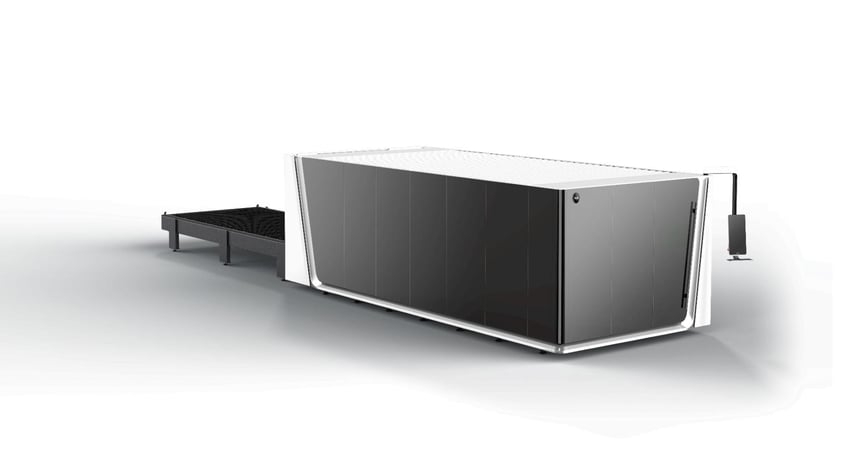

| FIBER LASER CUTTING MACHINE: | ||
| Laser Power | ||
| 6kw | ||
| Freight & Tariff | Included | |
| Installation & Training Cost | Included | |
| Transportantion | By Sea | |
| Loading Container | 2*40'HQ | |
| Payment Terms | 30% down payment, 70% before shipment. | |
| Warranty | Three years limited warranty for main parts. One year free labor. | |
| Optional list: | ||
| iTrans (Automation) | ||
| Fume filter | ||
| Air Compressor | 3kw, 6kw | |
| 12kw, 22kw | ||
| ≥30kw | ||
| Basic Parameter: | ||
| Working area | 3048mm*1524mm (5'x10') | |
| Max. linkage speed | 200m/min (656'/min) | |
| Intelligent Function: | ||
| One-click processing | Yes | |
| Visual collision detection | Yes | |
| Remnant Typesetting | Yes | |
| One-second edge search | Yes | |
| Bodor Lightning perforation technology | Yes | |
| High Speed Cutting Expert Database | Yes | |
| Automatic nozzle changer | 8 Nozzles | |
| Automatic nozzle cleaning | Yes | |
| Touchscreen Display | Yes | |
| Air pressure intelligent control | 12KW and above | |
| Automatic adjustment of cutting gas pressure | 6KW below: O2 6KW and above: O2, N2, air | |
| Gas filtration alarm device | 12KW and above | |
| Auto-focus of laser head | Yes | |
| Laser cutting technology expert database | Yes | |
| Ergonomic Remote Control (Bodor Mango®) | Yes | |
| Active anti-collision function | Yes | |
| Intellgent over-heat adaptation | Yes | |
| Intelligent anti-shake | Yes | |
| High quality Cutting Expert Database | Yes | |
| Mineral casting anti burning | Yes | |
| Anti-slag Protection | Yes | |
| Gas-saving steady flow nozzle | Yes | |
| Intelligent maintenance reminder | Yes | |
| WIFI internet connection | Yes | |
| Bodor Cloud service | Yes | |
| Performance: | ||
| Requirements for sheet | Plate thickness≥0.8mm | |
| Max. acceleration | 4.0G | |
| Table load bearing | 1090kg3kw 1450kg≥6kw | |
| Machine overall dimensions | 8840mm*2240mm*2520mm (≈29'x7.3'x8.3') | |
| Overall weight | 6500kg | |
| Z axis travel | 350mm (≈14'') | |
| Positioning accuracy | ±0.05mm/m | |
| Repositioning accuracy | 0.02mm | |
| Φ30mm roundness | ≤0.15mm | |
| 30mm adjacent side dimension difference | ≤0.06mm | |
| 190mm adjacent side dimension difference | ≤0.15mm | |
| 190mm diagonal size difference | ≤0.20mm | |
| Configuration: | ||
| Laser source | BodorPower | |
| Laser head | Bodor Genius | |
| Machine bed | Tenon and mortise structure bed | |
| Gantry Structure | Stretched Aluminum gantry | |
| Linear Rails | Bodor | |
| Rack | Bodor | |
| X-axis, Y-axis, Z-axis, A-axis Servo motor and driver | Bodor | |
| Protective Enclosure | Yes | |
| Enhanced-partition Dust Removal | Yes | |
| Control system | BodorThinker | |
| Display size | 21.5 inches | |
| Door-open Protection | Yes | |
| Intelligent alarm | Yes | |
| Water Chiller | Yes | |
| Centrifugal fan | Yes | |
| Power Requirements | 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) | |
| Total power capacity/current with 60KW source (380V) | 326.8KVA/496.5A | |
| Total power capacity/current with 30KW source (380V) | 192.3KVA/292.1A | |
| Total power capacity/current with 24KW source (380V) | 157.3kVA/238.9A | |
| Total power capacity/current with 22KW source (380V) | 149.8KVA/227.5A | |
| Total power capacity/current with 12KW source (380V) | 102.3KVA/155.4A | |
| Total power capacity/current with 6KW source (380V) | 63.6KVA/96.6A | |
| Total power capacity/current with 3KW source (380V) | 59.1KVA/89.8A | |
| iTrans | ||
| Working area | 3000mm*1500mm (9.84' x 4.92') | |
| Automatic Material Splitting | Yes | |
| Adjustable suction cup frame | Yes | |
| Material height identification | Yes | |
| Bed position detection | Yes | |
| Detection function of sheet metal | Yes | |
| Automatic loading | Yes | |
| Automatic blanking | Yes | |
| Host security interlock | Yes | |
| Table exchange interlock | Yes | |
| Thickness measuring device | Yes | |
| Intelligent Sheet Corner Separation | Yes | |
| Maximum thickness of feeding plate | 25mm (≈1'') | |
| Number of laser cutting (host) machines connected | 1 | |
| Maximum feeding plate size | 3000mm*1500mm (9.84' x 4.92') | |
| Minimum loading sheet size | 1000mm*1000mm (≈3.3'x3.3') | |
| Maximum loading weight | 900Kg | |
| Minimum thickness of the feeding plate | 0.8mm | |
| Finished product trolley maximum load | 3T | |
| Maximum height of finished sheet | 260mm (≈10'') | |
| V-type guide mechanism for whole process | Yes | |
| Module dimensions | 10000mm*8500mm*2600mm (≈32.8'x27.9'x8.5') | |
| Total power capacity/current (380V) | 11.25KVA/17.1A | |
| Weight | 4800kg | |
| Continuous reloading time | 110s | |
| Operation method | Touch screen operation | |
