For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Jim Smith
515-23...> Show Seller's Phone Number 515-233-6330 Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
12kW /6kWis available in this model.
WARRANTY:
5 year limited warranty for main parts. One year free labor.
OPTIONAL FEATURES:
Consumables Box
Flowbox
Fume Filter
Air Compressor
Equipped With
Equipped With

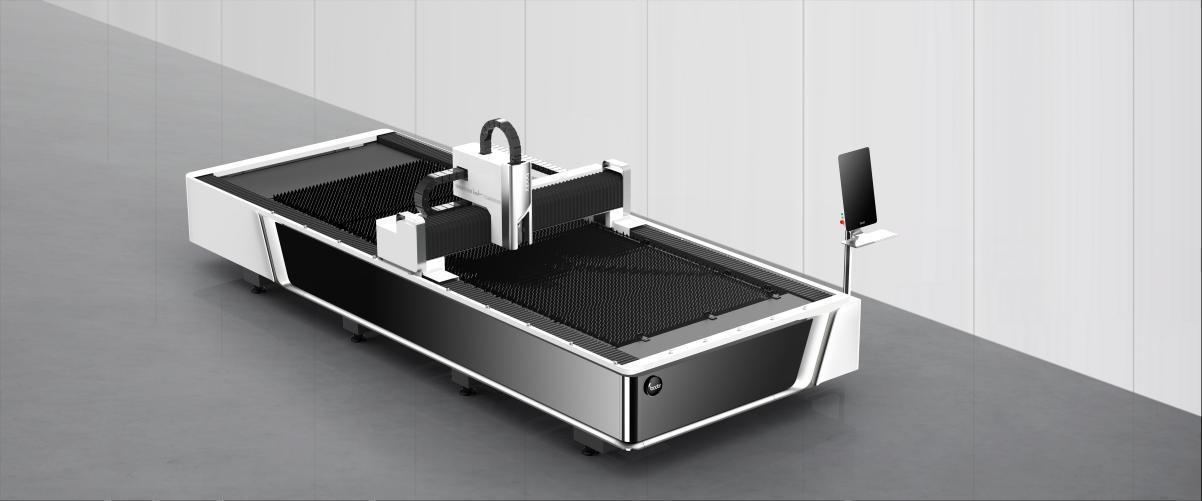

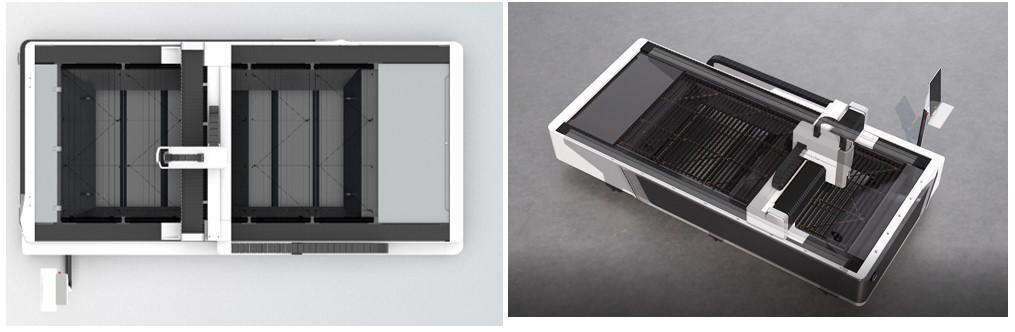

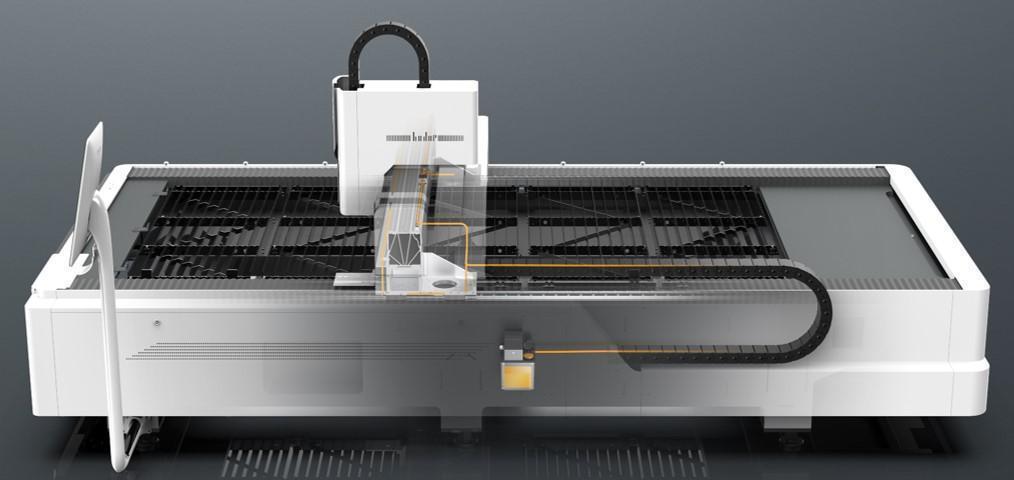

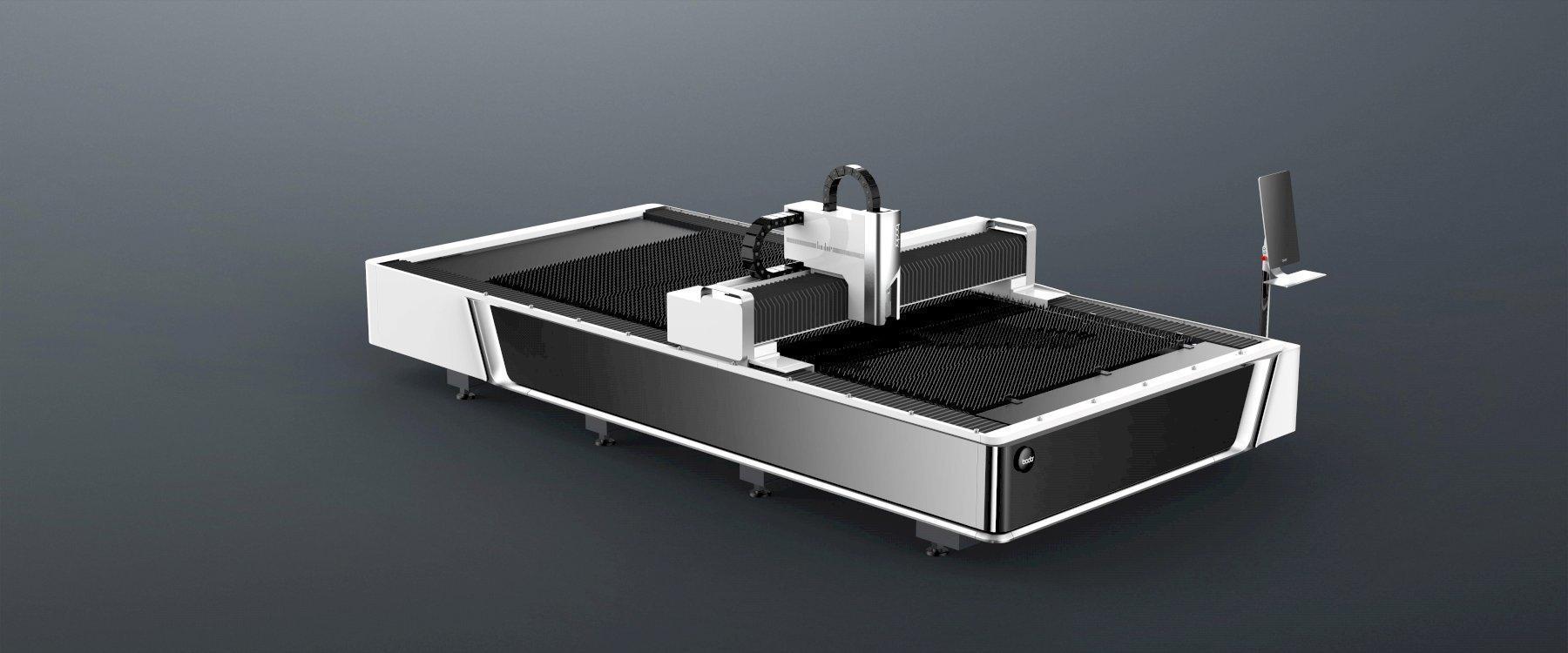

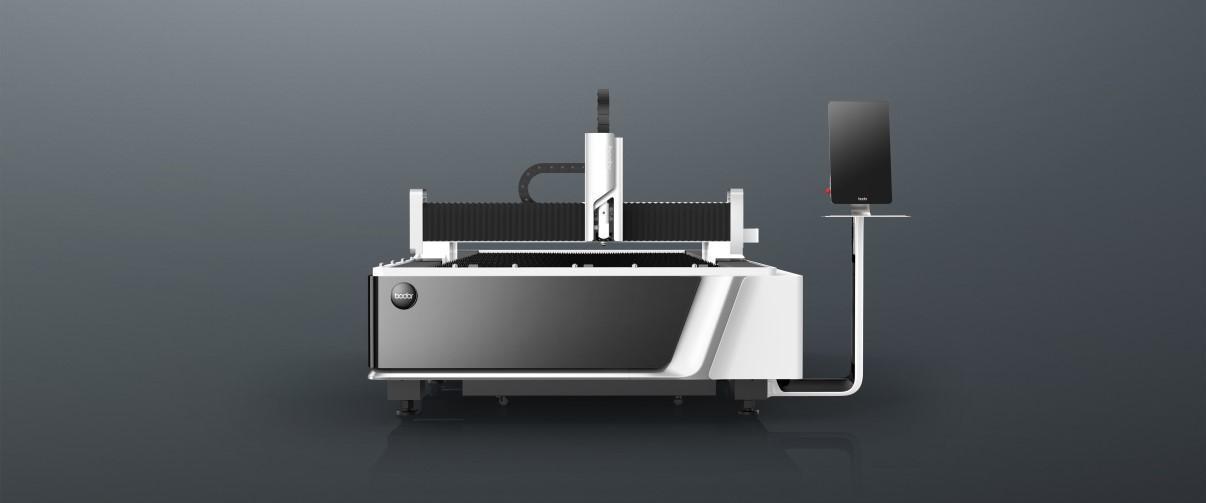

| FIBER LASER CUTTING MACHINE | ||
| Loading Container | 1* 20GP + 1*40'FR | |
| Freight&Tariff | Included | |
| Installation & Training Cost | Included | |
| Transportantion | By Sea | |
| Payment Terms | 30% down payment,70% before shipment. | |
| Warranty | 5 years limited warranty for main parts. One year free labor. | |
| Basic Parameter | ||
| Working area | 8500mm*2500m(26.4' X 8.2') | |
| Max. linkage speed | 100m/min(328ft/min | |
| Configuration | ||
| Laser source | Bodor Power | |
| Laser head | BodorGenius | |
| Machine bed | Mortise-and-tenon structure bed | |
| Gantry structure | Stretched Aluminum gantry | |
| Linear Rails | Bodor | |
| Rack | Bodor | |
| X-axisY-axisZ-axisA-axis Servo motor and driver | Bodor | |
| Integral aluminum cantilever for high pressure steel mould casting | Yes | |
| Control system | Bodor Thinker | |
| Display size | 21.5 inches | |
| System identification file format | DXFDWGPLTNCG file | |
| Intelligent alarm | Yes | |
| Water Chiller | Yes | |
| Power Requirements | 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) | |
| Total power capacity/current with 6KW source | 46.8KVA/71.2A | |
| Total power capacity/current with 3KW source | 40.5KVA/61.5A | |
| Intelligent Function | ||
| Bodor Lightning perforation technology | Yes | |
| High Speed Cutting Expert Database | Yes | |
| Remnant Typesetting | Yes | |
| Automatic adjustment of cutting gas pressure | O2 | |
| Auto-focus of laser head | Yes | |
| Laser cutting technology expert database | Yes | |
| Ergonomic Remote Control (Bodor Mango®) | Yes | |
| Touchscreen Display | No | |
| Active anti-collision function | Yes | |
| Intelligent anti-shake of sheet edge | Yes | |
| High quality Cutting Expert Database | Yes | |
| Anti-slag Protection | Yes | |
| Mineral casting anti burning | Yes | |
| Gas-saving steady flow nozzle | Yes | |
| Automatic lubrication | Yes | |
| Intelligent maintenance reminder | Yes | |
| WIFI internet connection | Yes | |
| Bodor Cloud sevice | Yes | |
| Performance | ||
| Requirements for sheet | Plate thickness≥0.8mm | |
| Max. acceleration | 1.5G | |
| Table load bearing | 1256kg1-3kw 1570kg6kw | |
| Machine overall dimensions | 5699*3396*1828mm | |
| Overall weight | 2800kg | |
| Z axis travel | 100mm | |
| Positioning accuracy | ±0.05mm/m | |
| Repositioning accuracy | ±0.03mm | |
| Φ30mm roundness | ≤0.15mm | |
| 30mm adjacent side dimension difference | ≤0.06mm | |
| 190mm adjacent side dimension difference | ≤0.15mm | |
| 190mm diagonal size difference | ≤0.20mm | |
WARRANTY:
5 year limited warranty for main parts. One year free labor.
OPTIONAL FEATURES:
Consumables Box
Flowbox
Fume Filter
Air Compressor
