For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With

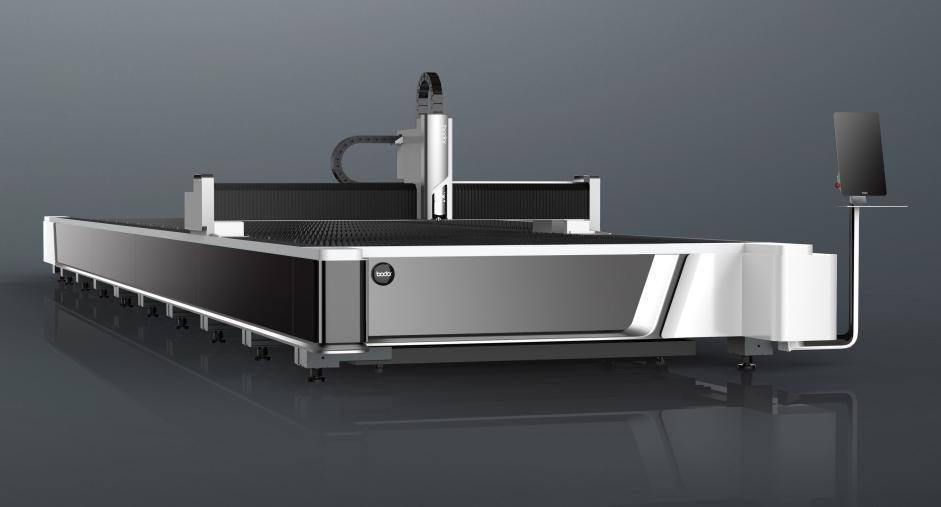

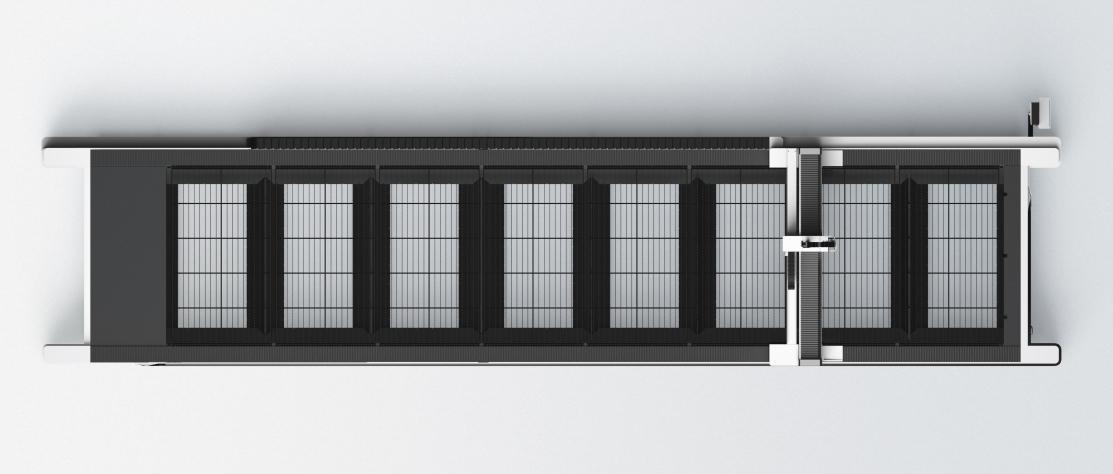

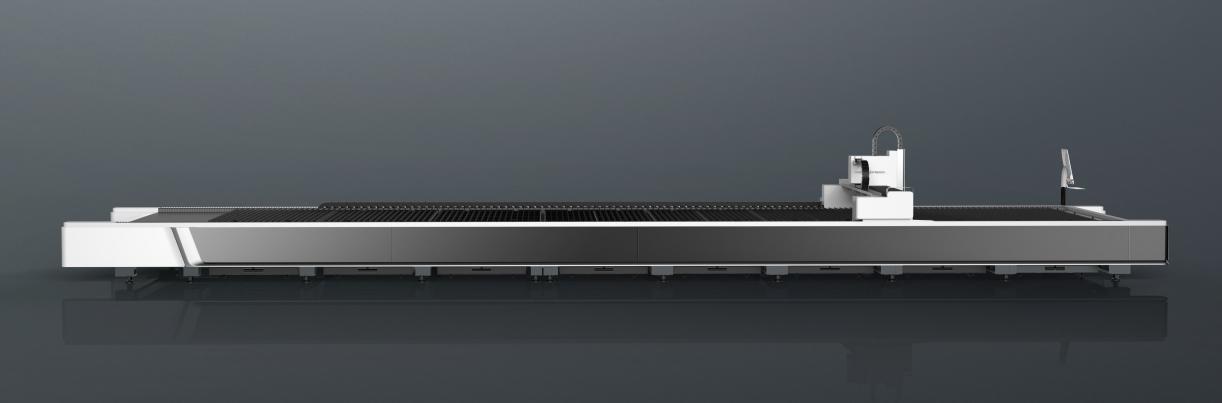

| FIBER LASER CUTTING MACHINE: | ||
| Laser Power | ||
| 30kw | ||
| Centrifugal Fan | Included | |
| Freight & Tariff | Included | |
| Installation & Training Cost | Included | |
| Transportation | By Sea | |
| Loading Container | 1*40'FR+1*40'HQ | |
| Payment Terms | 30% down payment, 70% before shipment. | |
| Warranty | Five years limited warranty for main parts. One-year free labor. | |
| Optional: | ||
| Fume Filter | ||
| Air Compressor | 12KW, 22KW, 24KW | |
| 30KW | ||
| Basic Parameter: | ||
| Working area | 12200mm*2500mm (≈40'x8.2') | |
| Max. linkage speed | 100m/min (328ft/min | |
| Intelligent Function: | ||
| Bodor Lightning perforation technology | Yes | |
| High Speed Cutting Expert Database | Yes | |
| Remnant Typesetting | Yes | |
| Air pressure intelligent control | Yes | |
| Automatic adjustment of cutting gas pressure | O2, N2, air | |
| Gas filtration alarm device | Yes | |
| Auto-focus of laser head | Yes | |
| Laser cutting technology expert database | Yes | |
| Ergonomic Remote Control (Bodor Mango®) | Yes | |
| Active anti-collision function | Yes | |
| Intelligent anti-shake of sheet edge | Yes | |
| High quality Cutting Expert Database | Yes | |
| Anti-slag Protection | Yes | |
| Mineral casting anti burning | Yes | |
| Gas-saving steady flow nozzle | Yes | |
| Automatic lubrication | Yes | |
| Intelligent maintenance reminder | Yes | |
| WIFI internet connection | Yes | |
| Bodor Cloud service | Yes | |
| Performance: | ||
| Requirements for sheet | Plate thickness≥0.8mm | |
| Max. acceleration | 1.5G | |
| Table load bearing | 5993KG(1-6KW) 7182kg(12KW) 9589KG(22-30KW) | |
| Machine overall dimensions | 15077mm*3950mm*1830mm (≈49.5'x13'x6') | |
| Overall weight | 10193kg | |
| Z axis travel | 100mm (≈3.9'') | |
| Positioning accuracy | ±0.05mm/m | |
| Repositioning accuracy | ±0.03mm | |
| Φ30mm roundness | ≤0.15mm | |
| 30mm adjacent side dimension difference | ≤0.06mm | |
| 190mm adjacent side dimension difference | ≤0.15mm | |
| 190mm diagonal size difference | ≤0.20mm | |
| Configuration: | ||
| Laser source | Bodor Power | |
| Laser head | BodorGenius | |
| Machine bed | Mortise-and-tenon structure bed | |
| Gantry structure | Stretched Aluminum gantry | |
| Linear Rails | Bodor | |
| Rack | Bodor | |
| X-axis, Y-axis, Z-axis, A-axis Servo motor and driver | Bodor | |
| Integral aluminum cantilever for high pressure steel mold casting | Yes | |
| Control system | Bodor Thinker | |
| Display size | 21.5 inches | |
| System identification file format | DXF, DWG, PLT, NC, G file | |
| Intelligent alarm | Yes | |
| Water Chiller | Yes | |
| Power Requirements | 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement) | |
| Total power capacity/current with 60KW source (380V) | 325.0kVA/493.8A | |
| Total power capacity/current with 40KW source (380V) | 245.5kVA/373.0A | |
| Total power capacity/current with 30KW source (380V) | 190.5kVA/289.4A | |
| Total power capacity/current with 24KW source (380V) | 155.5kVA/236.3A | |
| Total power capacity/current with 22KW source (380V) | 148.0kVA/224.9A | |
| Total power capacity/current with 20KW source (380V) | 146.8kVA/223.0A | |
| Total power capacity/current with 12KW source (380V) | 100.5kVA/152.7A | |
| Total power capacity/current with 6KW source (380V) | 61.8KVA/94.0A | |
