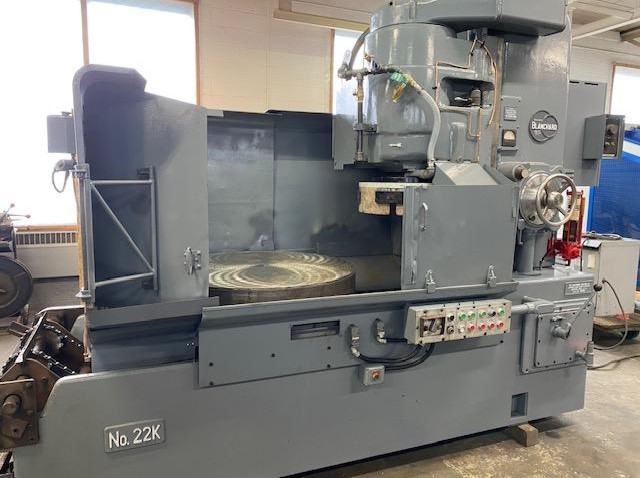

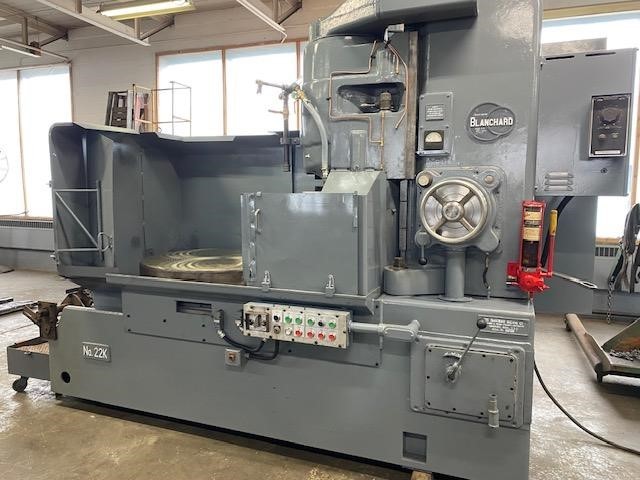

Blanchard #22-42, rotary surface grinder, 42" magnetic chuck, 22" grinding wheel, reconditioned

NOW RECONDITIONED AND READY TO GO!

CATALOG SPECIFICATIONS:

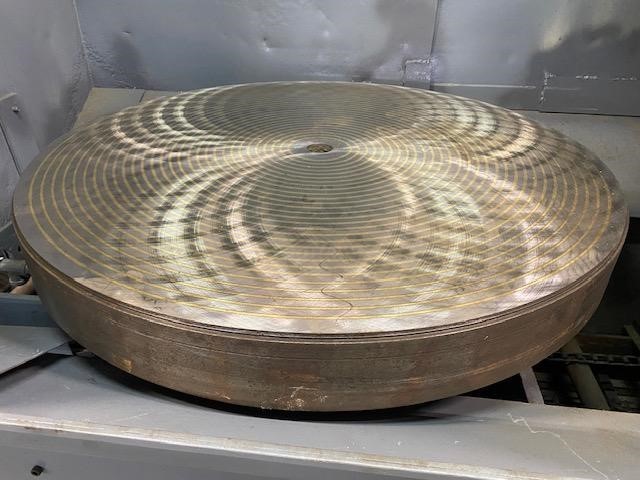

DIAMETER OF MAGNETIC CHUCK: 42"
GRINDING WHEEL DIAMETER: 22"
MAXIMUM DISTANCE UNDER NEW WHEEL: 24"
TABLE SPEEDS: (6) 6 - 33 RPM

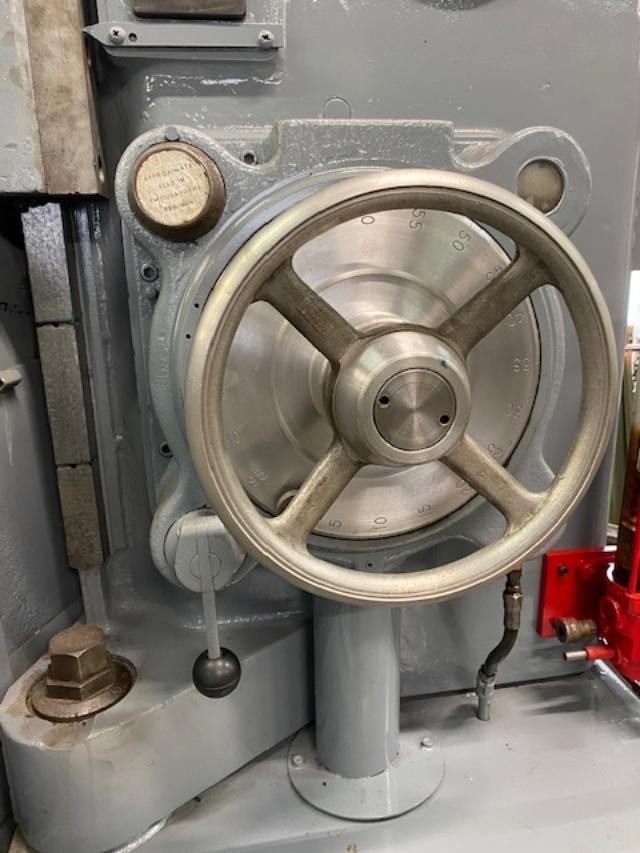

HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD: .004 - .080 IPM
APPROX. OVERALL WEIGHT: 14,000 LBS.
APPROX. OVERALL DIMENSIONS: 143" x 60" x 104" HIGH

EQUIPPED WITH:
REBUILT 50 HP GRINDING SPINDLE (BEARINGS & WINDINGS)

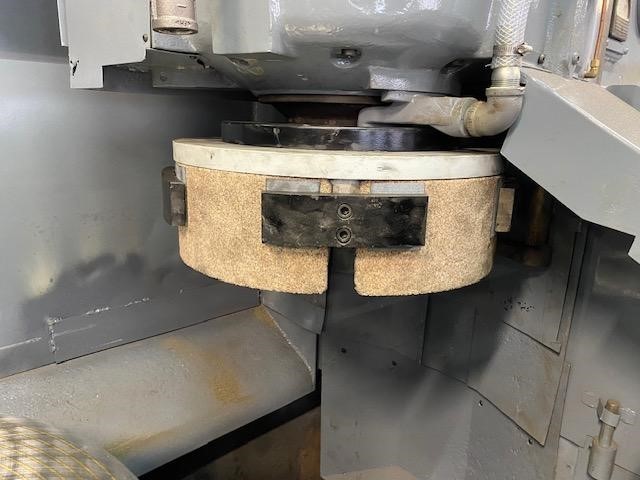

CORTLAND STYLE SEGMENTED WHEEL ADAPTER

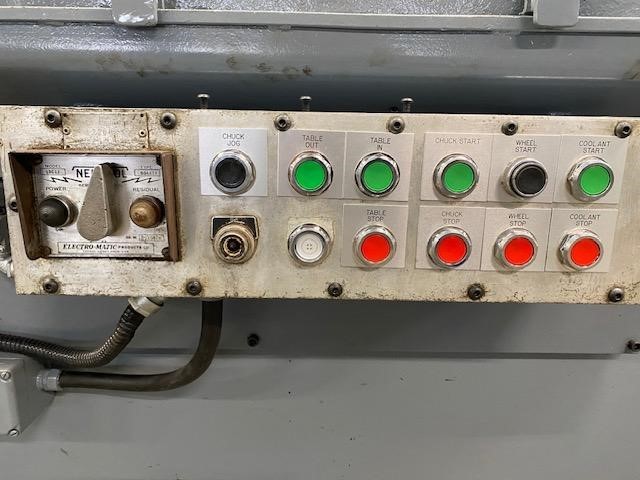

NEUTROFIER MAGNETIC CHUCK CONTROL
WHEEL DRESSER
DRAG-OUT CONVEYER WITH NEW CHAIN

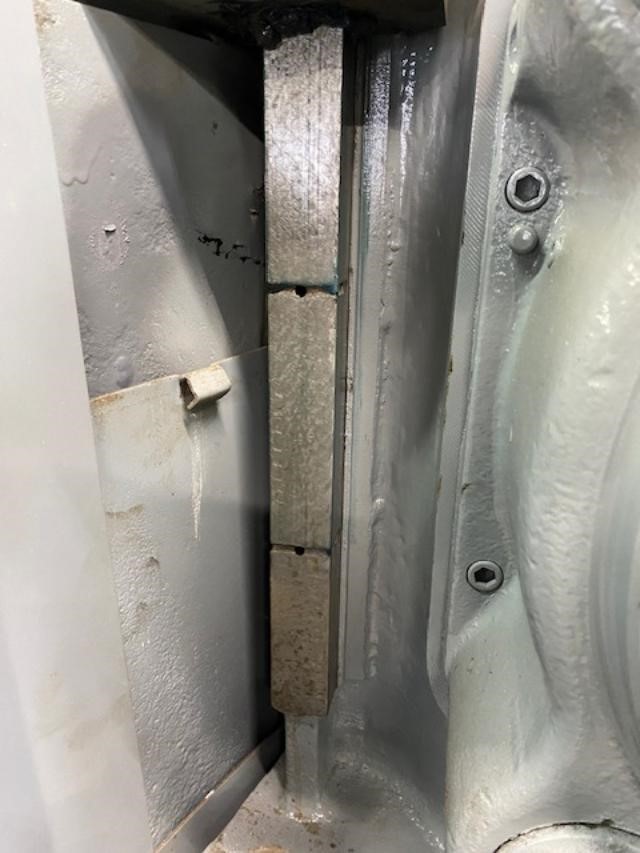

RESURFACED HARDENED BEDWAYS
SCRAPED SADDLE WAY SURFACES TO NEW WAYS
SCRAPED TABLE ROTATION WAYS

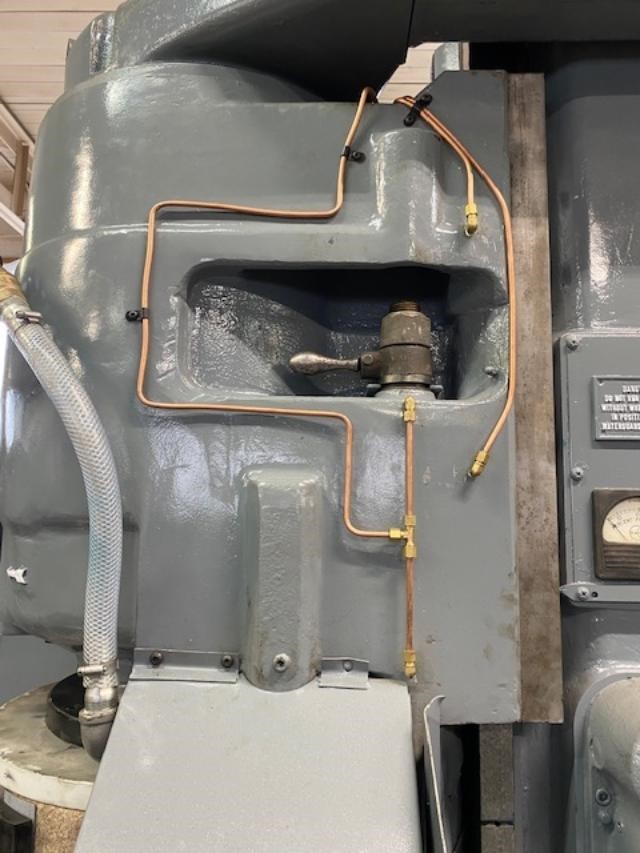

TRABON LUBRICATION SYSTEM WITH NEW LUBE LINES FOR COLUMN
BIJUR LUBRICATION SYSTEM FOR SADDLE TRAVERSE WITH NEW LUBE LINES
NEW GREASE LUBE LINES FOR HEAD
NEW LUBE LINES FOR SADDLE TRAVERSE
GRIND TABLE FLAT
MACHINE PAINTED

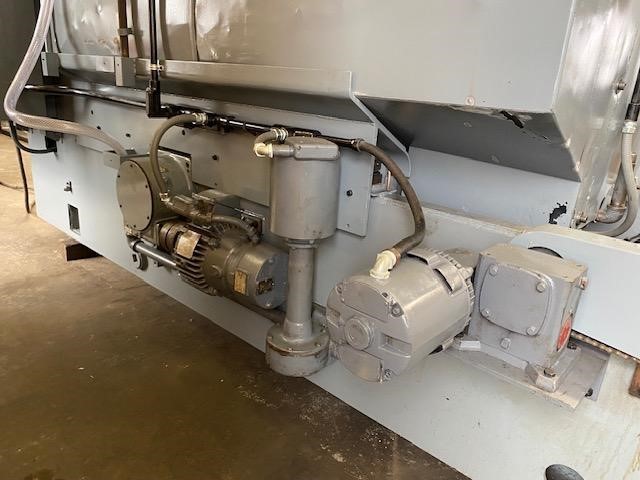

COOLANT PUMP
