For Sale by T R Wigglesworth Machinery
Surplus Record Dealer Since 1940
Location: Bedford, OH
Contact T. Wigglesworth
Phone Number: 440...> Show Phone Number 440-359-2655
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Overview
| Chuck Size | 100" | 2,540 mm |
| Power | 125 hp | 93.2 kW |
| Swing | 130" | 3,302 mm |
| Under Wheel | 48" | 1,219.2 mm |
| Grinding Wheel Dia. | 54" | 1,371.6 mm |
Specifications:

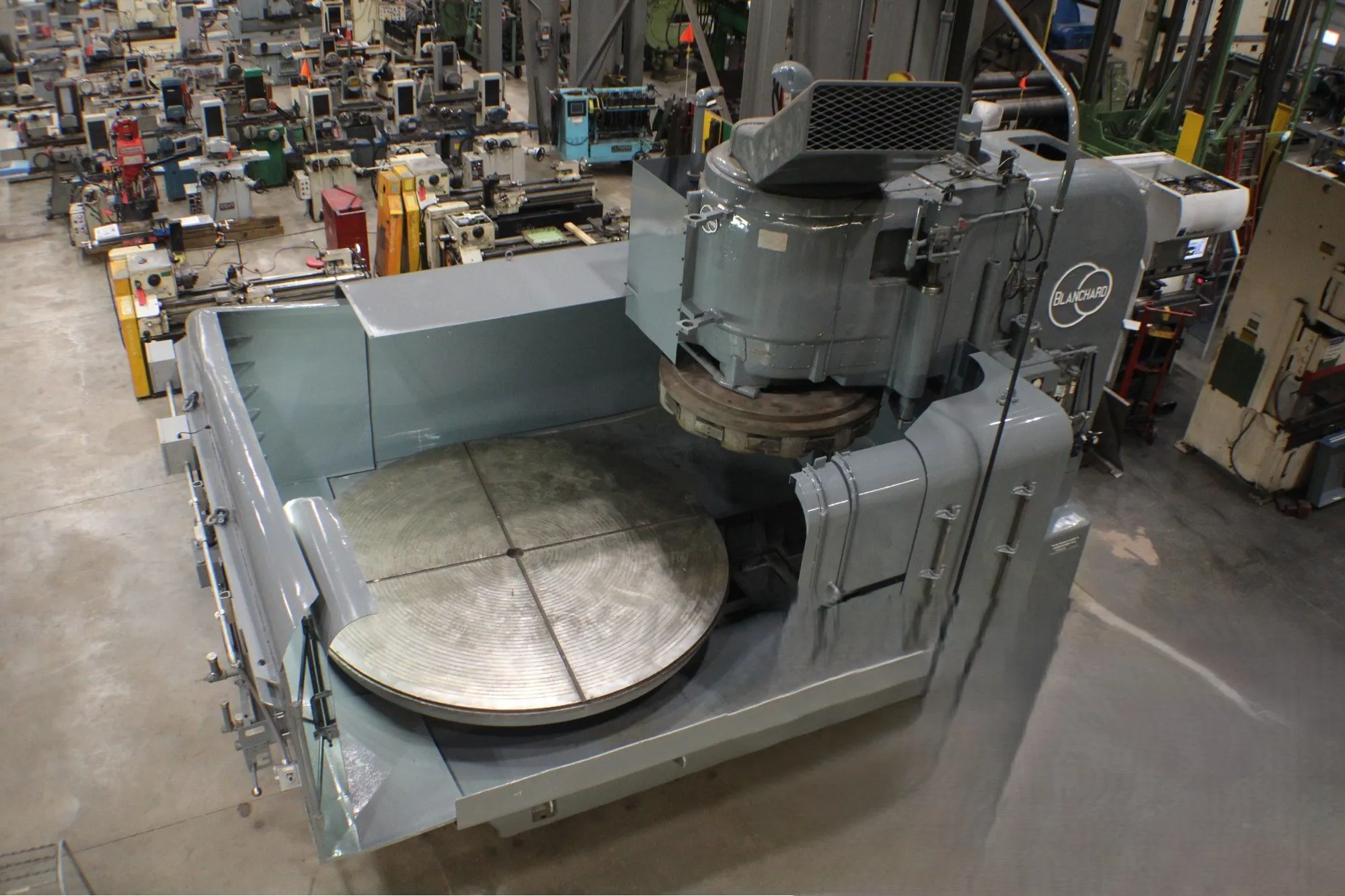

Chuck Size 100”
Max. Height over Chuck 24”
Max. Swing Diameter 128”
Max. Weight Capacity 30,000 lbs.
Chuck Pole Spacing 1-1/16”
Center Hole 4”

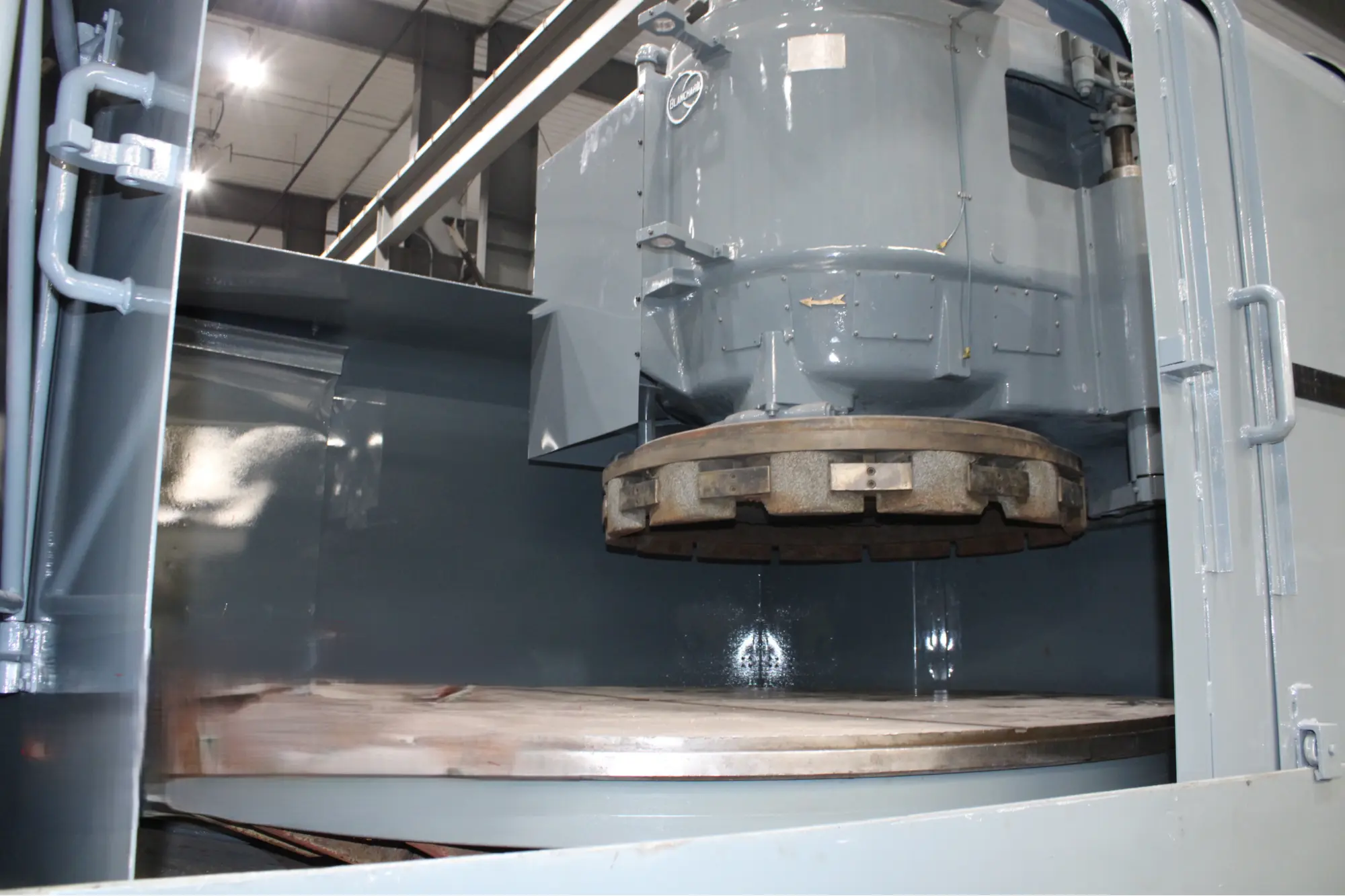

Grinding Wheel Diameter 54”

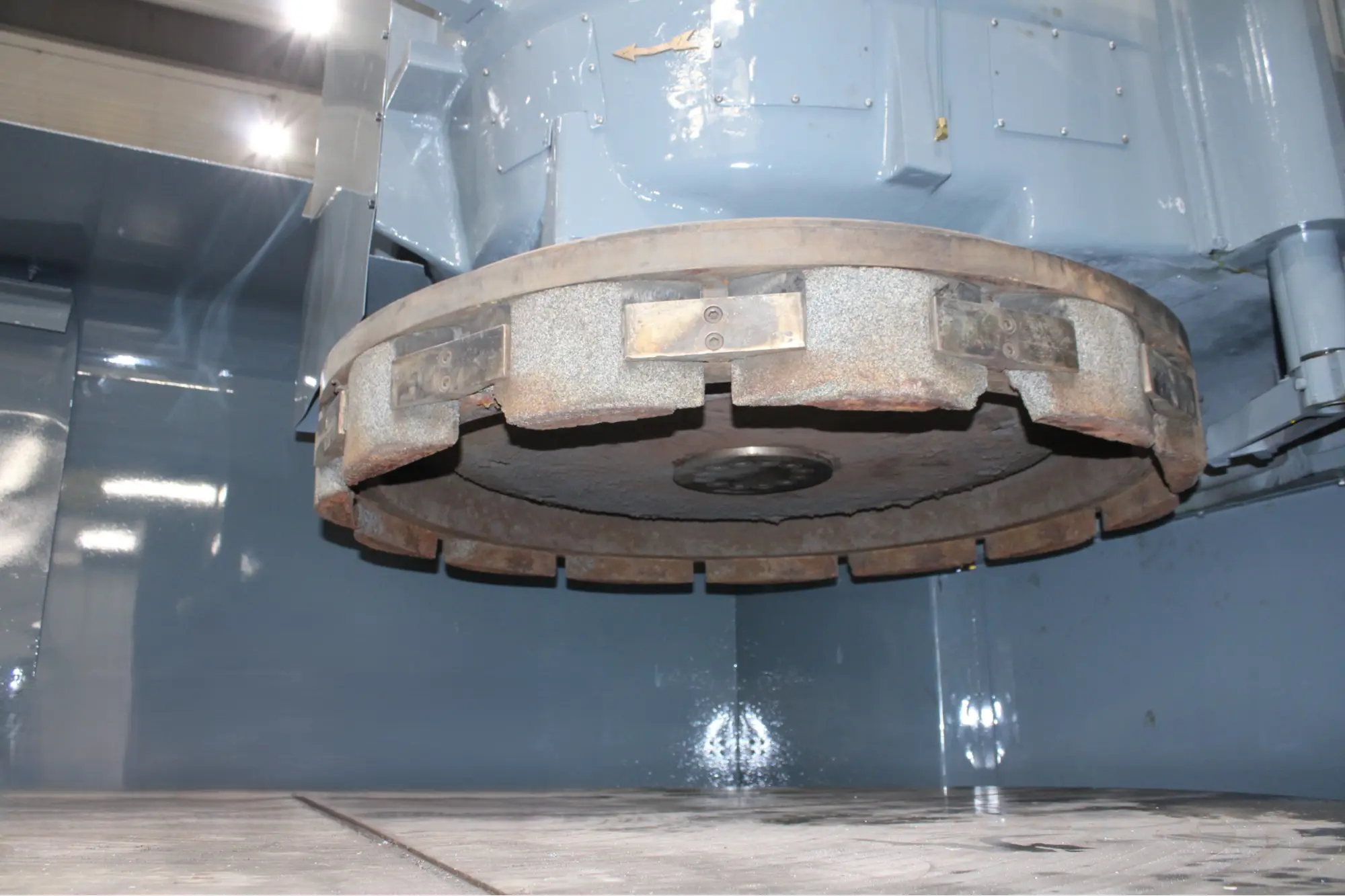

Chuck Segments 12-CD-54”, 11-¼”x 2-1/4”x6”
Wheel Speeds 270 RPM
Chuck Speeds 2.6, 4.1, 6.7, 10.2 RPM
Chuck Motor 1200 RPM, 60 Cycle
Table Traverse Motor 1200 RPM, 60 Cycle
Head Traverse Motor 900 RPM, 60 Cycle
Feed Motor 1800 RPM, 60 Cycle
Standard Grinding Horsepower 125 HP
Vertical Downfeed .004” – .080”/min
Max. Downfeed before Stop .200”
Footprint 131″ x 218″
Weight 92,000 lbs.
Overview
Type:
GRINDERS, SURFACE, ROTARY TYPE (HORIZ. SPDL.), PLC & CNC
Manufacturer:
BLANCHARDModel:
54-100
Stock #:
13627
Status:
For Sale
