Blanchard #36HD-66, 150 HP geared head spindle, 84" swing, 48" vertical capacity

QUOTATION

NASH TOOL & MACHINE SUPPLY, INC.

22701 Nagel Street

Warren, Michigan (Detroit suburb)

586-914-4478 cellular

e-mail—nashmachinery@yahoo.com

web—www.nashmachinery.com

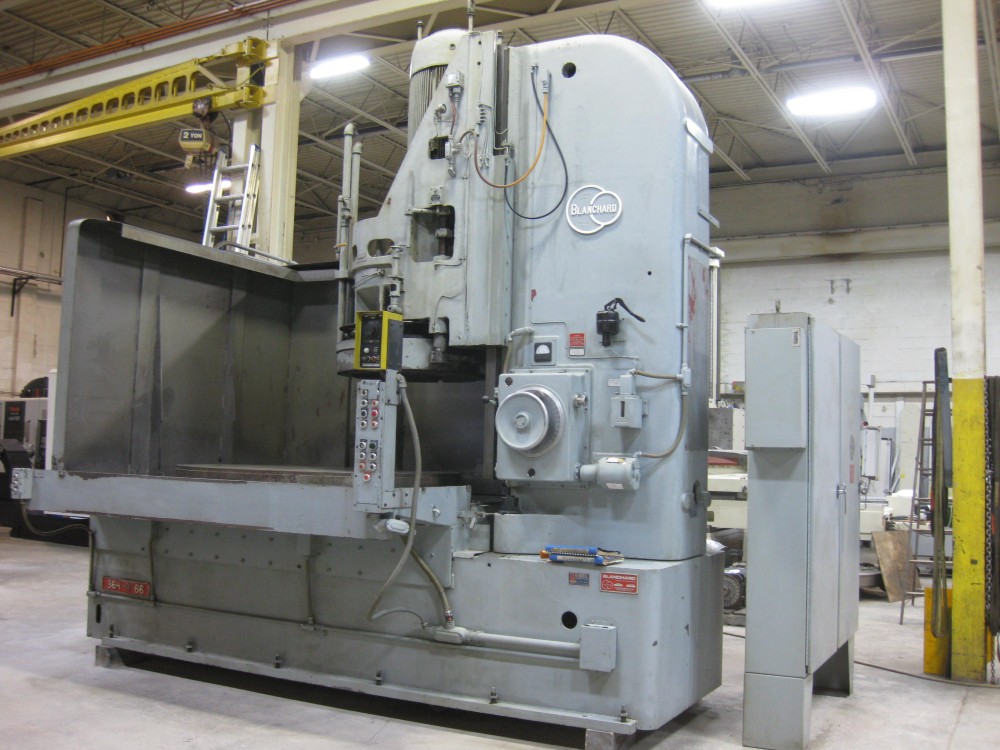

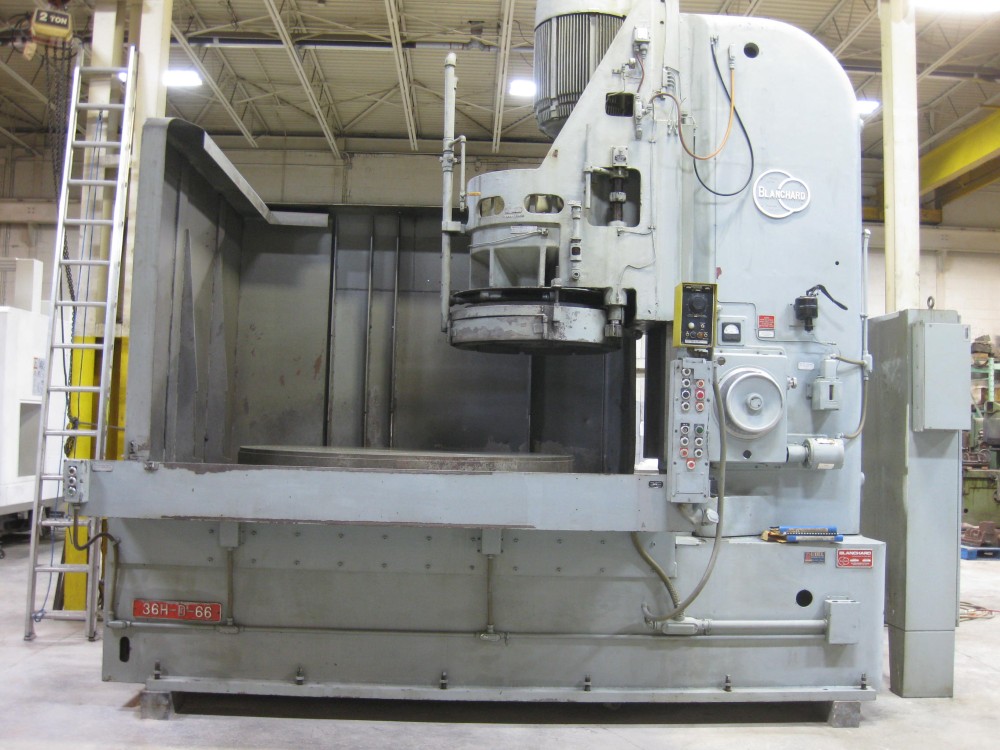

BLANCHARD MODEL 36HD66 HIGH POWER ROTARY SURFACE GRINDER

(extra height column)

Serial number 15106; built 1980 approx.

MACHINE FEATURES 150 HP GEARED SPINDLE HEAD, EXTRA HIGH 48” VERTICAL RANGE, AND NEAR NEW CHUCK LIFE

Catalog specifications--

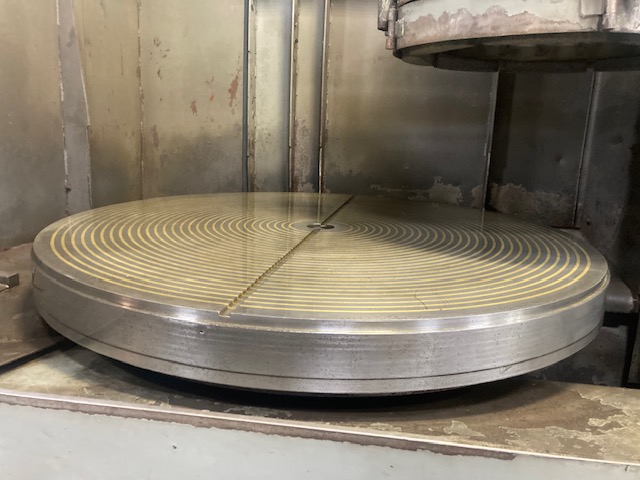

Magnetic chuck—66” diameter with 1 1/16” concentric pole spacing

Swing inside water guards—84”

Vertical grinding height range—48”

Table rotation speeds—(4) from 5.6 to 20.7 rpm

Grinding wheel—36” diameter; 8 CDTL “Bonus Grind” segments

Spindle drive motor—150 HP

Grinding spindle speed—460 rpm

Power downfeed range—0.004 to 0.080 i.p.m.

Features—

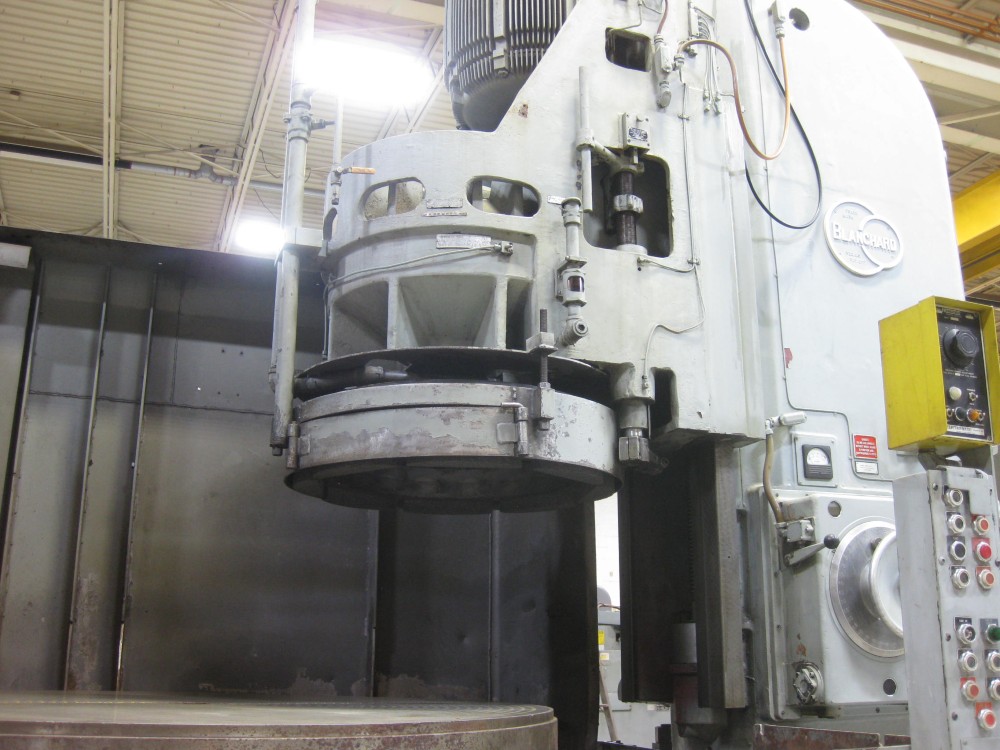

Gear head design with integral wheel dresser built into head

Trabon automatic lubrication system

Solid state variable holding power magnetic chuck control

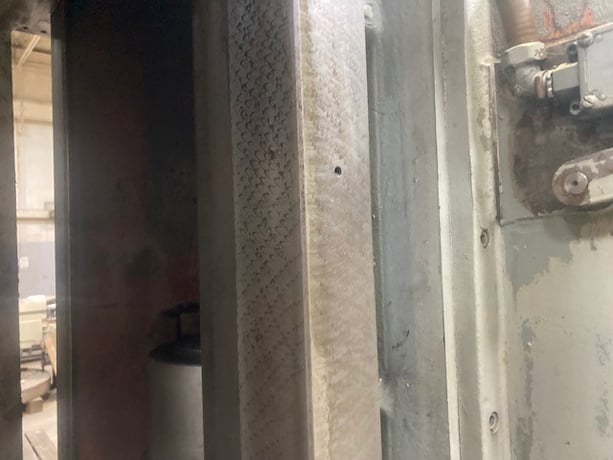

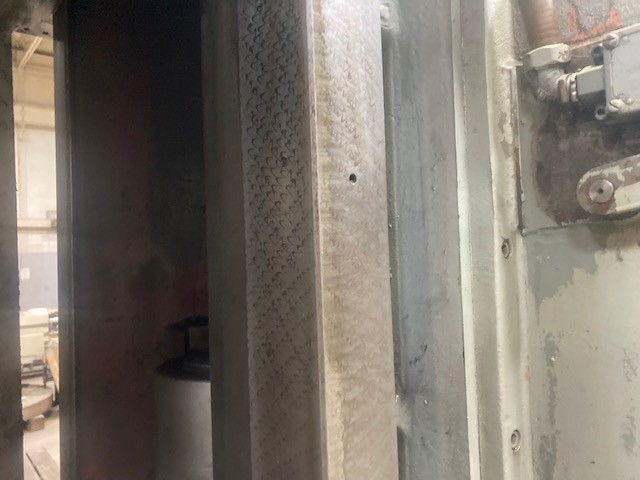

Hardened and ground replaceable steel base ways

Dry base design with separate coolant tank, pumps, and Barnes

magnetic drum separator

Electrical requirements—460/60/3-237 KVA

Weight—45,000 pounds

Floor space—97” x 195” without electrical cabinet and coolant tank

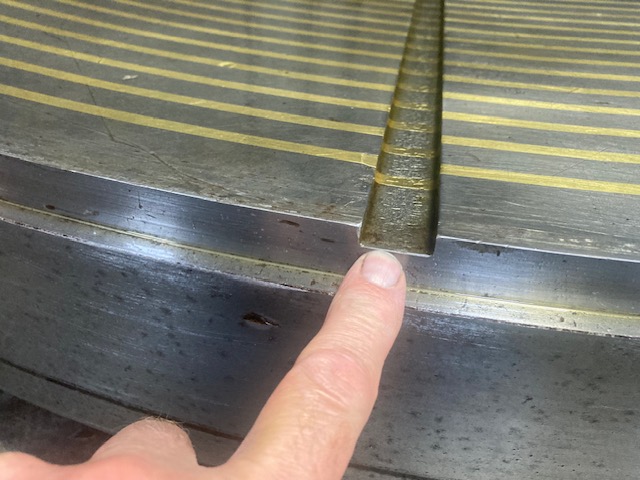

Condition—very good; used in a toolroom environment and shows nearly

new chuck life; can be inspected under power in our warehouse with

a few days of notice
